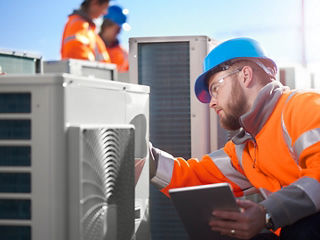

Workers assessing commercial HVAC equipment

HVAC Connectors for Reliable, Smart and Energy-Efficient Systems

HVAC technology is advancing rapidly as smart systems and energy-efficient designs become the industry norm. Manufacturers face increasing demands to integrate Internet of Things (IoT) capabilities and achieve compliance with evolving efficiency and emissions standards. Molex provides HVAC connectors and rugged components that streamline smart integration, enhance reliability and help meet stringent performance demands.

Achieving HVAC Innovation


The HVAC industry is in a dynamic transition due to rising demand for energy efficiency, modular design and intelligent system management across residential, commercial and industrial applications. As consumers and businesses prioritize smarter and more efficient operations, HVAC manufacturers must integrate IoT capabilities and advanced controls to stay competitive. At the same time, systems must perform reliably across diverse environments while meeting evolving regulatory standards.

Engineers require components that balance performance with durability to navigate this transformation. Solutions must deliver high current capacity, environmental sealing and compliance with strict safety regulations, including Glow Wire standards. Additionally, engineers seek HVAC connectors that support remote monitoring, enable efficient upgrades and fit within compact spaces. These features provide the flexibility needed to design systems tailored to specific market demands, without compromising reliability or energy efficiency.

Molex offers a comprehensive portfolio of HVAC connectors engineered to meet these complex requirements, with connectivity solutions that feature rugged materials, advanced sealing technologies and high-current capabilities to maintain long-term reliability. With modular designs and IoT-ready connectivity, Molex components help engineers create smart, efficient HVAC systems that adapt to changing needs and deliver enhanced performance across every application.

Advancing HVAC Efficiency with IoT Integration


Smart Connectivity Solutions for HVAC Systems

HVAC systems increasingly depend on the integration of IoT and smart controls to improve efficiency, manage higher power requirements and maintain performance in demanding environments. Achieving scalability and supporting secure system installation requires robust, fail-safe connectivity solutions. Molex CP Connectors deliver secure, modular and scalable connections, supporting efficient customization and seamless integration of IoT and smart technologies in HVAC systems.

HVAC touchscreen with smart IoT controls in use

Enabling Customization and Modularity in HVAC Design


Connectivity Solutions for Tailored HVAC Applications

HVAC manufacturers are facing rising demand for customizable and modular system designs. Meeting these expectations in new products requires flexible connectivity solutions such as compact, space-saving components and durable materials that deliver reliable performance across diverse applications. Molex HVAC connectors, including VersaBlade, Nano-Fit and Mini-Lock series, offer modular designs with positive-locking features, terminal position assurance (TPA) and color-coding to simplify assembly and support scalable, customizable HVAC systems.

Gloved technician working on HVAC maintenance

VersaBlade Connectors

HVAC systems often operate in harsh environments where high temperatures, vibration and mechanical stress challenge connector reliability. To maintain consistent performance, connectors must deliver high retention force, secure locking and temperature resistance. VersaBlade Connectors provide superior mating reliability, positive locking mechanisms and Glow Wire capability, making them an optimal choice for high-performance HVAC applications in demanding conditions.

Molex VersaBlade Connectors

Nano-Fit Connectors

HVAC systems demand higher power handling within tighter spaces, heightening risks such as contact stubbing and misalignment. Reliable performance depends on compact connectors with high-current capability, strong electrical integrity and built-in safeguards like color-coding and mechanical keying. Nano-Fit Connectors deliver up to 8.0A in a 2.50mm pitch, offering isolated contacts, low mating force and flexible configurations for space-conscious HVAC applications.

Molex Nano-Fit Connectors

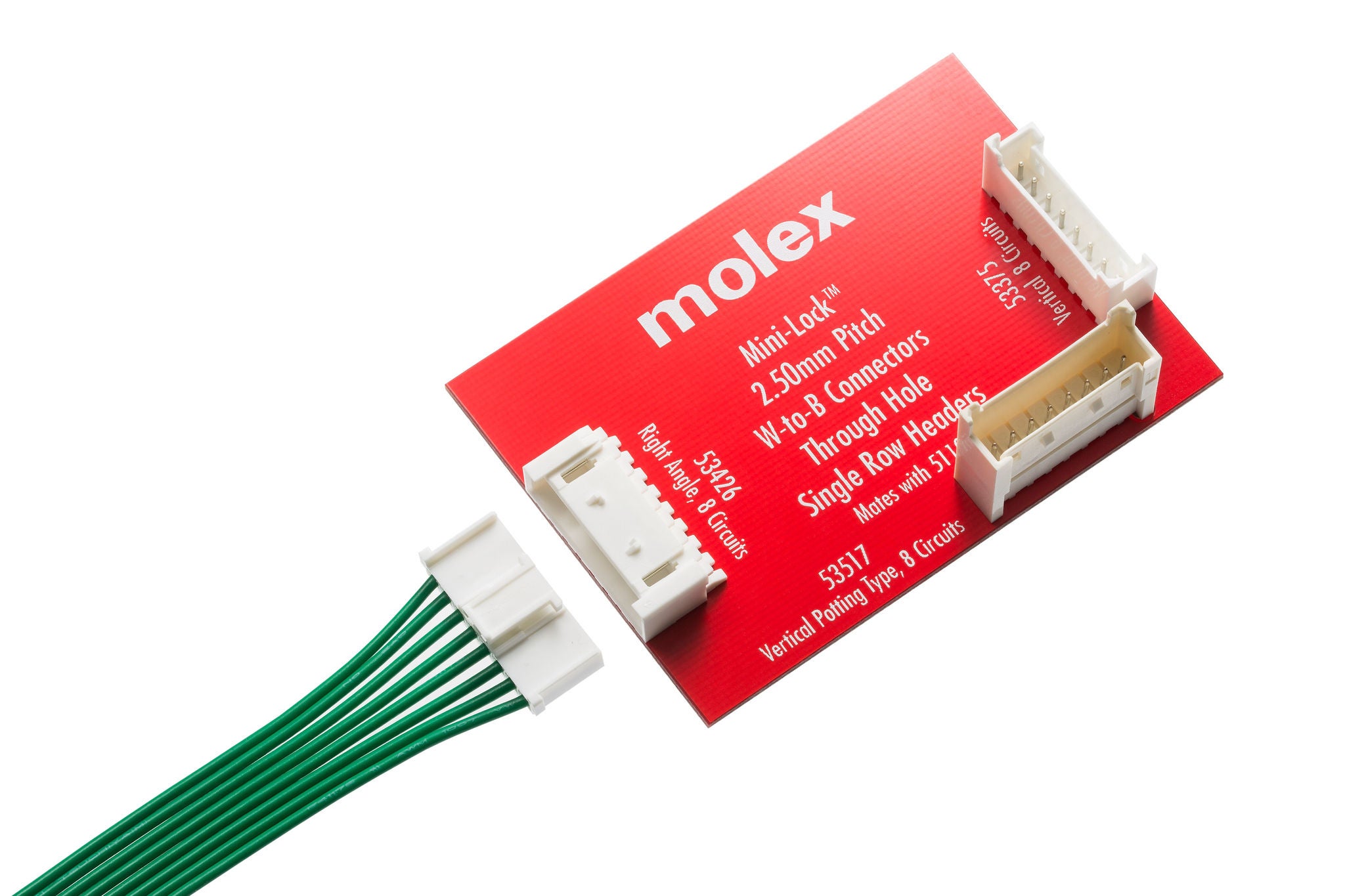

Mini-Lock Connectors

Reliable connections are essential in HVAC systems, where environmental challenges like water ingress, vibration and mechanical shock can threaten system integrity. Connectors must combine secure mating features with compliance measures such as terminal position assurance (TPA), positive locks and Glow Wire capability to meet safety and durability requirements. Mini-Lock Connectors deliver a compact 2.50mm pitch with TPA, thumb-latch locking, high guide walls and Glow Wire readiness, supporting robust, long-lasting performance.

Molex Mini-Lock Connectors

Environmental Protection and Durability in HVAC Systems


Efficiency Gains from HVAC Connectors

HVAC manufacturers across all markets aim to reduce energy use and optimize system performance. High current capacity, thermal resilience, low mating force and Glow Wire compliance contribute to gains in efficiency and overall reliability. Molex Mini-Fit Sigma and Squba connectors feature high-current handling and advanced sealing to drive energy-efficient HVAC systems in demanding environments.

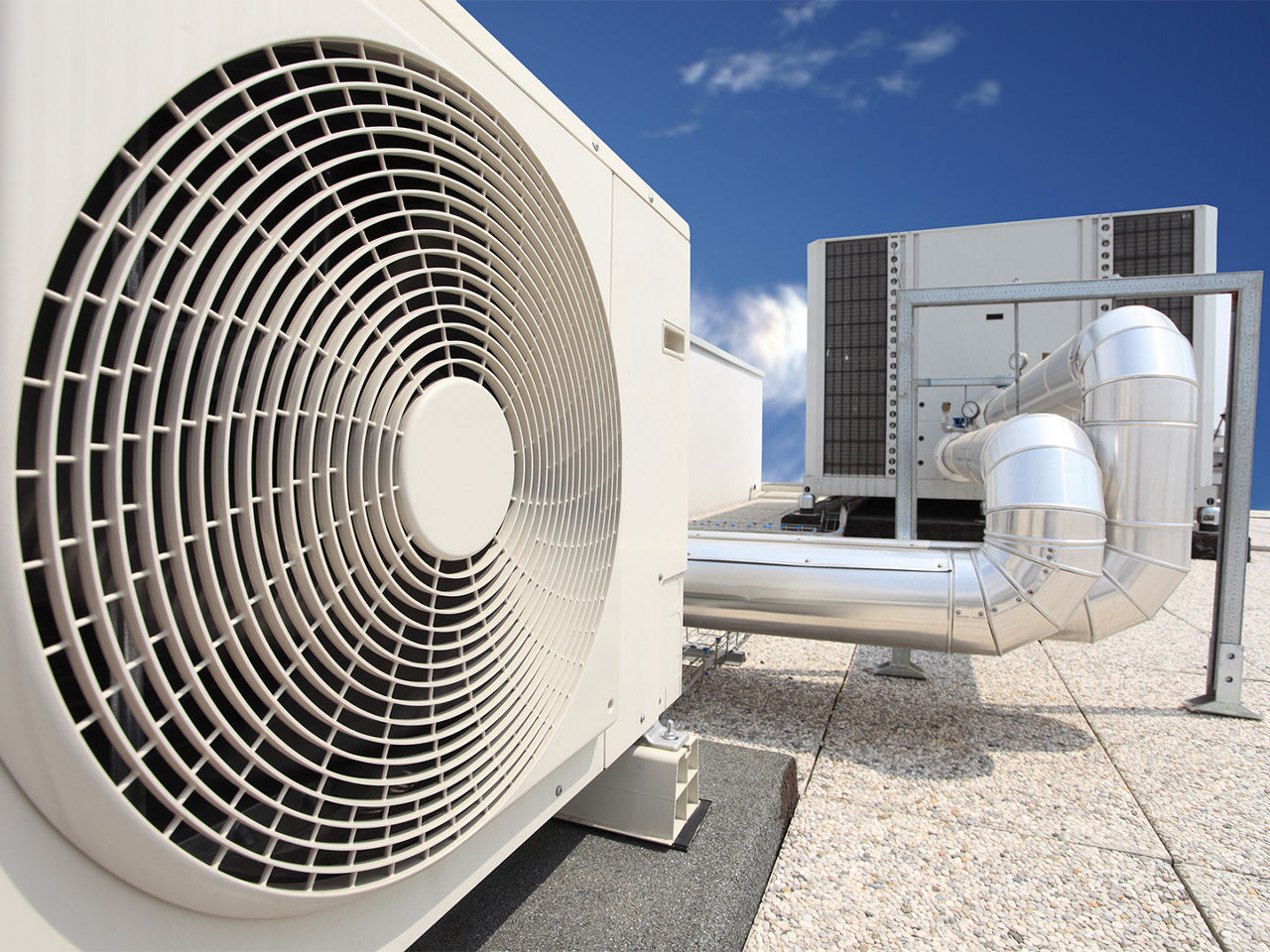

Four HVAC units exposed to natural elements

Mini-Fit Sigma Connectors

Terminal back-out caused by vibrations and thermal cycling in tight spaces can lead to costly system failure. Reliable power delivery must combine high-current capability with advanced retention features like terminal position assurance (TPA) to secure terminals against dislodgement under harsh conditions. Mini-Fit Sigma Connectors deliver up to 11.5A in a slim 4.20mm pitch. They offer TPA, Glow Wire capability and compatibility with existing Mini-Fit headers, providing engineers with greater design flexibility and secure, high-reliability connections.

Variations of Molex Mini-Fit Connectors in white and black

Compact Sealed Solutions for Reliable HVAC Performance

Harsh HVAC environments with dust, moisture and temperature swings can jeopardize efficient performance, especially in compact system architectures. Achieving consistent reliability under these conditions calls for advanced sealing, high-current support and a space-saving design. Molex Squba Connectors with IP68-rated environmental protection and up to 14.0A of current in a compact form, safeguard HVAC systems against failure while helping to maintain peak operational uptime.

Explore HVAC Applications

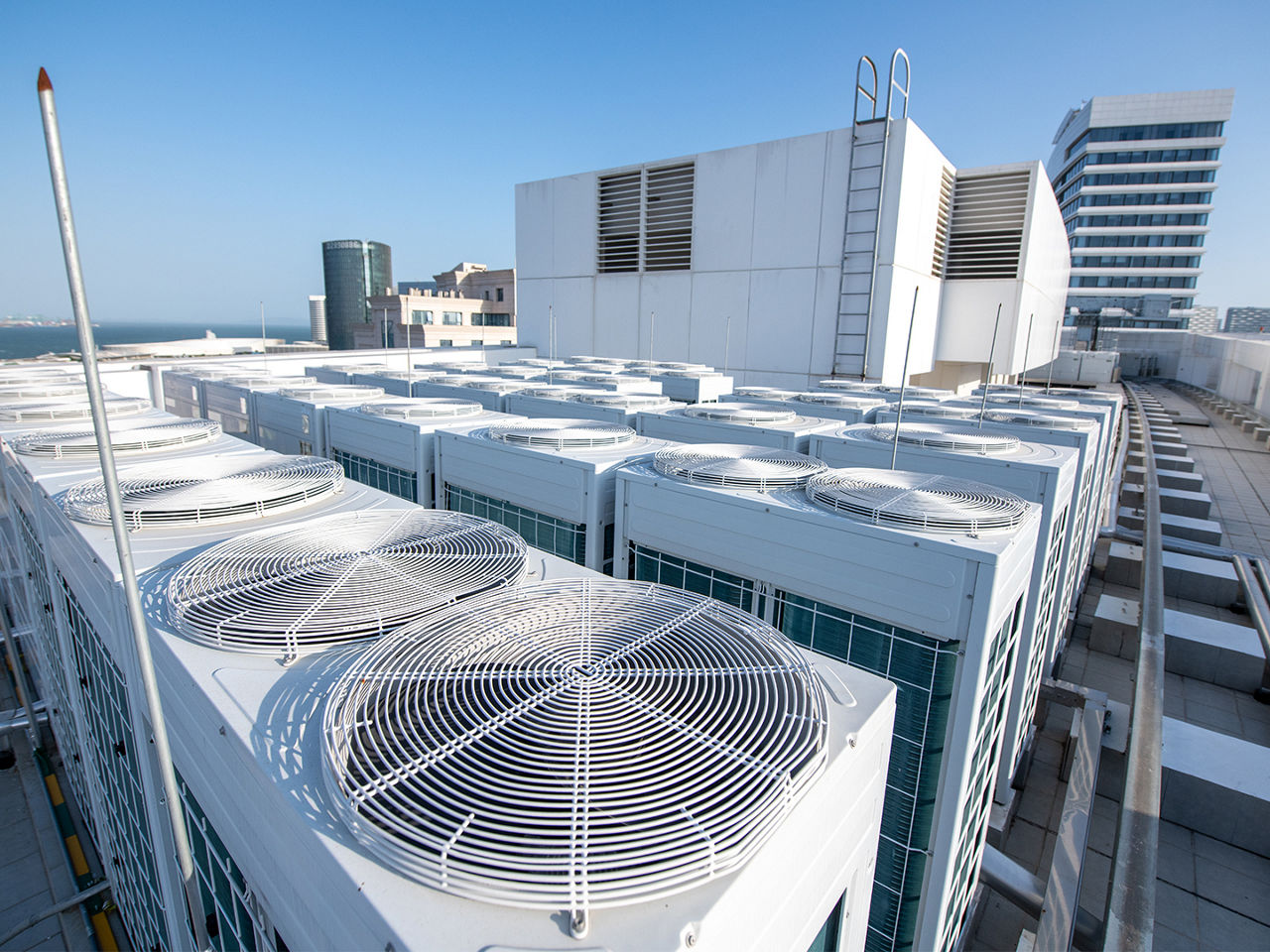

HVAC Heat Pumps

Developing efficient, reliable heat pumps for HVAC systems poses a unique set of challenges Molex provides a wide range of high-power, miniaturized connectivity solutions for harsh environments.
