Next-Generation Connector Strategies for HVAC Systems

HVAC technology has evolved from isolated, mechanical units to intelligent, networked platforms that manage climate control, provide remote diagnostics and optimize energy use.

Commercial systems have set the pace, with residential adoption following close behind and adding new features as costs align with market expectations. For engineers, the challenge of more intelligent HVAC systems is designing for increasingly dense signal architectures and more compact form factors while keeping units simple and accessible enough for serviceability.

Meeting these demands calls for a new generation of connectivity: ruggedized, modular and space-efficient connectors inspired by proven automotive designs and built to perform throughout the entire HVAC lifecycle.

Because HVAC units are built for decades of service, brand reputation rests more on reliability than on day-one performance. Design strategies reflect these concerns, continually seeking new ways to ensure long-range durability and easy maintenance. Many original equipment manufacturers (OEMs) are adopting a lifecycle approach to connectivity and choosing solutions that support error-free assembly, extend uptime and simplify field service.

Ruggedized connectors specifically designed for long-term reliability are now delivering significant benefits to HVAC system design:

Ergonomic Assembly

Connectors with slim profile housings, keyed interfaces and color-coded options reduce assembly errors and speed visual inspections. By enabling mistake-proof mating, these designs boost first-pass yield and set a solid foundation for long-term performance.

Reliable Performance

Rugged, sealed, IP-rated interconnects defend against temperature swings, water sprays, moisture, dust and vibration to preserve signal and power continuity in the toughest operating environments.

Signal Integrity in Tight Spaces

Compact, high-density connectors for HVAC with secure retention, small pitches and ergonomic assembly features support the distributed sensors and logic modules that power modern, energy-optimized systems.

Field Serviceability

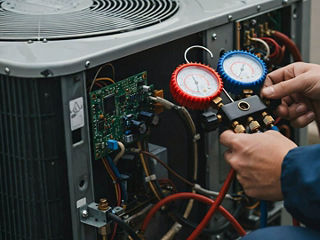

Tactile locking, low insertion force and audible clicks give technicians clear confirmation of secure connections. Organized layouts and clear color-coded labeling help prevent cross-mating, making maintenance faster and more intuitive in space-constrained units.

Instituting Error-Free Assembly

As HVAC systems integrate more sensors, controllers and actuators, the number of electrical connections per unit continues to climb. This increased circuit density leaves less room for error, yet even one miswired connector can cause downtime or damage other sensitive components. By adopting keyed housings, polarization features and color-coded components, engineers can guide assemblers toward correct mating every time.

Tactile feedback and secure locking mechanisms add another layer of assurance, ensuring connectors are properly seated both in the factory and in the field. Terminal position assurance (TPA) features can further reduce risk, locking contacts in place before final mating and providing a visual or tactile cue that assembly is correct. These strategies help OEMs protect quality, minimize rework and shorten production timelines.

Replacing Terminal Blocks with Modular Systems

The industry is shifting from traditional hardwired terminal blocks to modular connector systems, and for good reason. Modular systems allow for faster initial assembly by eliminating the tedious, manual wiring steps associated with terminal blocks. They also enable easier field diagnostics and repairs, supporting plug-and-play replacement of faulty components without specialized tools.

Additionally, modular connectors support cleaner, more organized PCB layouts, improving airflow and thermal management inside HVAC units. For OEMs, this approach streamlines production, simplifies maintenance and can help future-proof designs for evolving control architectures.

Adding Flexibility for Connector Density and Pitch Evolution

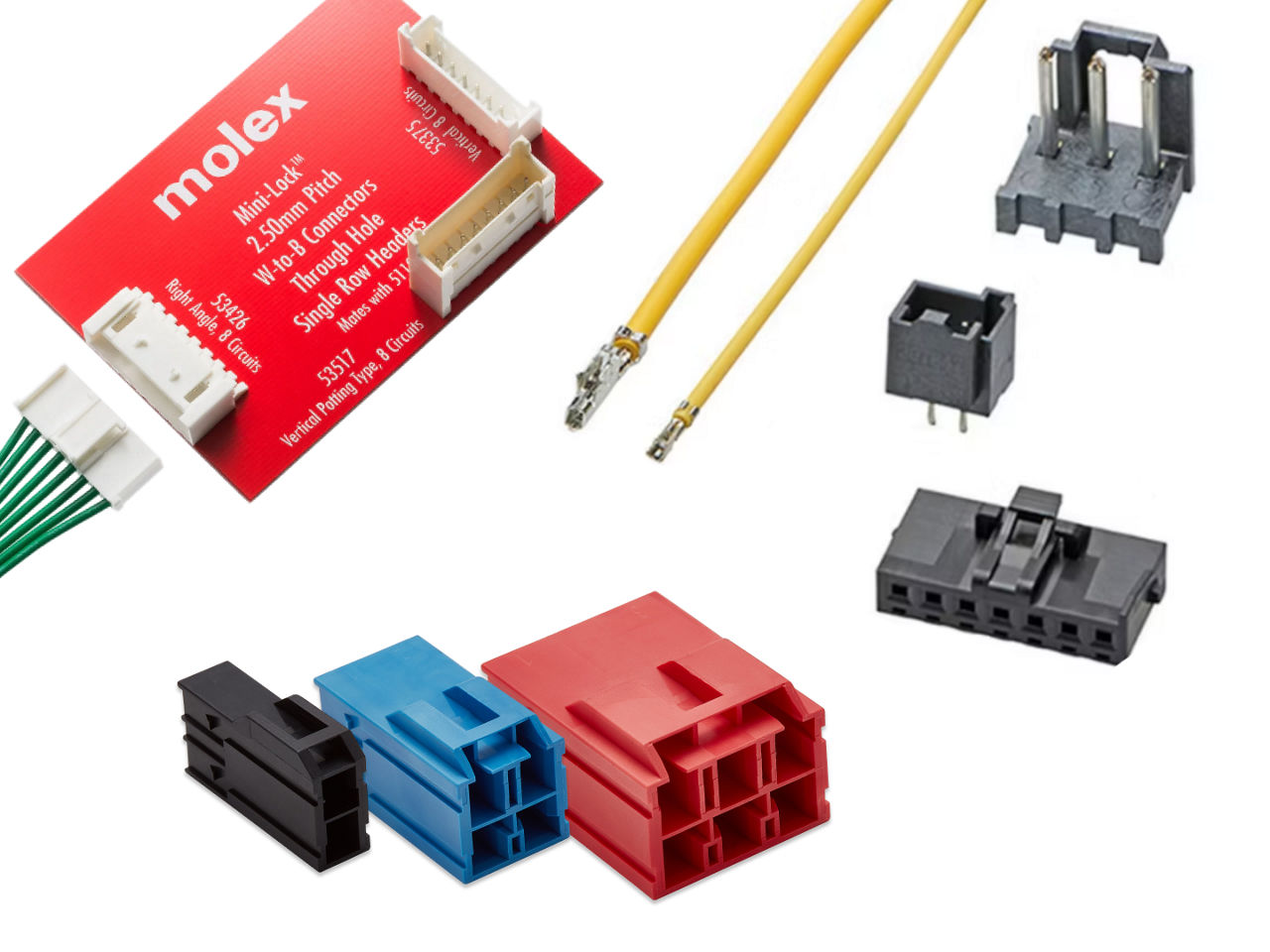

Connector pitch and density requirements vary significantly by market, making flexibility a key design advantage. While 2.50mm pitch is common in the Americas, many Asian markets favor ultra-compact solutions in the 1.25mm to 2.50mm range to save space and reduce weight.

To flexibly address this variation in system design, engineers adopt scalable connector families that maintain mechanical strength and electrical performance across different footprints and pitches, allowing OEMs to serve multiple regions with fewer unique parts. This strategy reduces inventory complexity, lowers tooling costs and speeds up design cycles while still delivering the high reliability needed for demanding operating conditions.

Adopting a Global Design Strategy

Designing for a global market demands resilience against supply chain disruptions and rapid shifts in material availability. Engineers can build this resilience by selecting connector platforms that not only meet worldwide compliance standards but also offer interchangeable components, multiple sourcing options and drop-in alternatives for critical features.

This flexibility allows OEMs to keep production lines running during supply constraints, adapt to local material availability and respond quickly to evolving regulations. A strong global design strategy blends modular engineering with robust supplier relationships, ensuring HVAC systems can be built, serviced and supported anywhere in the world without compromising performance or delivery timelines.

What began as large-scale Industrial Internet of Things (IIoT) networks for HVAC monitoring and control has now become a sought-after feature in smart home ecosystems. Future-ready HVAC systems are poised to integrate with battery energy storage systems (BESS) and advanced energy optimization software, enabling seamless coordination between climate control and household energy management. As technologies converge and sector boundaries blur, connector complexity and performance requirements will likely rise. Engineers will face growing demand for smaller, smarter and more robust solutions, modular designs adaptable to multiple platforms and connectors capable of supporting both higher power delivery and faster data rates.

Drawing on decades of cross-industry experience, Molex applies field-tested durability to the unique demands of HVAC systems. Proven innovations in sealing, vibration resistance and ergonomic connector design are refined through close collaboration with OEMs to deliver purpose-built solutions. These include optimized pin counts and layouts, customized housings and terminals, and rigorous field testing with accelerated lifecycle validation.

By listening to customer feedback and anticipating future requirements, Molex has built a portfolio of HVAC connectors that perform under pressure—producing smarter, more efficient and more serviceable systems. Ongoing investment in electrical, mechanical and manufacturing expertise at Molex ensures readiness for the next wave of HVAC innovation.

Explore HVAC connectivity solutions, from rugged sealed connectors to keyed signal interfaces and compact high-density products in the Molex HVAC Solution Guide.

Contact Molex to co-engineer a custom HVAC design tailored to your application.
