| Circuits | Data Rates | Protocols | Operating Temperature |
|---|---|---|---|
| 6 to 12 | 40Gbps (HSAutoLink C), 13.5Gbps (HSAutoLink II), 2Gbps (HSAutoLink) |
USB 2.0, USB 3.0, USB 3.2 Gen 2x2, LVDS, DisplayPort |
-40 to +105°C |
Features and Benefits
With the proliferation of advanced driver assist systems (ADAS) and infotainment options, the automotive industry has seen a rapid rise in the number and complexity of devices in the vehicle. Systems including cameras, high-resolution displays and sensors require reliable and high-performance connectivity that can fit within compact spaces.

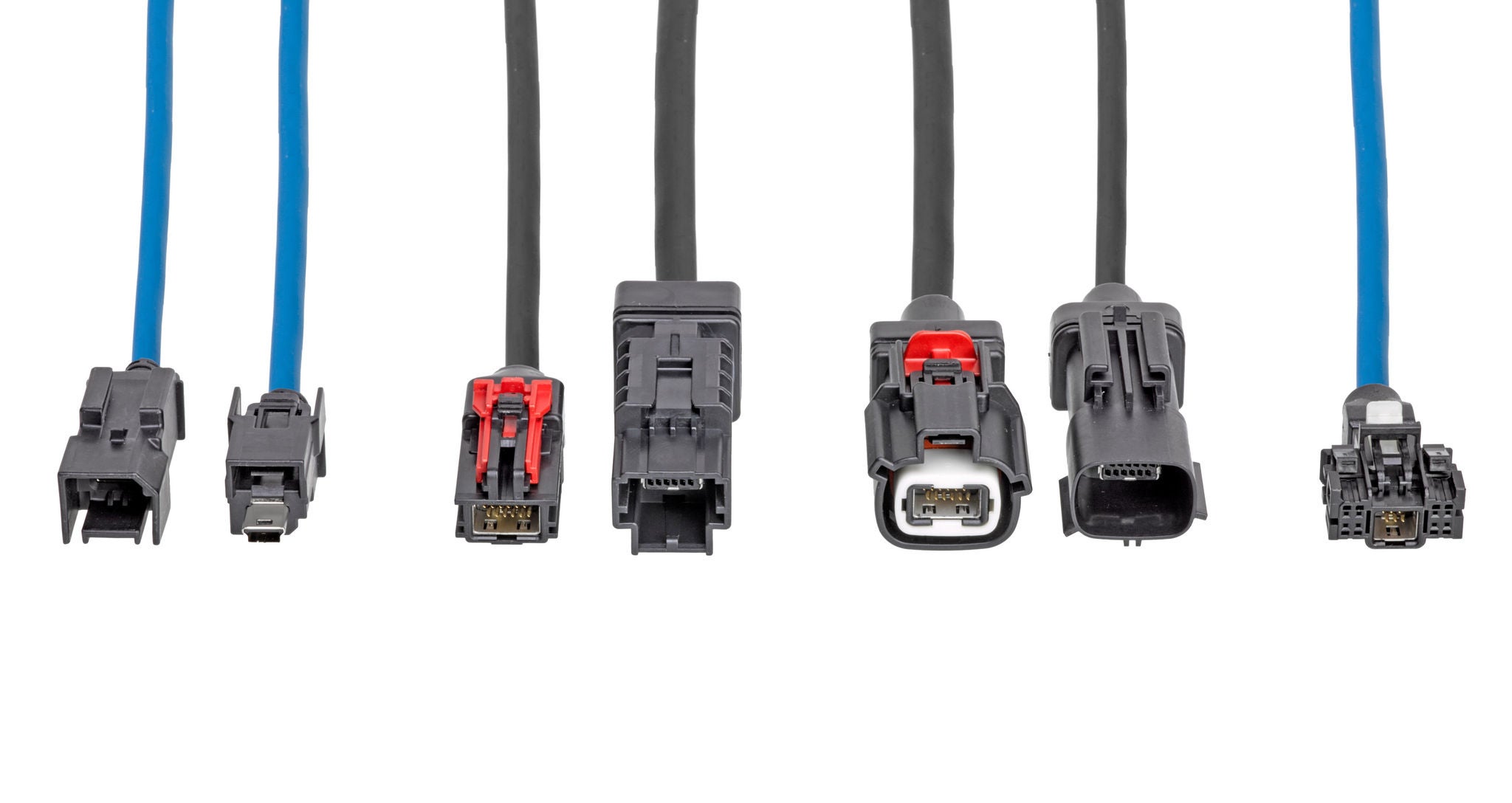

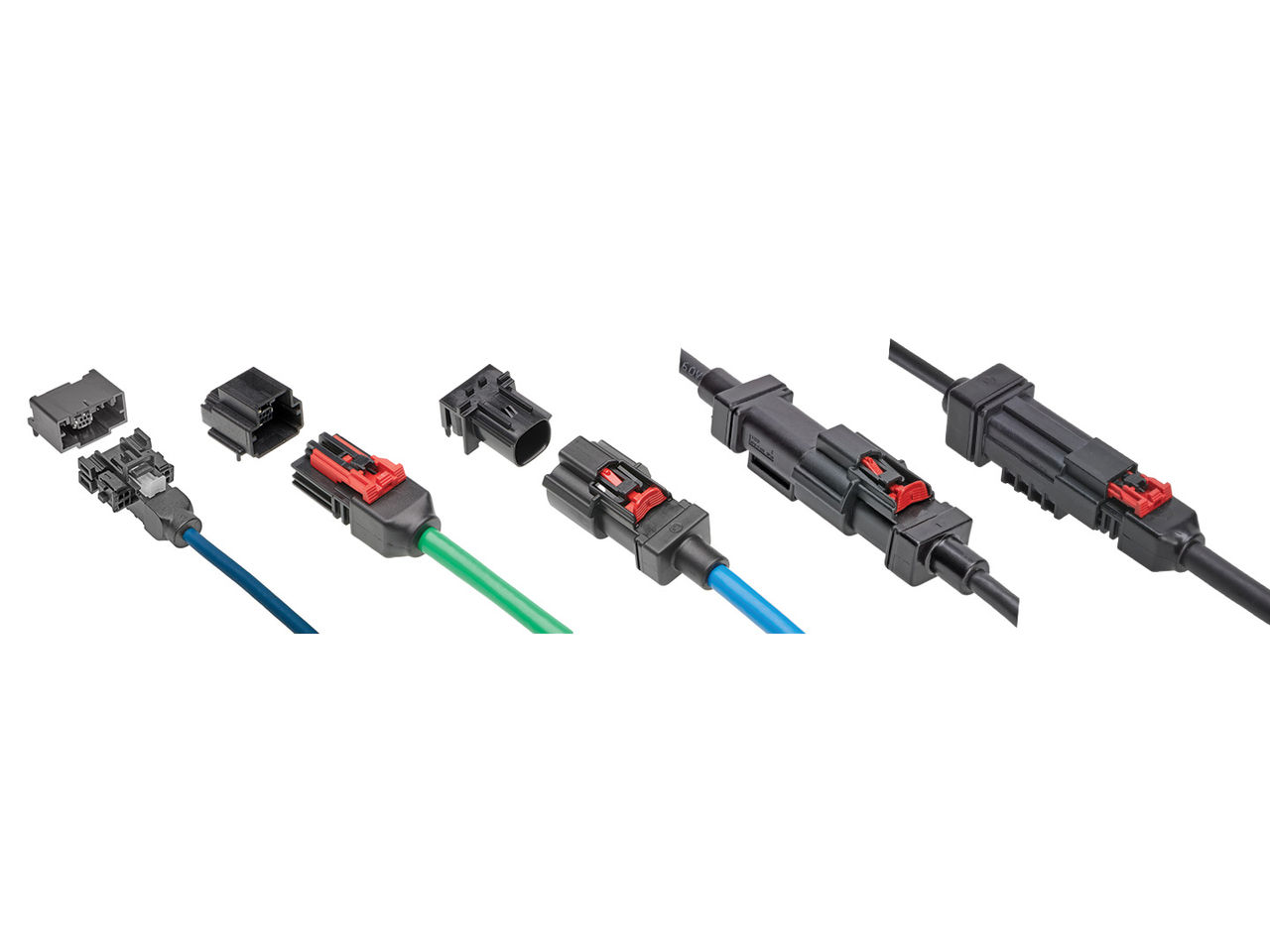

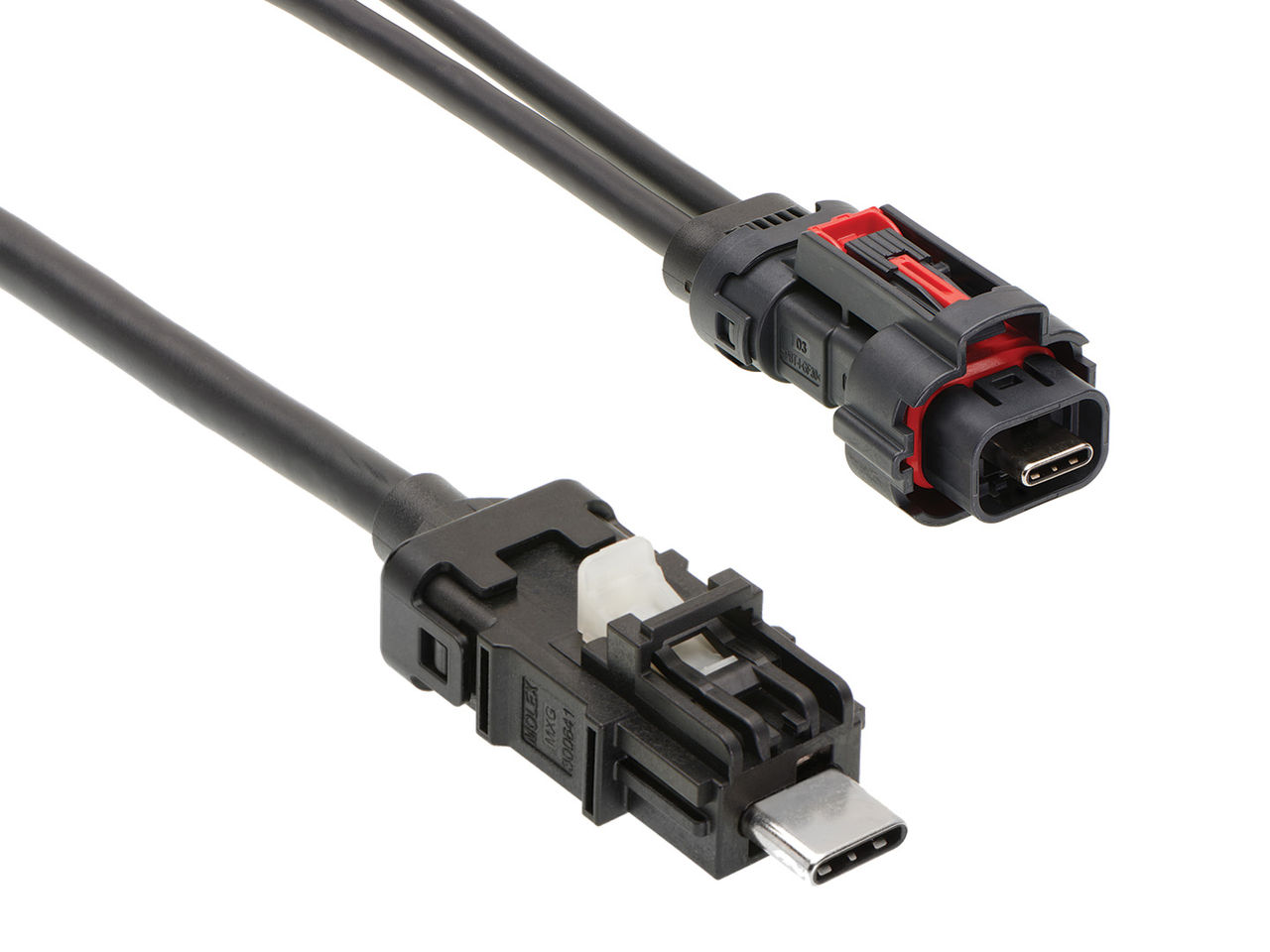

The HSAutoLink system enables high-speed data connections for a variety of applications. Data rates up to 40Gbps (for HSAutoLink C) or 13.5Gbps (for HSAutoLink II) support protocols such as LVDS, USB 2.0 and 3.0, DisplayPort and FDP-Link4. The USCAR-compliant, automotive-grade connectors are ruggedized for reliable operation in harsh environments, with sealed and unsealed options as well as shielding to protect against electromagnetic interference (EMI).
The HSAutoLink system also supports streamlined design and assembly processes, from off-the-shelf cable assemblies that simplify prototyping, testing and validation to multiple keying options and positive locks that accelerate assembly operations and improve reliability. Multiple HSAutoLink solutions are available to meet a variety of requirements, including USB Type C interfaces and hybrid connectors.
Shrouds and latches standard:
Rugged connectors meet USCAR requirements

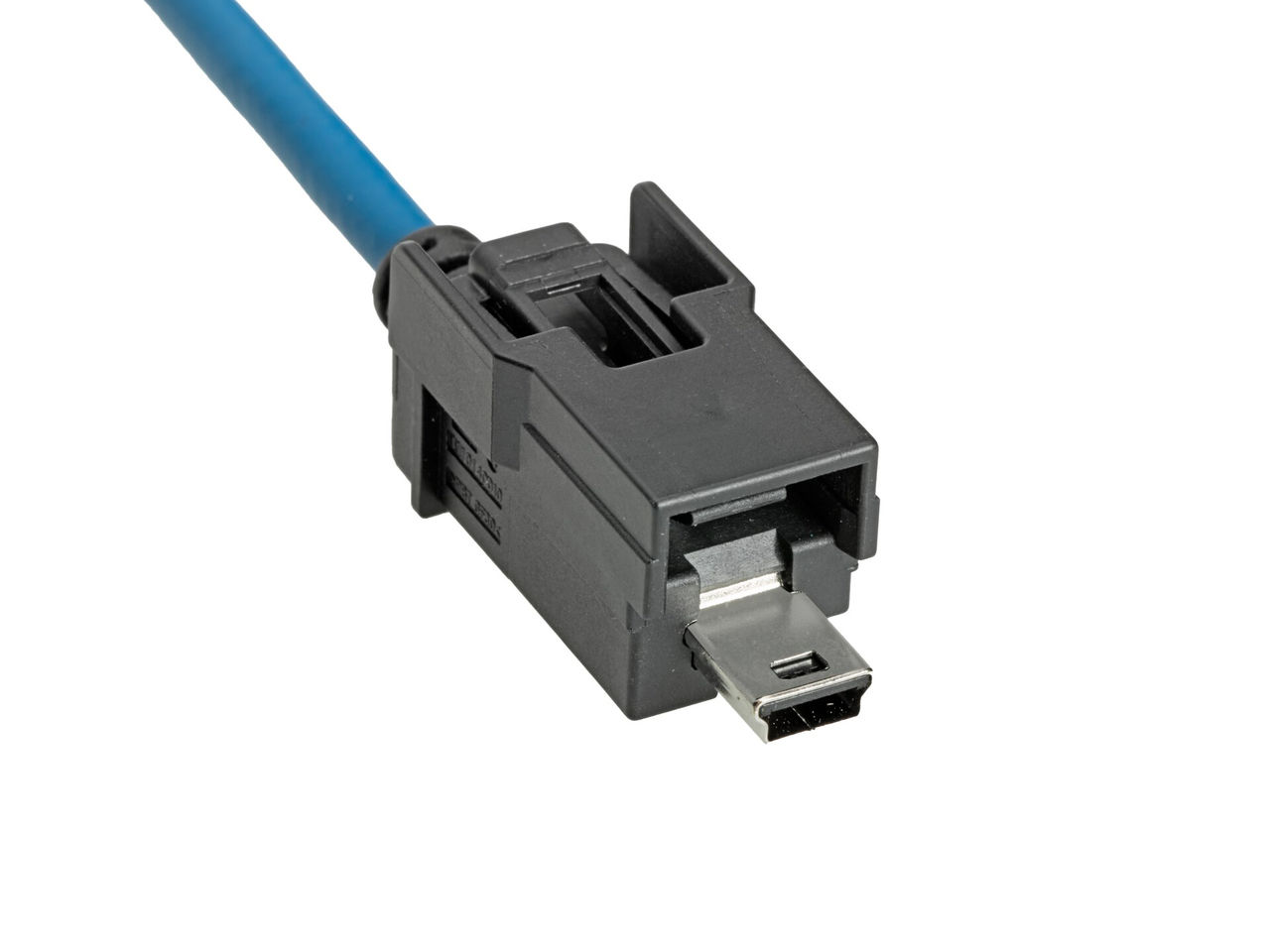

Standard Molex automotive and USB connector components used:
Provides ease-of-use and simplified assembly process
Flexible, expandable product family with data rates up to 5 Gbps,
available in 6 and 12 circuits:
Allows for combined links
Full-length cable shielding:
Superior signal performance and reduced Electro Magnetic Interference (EMI)
System uses proven Molex LFH terminal interface designed for high pin-count signal applications requiring high reliability and high-speed signaling performance:
Promotes high differential-signal bandwidth, extended cycle life and stable contact resistance

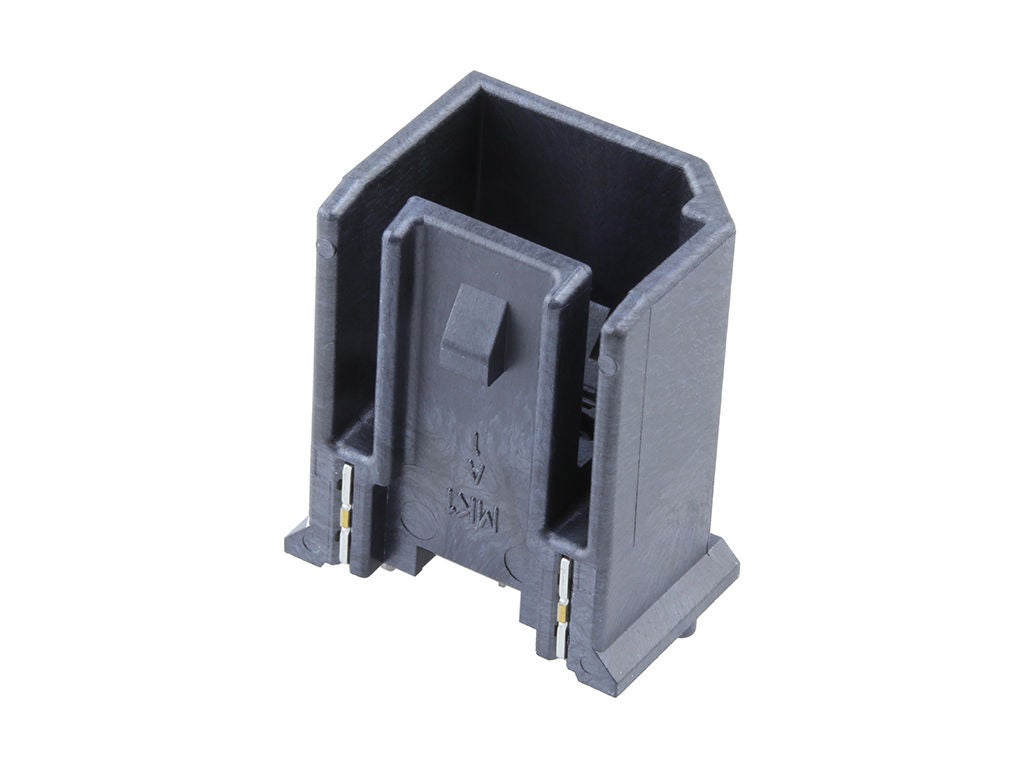

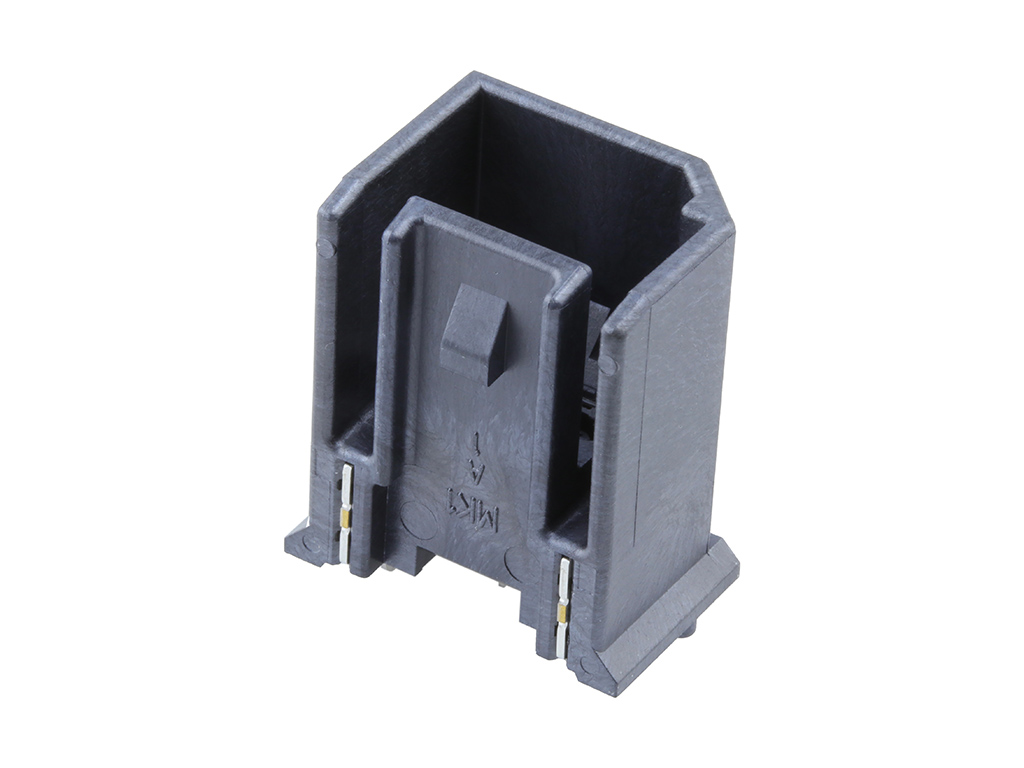

Plugs designed with fully protected shield case. Rear (soldering) side of right-angle header features closed shield:
Provides robustness and guarantees signal integrity

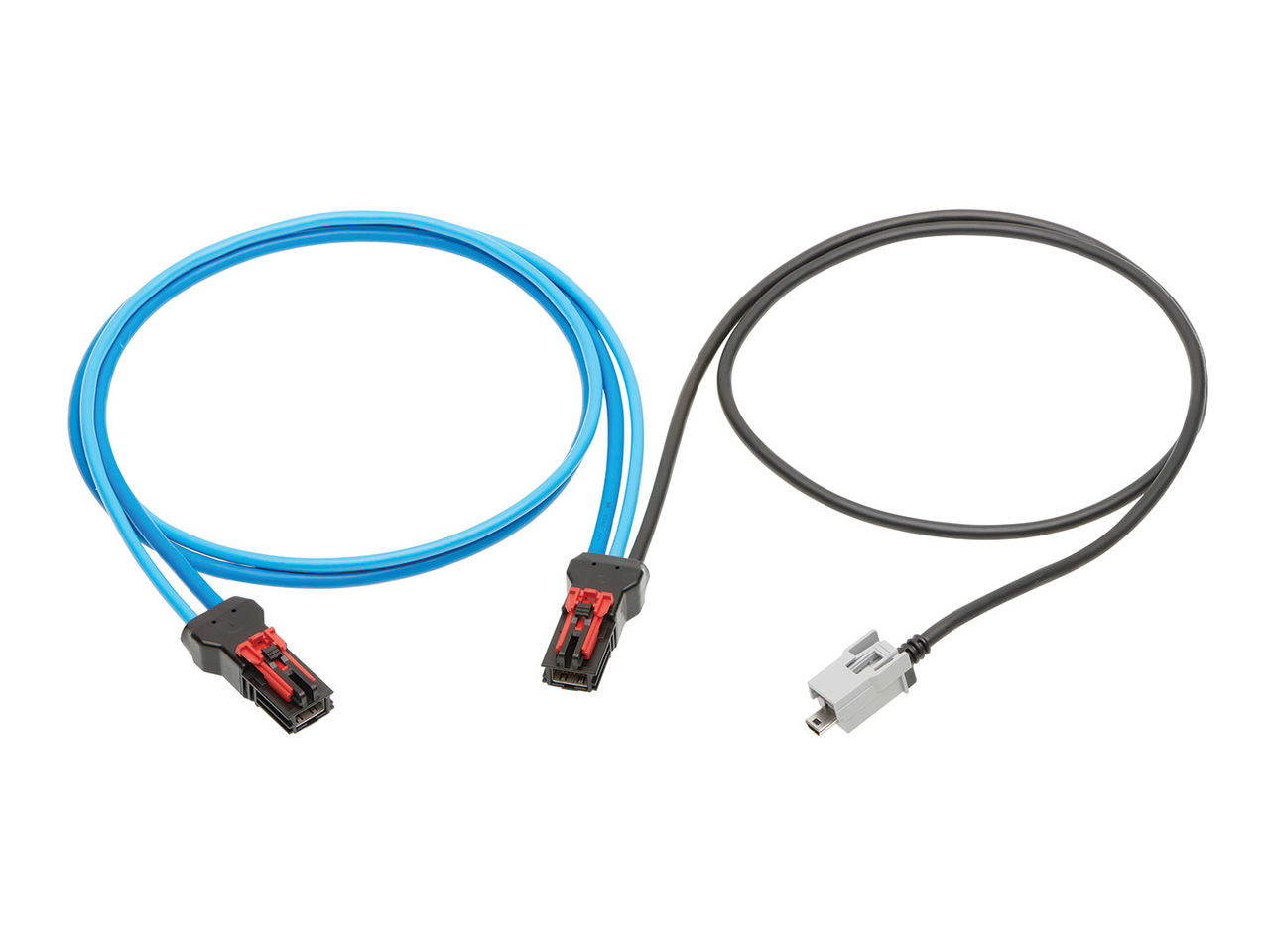

Off-the-shelf availability of headers and cable assemblies

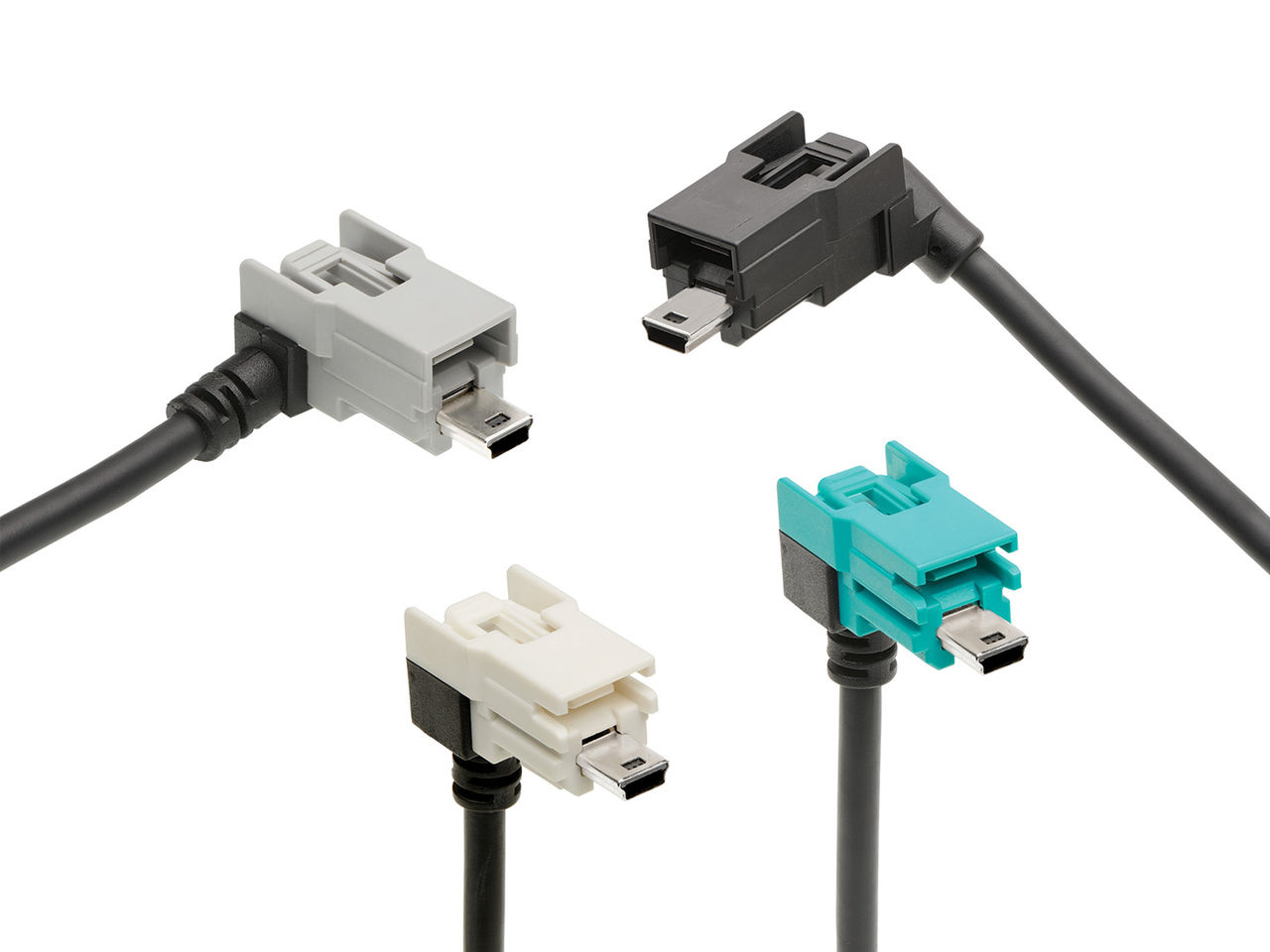

Ready-to-use HSAutoLink and HSAutoLink II assemblies ensure quick-and-easy deployment to help reduce lead times.
Streamlined integration to speed design work
Standardized offerings that meet industry requirements and are available off the shelf help simplify the design integration process across various platforms.
Support for high-speed data transmission protocols
The HSAutoLink Connector System includes solutions that support USB 2.0, USB 3.0, USB 3.2 Gen 2x2, LVDS, FDP-Link4 and DisplayPort protocols for use with a diverse array of high-performance applications.
Datasheets and Guides
Datasheet (PDF)
Product Reference Guide (PDF)
Featured Videos
Applications by Industry
This is not a definitive list of applications for this product. It represents some of the more common uses.
Frequently Asked Questions
What are the main applications for HSAutoLink Connectors?
HSAutoLink Connectors are primarily used in automotive applications such as infotainment systems, telematics, in-vehicle cameras and digital high-resolution displays. They are designed to support high-speed data transmission and robust connectivity.
What data speeds do HSAutoLink Connectors support?
The HSAutoLink Connector family includes options to support a range of requirements. HSAutoLink C Connectors support data rates up to 40Gbps, HSAutoLink II Connectors support data rates up to 13.5Gbps, and HSAutoLink Connectors support data rates up to 2Gbps. HSAutoLink solutions can support protocols such as USB 2.0, USB 3.0, USB 3.2 Gen 2x2, LVDS and DisplayPort—making them ideal for bandwidth-intensive applications.
Are HSAutoLink Connectors compliant with automotive standards?
Yes, HSAutoLink connectors are USCAR-30 compliant, ensuring they meet the automotive industry's rigorous performance and reliability standards.
What benefits do off-the-shelf cable assemblies provide?
Off-the-shelf cable assemblies offer quick availability, reducing lead times and streamlining the integration process. They deliver standardized designs that simplify deployment across various applications.
What assembly advantages do HSAutoLink Connectors offer?
HSAutoLink Connectors utilize standard Molex automotive and USB connector components to ensure ease of use, simplify assembly, and reduce time and complexity during installation.
