Premo-Flex Flat Flexible Cables (FFCs)

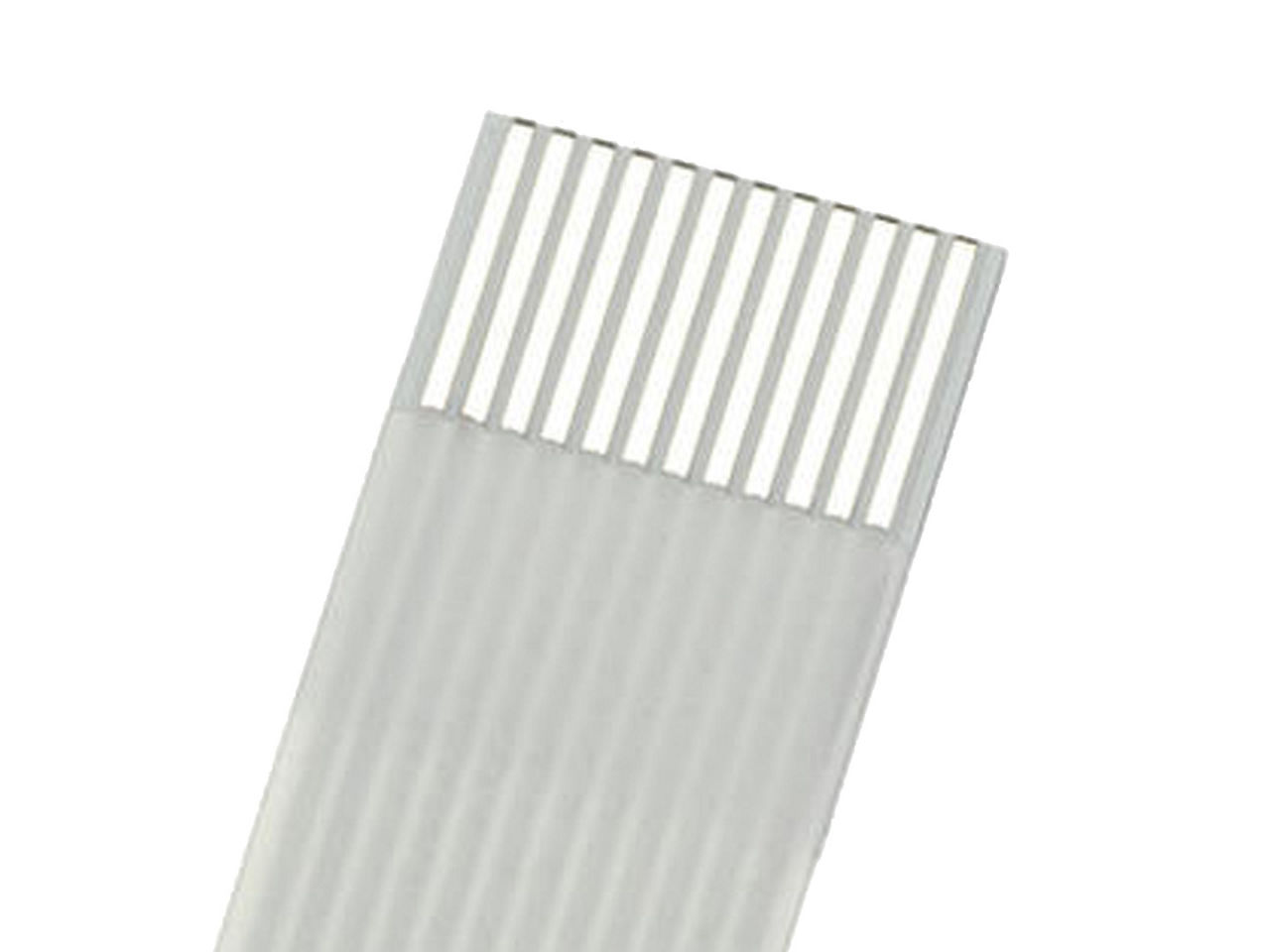

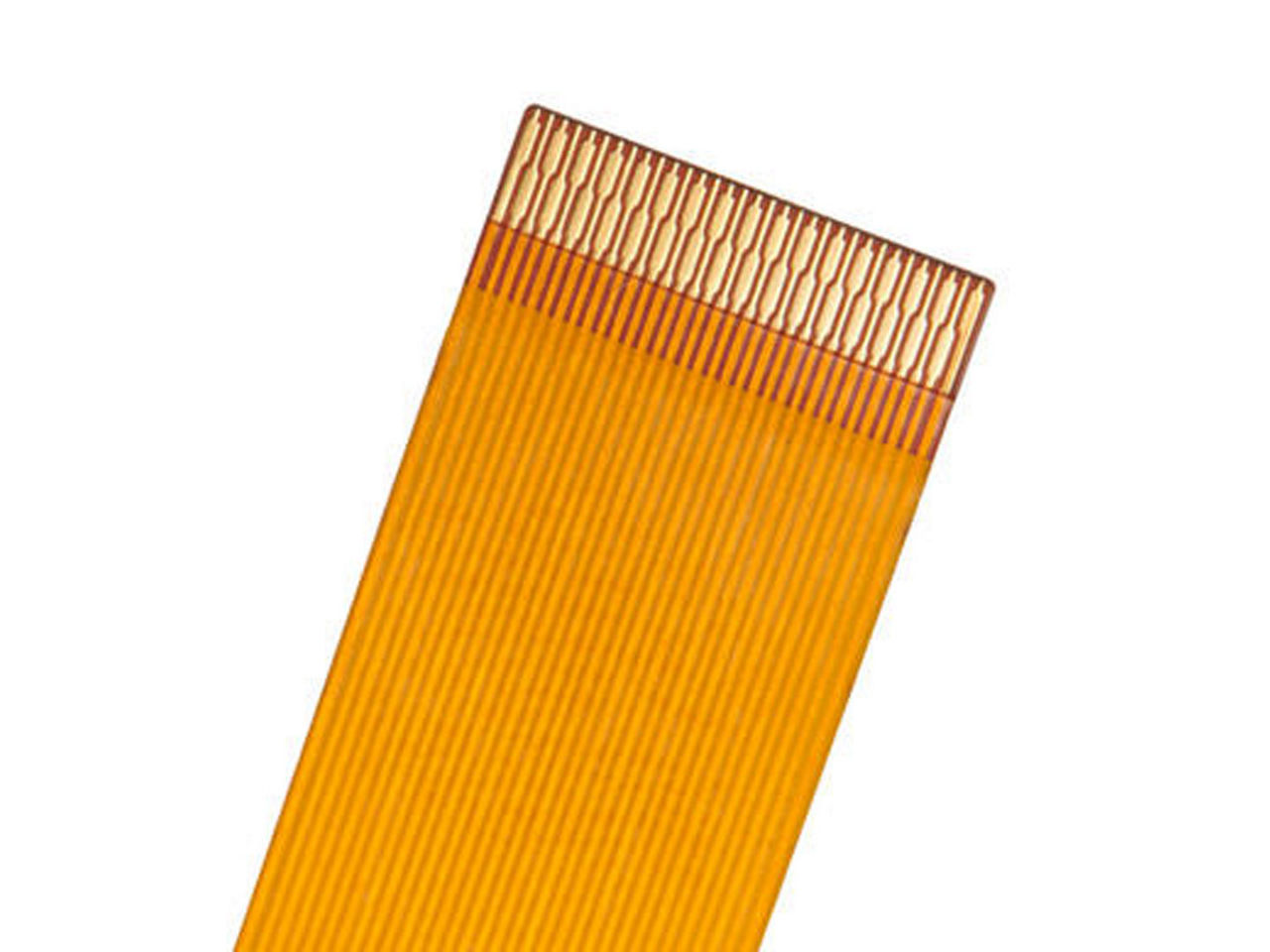

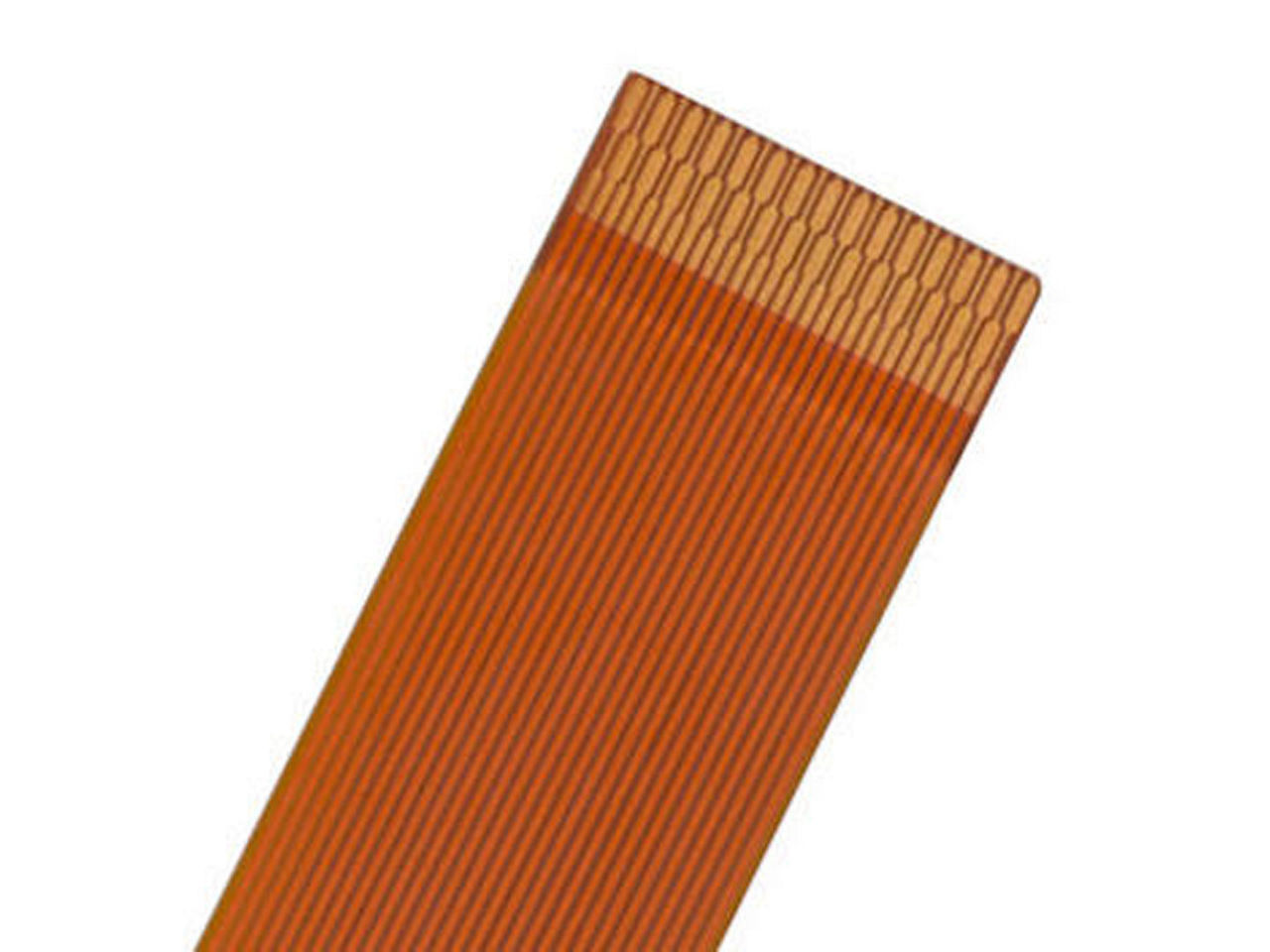

Premo-Flex miniaturization solutions offer compact FFCs with staggered pins that enable fine pitch and a higher circuit count in a smaller footprint. With low-profile Easy-On Connectors and an array of cable length, circuit count and latch options, these jumpers support miniaturized applications across multiple industries. Customization, such as folding and direct soldering, is also available for improving routing in cramped spaces.

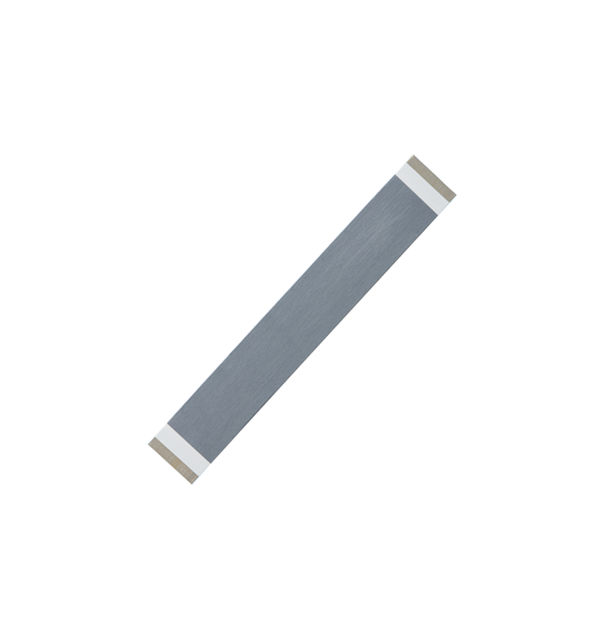

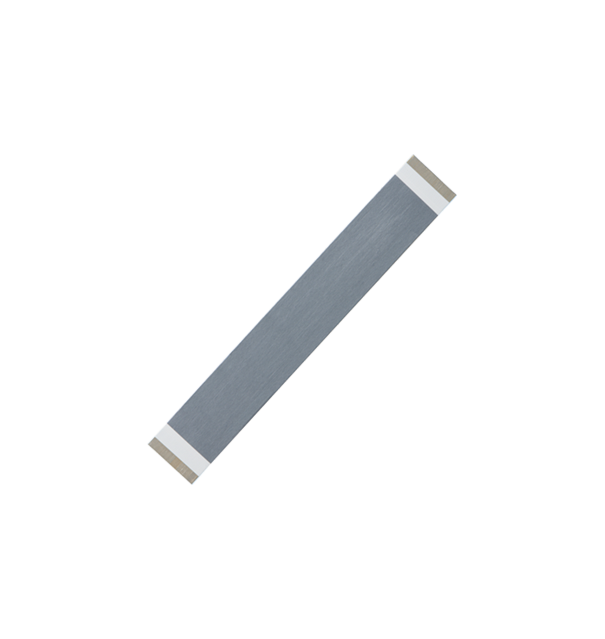

Premo-Flex Electromagnetic Interference (EMI) Protection Solutions provide flat flexible cables (FFCs) that are ideal for high-performance or critical applications. These cables help maintain signal integrity by minimizing interference, ensuring that data transmission remains reliable and accurate with first and last pins grounded.

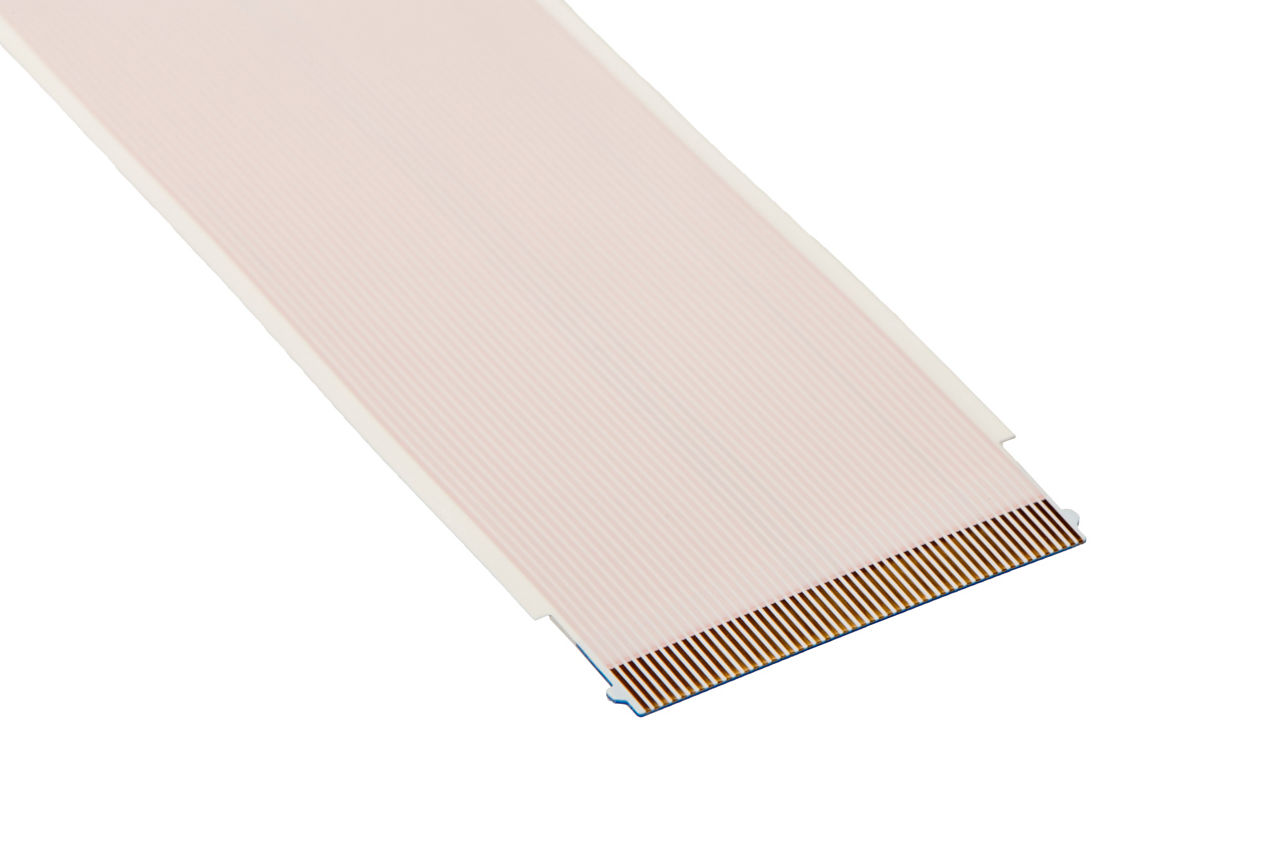

Ideal for consumer, industrial and automotive devices subject to high vibration and shock forces, Premo-Flex Superior Retention deliver robust data connectivity for rugged applications. FFC jumpers are available with positive latches to maintain constant connectivity.

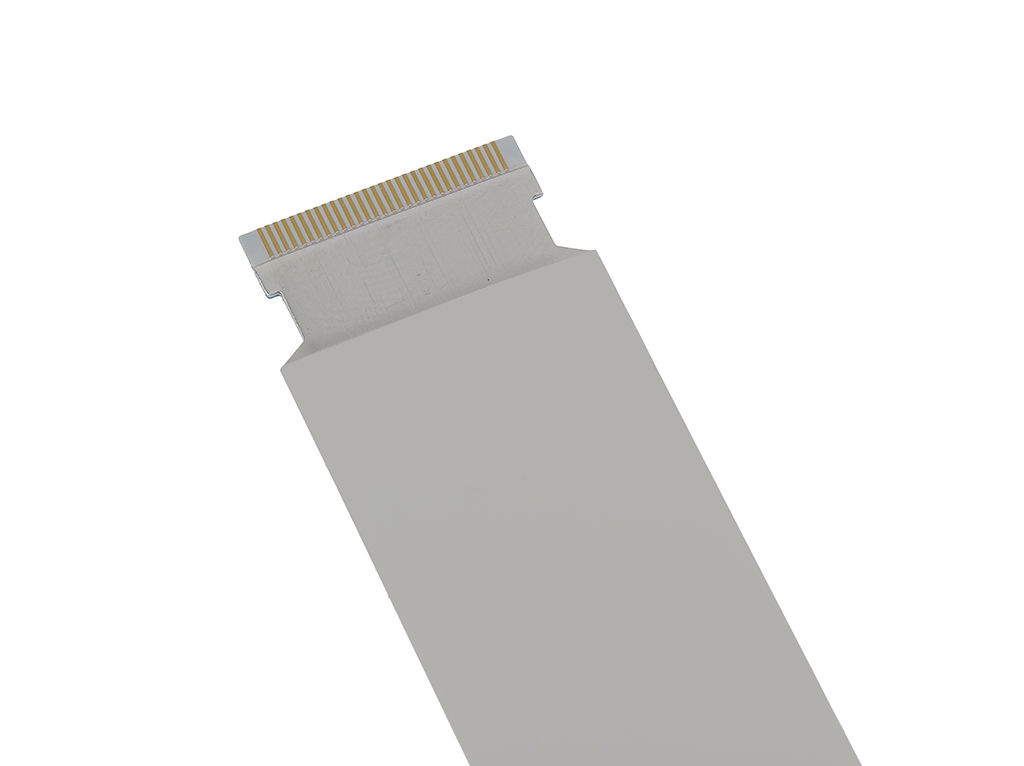

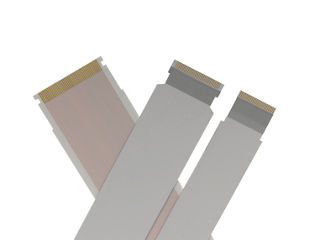

Supporting high-performance connectivity for devices across numerous industries, Premo-Flex high-speed LVDS solutions use differential pairs of signals to cancel common-mode noise and enhance signal integrity. FFCs with 90-Ohm and 100-Ohm impedance for USB and HDMI are available to support high-speed digital interfaces such as video displays and cameras.

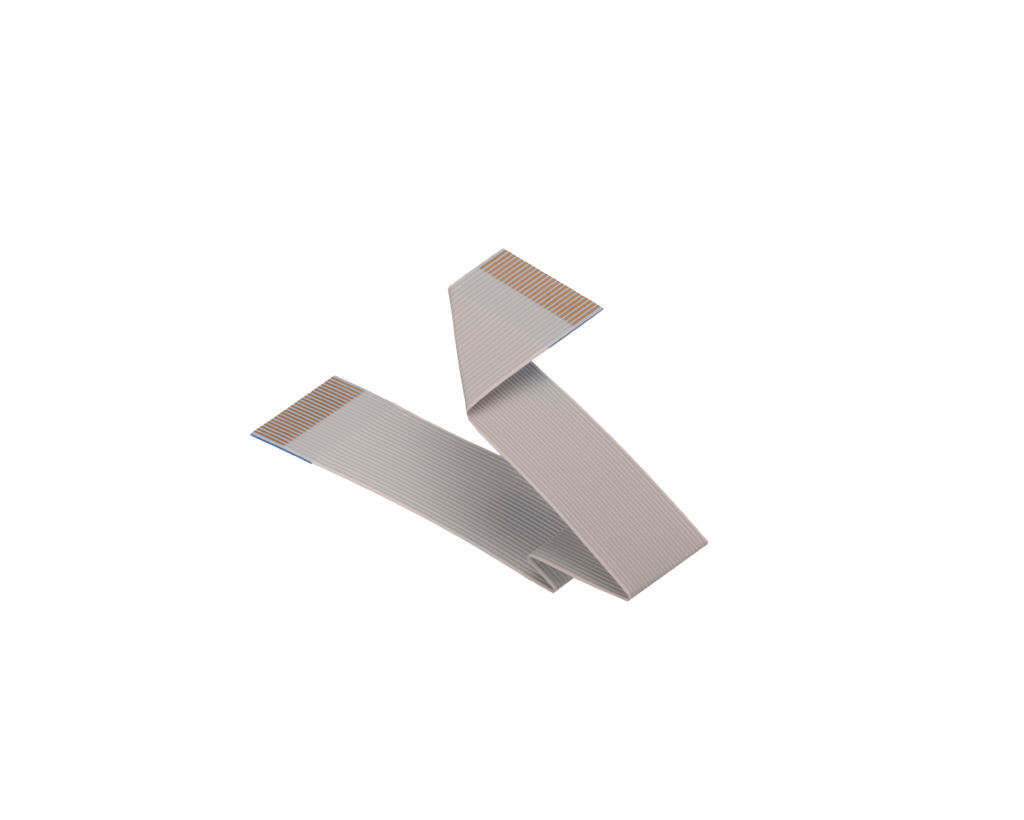

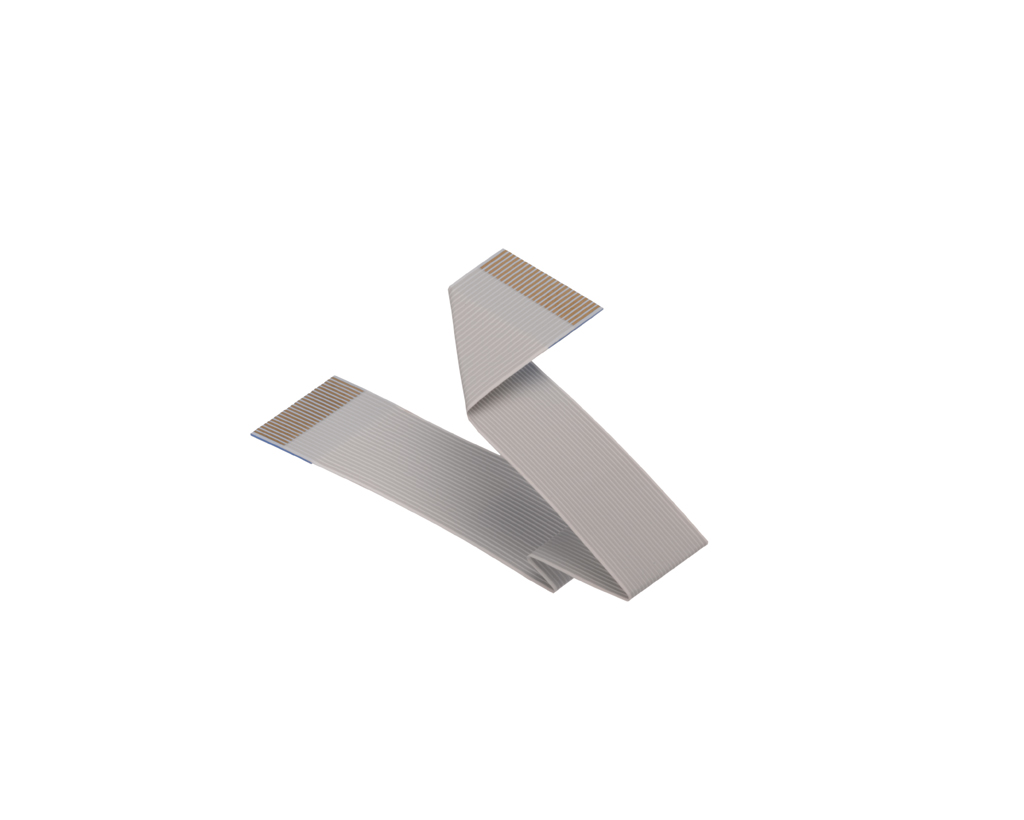

Molex offers a diverse range of customized Premo-Flex FFC solutions that allow designers to maximize PCB space and reduce component cost. Custom solutions are available for low-volume runs with minimum order quantities. Molex offers comprehensive engineering support and free samples in one to two weeks.

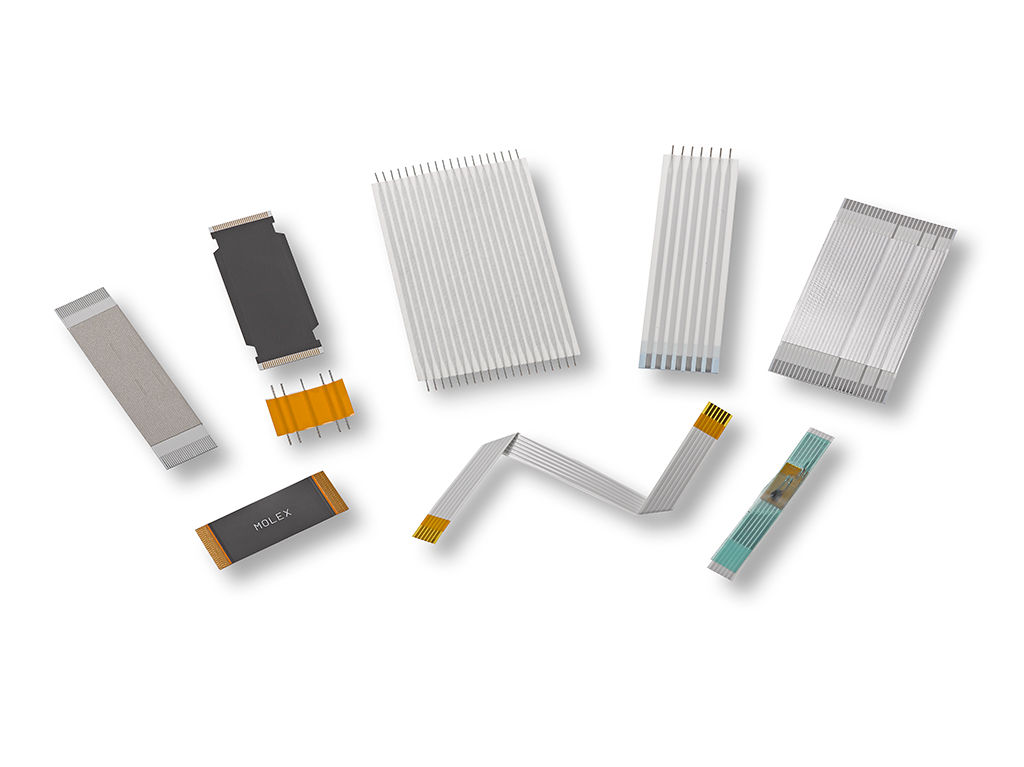

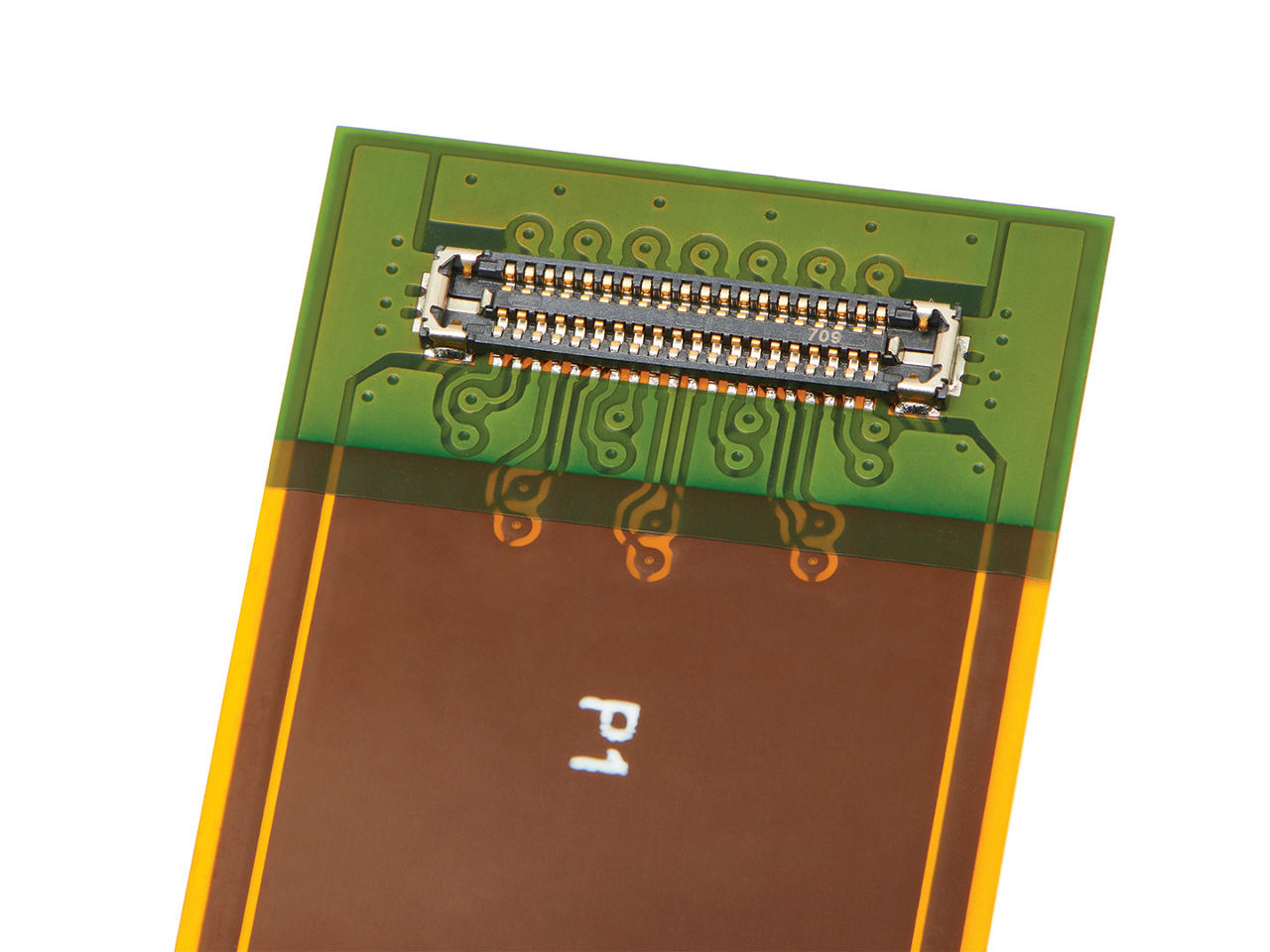

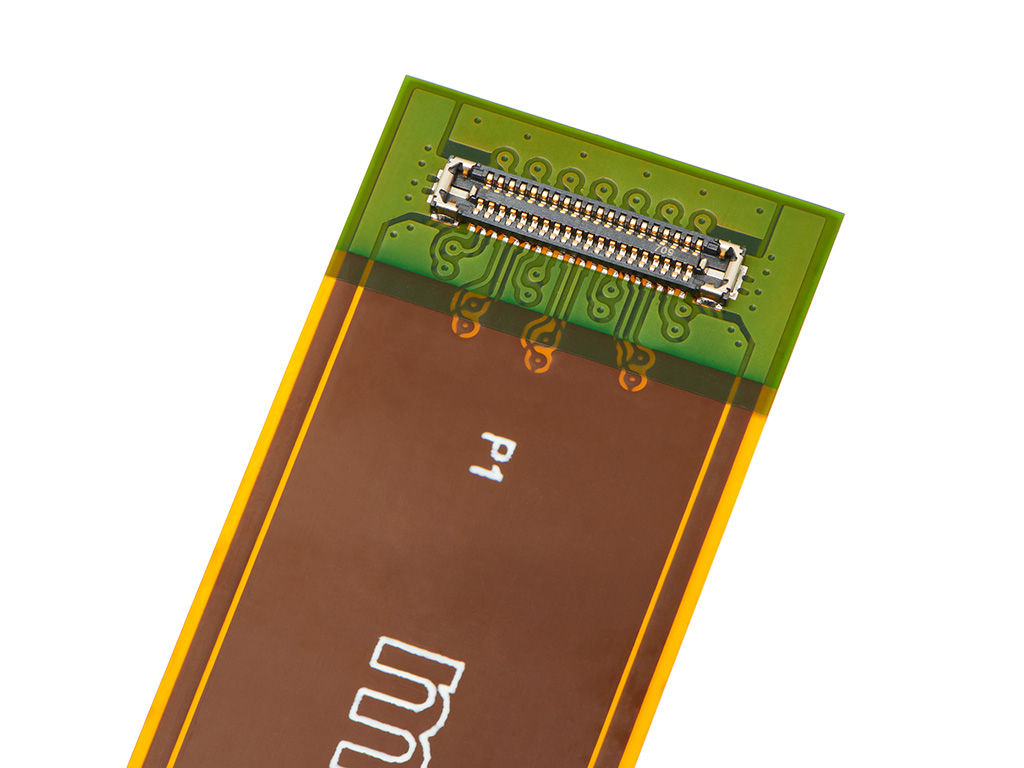

Helping customers meet unique and complex demands, custom Premo-Flex FFC solutions deliver advanced capabilities. Shielded cables for added EMI protection, printed lines to aid assembly and insulated materials to withstand unique temperature or environmental conditions are available. Premo-Flex FFCs are also available with components soldered directly to the cable or as finished assemblies incorporating Easy-On FFC/FPC Connectors.

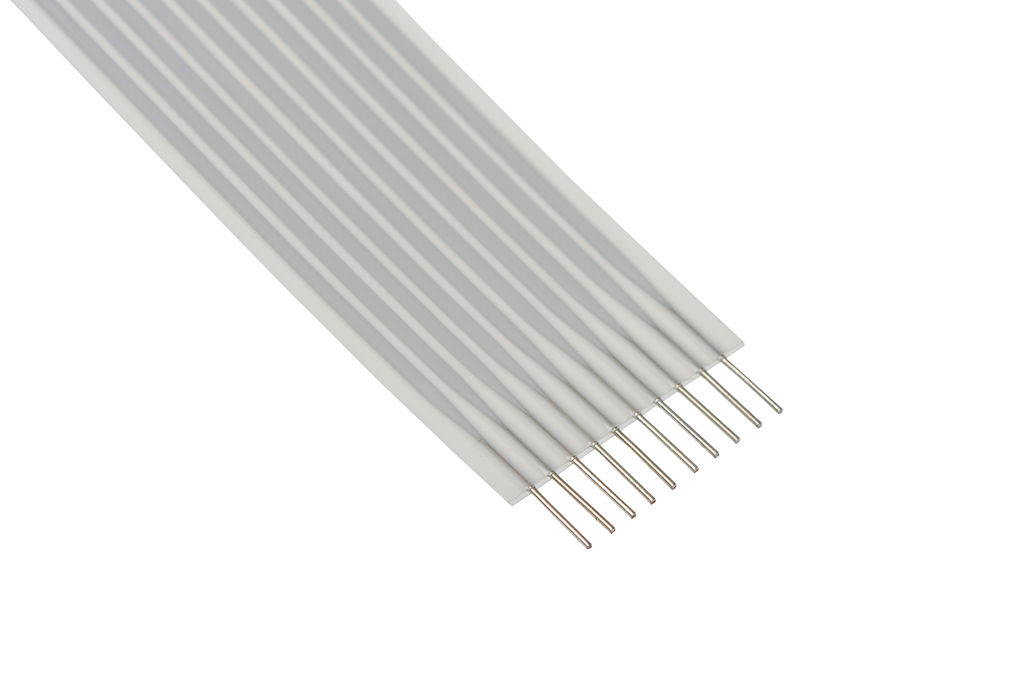

With round flat cables (RFCs) or hot bar soldered cables, customers can improve retention force and save space by replacing the cable-to-board connector with direct-attach soldered solutions. These direct-to-board solutions deliver high mechanical strength, reduce costs by eliminating connectors and wire stripping, and improve design flexibility.
