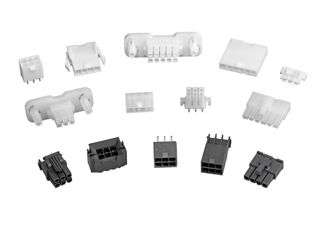

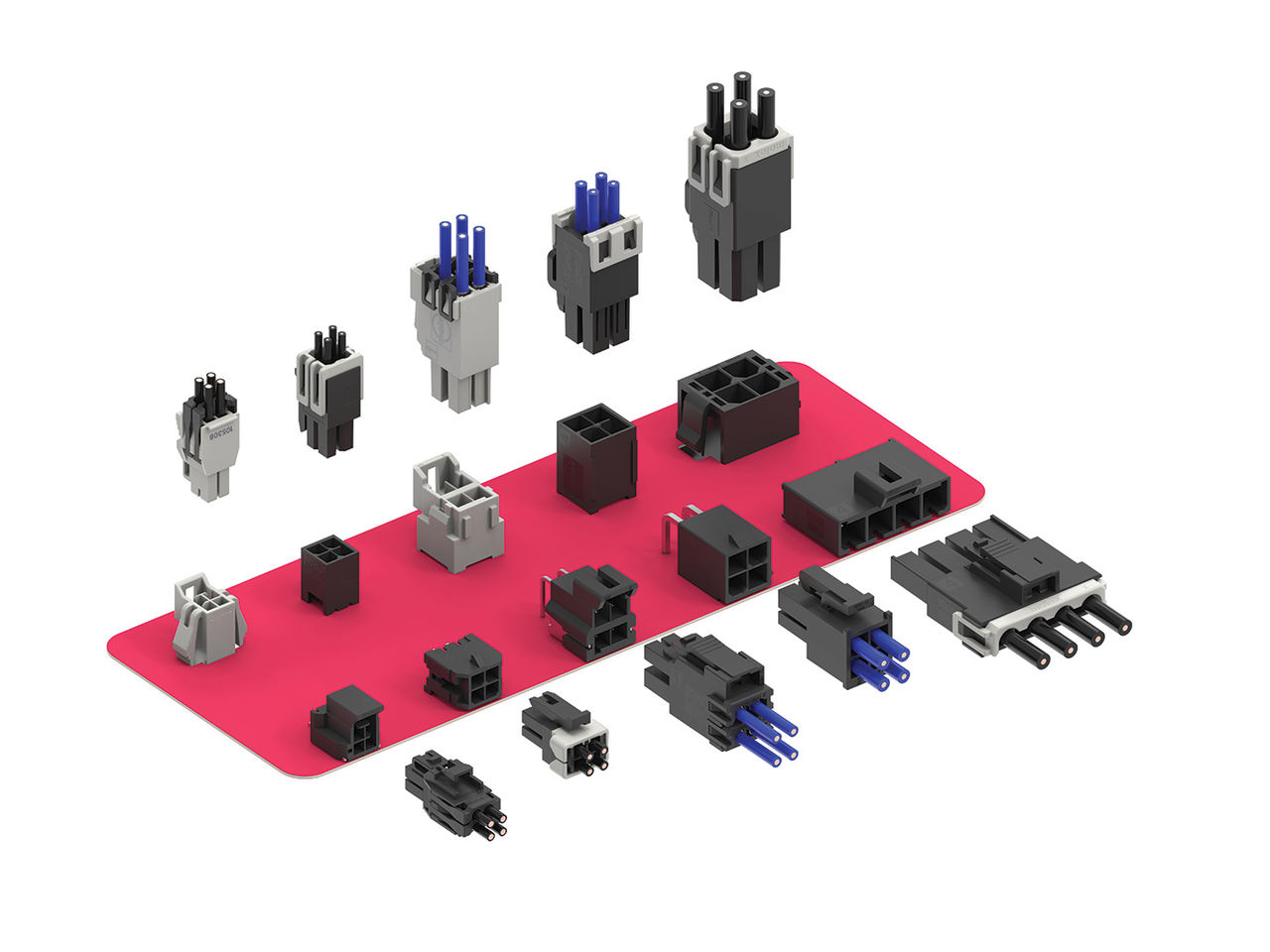

Mini-Fit Connectors

Self-aligning interface
Enables operator to mate connectors in hard-to-reach areas

Polarized mating geometry
Ensures header and receptacle cannot be mismated

Positive locking housings
Easy-to-operate thumb latch assures connectors are fully mated
Prevents accidental unmating

End-to-end stackable
Delivers more power per linear inch and square millimeter than other mid-range power connectors

4 independent points of contact
Offer redundant, secondary current paths for long-term performance and reliability

Tangless terminal
Provides safety for the terminals during packing and assembly insertion

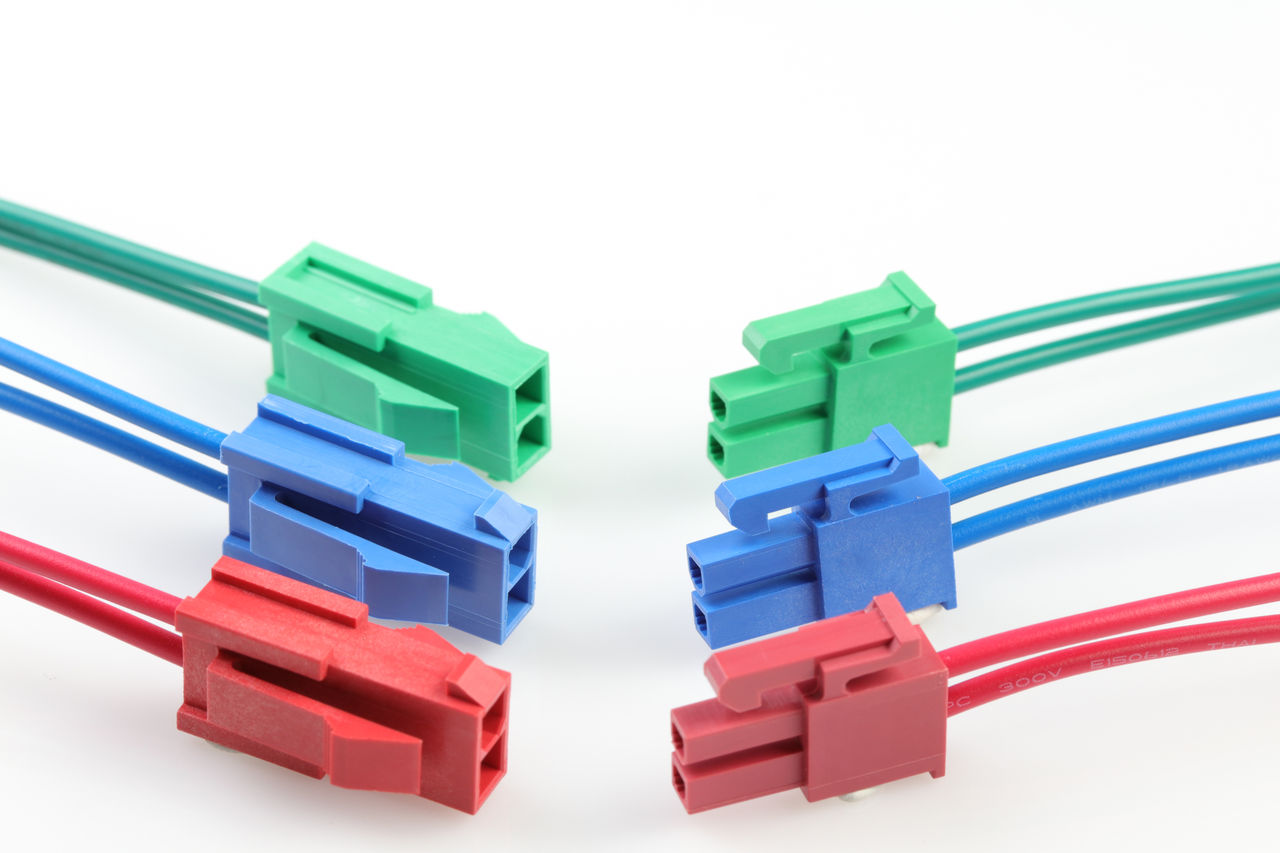

Visual color pairing (colors can be intermated)
Ensures proper mating during termination

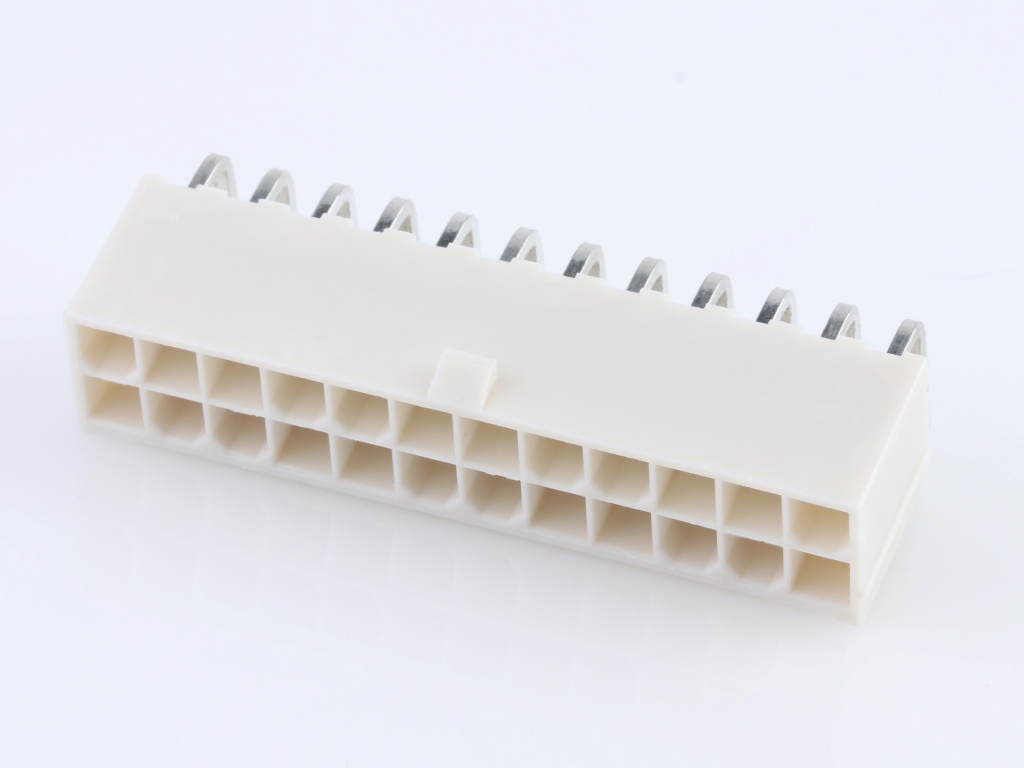

Panel mount and vertical header options
Maintains current rating through application surfaces or panels

5 color options
Offers quick identification and ease of assembly

Panel mount ears recommended panel cut-outs for 0.89mm to 3.00mm thick panels panel cut-out tolerances +0.10mm
Provides safety, and stability of housing to the pane

Seal cap supports
Provides excellent support for the rubber cap that mounts around the back of the housing

Keying and polarization
Allows for accurate mating to standard Mini-Fit 4.2 Power Connectors

Provides a lower mating force  contact to improve impact to the operator
The Mini-Fit Sigma Low Mating Force Terminals improve overall assembly ergonomics for production line operators to reduce injury from high-volume assembly or mating of connectors and provides more overall assembly efficiency.

Crimp terminals are produced from a proprietary, high-current alloy
Rated up to 13.0A per circuit

Receptacles and plugs accept standard Mini-Fit and Mini-Fit Plus crimp terminals
Reduces the number of parts to be purchased and inventoried

Terminals feature a patented, elongated dimple design
Provide long wipe lengths and increased contact area for improved long-term reliability
