| Pitch | Current | Wire Gauge | Operating Temperature |
|---|---|---|---|
| 3.00mm | 13.0A | 30 to 16 AWG | -40 to +125°C |
Features and Benefits

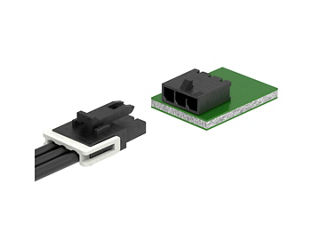

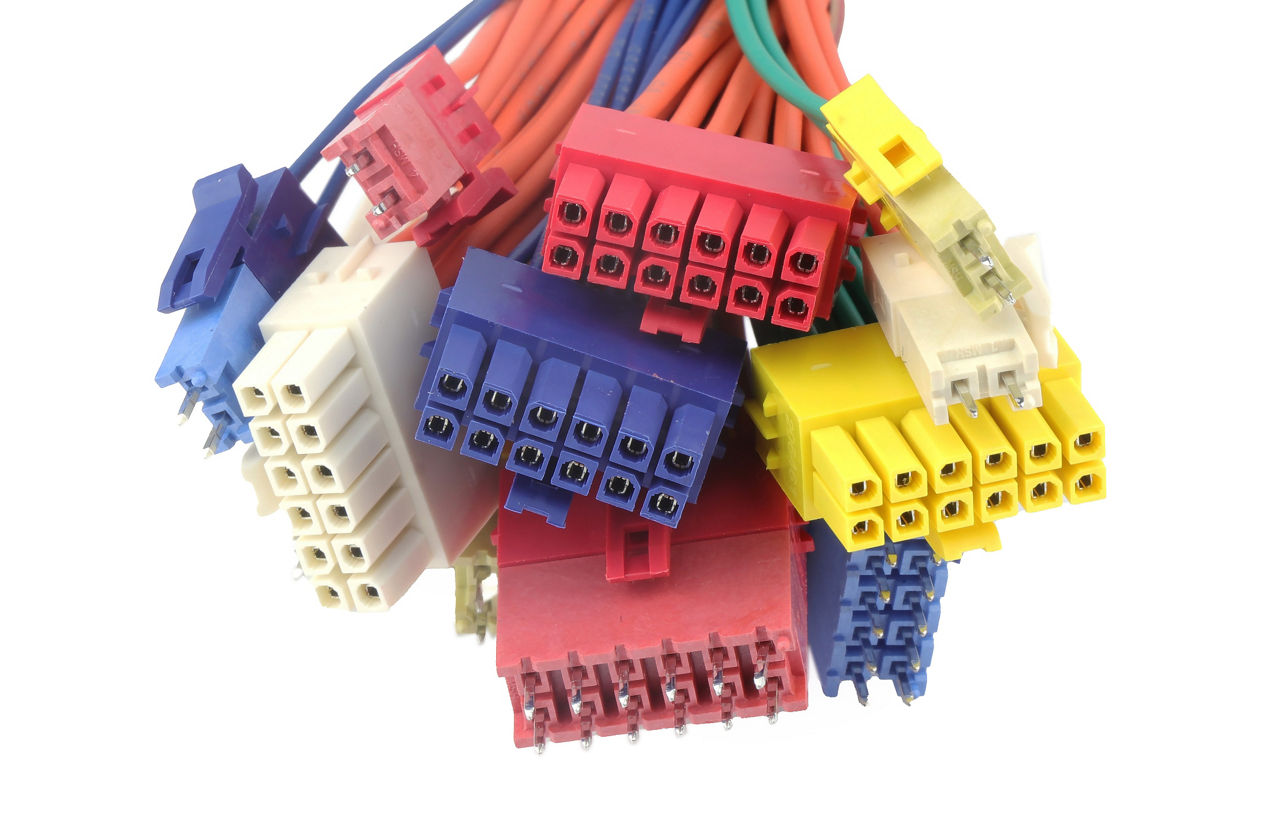

Offering enhanced design and performance features, Micro-Fit+ Connectors boast a high current rating of up to 13.0A per circuit, combined with a reduced insertion force for easier assembly and an extended product life cycle. Designed to meet environmental, health and safety (EH&S) regulations and reduce mating force, operators benefit from easier assembly while increasing productivity and lowering risk of injury. These color-keyed connectors also offer manufacturers easy assembly with selective mating, helping to ensure that failure will not occur due to connector mis-mating.

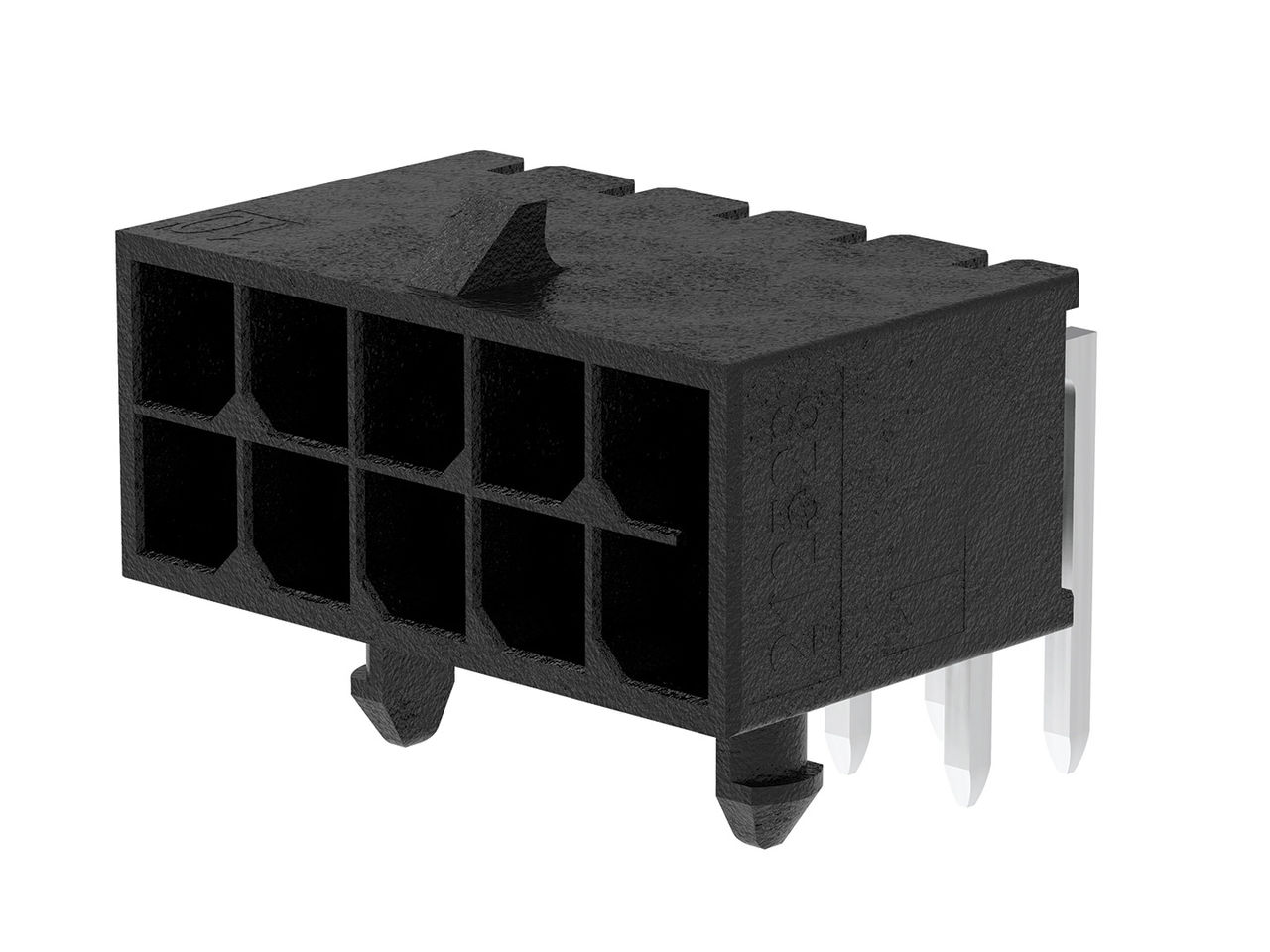

Micro-Fit+ products are halogen-free and Glow Wire capable. This allows customers to adhere to environmental compliance and operator safety standards, including European regulations. These connectors also offer up to a 40% mating force reduction, minimizing operator fatigue for increased productivity.

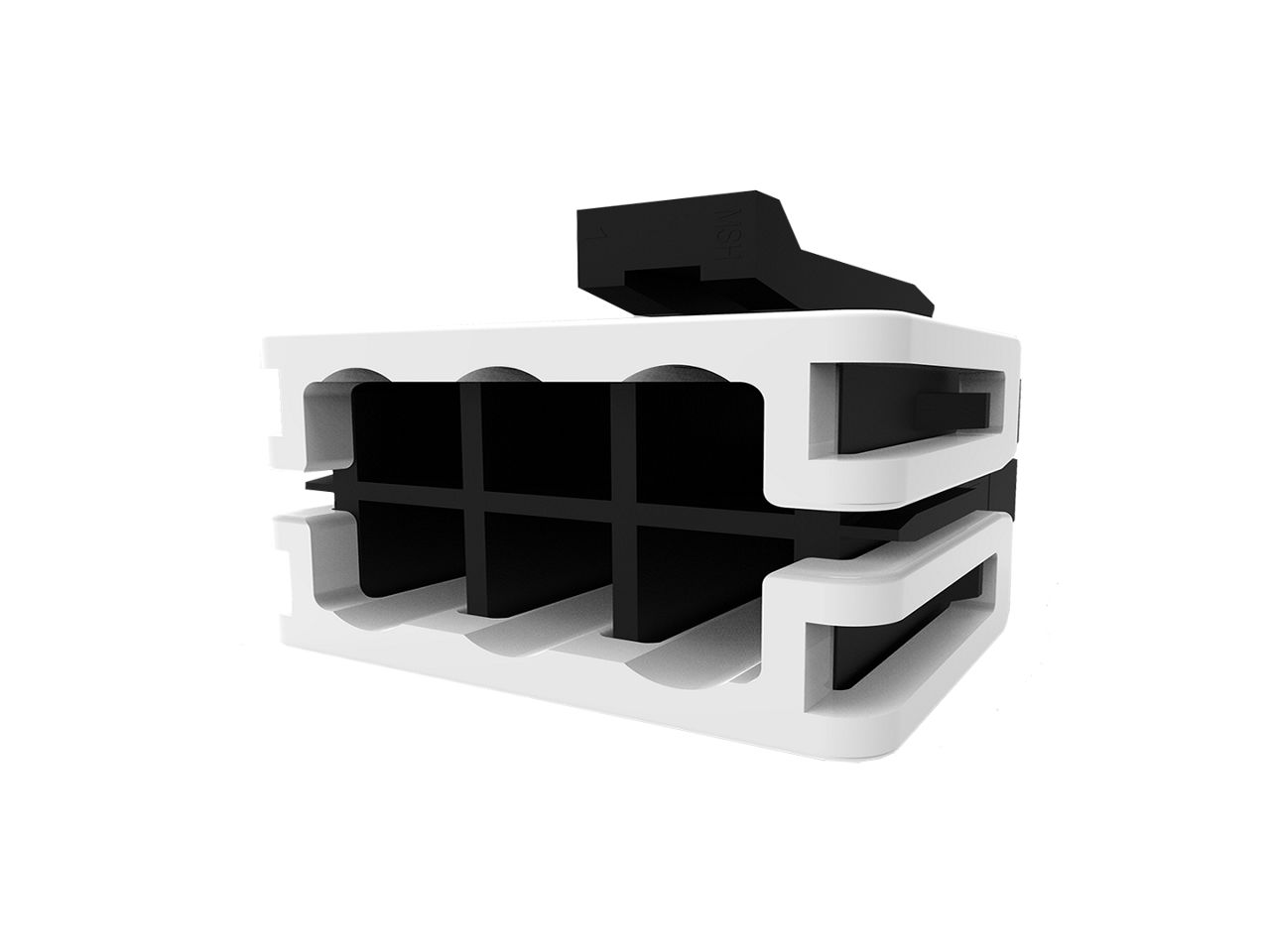

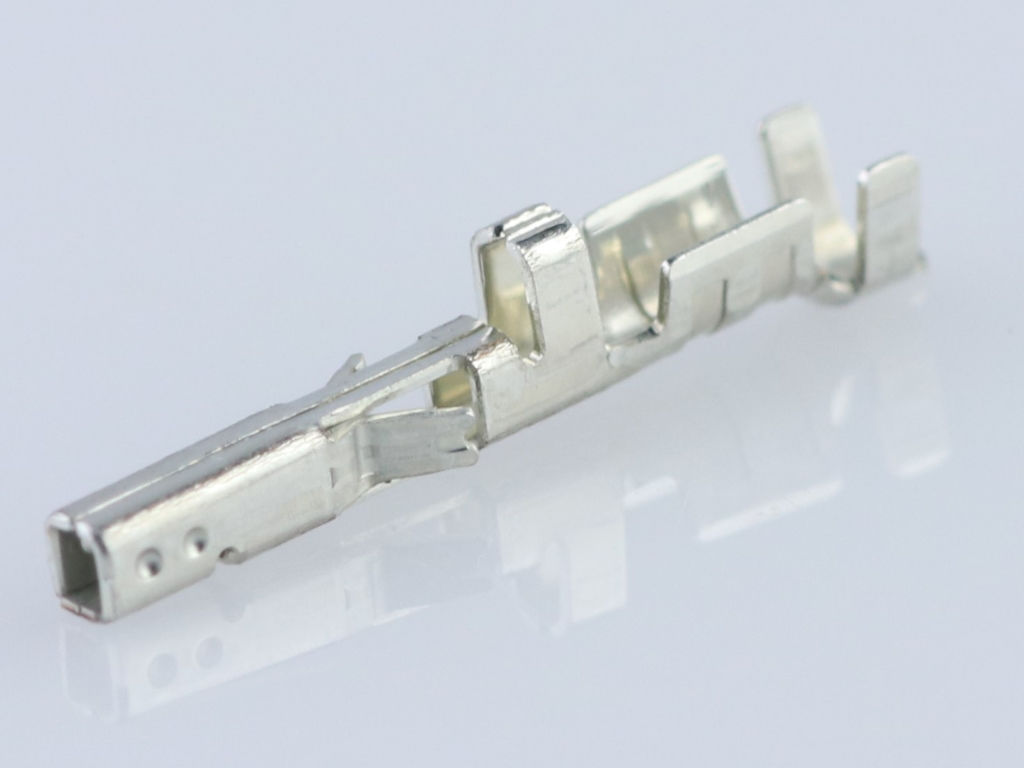

Compatible with existing Micro-Fit 3.0 plug housings and with the added flexibility of a terminal position assurance (TPA) feature, Micro-Fit+ Connectors help ensure secure and proper terminal seating for robust connections in various applications. The connectors' fully isolated terminals provide superior electrical safety, making them suitable for a wide range of industries, including consumer home appliances, medical devices, automotive, and industrial control systems.
Datasheets and Guides
Product Brief
Videos
Applications by Industry
Interior automotive devices
Non-sealed applications
Telemetrics
Countertop
Dishwasher
Dryer
Microwave
Oven
Refrigerator
Washing machine
Routers and switches
Servers
Storage
Routers and switches
Servers
Storage
This is not a definitive list of applications for this product. It represents some of the more common uses.
Frequently Asked Questions
Are Micro-Fit and Micro-Fit+ intermatable?
No, they do not mate. The standard Micro-Fit product family and Micro-Fit+ product family do not mate together as they have different keying and polarization.
What is the benefit of using Micro-Fit+ over standard Micro-Fit?
Micro-Fit+ has a higher current rating in a compact package, perfect for automotive or datacom end applications.
Why would customers be interested in Micro-Fit+ having a lower mating force compared to standard Micro-Fit part numbers?
Provides improved overall ergonomics within the connector system. A lower mating force is a design factor intended to maximize productivity by minimizing operator fatigue and discomfort.
