By: Tobias Buschhaus
Lead Reliability Engineer
The Challenge of Sparse Data in Robust Degradation Detection
Supporting high-performance applications requires engineers to accurately predict product lifecycles and performance degradation over time. Slight performance degradation might go unnoticed in consumer electronics, but high-stakes applications such as medical infrastructure and AI data centers demand absolute stability.
For highly reliable and safety-relevant components, engineers rely on specialized statistical approaches to accurately assess near-zero degradation. These early assessments sit at the heart of Design for Reliability (DfR), a practice that builds reliability into a component from the start. The industry standard for accelerated reliability testing often involves simply waiting for a 1,000-hour thermal aging test to conclude before making a pass-or-fail decision.
Strict time constraints and high sample-preparation costs often limit engineers to incredibly small datasets. Without a way to account for measurement variance across these limited timestamps, teams risk misinterpreting normal testing noise as a critical product failure.
Signal Versus Noise in Sparse Datasets
Relying on sparse data and near-zero gradients makes it nearly impossible for conventional statistical methods to distinguish between harmless measurement fluctuations and critical product degradation or failure behavior.
The Limitations of Classical Regression
Traditional statistical methods, such as ordinary least squares (OLS), which minimizes vertical errors, and Deming regression, which accounts for errors on both axes, fall short when applied to small datasets. Drawing a simple line between exactly two data points ignores inherent equipment variance and makes calculating a reliable confidence interval mathematically impossible.
While adding a third data point allows engineers to calculate a confidence boundary, this standard framework assumes all variance belongs to a continuous degradation trend. The classical breakdown creates a visual phenomenon known as the degradation paradox, in which crossing confidence-interval boundaries forms a sideways "W" shape on the chart, as shown in Figure 1.

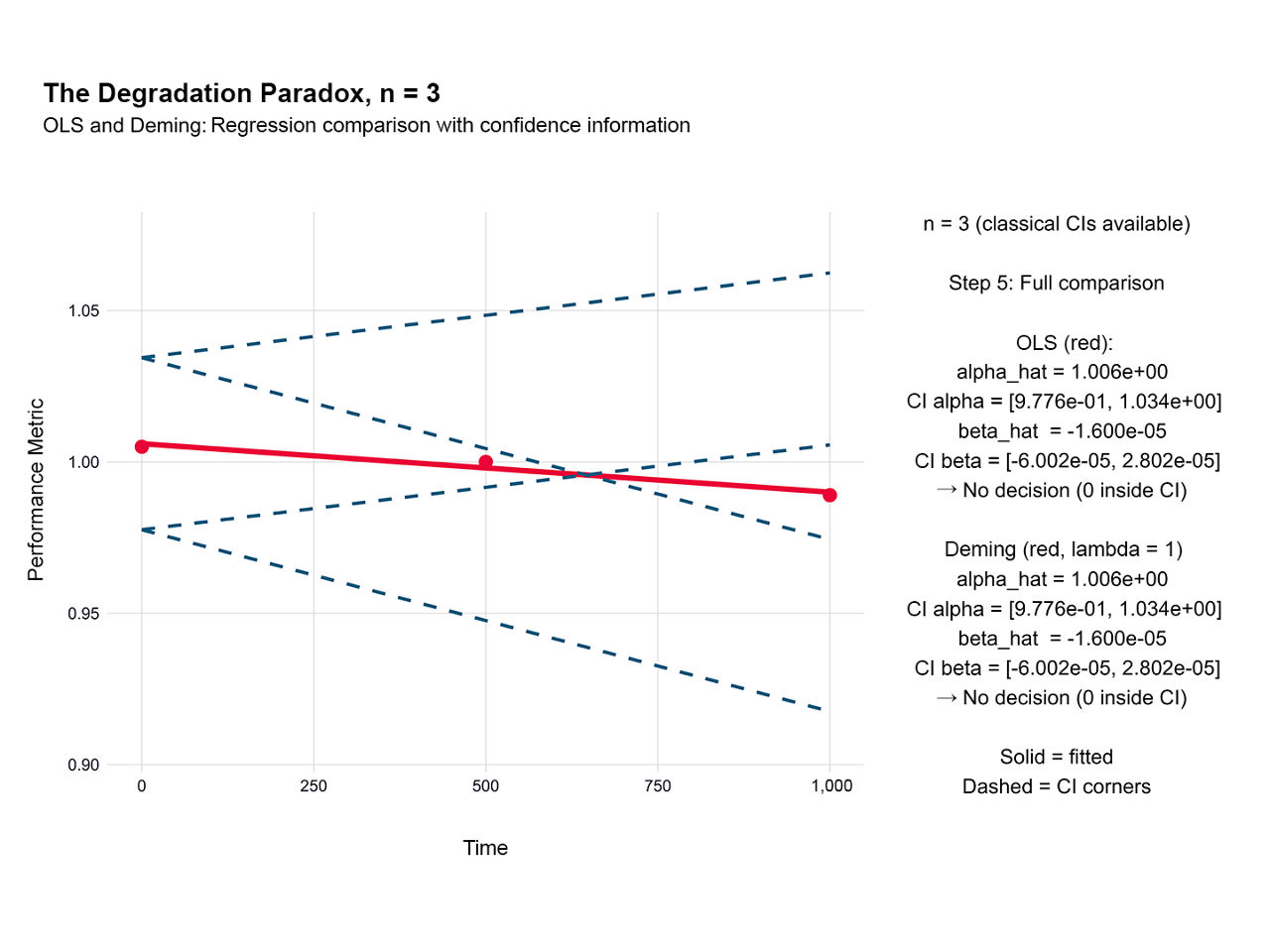

Figure 1: Degradation Paradox Chart showing OLS and Deming crossing CI-corner lines (red dots indicate measurement data, the solid blue line represents the fit to data, and dashed lines represent confidence limits across worst-case and best-case scenarios).
The crossing lines of the degradation paradox mean that, mathematically, a flat line or even an upward slope can fall within the confidence interval, preventing a reliable decision.
The Danger of Near-Zero Gradients
The most significant risk in degradation testing arises when the data shows a near-zero gradient with a very slight downward shift or an upward shift caused by combined loading events. Because engineers operate at the limits of material properties, even small variances must be tightly controlled.
Measurement noise easily obscures the apparent trend in these scenarios and gives misleading significance to a tiny drift. False negatives lead to severe field failures when customers deploy the component in real-world applications. False alarms force the engineering team into unnecessary redesigns that delay time-to-market and increase component costs.
An Uncertainty-Aware Statistical Workflow for Accelerated Reliability Testing
Engineers can overcome the limitations of sparse data by applying a transparent, evidence-conservative protocol that injects calibrated noise derived from historical gauge data to reveal the true probability of degradation.
Closed-Form Slope Estimation
This specialized workflow begins with a closed-form slope estimate to establish a baseline fit using the limited available data. From this initial estimate, teams make sigma explicit by leveraging historical data and known instrument specifications.
Bootstrapped Noise Injection and Sensitivity Analysis
The next step introduces calibrated historical noise to the baseline data via bootstrapped noise injection. Injecting calibrated noise involves simulating measurement fluctuations based on historical gauge statistics, as shown in Figure 2. While this example uses a normal distribution, the simulation model can be adapted to any statistical distribution.

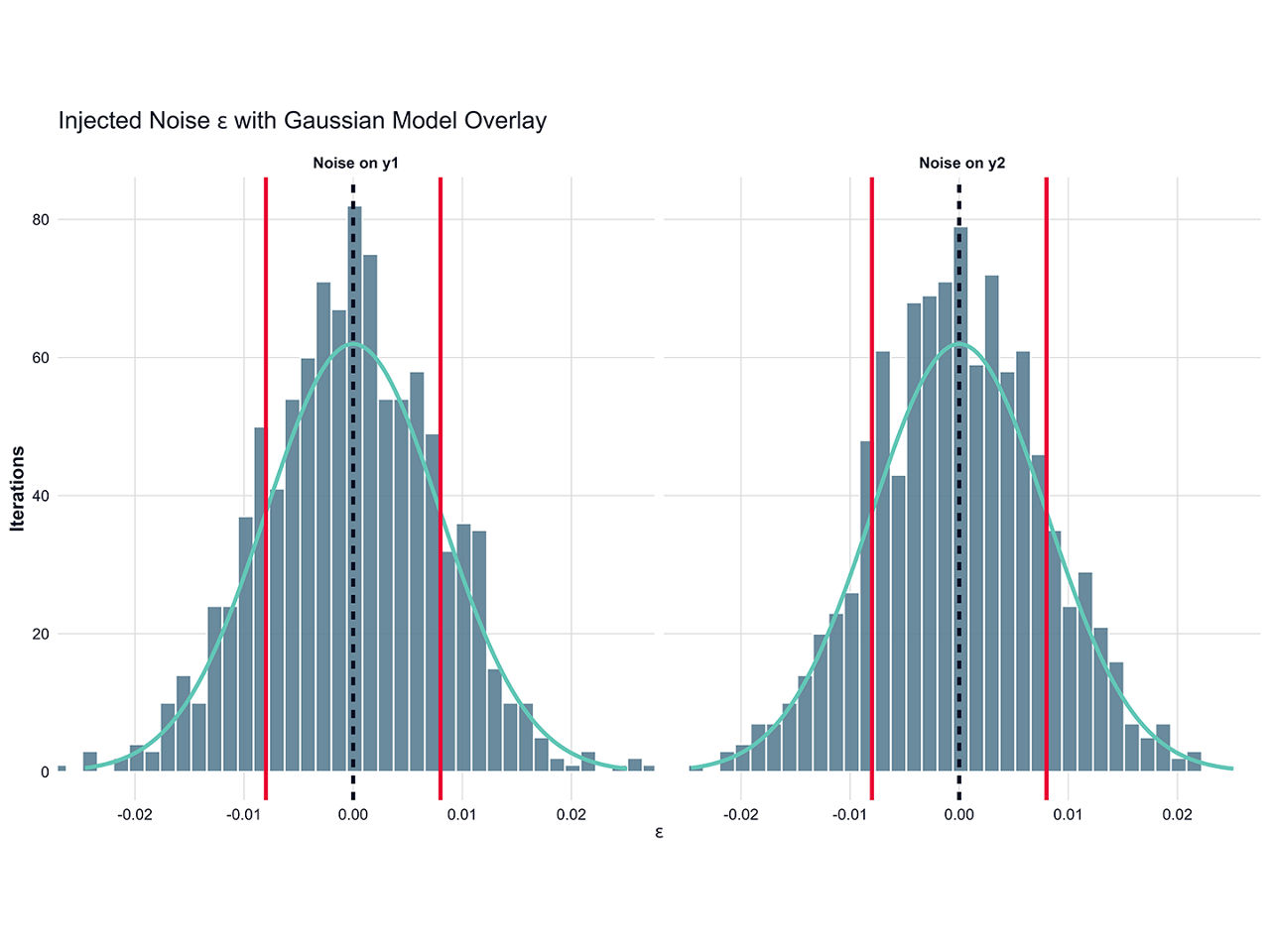

Figure 2: Histogram of Injected Noise with Theoretical Gaussian Model.
Engineers then conduct a sensitivity analysis that sweeps over credible ranges by testing the outcomes in a range between halved and doubled injected noise. Testing these ranges guarantees the final decision avoids relying on a flawed initial assumption.
Monte Carlo Envelopes and Traceable Decisions
Generating thousands of simulated measurement scenarios allows engineers to build empirical confidence envelopes and make highly traceable pass-or-fail decisions.
Monte Carlo Iterations and The Decision Rule
Following noise injection, the simulation runs Monte Carlo iterations (5,000 in this example to reach a stable decision) and plots linear fits over the sparse data points. Figure 3 shows a dense visual gradient, with the concentration of lines indicating the most probable degradation path.

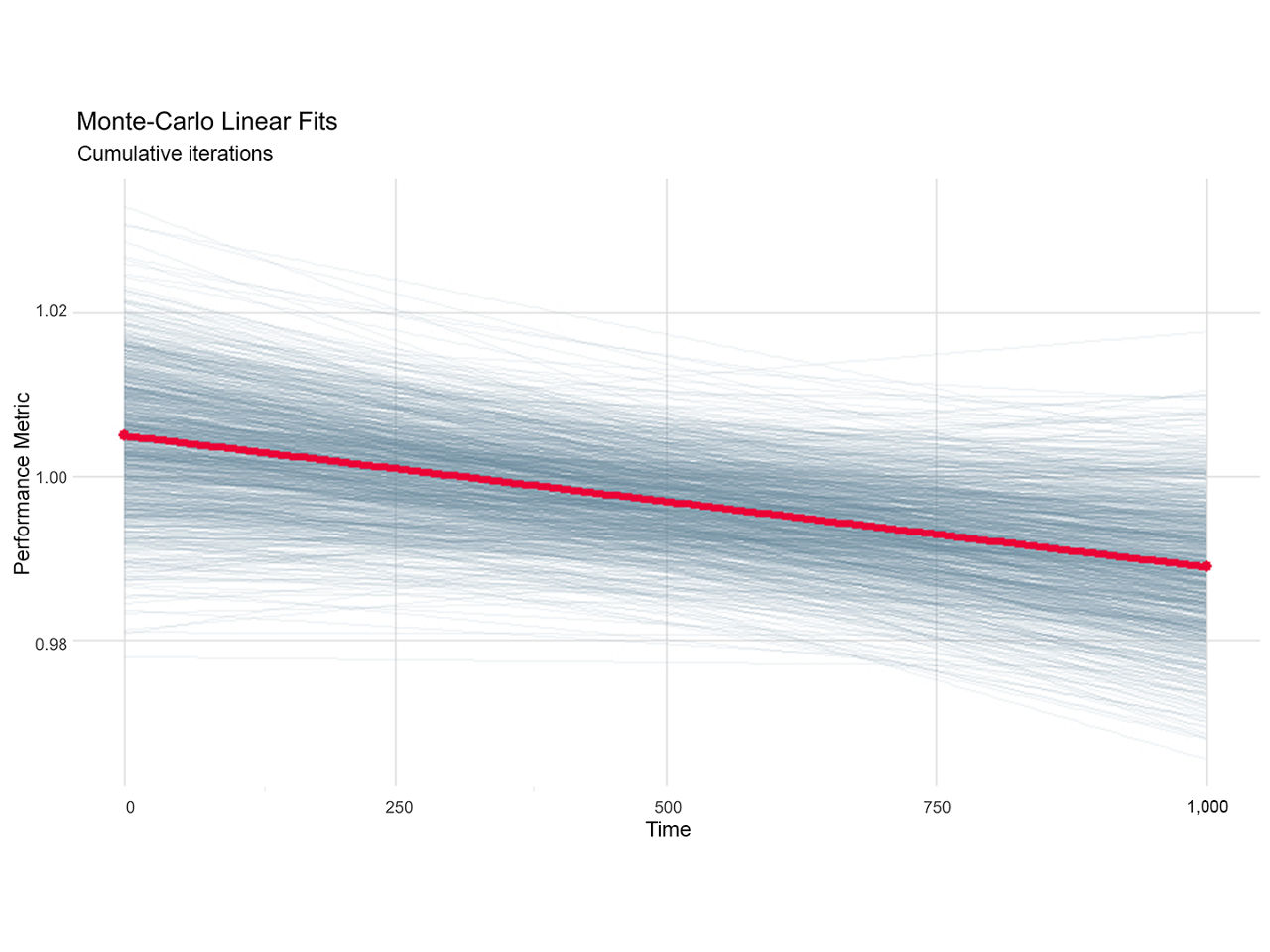

Figure 3: Monte Carlo Linear Fits Graph showing the cumulative iterations forming a dense baseline envelope.
The simulation generates the results, which are then used to calculate an empirical 95 percent Monte Carlo slope envelope, providing an empirical probability estimate rather than a simple classical p-value. A zero-slope line lying inside the envelope supports a "no significant degradation detected" decision under the stated noise assumptions. A zero-slope line falling outside the envelope indicates that a significant trend is present, whether true degradation or extreme noise, and should trigger further engineering review or additional data collection depending on the application risk. Recording the initial sigma assumptions and sensitivity results provides full traceability for every final decision.
Minimal Detectable Slope for Test Planning
As a final output, the workflow yields a minimal detectable slope (MDS) that goes beyond immediate pass-or-fail decisions. The MDS provides engineers with the exact threshold for the smallest degradation trend they can reliably detect given the test's specific noise profile and test equipment resolution. Reporting this metric optimizes future test planning by helping teams estimate the necessary quantity of samples and timestamps required for subsequent development phases.
Data-Driven Reliability and Co-Development
Applying uncertainty-aware workflows allows engineering teams to make rapid, data-driven decisions that keep projects on schedule without risking field performance. Collaborative development strategies rely on data-driven decisions based on statistical methods to promote a DfR approach rather than merely avoiding over-engineering.
Knowing exactly how much accelerated reliability testing is enough prevents unnecessary design iterations and accelerates time to market. Ongoing innovation focuses on connecting vast historical test databases with AI. Future algorithms will automatically analyze material properties and historical gauge repeatability to instantly recommend optimal noise injection parameters.
Validating Performance at Global Reliability and Test Solutions (GRTS)
Successfully balancing shrinking design cycles with strict performance expectations requires deep analytical expertise and decades of historical testing data. The Design for Reliability team within the GRTS global network mitigates the risks of next-generation product launches through disciplined validation and process integrity. Decades of accumulated engineering expertise help optimize designs from the very start of development, preventing surprise rework and excess costs.
To assist engineers in their validation efforts, Molex has developed the Designing for Reliability hub, a comprehensive digital resource that makes this level of expertise accessible to all design teams. This online portal equips engineers with advanced predictive tools and proven validation methodologies to safely accelerate product development. Visit the Designing for Reliability hub to help bring certainty to your next product development cycle.
