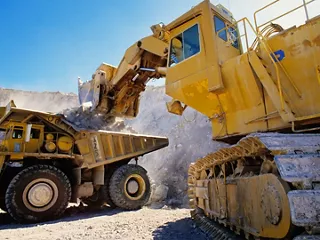

Excavator and dump truck utilizing heavy equipment connectivity at a mining site.

Heavy Equipment Connectivity Solutions

Heavy machinery operates in harsh conditions that can degrade connector seals. This tends to expose contact interfaces to corrosion and signal loss, causing costly equipment downtime in the field. To protect connection integrity against high vibration, fluid ingress, debris and mechanical stress, robust environmental sealing and positive-locking systems are essential. Molex industrial connectors are designed with advanced seals and mechanical locks, to deliver reliable, high-performance connectivity across demanding heavy equipment applications.

Rugged Heavy Equipment Connectivity for Demanding Environments

Designers of heavy machinery face unique challenges in maintaining electrical connection reliability. Harsh operating environments can cause terminal back-outs, contact displacement and accidental unmating that result in intermittent signal loss, corrosion, field downtime and increased warranty exposure. As architectures become more electrified and sensor-dense, standard connectors introduce space constraints, routing complexity and production delays driven by manual assembly errors.

Overcoming these challenges requires connectivity solutions designed for both machine reliability and manufacturing efficiency. Environmental sealing, vibration-resistant locking mechanisms and stable contact interfaces protect signal integrity under high stress, while compact, high-density connector footprints optimize limited chassis and enclosure space. Additionally, error-resistant assembly features such as integrated seals and keyed polarization simplify installation and help minimize wiring mistakes during production and field service.

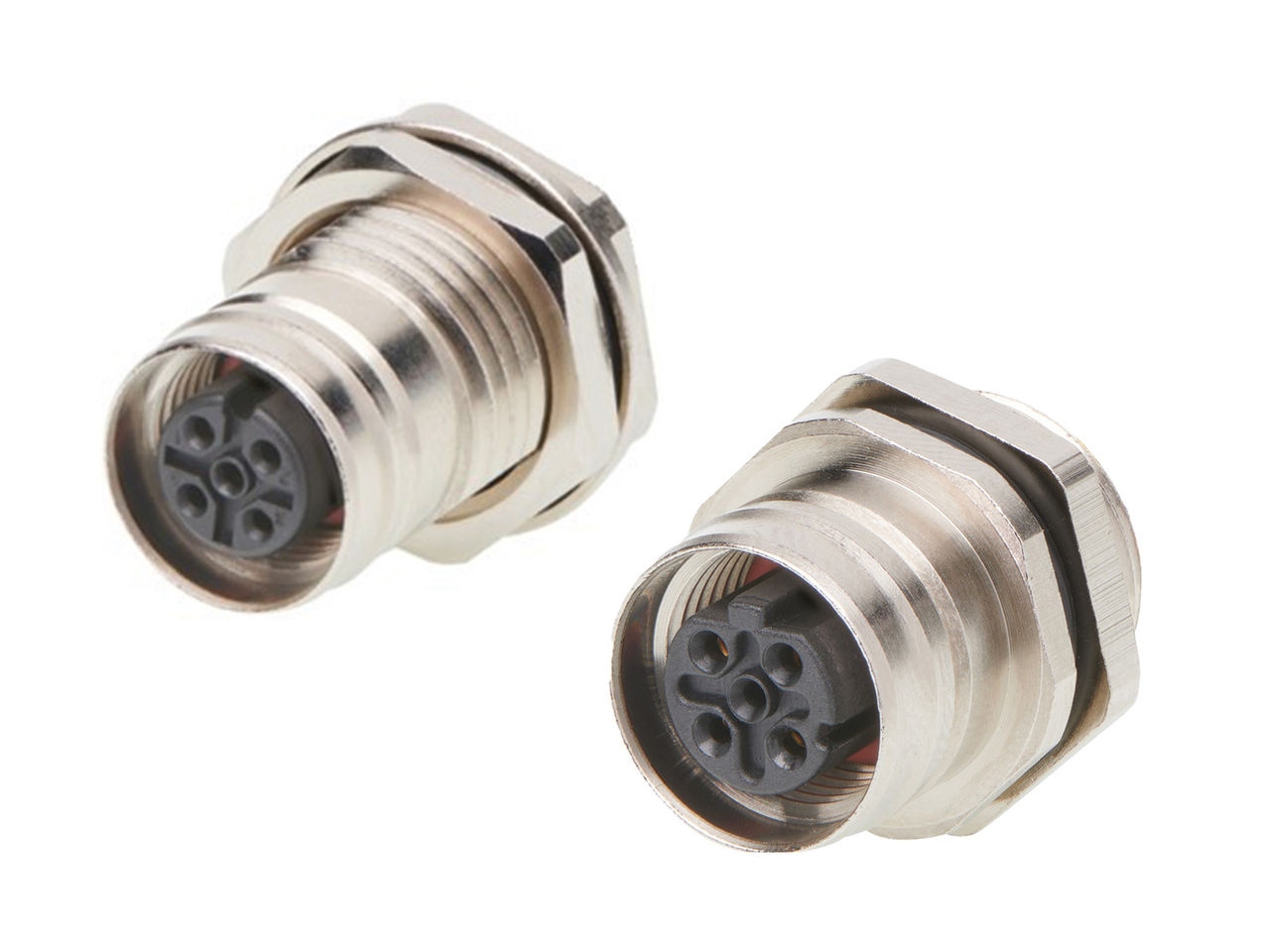

Molex supports heavy equipment design engineers with application specific industrial connectivity solutions. Molex Heavy-Duty Connectors (HDC) and Brad M12 Ultra-Lock 2.0 Connectors deliver IP-rated protection, secure locking and durable connectivity. For space-constrained layouts, MX150L Connectors utilize a two-way mat seal, protective cap and integrated terminal position assurance (TPA) to maximize density and help ensure correct terminal sealing. For automotive-grade ruggedness, Molex MX150 Connectors combine two-ring sealing, terminal potting, integrated TPA and an optional connector position assurance (CPA) lock to prevent accidental unmating in high-impact environments.

Addressing Heavy Equipment Connectivity Challenges

Preventing Field Downtime with Rugged Heavy Machinery Connectivity

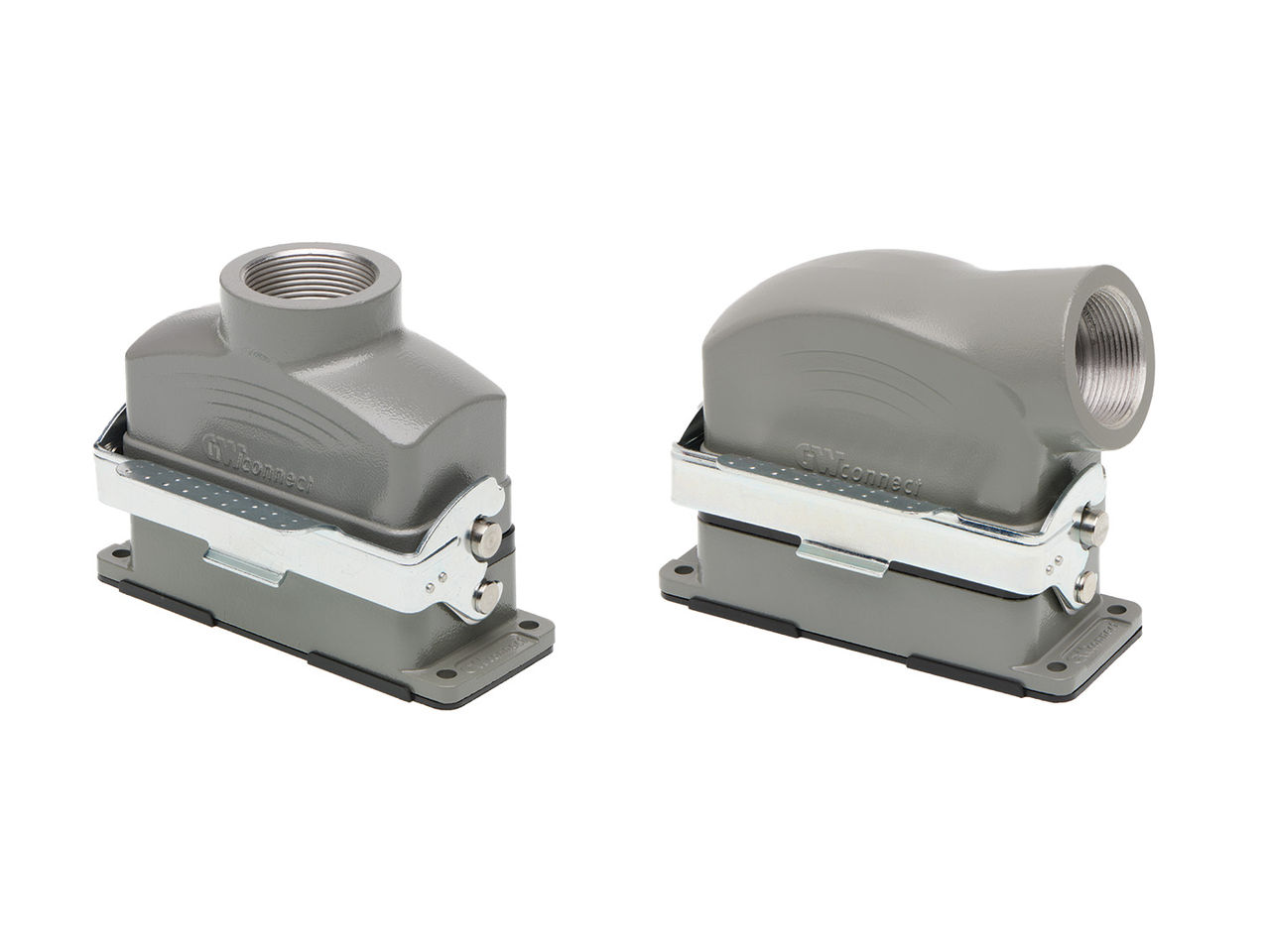

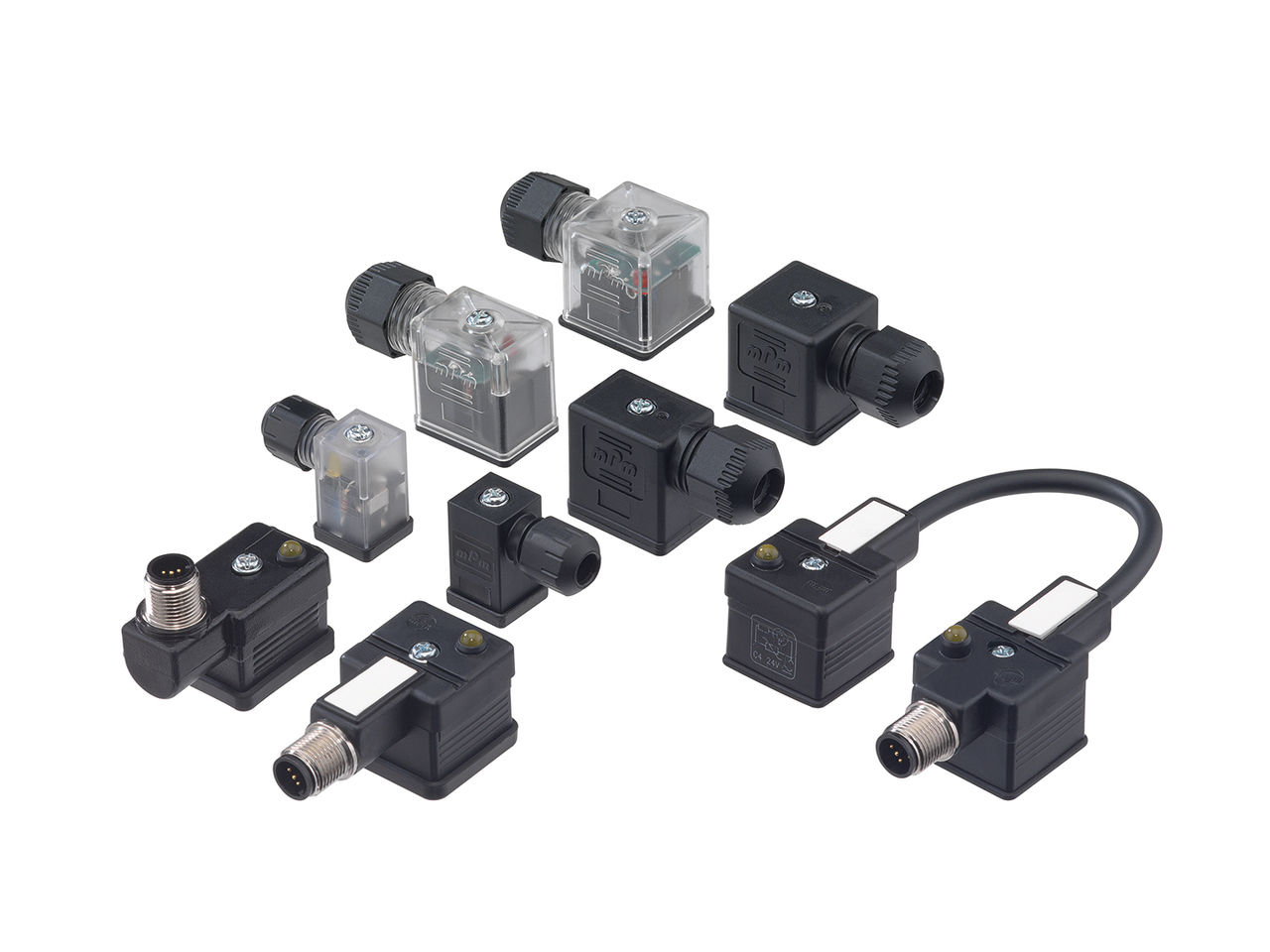

In heavy equipment applications, continuous vibration and high-pressure washdowns can cause fretting corrosion and fluid ingress, leading to costly downtime. To combat these failure modes, Molex Heavy-Duty Connectors and Brad M12 Ultra-Lock 2.0 Connectors feature rugged mechanical housings and up to IP69K-rated radial sealing across demanding architectures. For compact, localized connections, DIN Valve Connectors resist mechanical stress and deliver IP67-rated resistance to moisture and chemical exposure.

Explore Heavy-Duty Connectors Find DIN Valve Connectors
Technician performing maintenance on components behind a heavy equipment access panel.

Overcoming Space Constraints with Compact Heavy Equipment Connectivity

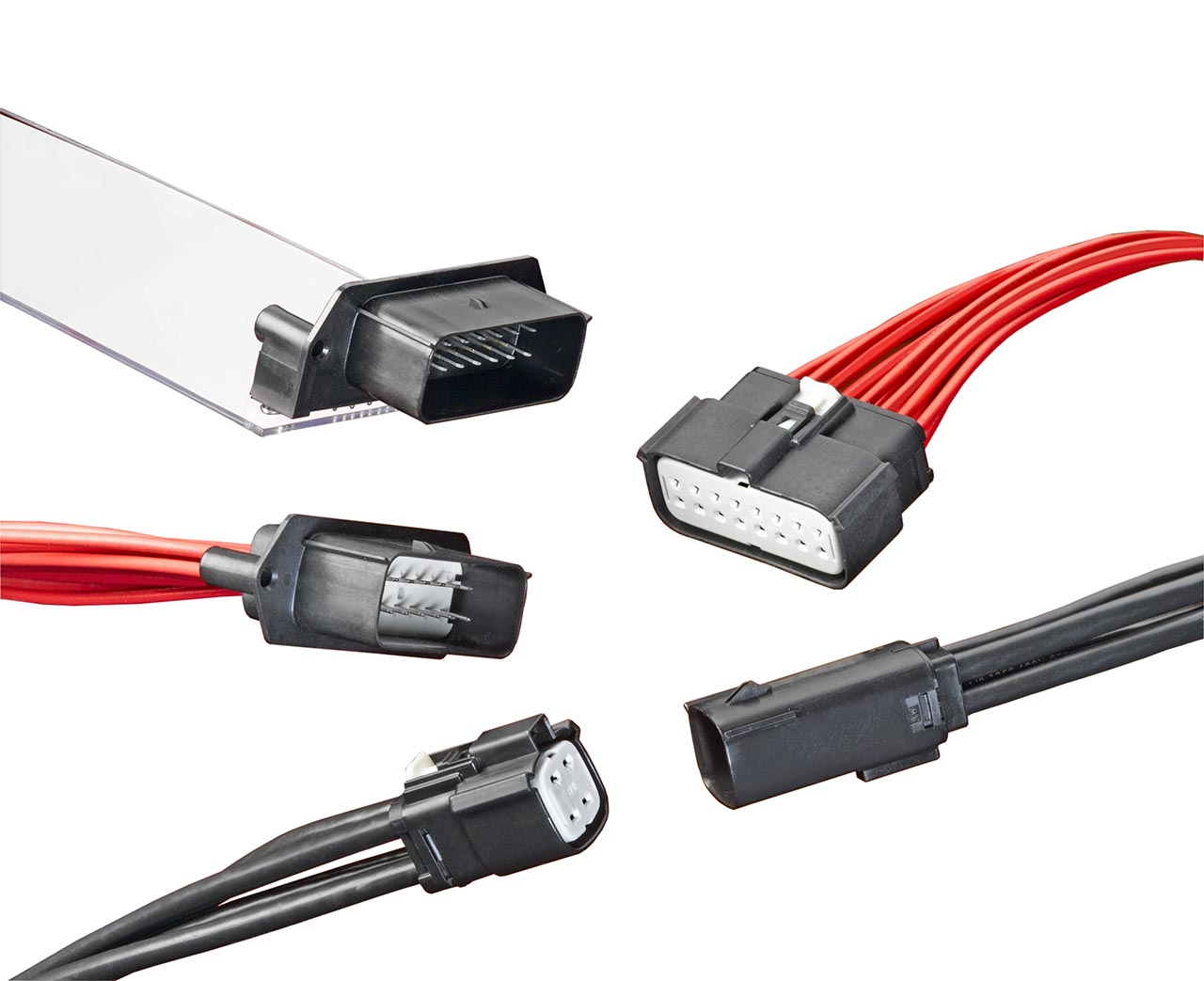

Oversized connector housings and complex wire routing consume valuable real estate within tight machinery envelopes, while labor-intensive manual assembly can introduce defects, rework and production bottlenecks. Engineers need compact connector systems with integrated sealing, pre-assembled housings and features that streamline routing and reduce manual assembly errors. Molex MX150L Connectors combine a low-profile footprint with a two-way mat seal, protective cap and integrated TPA to optimize available space and help ensure terminals are properly locked.

See MX150L Connectors
Mechanic performing field maintenance in a tight space within a construction vehicle.

Securing High-Vibration Interfaces with Rugged Heavy Equipment Connectivity

Vibration and mechanical impact can cause terminals to back out or connectors to disengage, leading to signal loss and line failures in high-stress operating environments. Engineers require ruggedized connector systems with features that mechanically lock terminals in place and secure fully mated connections. Molex MX150 Connectors feature high-performance two-ring sealing to support connection reliability, integrated TPA and an optional CPA slider to prevent unmating in high-impact applications.

Discover MX150 Connectors
Mechanic manually connecting wires in a tractor engine.

Featured Resources for Heavy Equipment Connectivity

Trend

Rugged, Miniaturized Connectors for Reliable Product Performance

Compact heavy equipment architectures leave limited room for advanced electronics, exposing connections to harsh elements. These modern systems need space-efficient connectivity that maintains peak performance under continuous mechanical and environmental stress. Molex rugged, miniaturized connector solutions feature durable housings, terminal verification, advanced locking mechanisms and IP-rated sealing for space-constrained applications.

Explore Rugged Miniaturized Connectors
Heavy machinery in a rugged environment, with callouts highlighting Molex miniature sealed connectors designed for high-vibration applications.

Report

How to Unite Ruggedization and Miniaturization in Connector Design

As heavy machinery integrates more sensors and distributed electronics, signal routing becomes challenging within architectures already exposed to harsh conditions. Engineers need design flexibility to preserve signal integrity and mechanical stability without adding bulk and complexity. Learn how miniaturized rugged connectors support reliable performance in compact, harsh-environment applications.

Get the Report

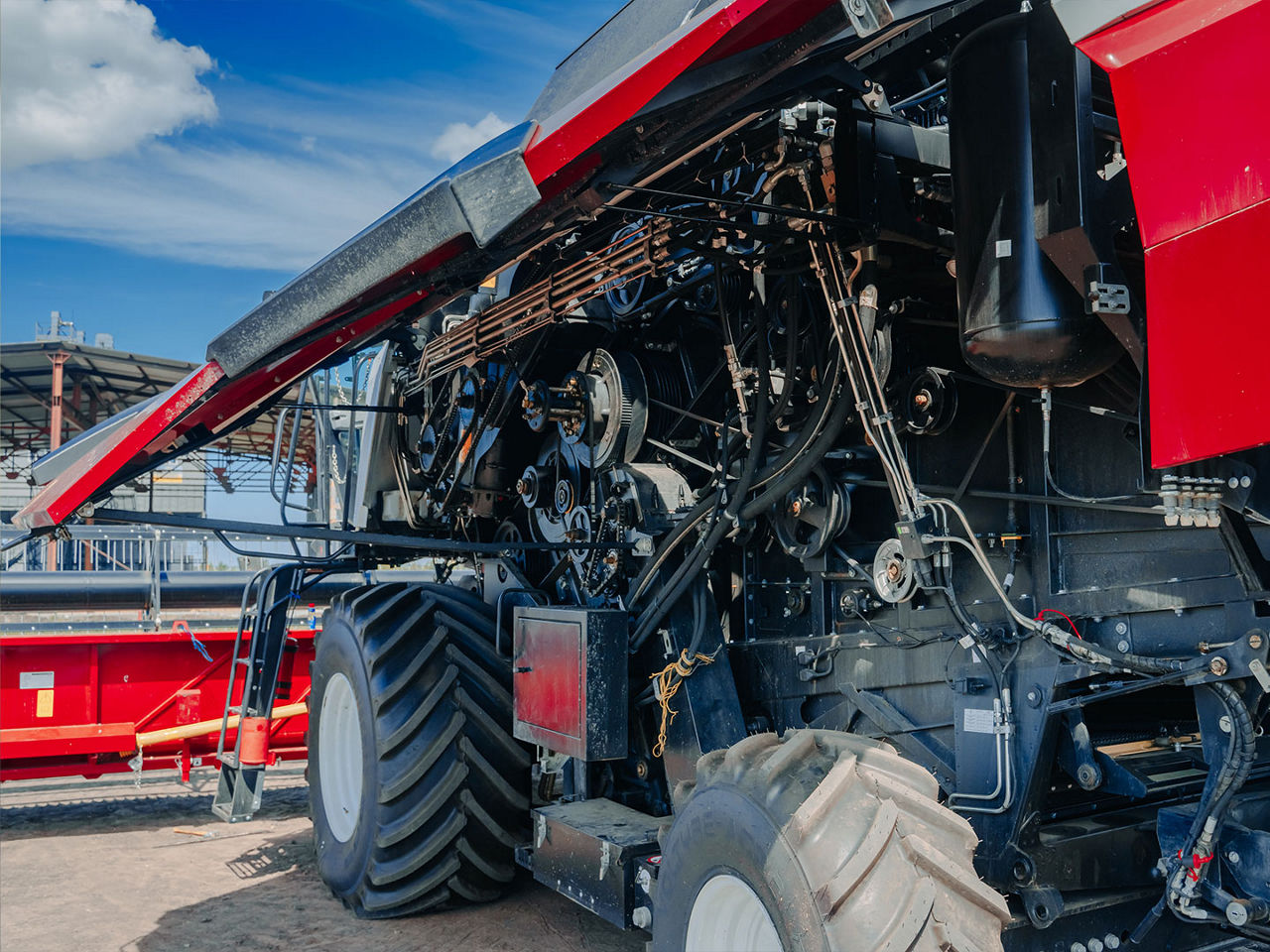

View of a heavy equipment combine harvester engine compartment showing complex wiring harnesses, sensors and structural framework.

Application

Harsh Environment Connectors and Connectivity Solutions

Harsh environments expose heavy equipment connectors to moisture, chemicals, debris and high-pressure washdowns that can compromise reliability and increase downtime. Rugged sealing, protected cable systems and secure connection designs must be utilized to preserve electrical integrity under exposure to these conditions. Molex industrial connectors combine elastomeric sealing with polyurethane (PU), weld slag and oil resistant (WSOR) and thermoplastic elastomer (TPE) jacketed cable options to deliver ingress protection, vibration resistance and simplified installation in demanding deployments.

Discover Harsh Environment Interconnects

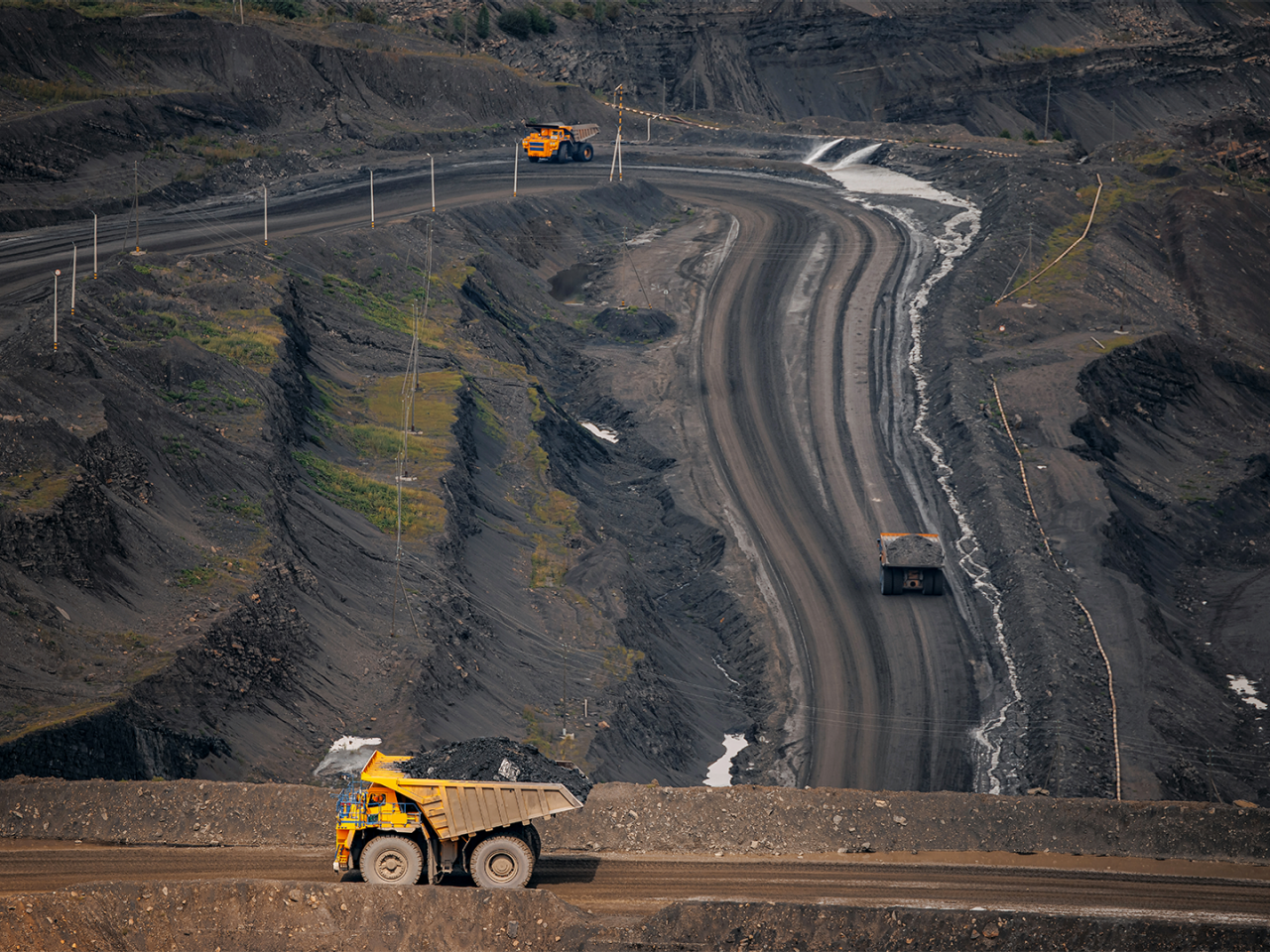

Harsh environment connectors in industrial machinery.
