Ensuring programmable logic controllers (PLCs) function properly—with minimized latency, optimized efficiency, exceptional reliability and strengthened resistance to cybersecurity threats—requires specialized electronic components. Molex interconnect, hardware and software products provide durable and high-performance solutions to help ensure the reliable operation of PLCs in harsh environments.

Enhancing Industrial Automation with PLC Connectivity

PLCs must do more than operate reliably in harsh environments. They must minimize latency and improve signal integrity (SI) to support seamless automated manufacturing. Communication with devices on the production line must be stable and reliable to maximize uptime. PLCs need to optimize power supply connectivity to ensure efficient operation. They must also provide security against cyberattacks and other threats that can impact smart factory performance.

Specialized processing and connectivity solutions designed for the industrial market can help designers build effective and efficient PLCs. High-speed I/O connectors help reduce latency and improve system performance, enhancing quality and safety. Low-loss power connections and power supply module components help maximize efficiency, reduce costs and improve thermal management. Safety and security functions integrated with the PLC help guard against cyberthreats.

Industrial interconnect and automation solutions from Molex help ensure reliable and high-performance PLC operation. Internal backplane and board-to-board connectors minimize the PCB footprint while providing exceptional SI and ample bandwidth to reduce latency. Space-efficient power connectors reduce power consumption to maximize power efficiency. Rugged, sealed external connectors with IP67 or IP68 ratings withstand harsh conditions and deliver consistent performance. Network Interface Cards and SDKs are designed for resistance to cyberthreats and help optimize industrial networks for high-demand, high-performance stability and reliability.

Featured Products

CPU Module Solutions

High-speed data management and cybersecurity are two of the most sought-after features in modern PLC systems. Molex provides high-speed connectors and cable assemblies for real-time data transmission, high-bandwidth backplane solutions for PLC PCB connections, and Network Interface Cards (NICs) with robust cybersecurity features.

Integrated Safety

  Processor Supply Voltage Communication Speeds  Certifications  Operating Temperatures
Network Interface Cards 64 MHz NIOS processor PCIe NICs: 3.3V, PCU NICs: 24V DC network, 3.3/5V bus, PC/104 NICs: 5V

1Mbaud (CAN only), DeviceNet 125, 250, 500Kbaud

 ODVA, Conformance Approved, RoHS, REACH, cUL, CE, KCC

PCIe and PCU NICs: 0 to +60°C, PC/104 NICs: 0 to +55°C
  Robot Functional Safety Protocol Interfaces Hardware Compatibility Code Footprint (approx.) Industrial Certification Standards Supported Operating System (OS)
Industrial SDKs CIP Safety, Ethernet/IP, Scanner (Originator)/Adapter (Target) 32- or 64-bit microprocessors, (SDK is independent of hardware)

200kB (adapter), or 400kB (scanner)

 CIP Safety 2.22/CT20ES, IEC 61508, TÜV Certified, Pre-certified ANSI C source code

No OS required, (SDK is independent of OS)

PCB Interconnect

  Signal Speed Density Impedance

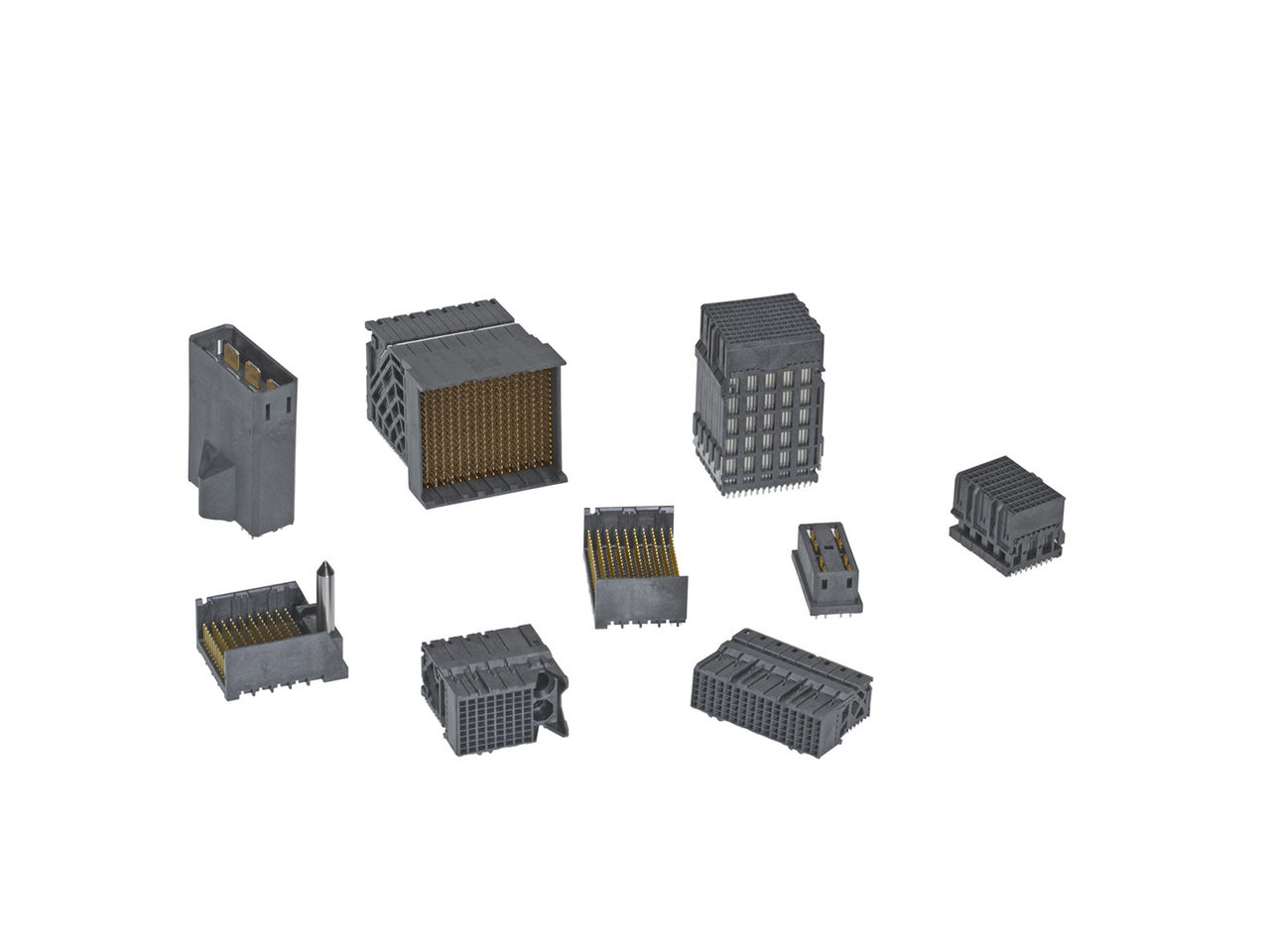

Impact Backplane Connectors 25Gbps 80 pairs per linear inch

85, 100 Ohms
  Pitch Mated Height Circuits Current (Max.)
HD Mezz Connectors 1.20 to 2.00mm 16.00 to 38.00mm

81 to 351

 2.0A

I/O Connectivity

  Circuits Current (Max.) Durability

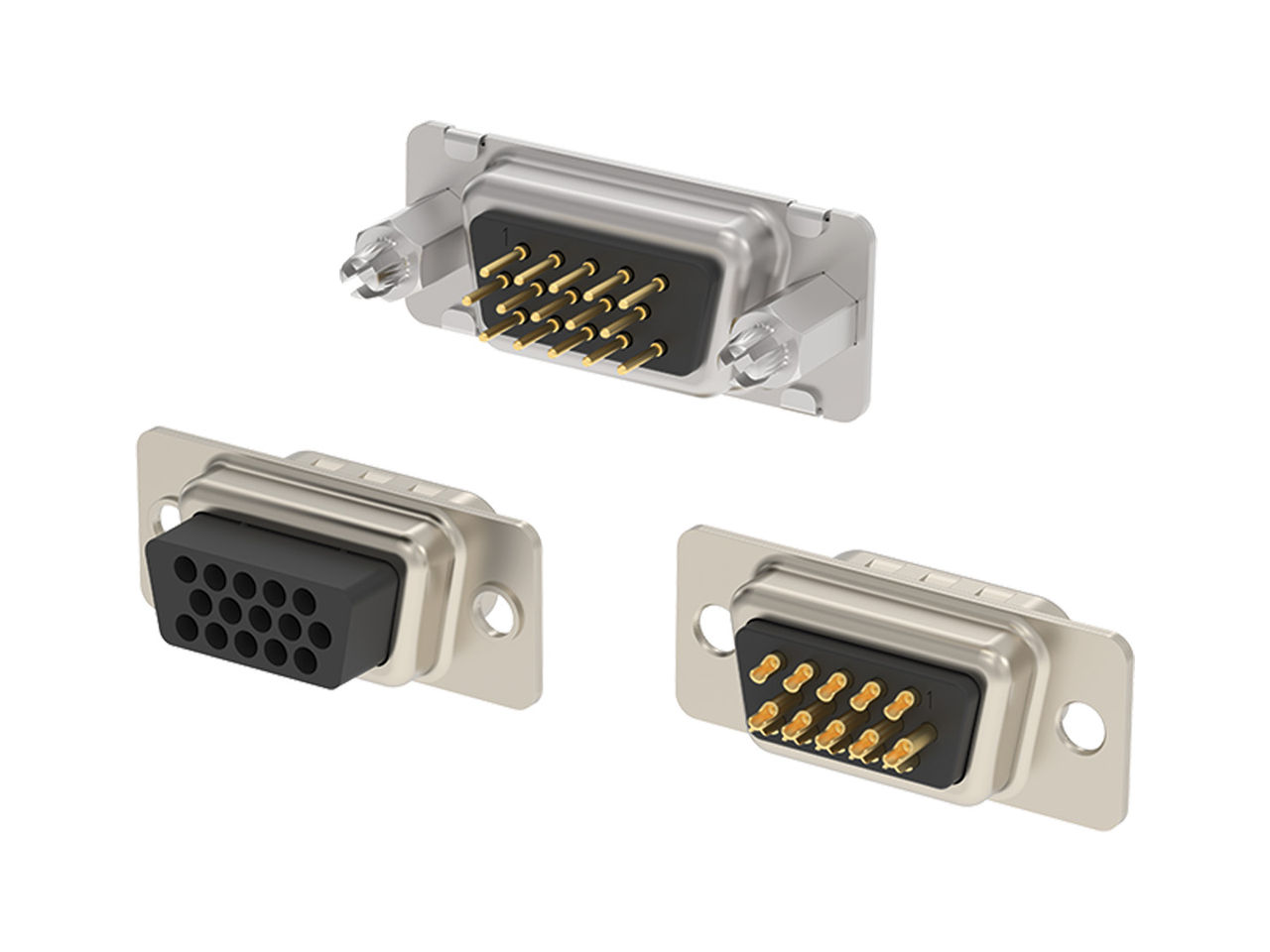

D-Sub Connectors 0 to 50 7.5A

50, 200, 500 cycles
  Pitch Circuit or Ports Current Data Rate Sealed Cable Type
HSAutoLink Connectors 1.27mm 6, 12

1.5A

 13Gbps X Twisted pair
High-Speed FAKRA Mini (HFM) Coaxial Cable   Single, dual, quad, custom   20Gbps X Coaxial
  Pitch Circuits Current Wire Gauge Voltage (Max.) Operating Temperature
Mini-Fit Connectors 4.20mm 4 to 18 Up to 20.5A 28 to 14 AWG 600V -40 to +125°C
SlimStack Connectors 0.35 to 1.25mm 6 to 240 Up to 15.0A   100V -40 to +125°C
FFC/FPC Connectors 0.20 to 2.00mm 2 to 120 0.5A   50V -40 to +150°C
Premo-Flex FFC Jumpers 0.25 to 1.25mm 2 to 120 0.2 to 1.4A   60V -40 to +105°C

Power Supply Connectors

Power components should ensure high performance and reliability while also optimizing power consumption. Low-loss power connectors from Molex feature high voltage and current capabilities together with a low-profile design that shields contacts from dust and debris in harsh environments.

  Pitch Current (Max.) Voltage (Max.)
 Wire Gauge Configuration
DuraClik Connectors 2.00mm 3.0A 250V 30 to 22 AWG Wire-to-board
Super Sabre Connectors 7.50mm 34.0A   12 to 10 AWG Wire-to-board, Wire-to-wire
  Circuits IP Rating Specifications Terminal Size
Mini50 Connectors 4 to 38 IP67, IP69K
(sealed version)		 Conforms to USCAR-2, GMW3191 0.50mm
  Circuits Current (Max.) Durability
D-Sub Connectors 0 to 50 7.5A 50, 200, 500 cycles

Interface Module Connectors

Components connecting the PLC to other control cabinet components must endure harsh industrial conditions such as dust, moisture, and extreme temperatures. Rugged, compact Molex connectors feature excellent EMI and RFI protection; IP67/IP68-rated sealing for protection against environmental ingress; and heavy-duty die-cast construction that meets IEC 61076-2-101 standards.

  Coding Poles IP Rating Field Attachables Shielded Cable Material & Length

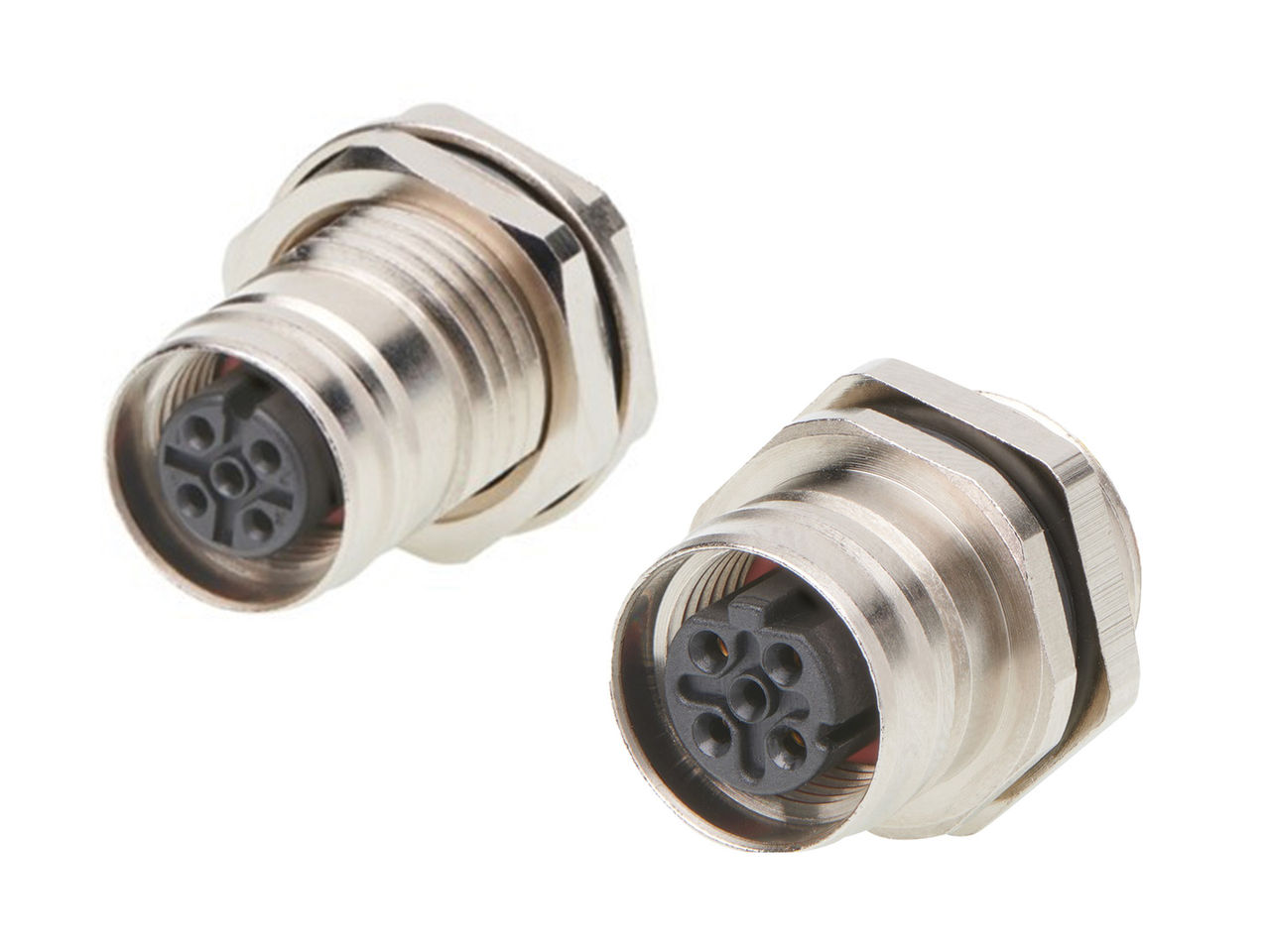

Micro-Change M12 Connectors X-Code, D-Code 4, 8 IP67, IP68 X X PUR, PVC, weld-slag oil-resistant (WSOR) TPE, up to 100.0m
  Circuits Current  Data Speed Voltage (Max.) Operating Temperature
USB Connectors Up to 25 3.0, 5.0, 6.0A Up to 40Gbps 48V -40 to +85°C
  Current (Max.) Durability (Max.) Voltage
Modular Jacks and Plugs 1.5A 500 cycles 150V AC RMS
