Super Sabre Connectors

Satisfies high-current and high-voltage application demands in a low profile
Space-efficient Super Sabre Connectors can accommodate 600V with a current rating of 34.0A per blade.

Delivers high-performance conductivity while preventing motion-induced fretting corrosion

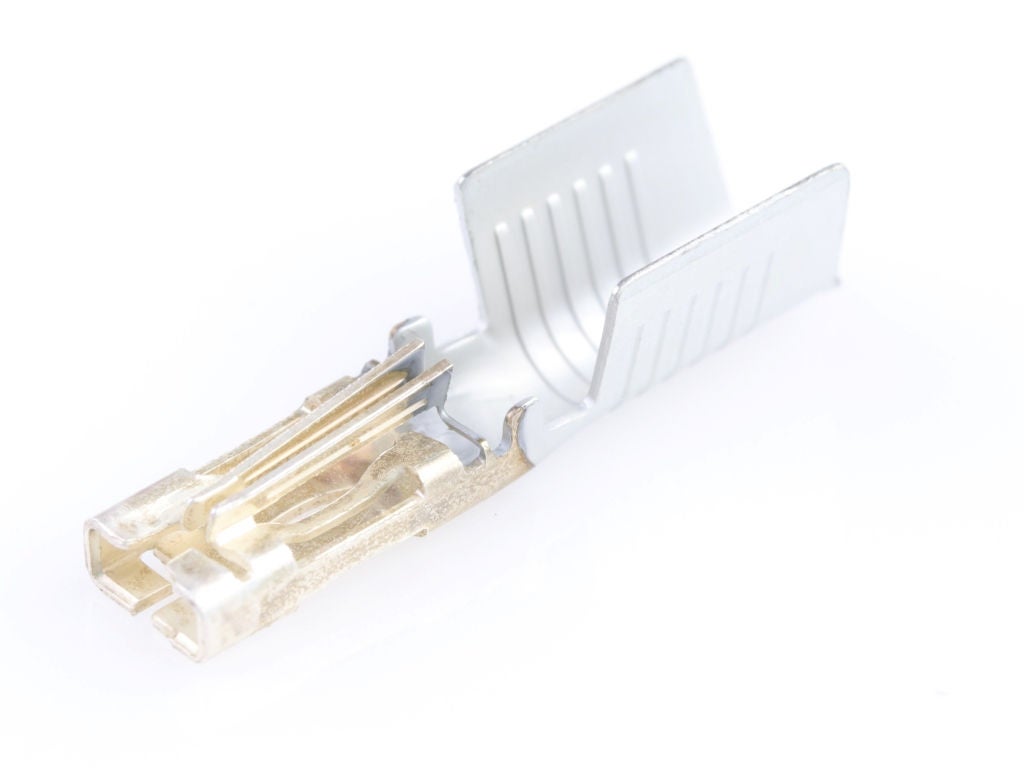

The high-conductivity alloy terminals are silver-plated to resist oxidation.

Offers significant space and cost savings to help enhance design flexibility

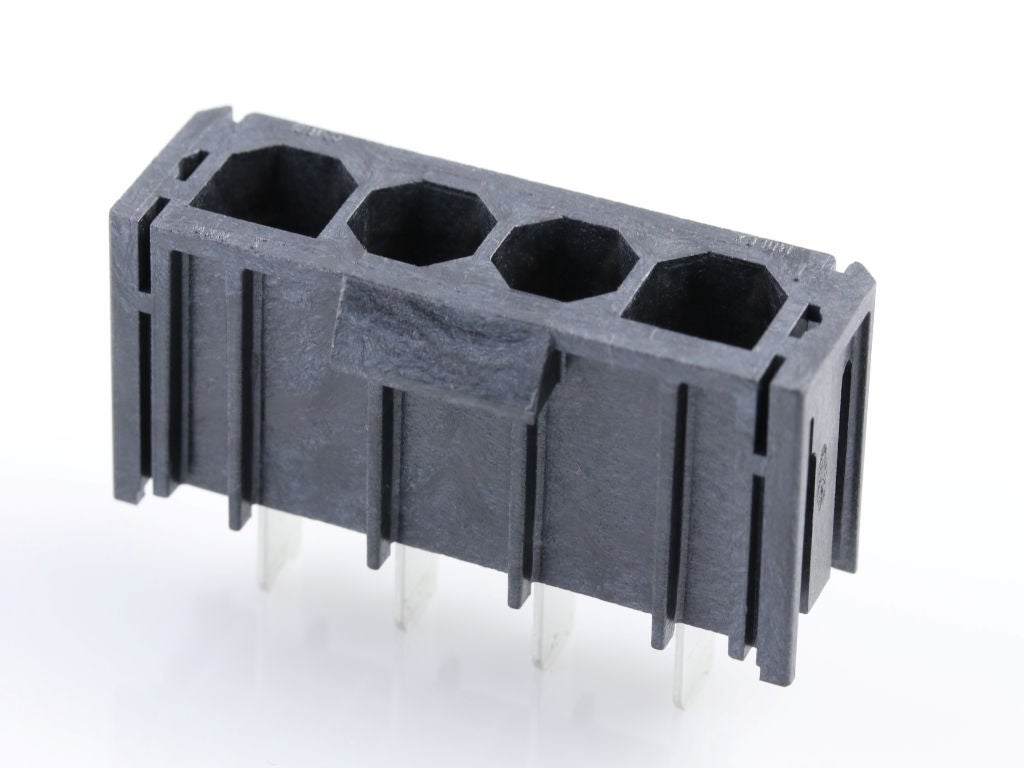

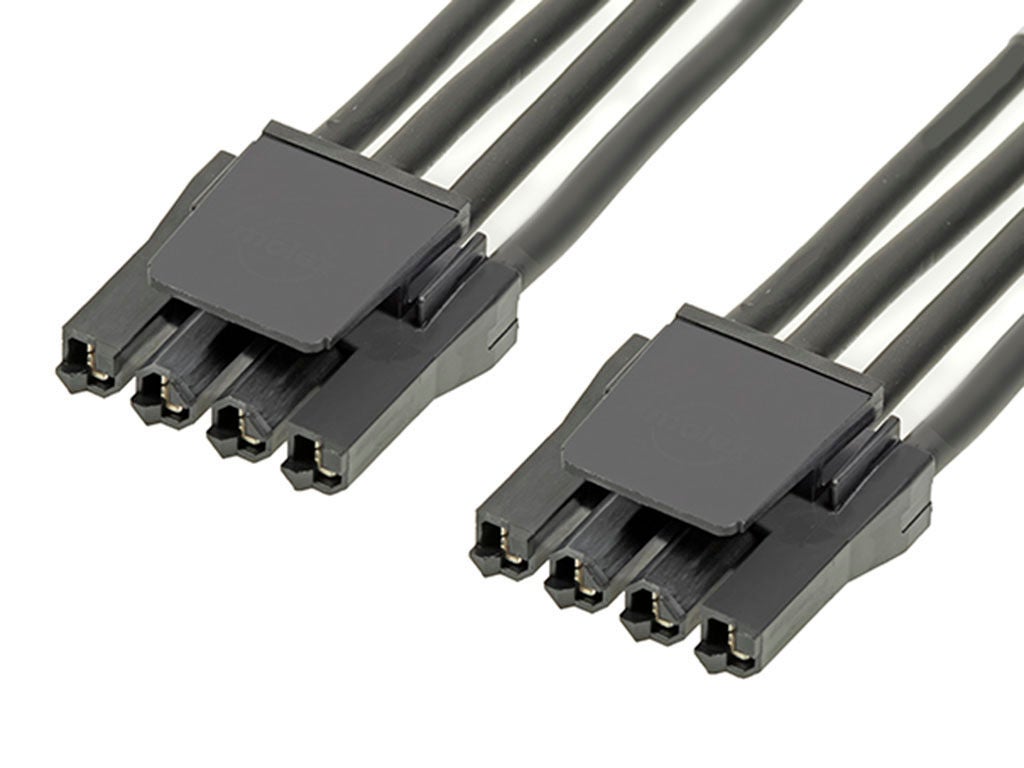

Streamlined wire-to-wire and wire-to-board configurations are compatible with lead-free wave soldering and reflow soldering processes.

Supports long-term performance and reliability

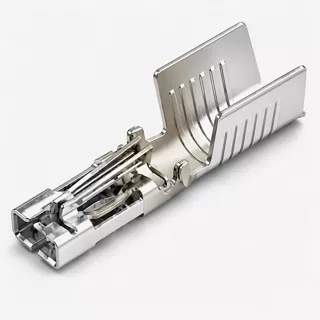

The flat-blade terminal design features 4 independent points of electrical contact to create redundant, secondary current paths.

Complies with European electrical safety standard
Super Sabre Connectors are glow wire capable to minimize fire hazards.

Reduces risk of terminal backout with mating plug or header in high-vibration applications

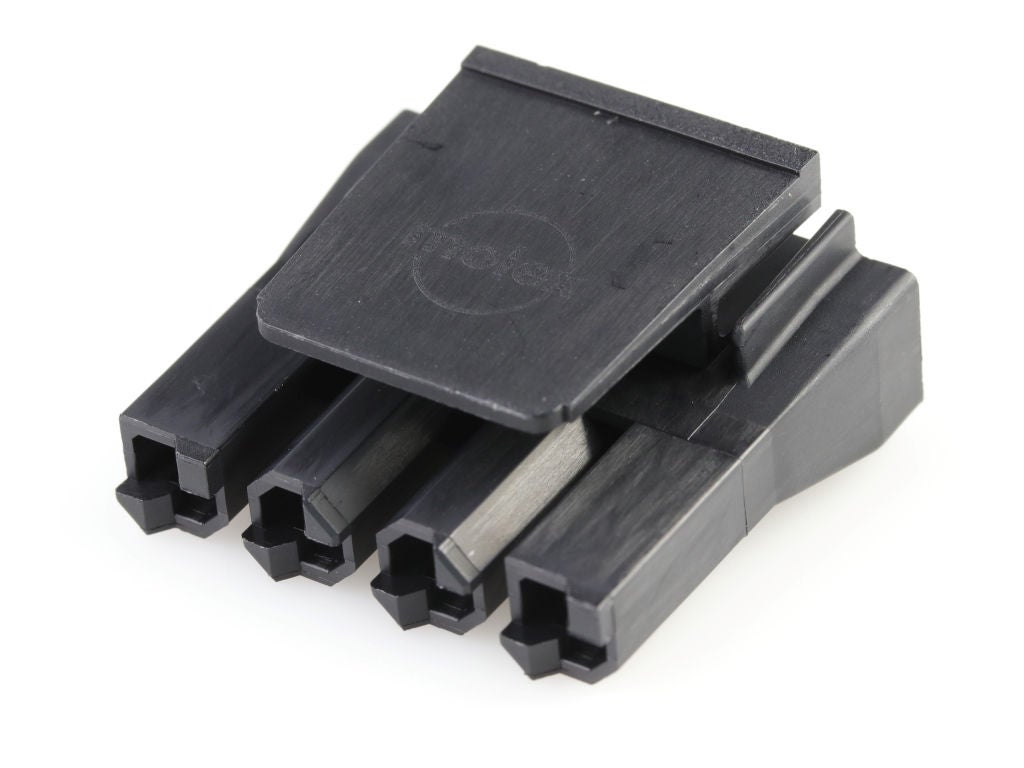

The positive latch and terminal position assurance (TPA) feature on the receptacle help enable reliable connectivity for consistent performance.

Withstands high operating temperatures in demanding environments, including automotive and commercial vehicle applications
These robust connectivity solutions can accommodate operating temperatures up to +125°C, supporting USCAR2 and Level 3 charging.

Provides comprehensive protection against damage and shock
Terminals on both mating sides are fully isolated.

Meets safety requirements across numerous consumer applications
The flat-blade terminal design is UL1977 and UL60950 “finger test” certified, which helps prevent human exposure to dangerous voltages.
