| Current | Voltage | Seal Rating | Vibration Class |
|---|---|---|---|
| Up to 10.0A (with Molex terminals) | Up to 14V DC | IP67 | V1 |
Overview
Automotive manufacturers need electrical connectors capable of maintaining secure and reliable connectivity in environments subject to high vibration, temperature extremes and moisture. These connectors must offer design flexibility while meeting stringent industry standards and should optimize assembly operations by simplifying tasks and reducing the chances of errors.
With robust, reliable and versatile automotive-grade connectors, manufacturers can improve production efficiencies by using a single interconnect solution to meet a variety of application needs. Durable and high-performance connectors can improve system performance and ensure regulatory compliance for essential automotive applications. Supporting simpler and easier assembly operations accelerates production processes and minimizes errors, reducing costs and ensuring proper system operation.

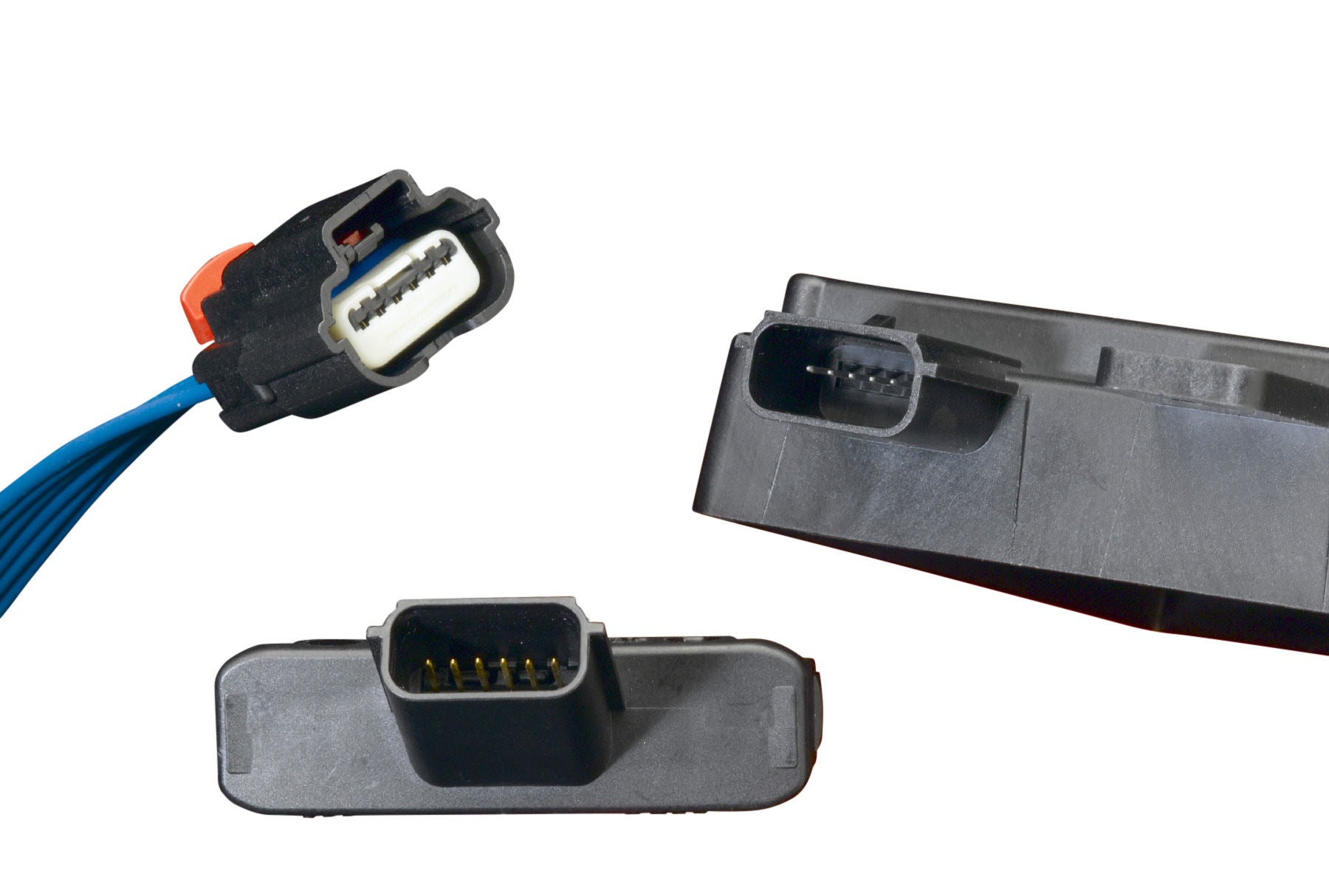

The USCAR-compliant MX64 Connector meets automotive standards and ensures compatibility with a variety of international wire sizes and terminal systems, enhancing design flexibility. The design mates with an interface molded into the module, simplifying assembly, while built-in features help prevent mis-mating and accelerate assembly operations. MX64 Connectors are IP67 rated to withstand water and dust ingress, and they offer positive locking to prevent accidental disconnections. The MX64 system is tested to USCAR-2 Rev. 4 standard, demonstrating its reliability.
Reduces risk of connection failure
TPA and available CPA offer superior reliability in high-vibration environments and help prevent unexpected disconnections, improving system reliability.
Ensures reliable operation in challenging environments
The IP67-rated mat-seal design protects against dust or water ingress, reduces costs and improves production efficiency by eliminating individual wire seals.
Meets industry standards
The design is tested to USCAR-2 Rev. 4 standards, ensuring reliability and compatibility with automotive specifications.
Streamlines assembly operations
The direct attachment to an interface molded into the module helps simplify design and assembly work and reduces potential failure points.
Minimizes mis-mating errors
An audible click upon mating and three color-coded polarization options help prevent incorrect connections and reduce errors.
Improves design flexibility
The MX64 system supports 22 to 18 AWG (0.35 to 0.75mm2) wires as well as MX64 0.64mm, TE GET and Yazaki Kaizen terminals, meeting various customer and application requirements while maintaining use of a single, trusted product family.
Datasheets and Guides
Applications by Industry
Body electronics
Center high-mounted brake lamps
Chassis applications
Comfort/infotainment/driver-assist devices
Daytime running lights
Engine-coupled connections
Fog lamps
Front/rear position lamps
Headlamps
Passive and active sensor systems
Powertrain systems
Rear combination lamps
Reversing lamps
Safety systems
Sensors
Side marker lamps
Turn signal lamps
This is not a definitive list of applications for this product. It represents some of the more common uses.
Featured Videos
Frequently Asked Questions
What are MX64 Connectors?

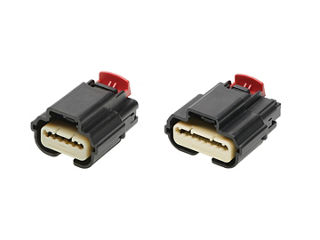

MX64 Connectors are sealed, automotive-grade interconnects used for automotive and vehicle applications to connect sensors, LEDs and other modules and devices using a USCAR interface and industry-standard 0.64mm terminals.
What terminals can the MX64 product family accommodate?
The MX64 system is designed to accommodate MX64 terminals, TE GET terminals and Yazaki Kaizen terminals.
How can I obtain the interface drawing to incorporate the MX64 design into my module?
USCAR engineering drawings of the interface are available so that the MX64 design can be incorporated into modules or devices. Drawings are available on the USCAR website, or designers can contact the MX64 Connector global product manager with any questions.
How can MX64 Connectors support advanced driver assistance system (ADAS) design?
The MX64 Connector system is the ideal size for sensor applications. Its 0.64mm terminal design is robust enough to support the power needed for the sensor while also minimizing the amount of packaging space needed.
What are the benefits of the MX64 product family being a USCAR interface?
The MX64 Connector is rigorously tested to USCAR-2 Rev. 4 standards. The MX64 system’s status as a USCAR interface attests to its quality, robust reliability and ability to meet the stringent testing requirements that automotive applications require.
