| Speed | Current | Circuits | Wire |
|---|---|---|---|
| Up to 112Gbps (CX2) or up to 224Gbps (CX2 Dual-Speed) | 0.5A max. per mated contact | 32 differential pairs (DPs) or 64 DPs (CX2 Dual-Speed only) | 31 AWG (CX2) or 30 AWG (CX2 Dual-Speed) twinax |

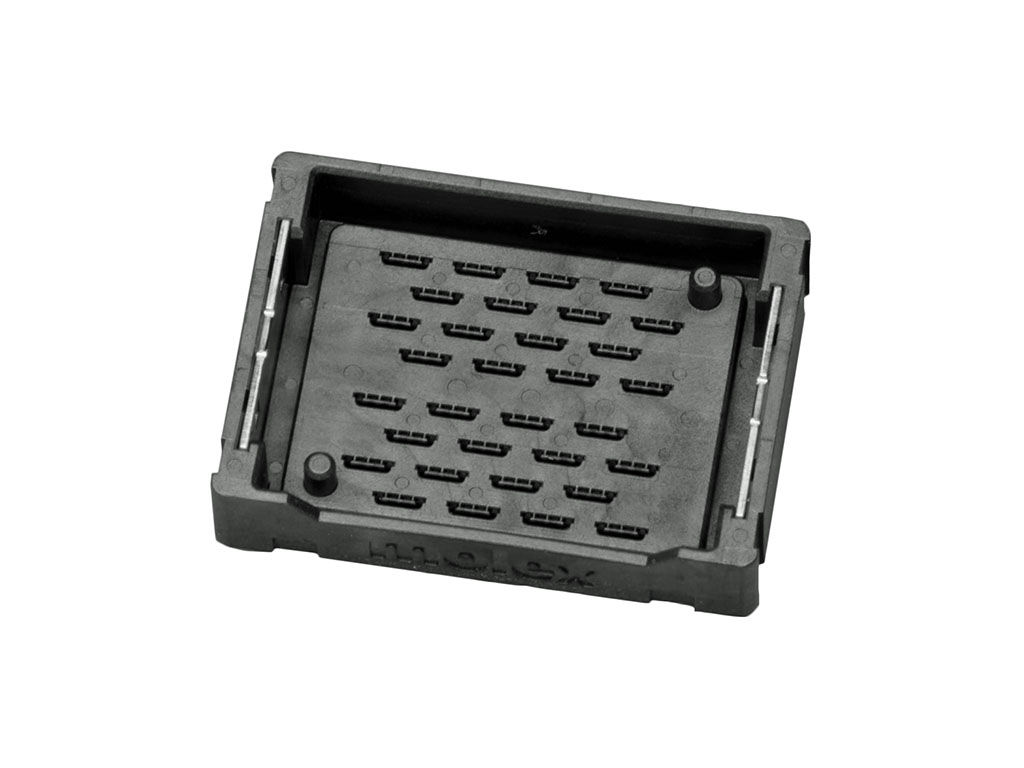

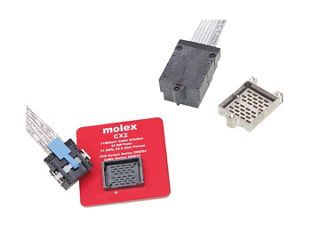

CX2 Connector System
The demand for higher speeds driven by AI and machine learning applications is leading to requirements for 112G and 224G speeds. With these speeds comes more stringent requirements for enhancing signal integrity (SI) and reducing signal loss in direct-to-chip communication channels.
Near-ASIC cabled connector systems offer a solution, delivering better SI performance when compared with traditional PCB traces. These connections utilize low-loss twinax cable to improve performance to 112G or 224G speeds and utilize innovative shielding to reduce signal loss while extending reach within the box.

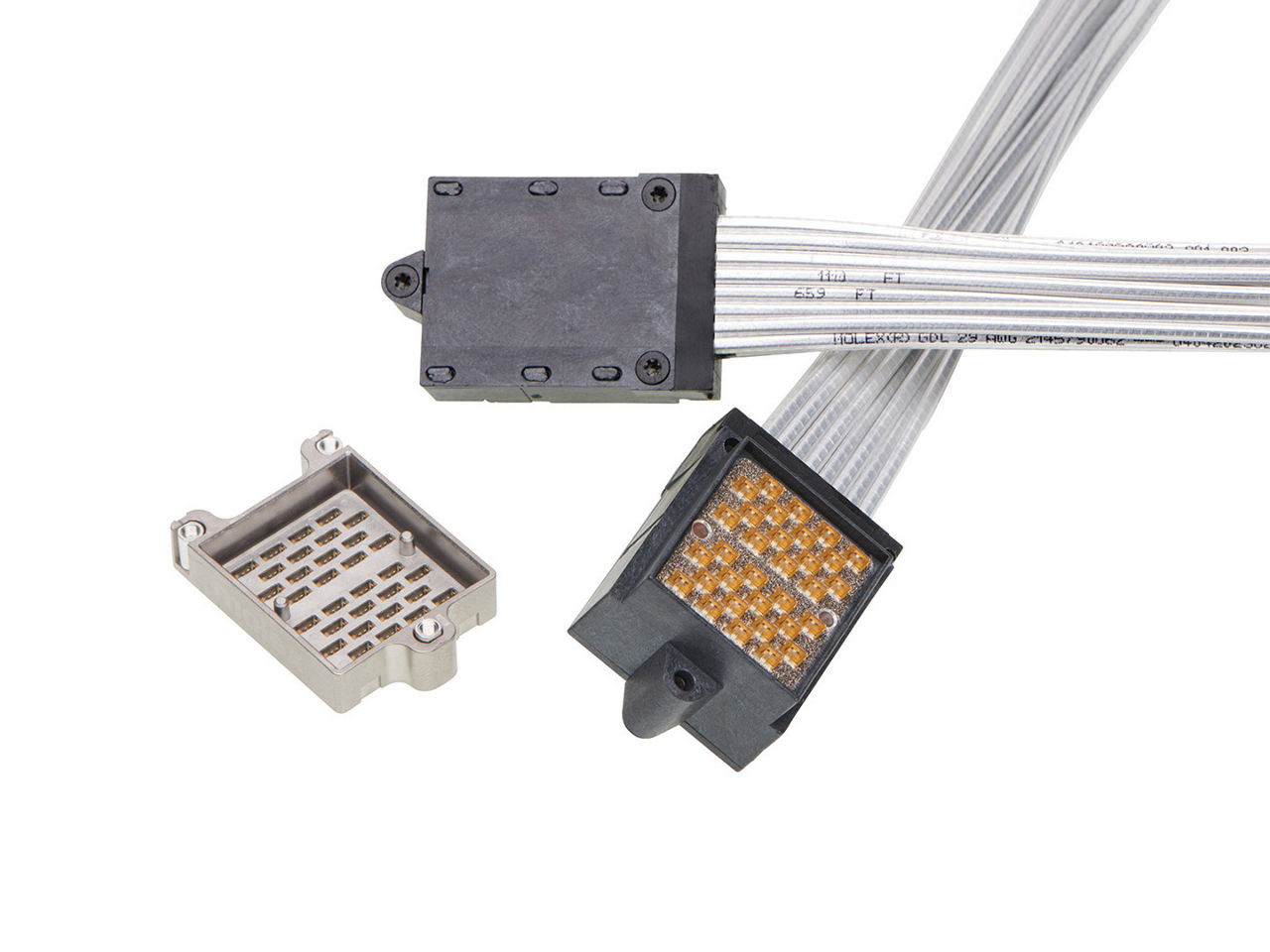

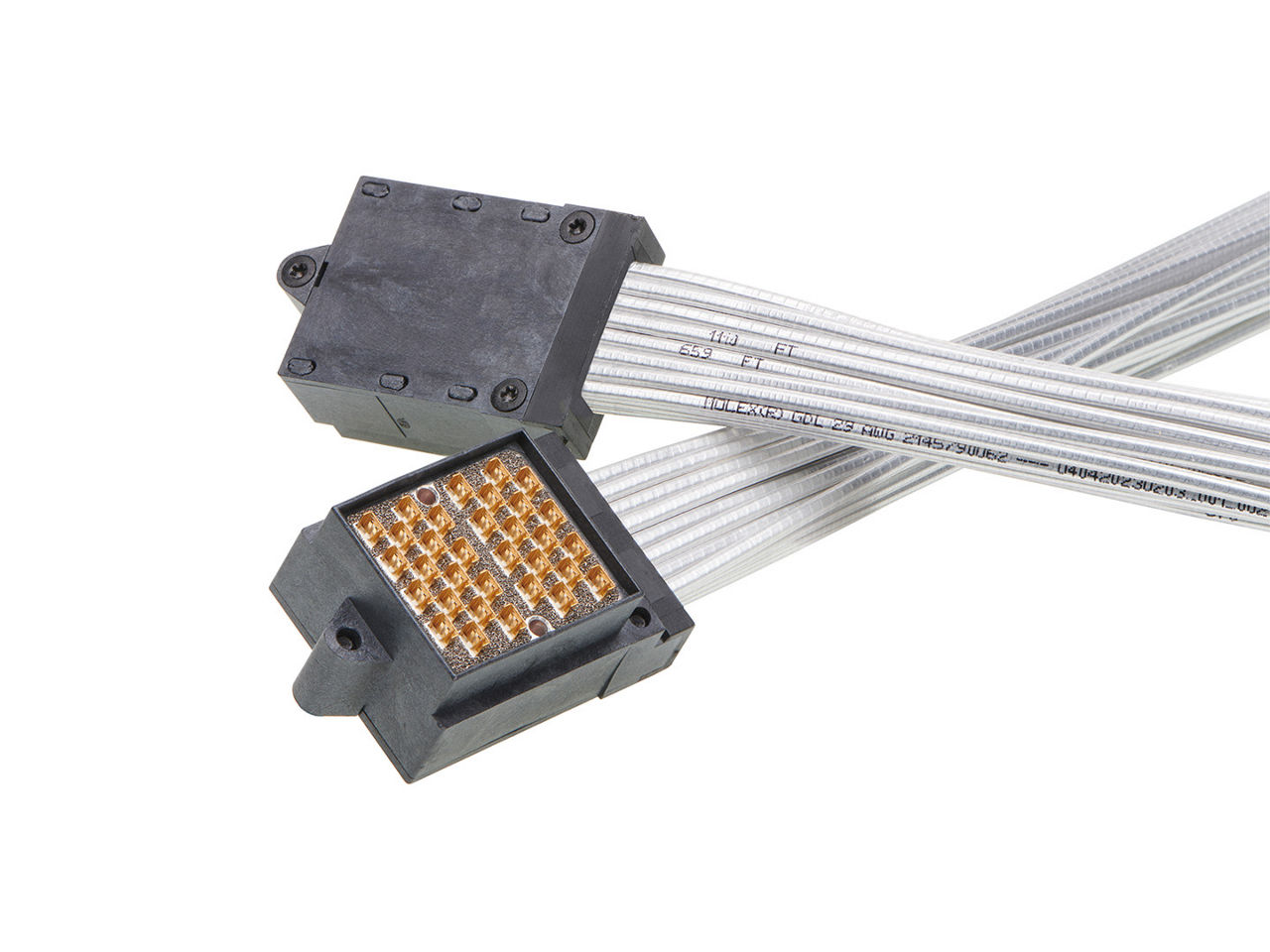

The CX2 and CX2 Dual-Speed connector systems are near-ASIC cabled interconnects designed to optimize SI and minimize loss for direct-to-chip connectivity. With flexible 30 or 31 AWG high-performance twinax cable and a high-density connector interface, CX2 connectors are ideal for improving system performance, reliability and design flexibility. Mechanical wipe and latch or screw retention help ensure uninterrupted connectivity, minimize assembly errors and enhance long-term reliability.
| Data Rate | Current (max.) | Differential Pairs (DPs) | Pitch | Durability | Operating Temperature | |
|---|---|---|---|---|---|---|
| CX2 | up to 112Gbps | 0.5A (per mated contact) | 32 DPs | 4.00mm DP to DP 1.80mm row to row |
200 cycles | -40 to +85°C |
| CX2 Dual-Speed | up to 224Gbps | 0.5A (per mated contact) | 32 or 64 DPs | 4.00mm DP to DP 2.30mm row to row |
50 cycles | -40 to +85°C |
Features and Benefits
Datasheets and Guides
Applications by Industry
Ethernet-based communications systems
224G
AI clusters
AI infrastructure
AI & machine learning
Graphics processing units (GPUs)
Routers
This is not a definitive list of applications for this product. It represents some of the more common uses.
Frequently Asked Questions
Are CX2 and CX2 Dual-Speed connectors intermateable?
No; although they share some similarities in their designs, the two products are not intermateable.
What signal speeds do CX2 and CX2 Dual-Speed Connectors and Cable Assemblies support?
CX2 connectors and cables are optimized for 112G signal speeds, while CX2 Dual-Speed connectors and cables are optimized for 224G signal speeds.
What size twinax cables can the CX2 and CX2 Dual-Speed Connector Systems support?
CX2 Connectors support 31 AWG twinax cable, while 224Gbps-capable CX2 Dual-Speed Connectors support 30 AWG low-loss twinax cables that enable a longer reach within the box.
How do CX2 and CX2 Dual-Speed Connectors ensure mechanical reliability and full mating?

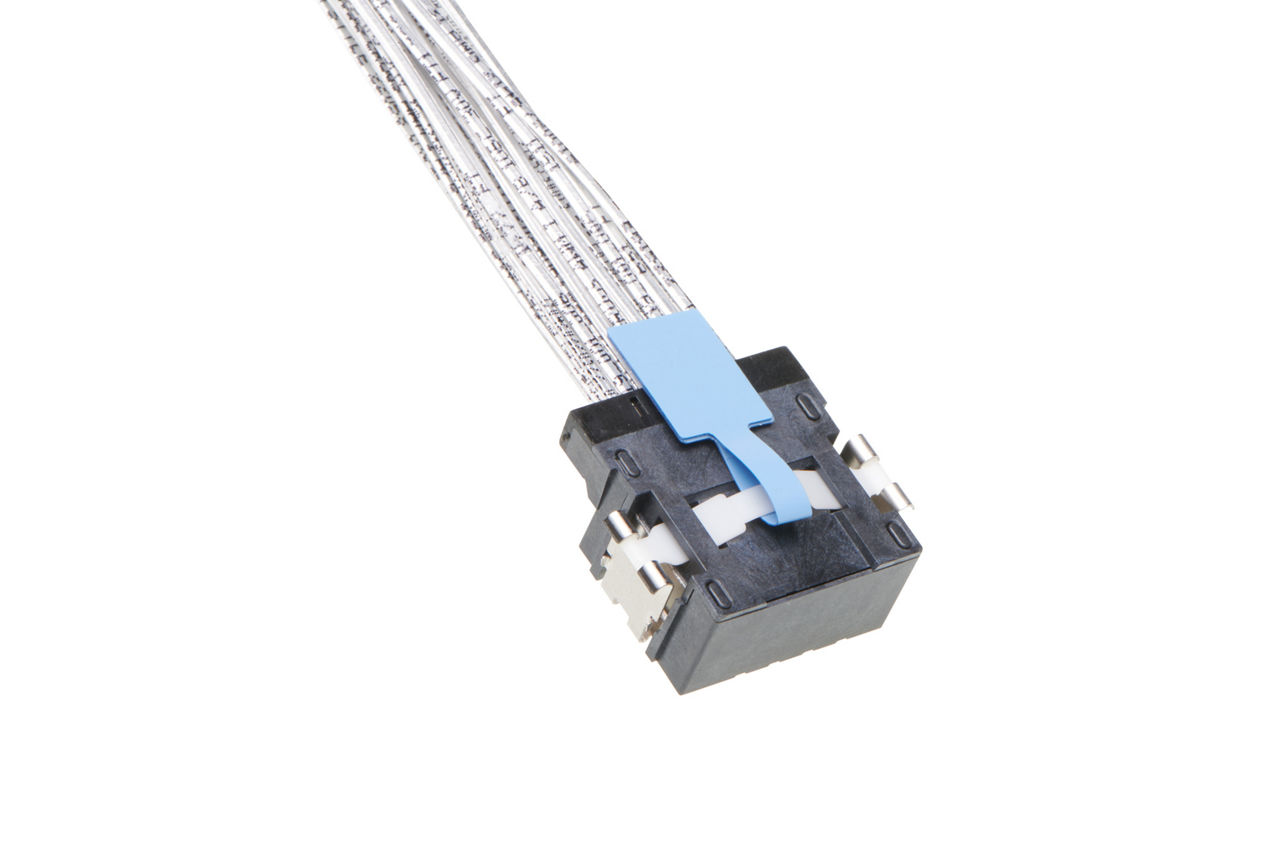

All CX2 and CX2 Dual-Speed Connectors have a nominal mechanical wipe of 0.75mm. CX2 Connectors feature a mechanical latch with a pull tab, while CX2 Dual-Speed Connectors include integrated screw retention for optimized mechanical performance throughout the product life cycle.
How many mating cycles are CX2 and CX2 Dual-Speed Connectors rated for?
CX2 Connectors are rated for 200 mating cycles while CX2 Dual-Speed Connectors are rated for 50 mating cycles.
