| Sealing | Locking | Operating Temperature |
|---|---|---|
| IP69K-rated grommet seal, USCAR S3-rated | Pre-lock independent secondary lock (ISL) | -40 to +120°C |
Features and Benefits
To meet market demands for more functions and connectivity, automotive and vehicle manufacturers need to fit a wide range of electronic components into ever-shrinking spaces. Interconnect solutions must support a variety of wire sizes, circuit counts and connector orientations, all while delivering reliable operation in demanding automotive environments.
Compact, hybrid connectors can provide versatile and reliable interconnect solutions by combining multiple terminal sizes in a single connector housing. This consolidation supports miniaturization and enables more functionality within a limited space. Robust construction, sealing and mechanical locking help withstand vibration and prevent moisture and dust ingress, enhancing the performance and durability of connections.
Compactus Connectors optimize functionality and deliver more capabilities within limited spaces by offering 0.50, 1.00 and 2.80mm connections in a single, space-efficient form factor. The 0.50mm terminals, with high circuit counts available to support high-performance devices and systems, save up to 20% of space compared to traditional 0.64mm terminals. The vibration-resistant ISL feature, USCAR S3-sealed design and variety of header configurations enable use in a range of environments, including engine-compartment applications and electric vehicle (EV) drivetrain systems.
Provides designed-in flexibility for mounting in dense engine spaces
Connectors are available with left or right flexible cable outlets, reducing design limitations.
Enables lightweight design
The connector is designed for thin 0.35mm2 wires, which reduce weight, enhance efficiency and help minimize emissions.

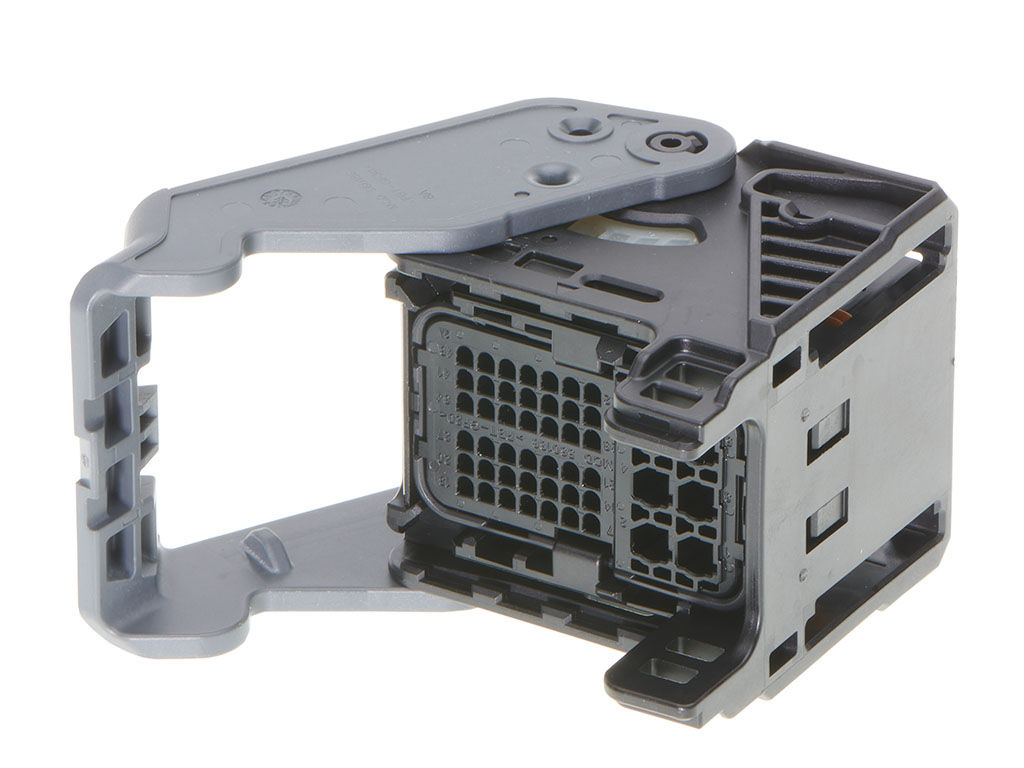

Improves space utilization

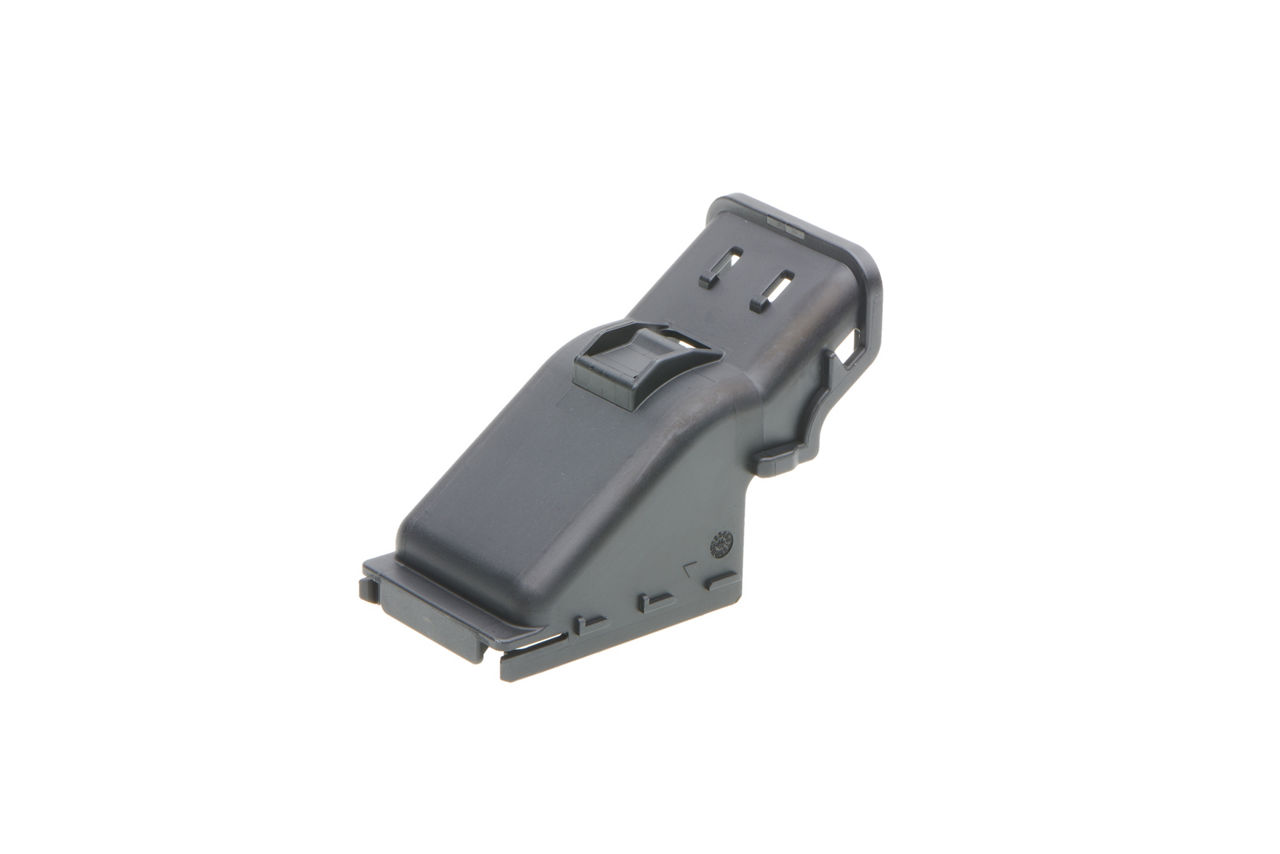

Short and long wire dress cover options permit close clearances and minimize wasted space in compact applications.

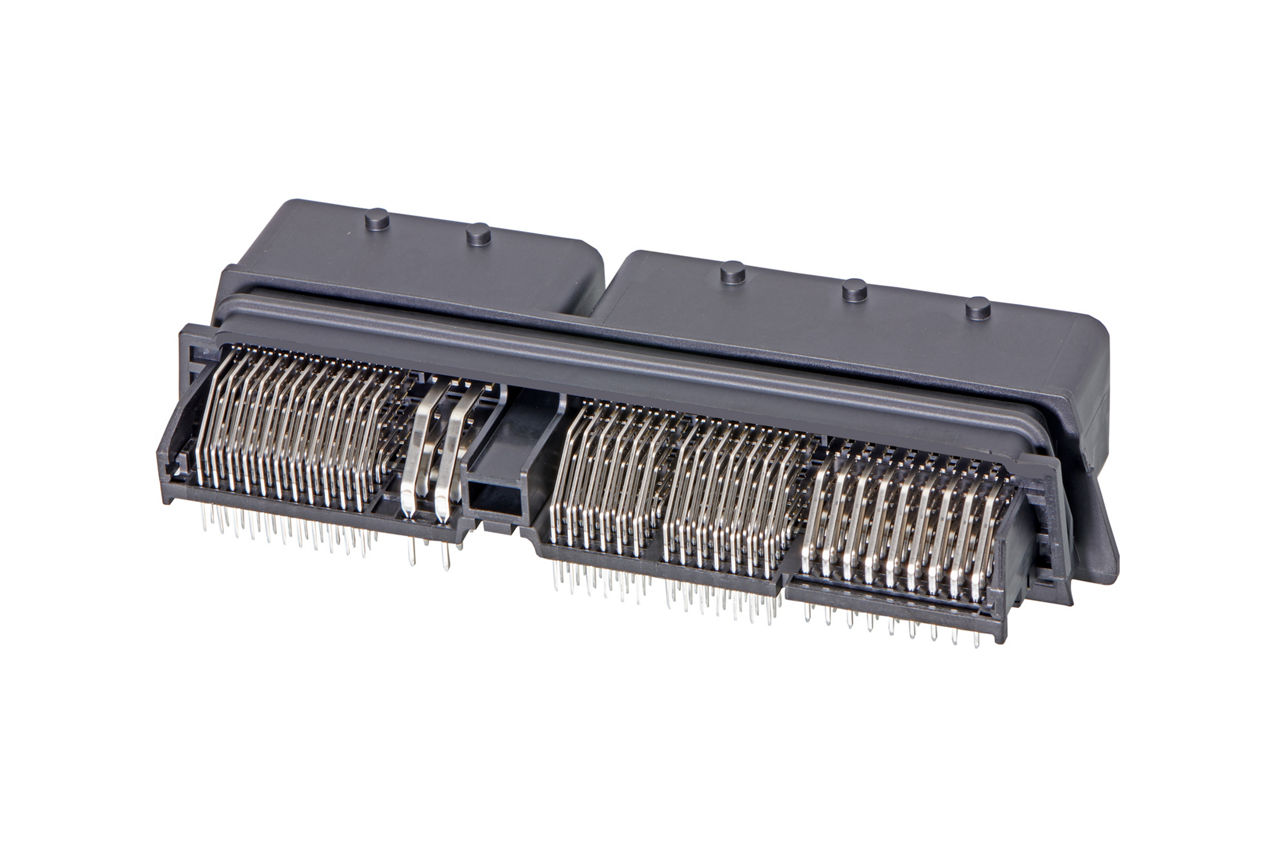

Reduces the interface area by up to 20% compared to conventional 0.64mm products

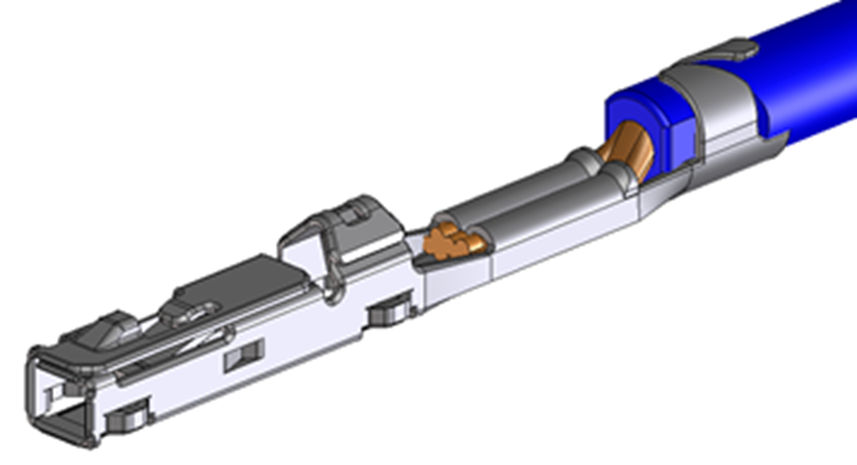

The 0.50mm terminal system saves space and helps prevent overcrowding in dense and compact applications.

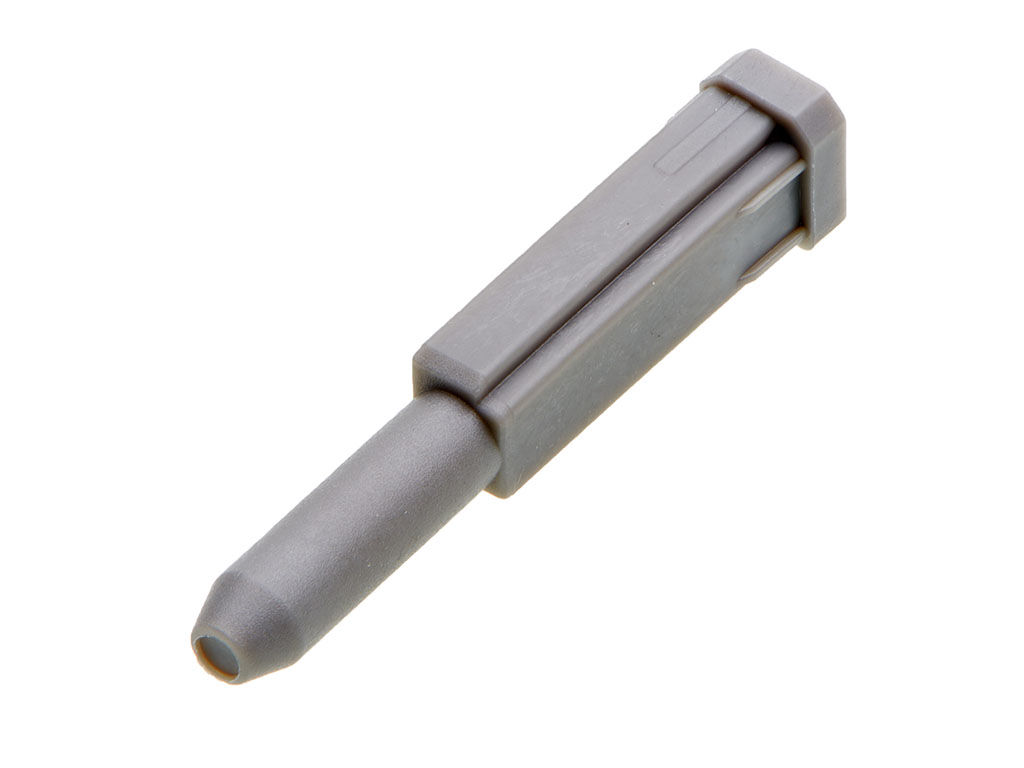

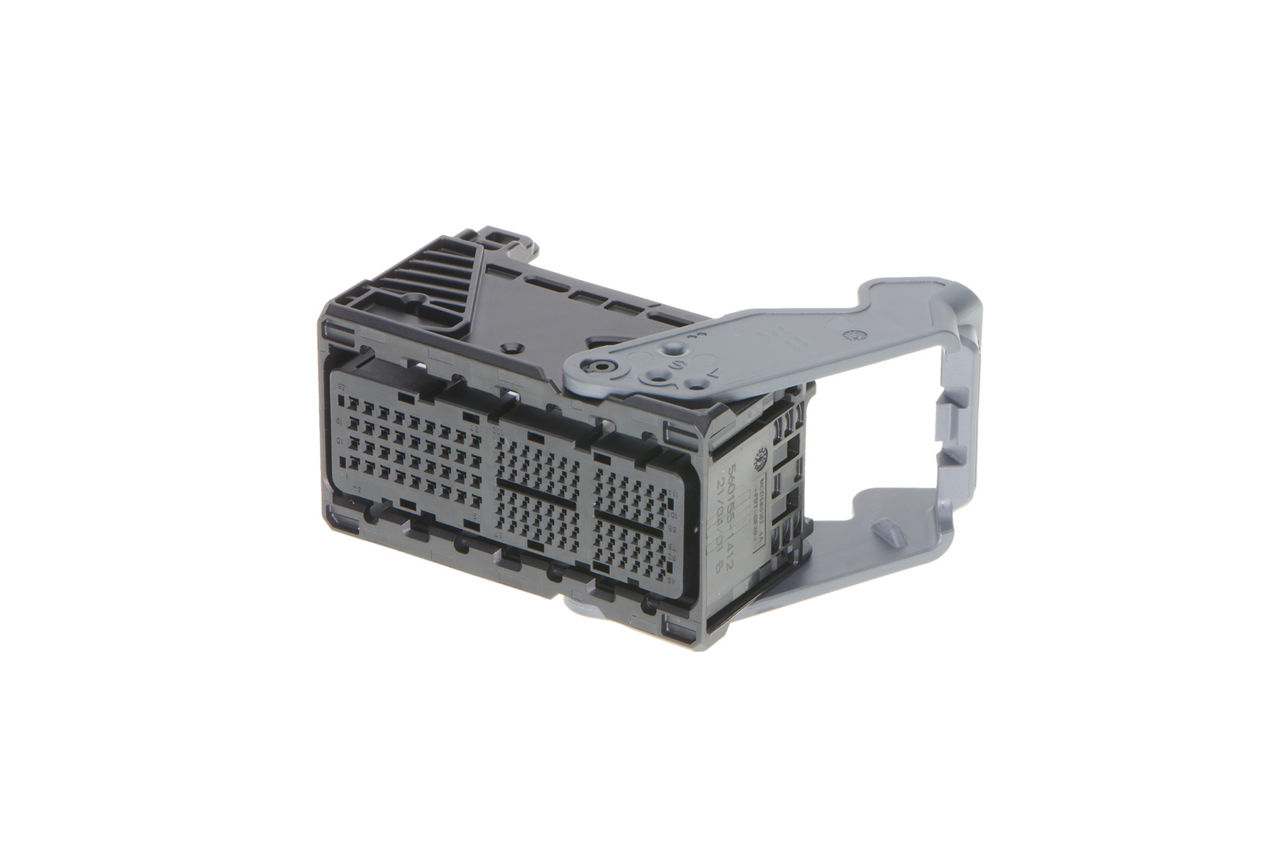

Accelerates assembly and maintenance operations

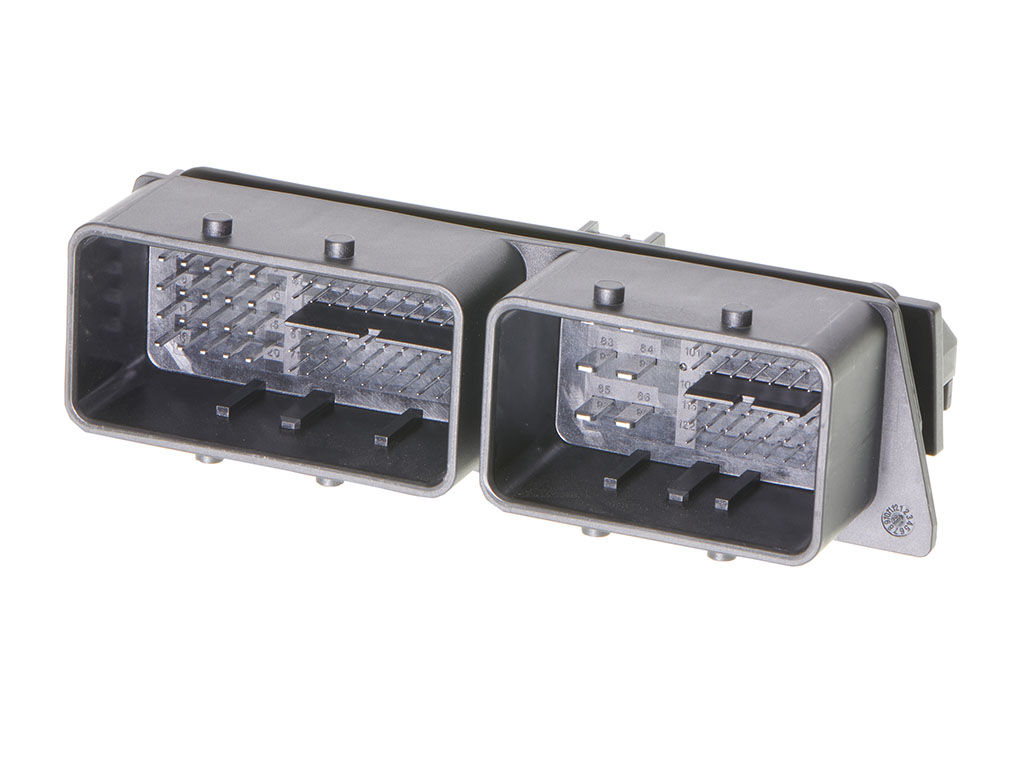

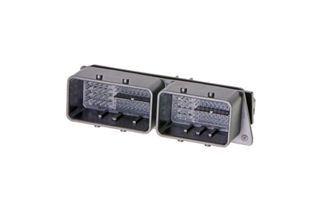

The panel-mount connector uses screw attachment to simplify assembly and repair work by avoiding methods that use glue for attachment.
Applications by Industry
Agricultural motors
Electronic control units
Motor control units
N-in-1 E-drive units
Automotive miniaturization
Electric vehicles
Zonal architecture
Automatic doors
Battery packs
Body electronics
Chassis control unit modules
DC-to-DC converters
Electronic control units
Electronically controlled parking brakes
Engine control unit modules
Hybrid electric vehicle and EV inverters
Illumination control systems
Junction/fuse boxes
Motor control units
N-in-1 E-drive units
Onboard chargers
Power distribution units
Suspension controllers
Transmission controllers
Vehicle control unit (VCU) modules
This is not a definitive list of applications for this product. It represents some of the more common uses.
Frequently Asked Questions
What are Compactus Connectors?
Compactus Connectors are robust, high-density, automotive-grade connectors that utilize 0.50, 1.00 and 2.80mm terminals to provide more power and signal transmission capability in a small space. These connectors offer environmental sealing and are heat and vibration resistant, permitting use in engine compartments and other harsh environments.
What test standards do Compactus Connectors meet?
These connectors meet the USCAR-2 standard as well as the USCAR-S3 sealing classification for connectors subjected to high-pressure spray in exposed areas of the vehicle.
What are the key applications for Compactus Connectors?
Compactus Connectors are ideal for a variety of automotive applications, including but not limited to electronic control unit (ECU) modules, motor control unit (MCU) modules, chassis control unit modules, transmission controllers, body electronics, battery packs, hybrid electric vehicle (HEV) and EV inverters, and N-in-1 electric drive (E-drive) units.
