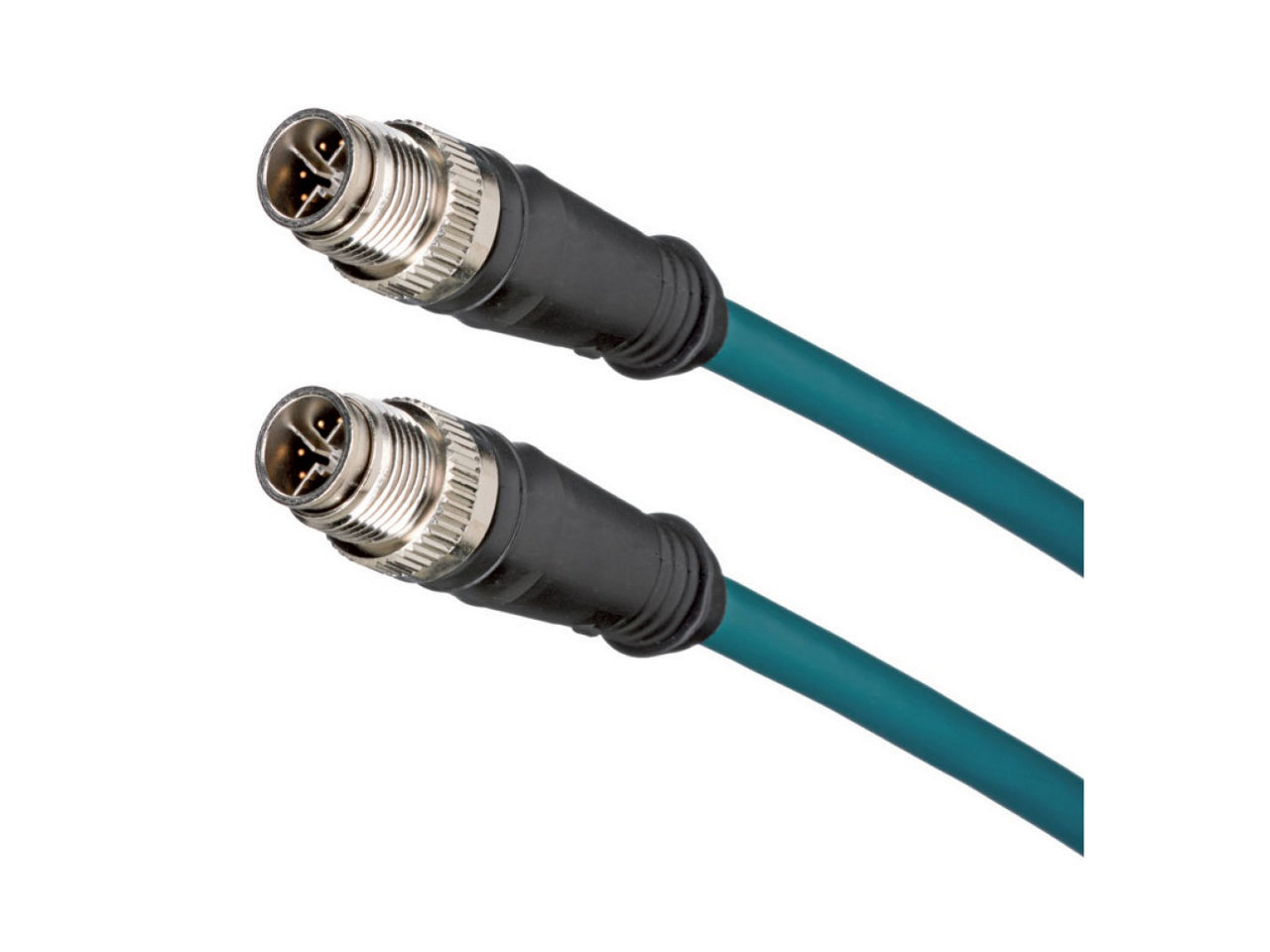

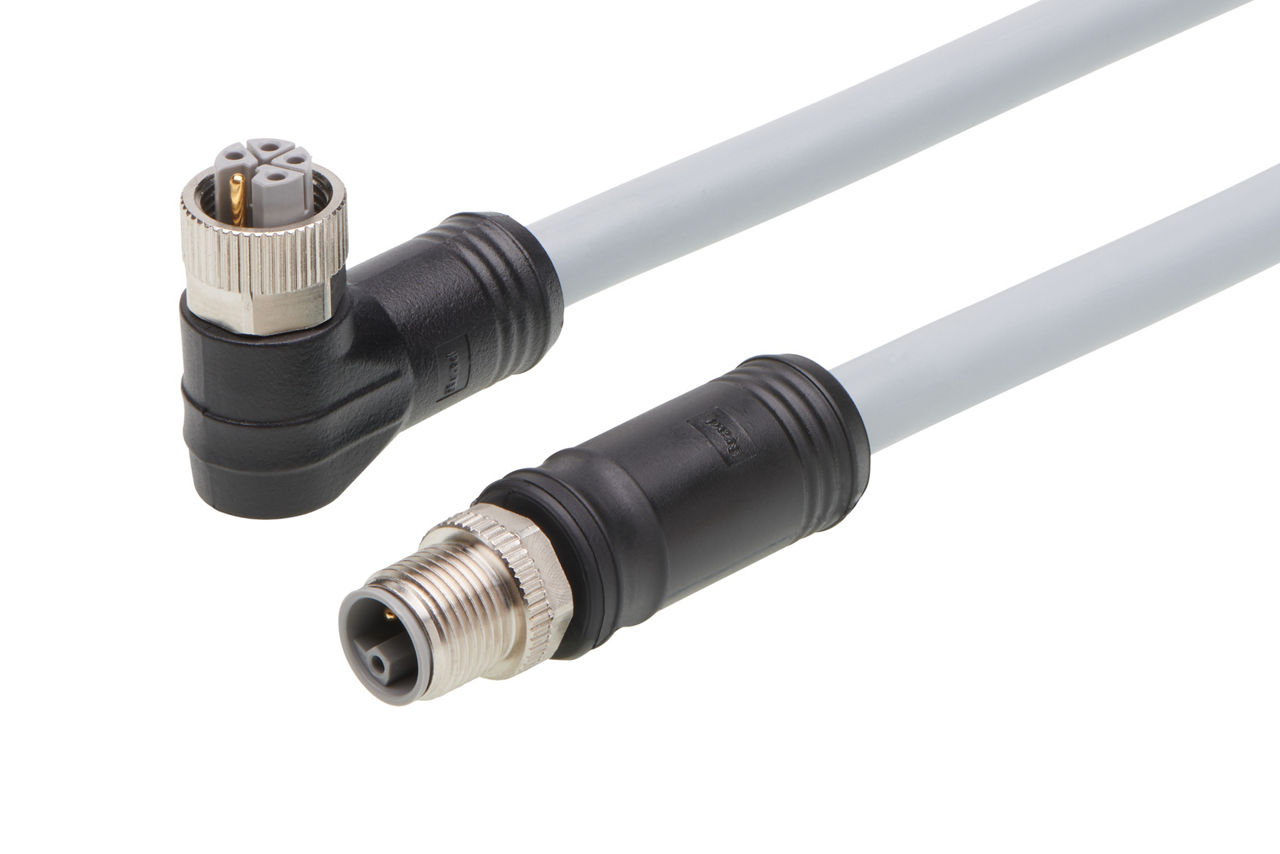

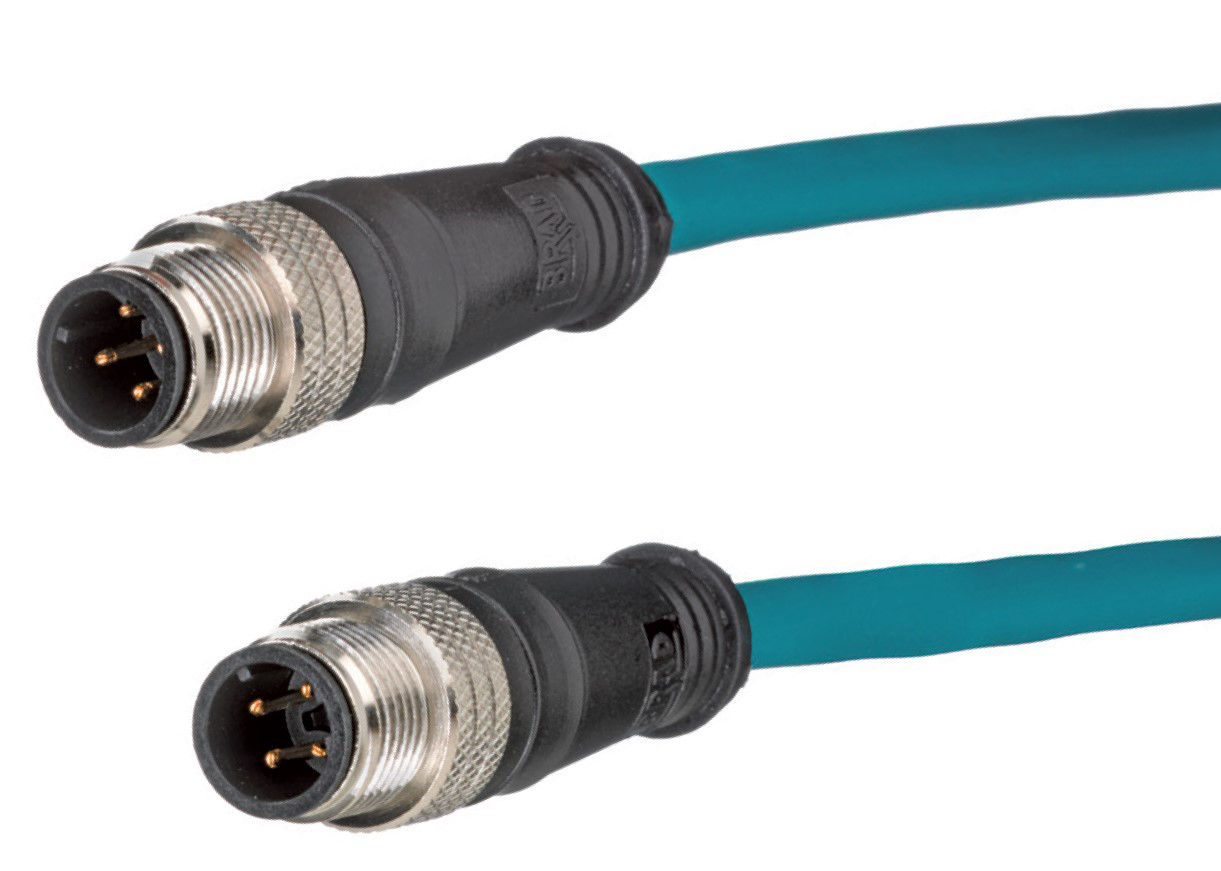

| Coding | Poles | Wire Gauge | Cable Material |
|---|---|---|---|
| A-code, B-code, C-code D-code, X-code L-code CHT-code |
3, 4, 5, 8, 12 4, 8 4, 5 8 |
28 to 18 AWG 28 to 18 AWG 16, 14 AWG 19 AWG (power), 26 AWG (data) |
PVC, PUR, WSOR, TPE PVC, PUR, WSOR, TPE WSOR PUR |
Features and Benefits
Meeting the need for rugged, compact and versatile connectivity in the industrial and manufacturing industries requires specially designed solutions. With factory-floor conditions subject to extreme temperatures, moisture and oil exposure, connectors and cables must withstand harsh conditions, while maintaining consistent performance and minimizing downtime.
Compact industrial connectors and cable assemblies can deliver reliable signal, power and data connections that improve system design flexibility and scalability. With versatile and modular interconnects, manufacturers can streamline upgrades and expansions to meet changing needs. Robust, sealed connections improve performance and efficiency, while reducing maintenance and replacement costs.

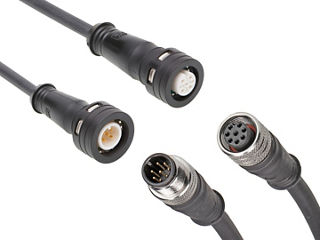

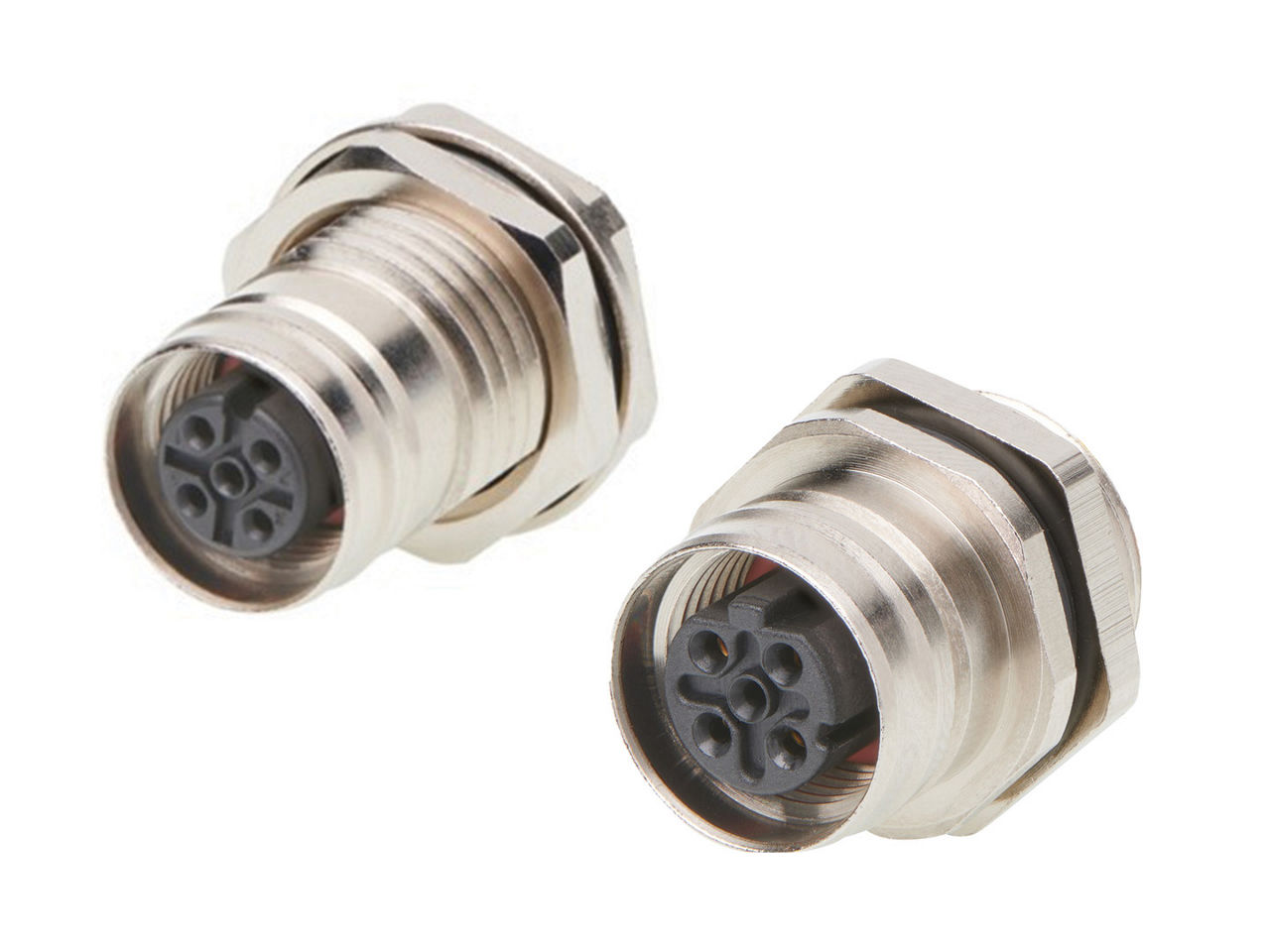

Molex M12 Cable Assemblies offer flexible, IP67-sealed connections with multiple coding options as well as hybrid power/signal versions. Power, signal and data options include various cable assembly configurations, cable materials, and threaded or push-pull connectors that enhance versatility and reduce installation time. High-speed data connectors offer data rates up to 10Gbps with superior signal integrity to support Gigabit Ethernet and fieldbus networks, while weld-slag and oil-resistant (WSOR) cables help ensure consistent performance in the most challenging applications.
Datasheets and Guides
Applications
Commercial & Industrial Vehicles
Construction and mining equipment
Harsh-environment connected systems
Heavy machinery
Mining, construction and forestry equipment
Sensors
Actuators
Automated material-handling systems
Conveyor systems
Industrial devices
Industrial robotics
Food and beverage automation systems
Manufacturing facilities
Sensors automotive manufacturing equipment
Smart warehousing
This is not a definitive list of applications for this product. It represents some of the more common uses.
Frequently Asked Questions
Are M12 Cable Assemblies suitable for outdoor or harsh-environment applications?
Yes, they are. These solutions can be used in a variety of challenging environments, including outdoors. Available WSOR cables improve reliability in harsh factory-floor applications.
Do these products meet specific industry standards or certifications?
Yes, M12 Cable Assemblies meet IEC specification 61076-2-101. Molex also offers push-pull variants that meet IEC specification 61076-2-010.
Are there customization options available for M12 Cable Assemblies?
Yes, some customization may be available—contact Molex for details.

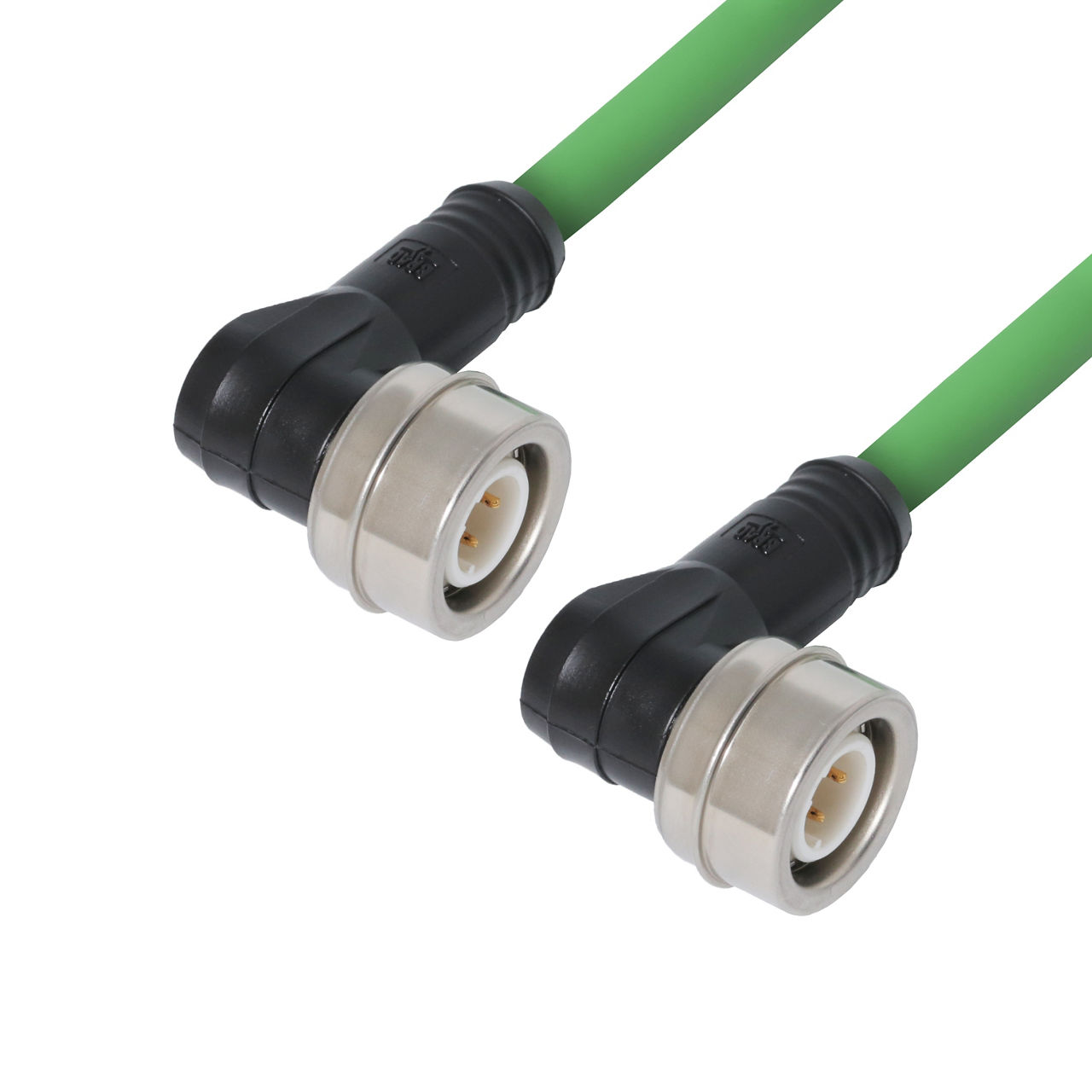

What are the advantages of using circular hybrid technology (CHT) cable assembly?
The CHT design optimizes space by combining power and signal functionality into a single cable assembly incorporating both 19 and 26 AWG wires. It offers high current capacity, provides EMI shielding to help maintain excellent signal integrity for reliable data transmission, and features a rugged design for durability in challenging conditions.

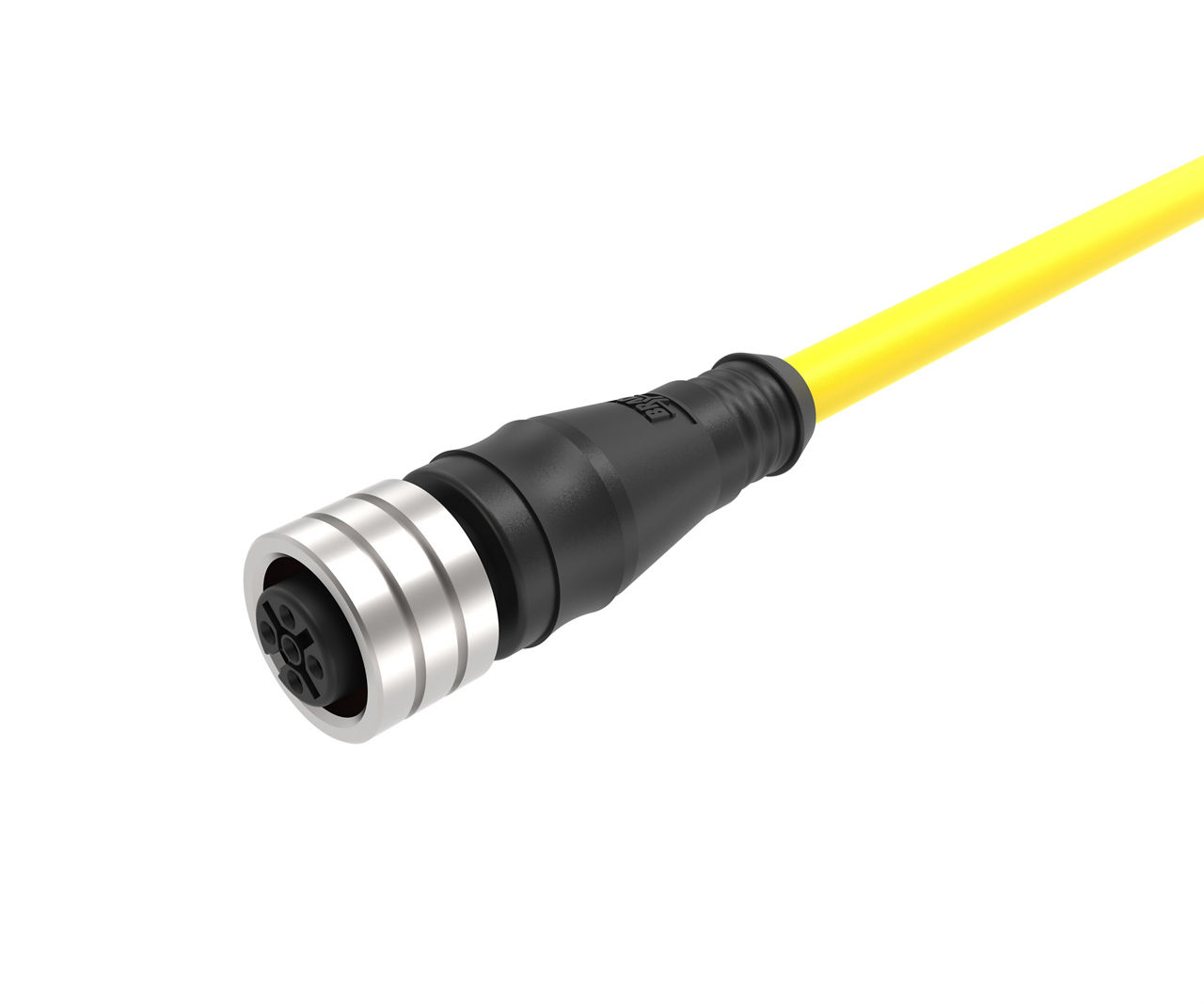

What are the benefits of cable assemblies with M12 push-pull connectors?

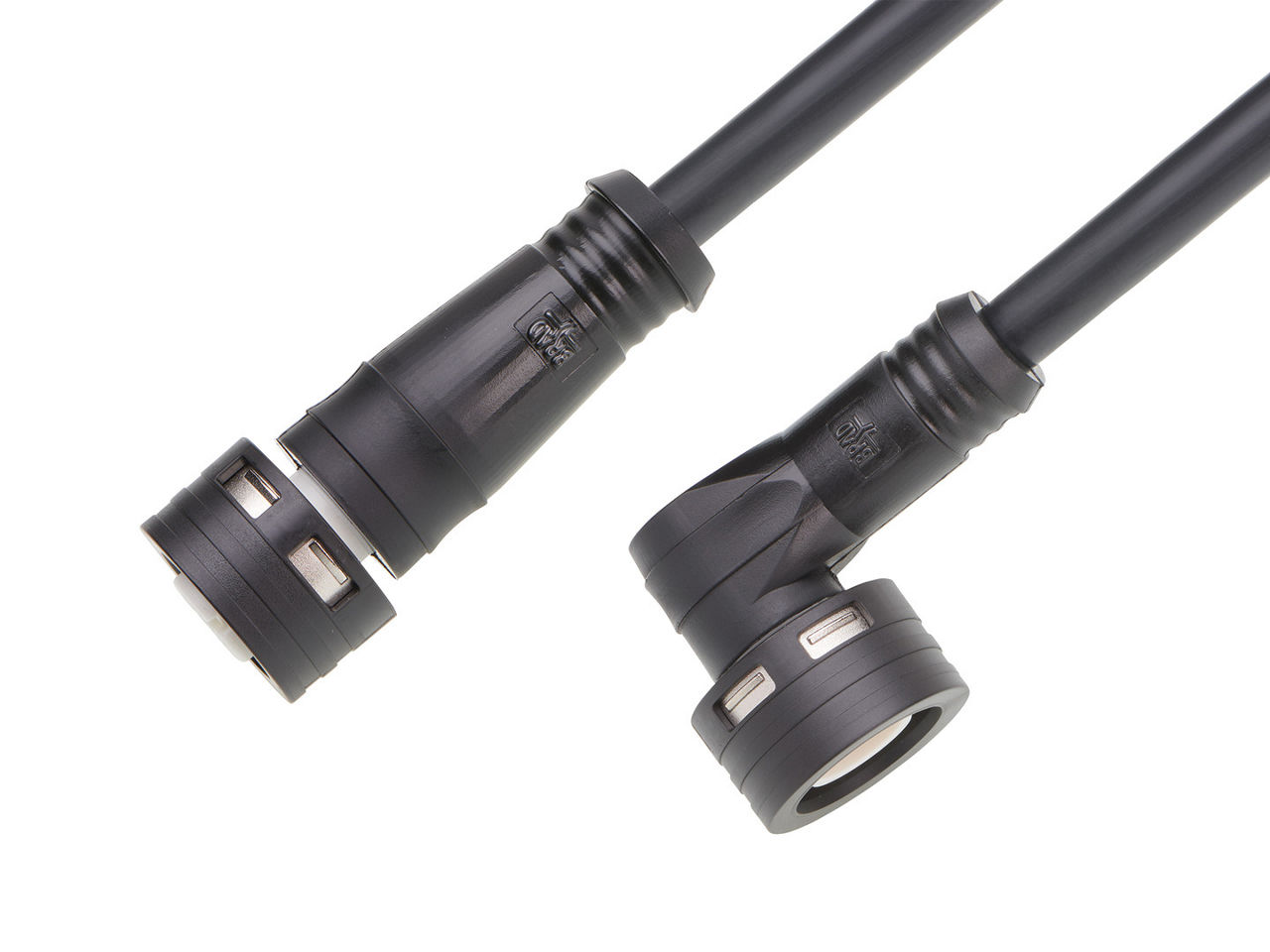

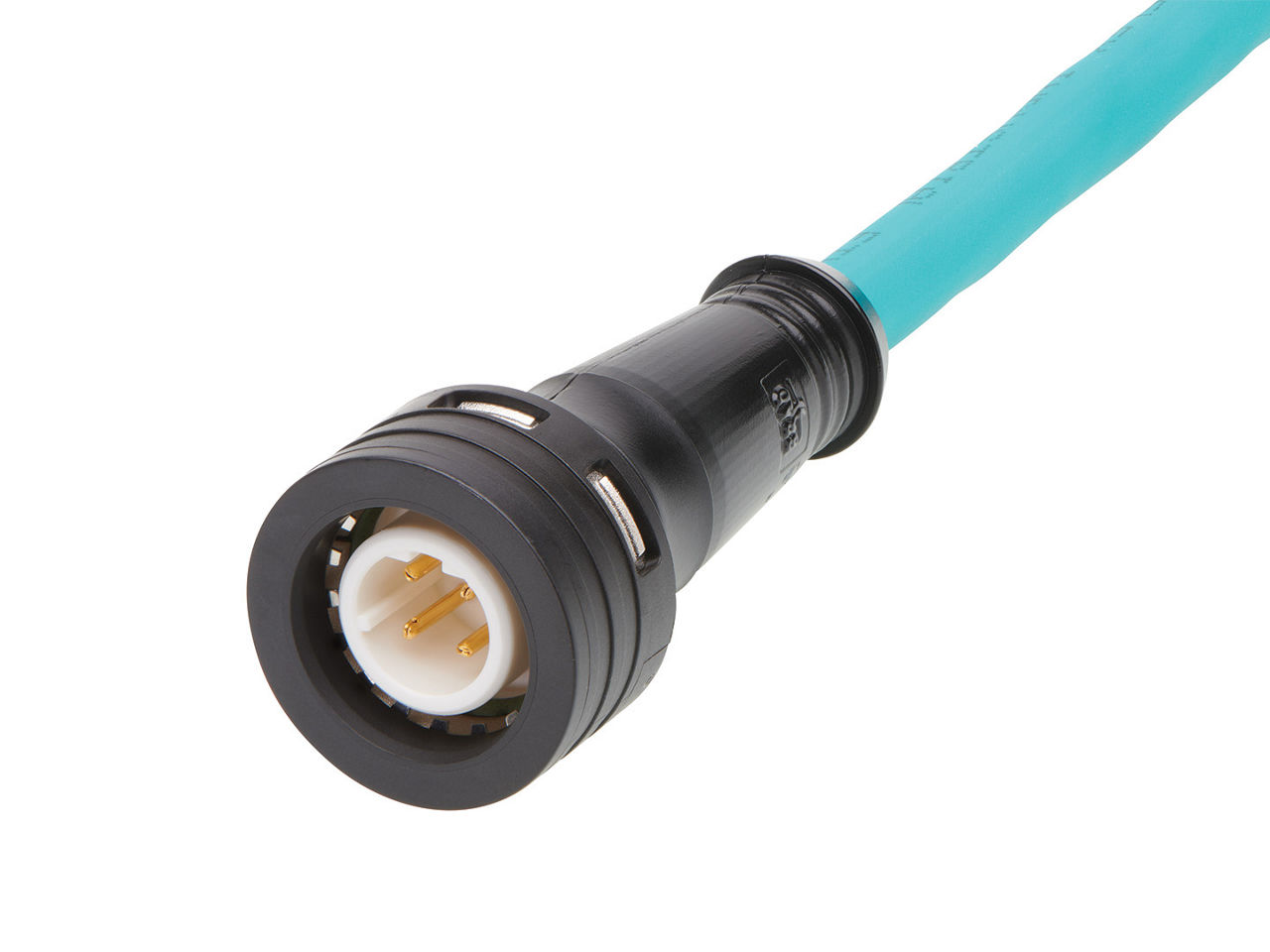

Cable assemblies with M12 Ultra-Lock push-pull connectors enable operators to mate or unmate connectors up to eight times faster than with threaded connectors, accelerating installation and reducing system downtime. Ultra-Lock connectors feature an audible click when properly mated, helping ensure reliable connections and preventing connections that are too loose or too tight.
