The Science Behind RF Phase Stability: Why It Matters in Modern Applications

Test cables operating at lower frequencies, such as traditional sub-6 GHz bands, historically acted as invisible conduits, allowing engineers to easily swap these components without altering overall system performance. Because these legacy cell bands utilized larger wavelengths, they were inherently more forgiving of minor physical misalignments or wear. However, the demand for exponentially faster data rates is driving a massive technological shift. The rapid advancement of 5G/6G telecom infrastructure and mission-critical aerospace and defense systems (including SATCOM and RADAR) is pushing analog bandwidth targets to 110 GHz, with next-generation applications already looking toward 170 GHz.

The physics of signal transmission shift dramatically at these higher frequencies. Operating at these frequencies forces mechanical tolerances down to the sub-picosecond level. This physical reality introduces signal drift, a phenomenon where mechanical stress and environmental factors can cause electrical performance and phase stability of the cable to degrade over time.

Interconnects operating under these conditions act as highly sensitive RF components, making cable selection a critical engineering decision rather than a secondary procurement consideration. Designing test setups at this level requires meticulous attention to the connections, which ultimately translates to more time and money invested in the lab. Any slight variation in the assembly directly affects measurement repeatability and overall test confidence. This begs the question: Can engineers prevent physical degradation from compromising high-frequency RF test and measurement programs?

Shrinking wavelengths at higher frequencies means even microscopic mechanical stresses from routine lab handling can severely degrade signal integrity and phase stability. Securing measurement repeatability at 110 GHz poses a significant hurdle. The physical dimensions of the interconnects have shrunk to the point that even slight mechanical misalignments introduce measurement errors. Because a transmitted signal consists of frequency, amplitude and phase components traveling in time, maintaining the integrity of all three elements becomes increasingly difficult as physical dimensions scale down.

Routine lab handling inevitably requires technicians to route and flex these assemblies. However, bending a high-frequency cable alters its physical shape and electrical performance. Physical distortion directly degrades the RF phase stability of the signal, altering the time it takes for the transmission to travel through the cable. Phase matching involves cutting cables to identical electrical lengths with tolerances measured in fractions of a picosecond, adding substantial complexity to manufacturing and assembly. To put this into perspective, industry requirements are pushing these tolerances down to a quarter of a picosecond, making it incredibly difficult to produce an array of identical cables.

In a busy laboratory, the constant friction of mating and repositioning cables physically changes these microscopic tolerances. As data rates climb to hundreds of gigabits per second (Gbps), any physical perturbation threatens the data stream. The resulting wear corrupts the digital transmission of the device under test. When these fundamental ones and zeros are compromised, engineers lose the ability to trust their measurements.

When fragile cables lose phase stability, the resulting signal drift often masquerades as a device under test (DUT) failure. These false readings trigger expensive, time-consuming troubleshooting. Ideal test setups remain untouched after initial installation. The intention is to establish connections once and leave them undisturbed, avoiding any physical disruption. However, in active facilities, lab and production test system cables experience continuous mating and unmating as technicians swap different boards and components.

Because the same testing equipment is used repeatedly across multiple cycles, the physical wear on the interconnects accumulates. When mechanical stress degrades cable performance, the test analyzer registers a failure that appears to originate from the multi-million-dollar DUT. Engineers can spend days troubleshooting and replacing components to determine if the device failed or if the cables caused the error. Suspecting cable drift often prompts a technician to swap out the assembly. However, seeing the same failing result from the replacement leaves the team wondering if they received inherently bad cables or if the device itself is truly flawed. The resulting false-negative loop wastes valuable engineering hours and threatens to derail advanced test program schedules.

Test teams benefit from standardizing on interconnects that balance lab-grade accuracy with mechanical robustness. Overcoming instability starts with a stricter approach to lab discipline. Engineers achieve better results by exercising strict physical and mechanical consistency from the analyzer to the test vehicle. Treating the RF test bench with the same methodological rigor as a chemical laboratory prevents technicians from moving cables around between individual tests. Fixturing everything correctly becomes just as important as the equipment itself.

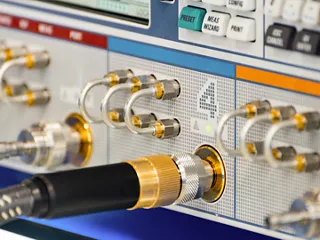

Upgrading from standard flexible wires to shorter, ruggedized high-precision test and measurement cables reduces the overall length of the RF line. For example, a setup that previously relied on 18-inch assemblies for lower frequencies might now transition to a six-inch armored alternative to handle higher bandwidths. Shortening the RF line effectively removes the cable from the measurement equation. Deploying high-performance test cables for consistent measurement eliminates variables. The test equipment remains invisible, so the results reflect only the true performance of the component under test.

Expanding bandwidths to extremely high frequencies places intense physical stress on RF interconnects. Advancing into frequencies at up to 170 GHz for next-generation applications forces the development of ultra-thin cables and smaller connectors. Producing these components at scale presents a significant manufacturing challenge, as signal losses at this level are measured in mere millimeters. These frequencies test the physical limits of coaxial technology.

As testing requirements grow more complex, lab-grade calibration and accuracy must survive highly dynamic, high-traffic laboratory conditions. Technicians depend on ultra-flexible, tactile cable assemblies that can navigate tight lab environments without sacrificing performance. These adaptable solutions maintain phase stability and signal integrity despite frequent handling, routing and continuous mating cycles.

Beyond off-the-shelf products, Molex provides a distinct co-development advantage, deploying dedicated RF design teams to engineer custom, high-density cable solutions for exacting automated test equipment (ATE) requirements. Deploying specialized cable assemblies and 1.00mm RF connectors gives test teams the high-frequency performance and high-cycle durability needed to secure measurement confidence up to 110 GHz.

Within the Molex Cardinal Series, Cardinal Test Cables provide a heavily armored solution for high-cycle lab environments, delivering low insertion loss alongside maximum safety and mechanical consistency. Alternatively, Cardinal Flex and Cardinal Wave offer tactile pliability for tight data center racks or on-the-go field testing. These adaptable options provide effective performance without the bulk of heavy armoring. Demanding setups that require extreme maneuverability without sacrificing phase stability can benefit from Temp-Flex RF cables. Custom braiding and armoring enhance durability in these high-stress conditions.

The Molex precision RF connector portfolio supports performance up to 110 GHz. Operators can follow the signal across the entire RF chain using a complete lineup of compatible Molex boards and cables. Standard industry interfaces commonly specify a minimum of 500 mating cycles. Molex stress-tests these connectors to 1,000 cycles and beyond to prevent failure under continuous lab use. Such strict adherence to microscopic tolerances and high-volume manufacturing quality provides consistent measurement results across the entire lifespan of the test setup.

See how Molex Cardinal High-Frequency RF Cables deliver low insertion loss alongside phase stability and mechanical durability to improve measurement confidence and keep advanced test programs on schedule.
