EXTreme Power Products

High Power Connectors

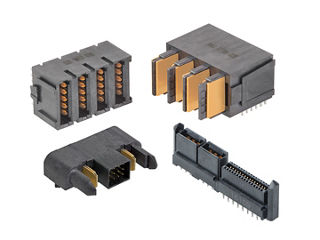

EXTreme Power Products

To operate at peak efficiency, today’s data centers require interconnects that can accommodate significant amounts of power. Molex EXTreme Power products are specifically designed to support high-current applications with optimal power densities and exceptional thermal management capabilities. They’re also available in an extensive range of configurations, so customers can continue evolving seamlessly.

Custom Configurator Contact Us

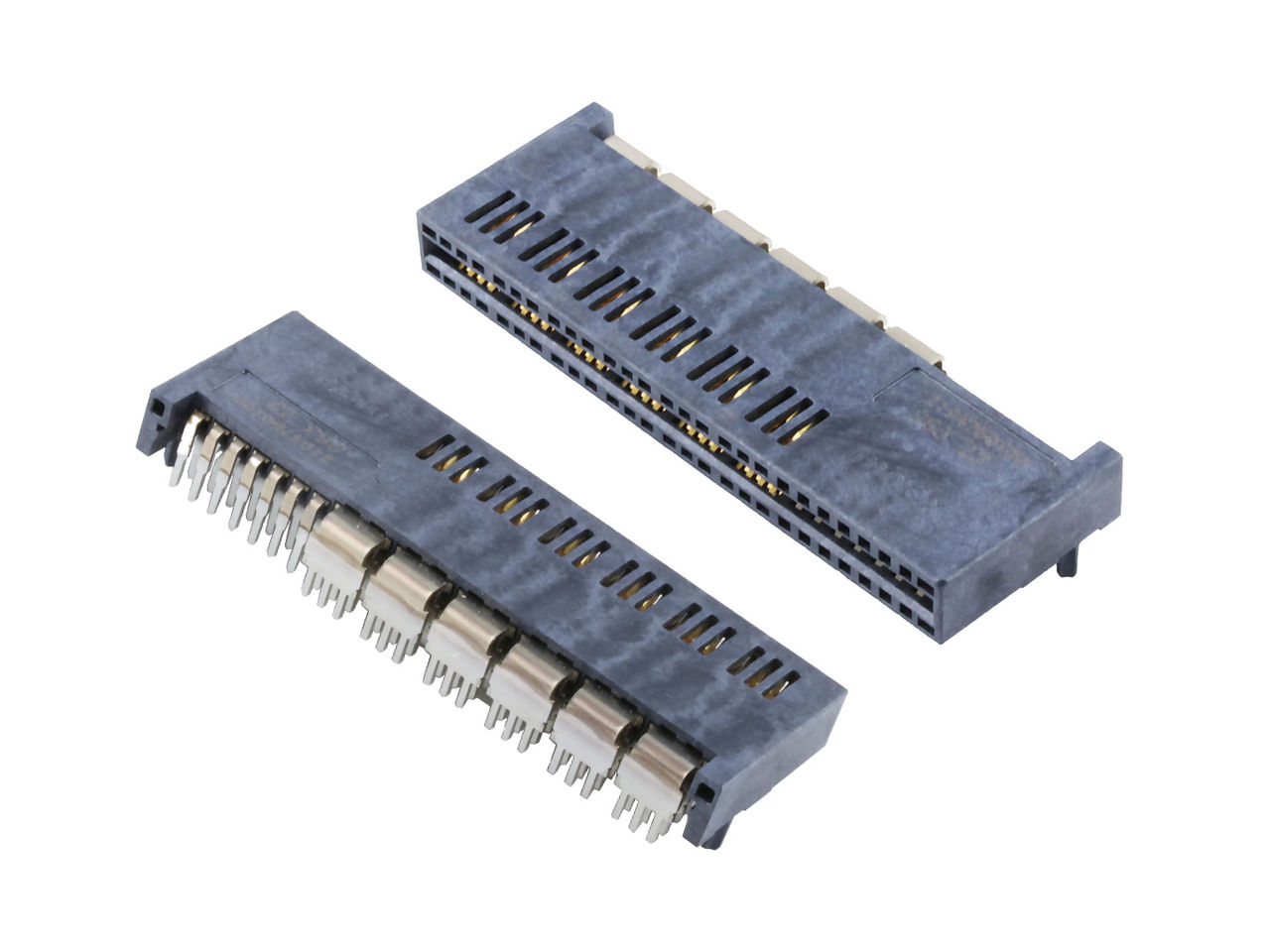

EXTreme PowerEdge Plus Card Edge Connectors

EXTreme PowerEdge Plus Card Edge Connectors offer Modular Common Redundant Power Supply-compliant, high-current and high-density power connections to address various power supply and design flexibility requirements. Meeting the demanding performance needs of modern data centers, these connectors deliver superior energy efficiency and reliability with industry-leading current density and a low-profile design.

Find Parts Learn More
EXTreme PowerEdge Plus Card Edge Connectors
PitchCircuitsCurrent (max.)
Voltage
2.54 - 7.62mm2647.0A/12 circuitsPower-100V; signal-60V

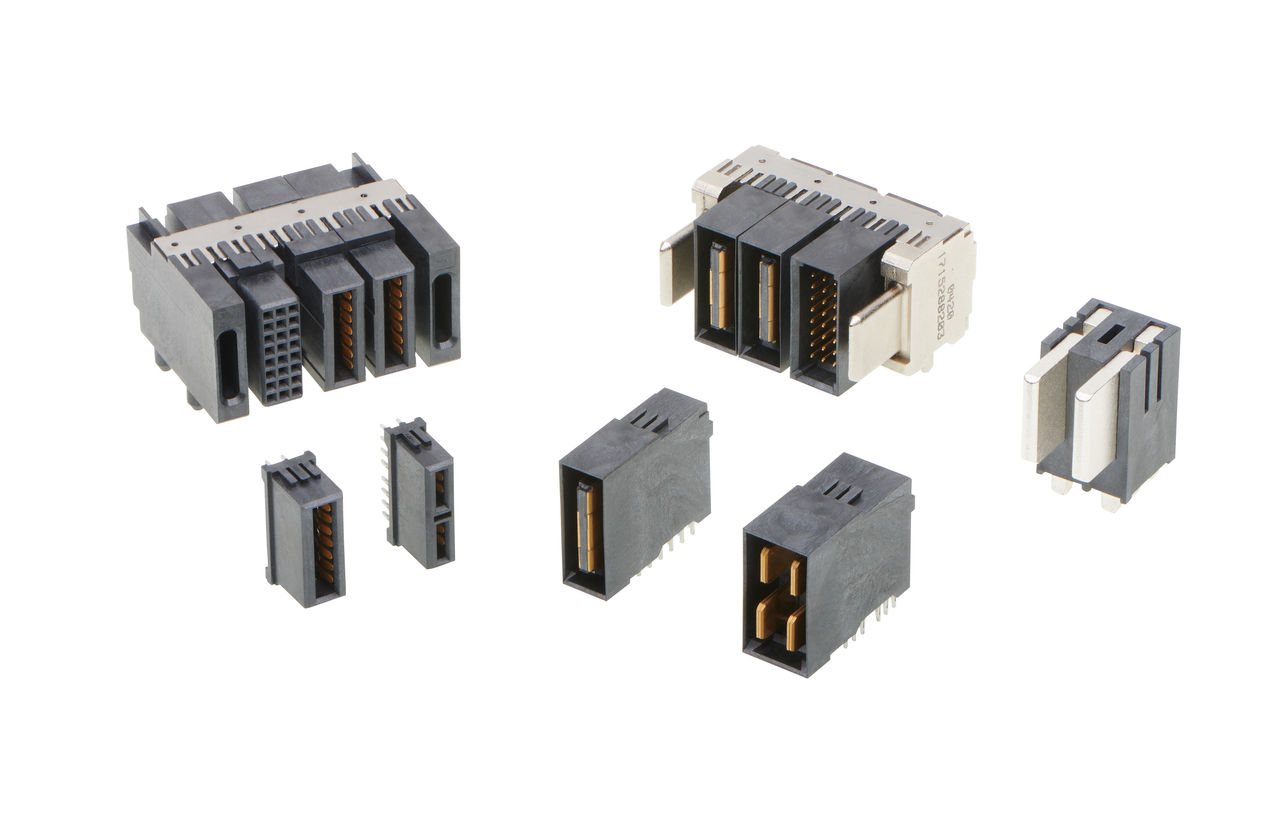

EXTreme PowerMass

Molex’s EXTreme PowerMass connectors are designed to support power supplies and systems that require very high-current transfer in challenging and thermal-constrained spaces.

Find Parts Custom Configurator
EXTreme PowerMass Connectors
PitchCircuitsCurrent (max.)
Voltage
1.60 - 11.00mm1 - 643.0 - 160A600V

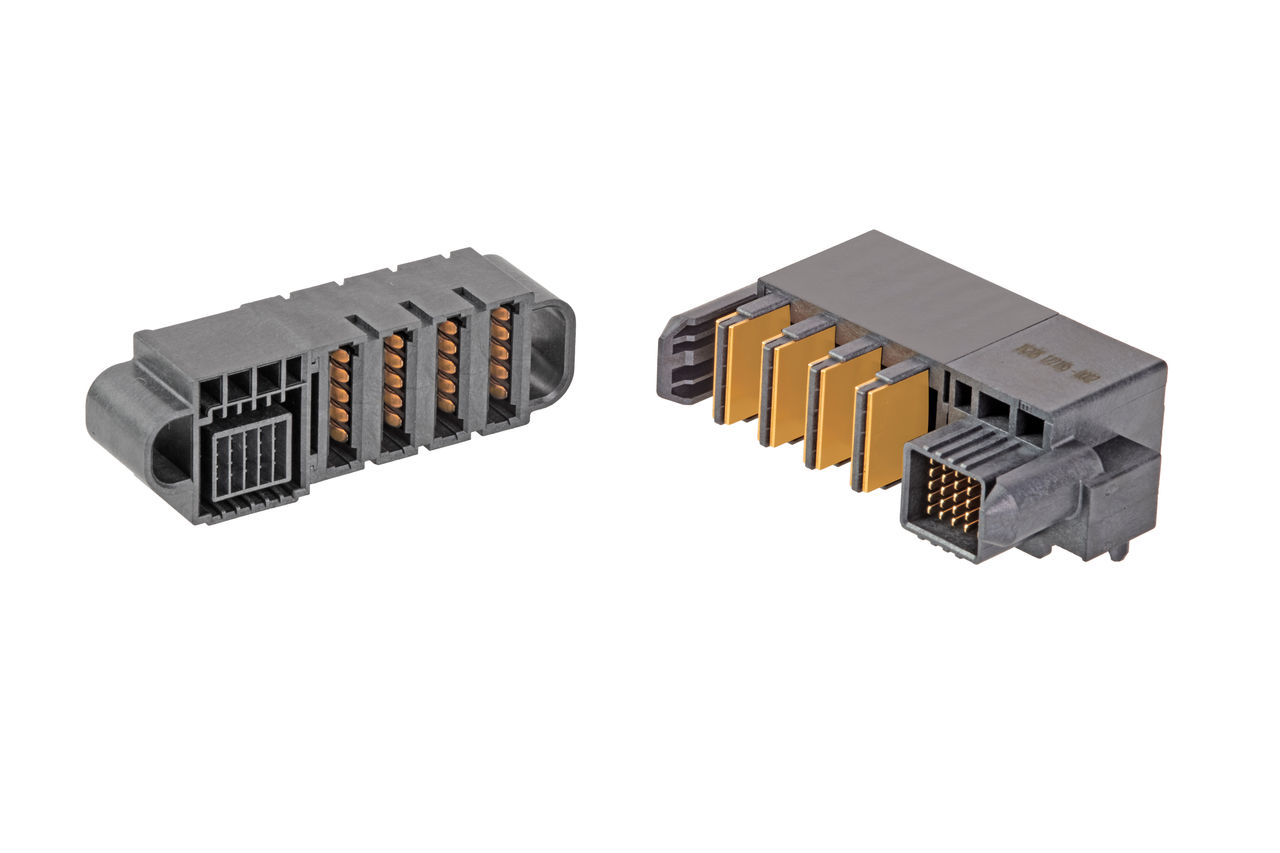

EXTreme EnergetiC High-Current Connector System

Supporting up to 100.0A per blade bay and delivering the highest current density on the market for maximum power per linear inch, the EXTreme EnergetiC Connector System is ideal for next-generation computing applications.
Find Parts Learn More
EXTreme EnergetiC High-Current Connectors
PitchCircuitsCurrent (max.)
Voltage
2.00 - 7.65mm2 - 31100.0A600V

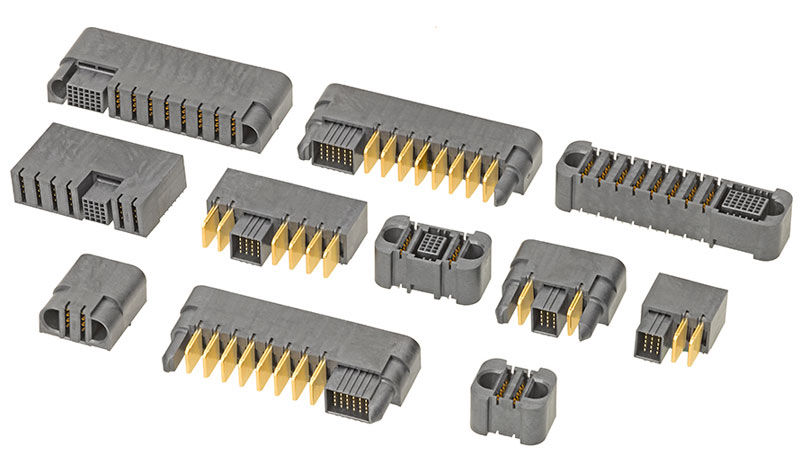

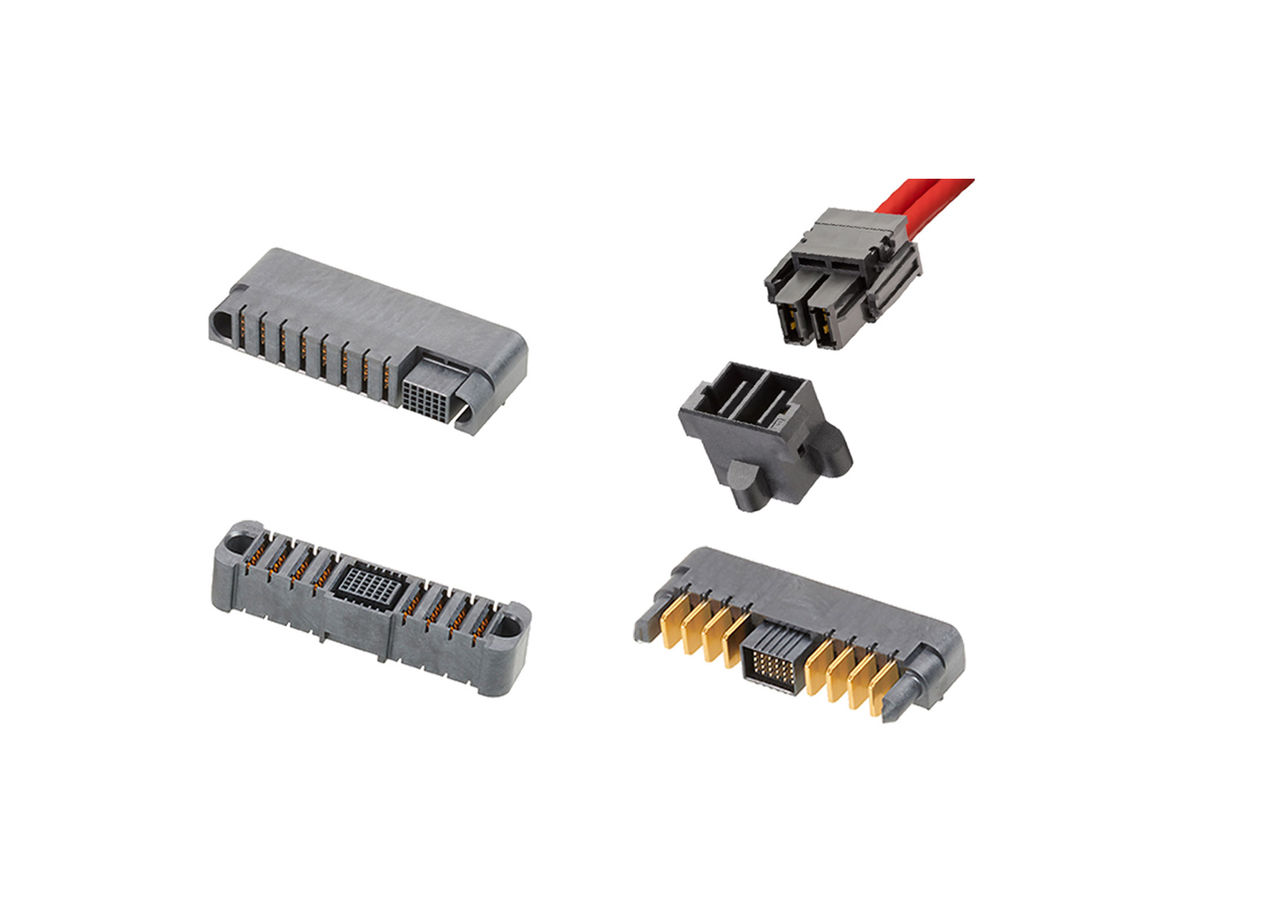

EXTreme Guardian

Available in power only or a configurable hybrid power/signal solution, EXTreme Guardian Power Connectors provide high-current density in a low-profile package for complete design flexibility.

Find Parts Learn More
EXTreme Guardian Connectors
PitchCircuitsCurrent (max.)
Voltage
2.00 - 11.00mm2 - 3850.0 - 80.0A600V

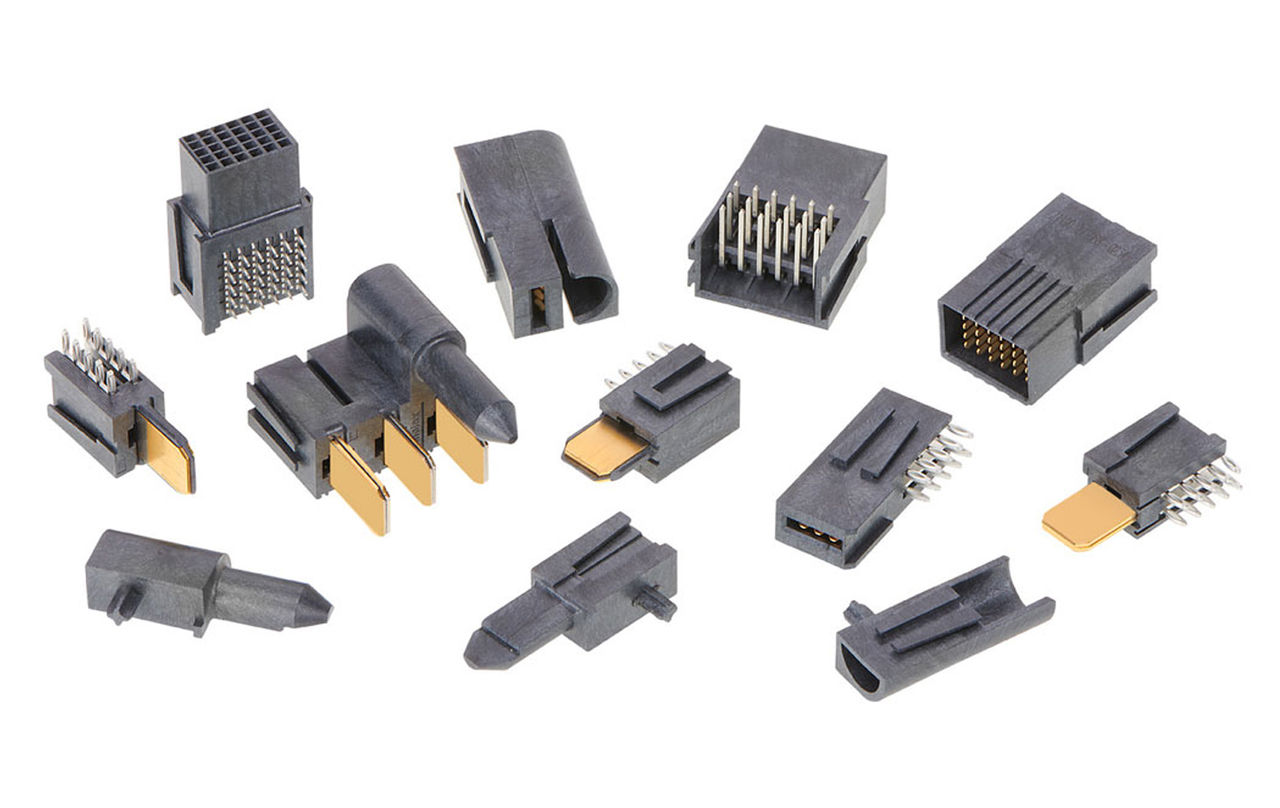

EXTreme Ten60Power

Designed for high-power connections, EXTreme Ten60 Power Connectors offer multiple pitch options, different per-circuit current rating selections, features that facilitate blind-mating and high-voltage solutions for backplane and midplane designs.
Find Parts Learn More
EXTreme Guardian Connectors
PitchCircuitsCurrent (max.)Voltage
2.00 - 7.50mm1 - 722.5 - 60.0A600 AC / 250 DC

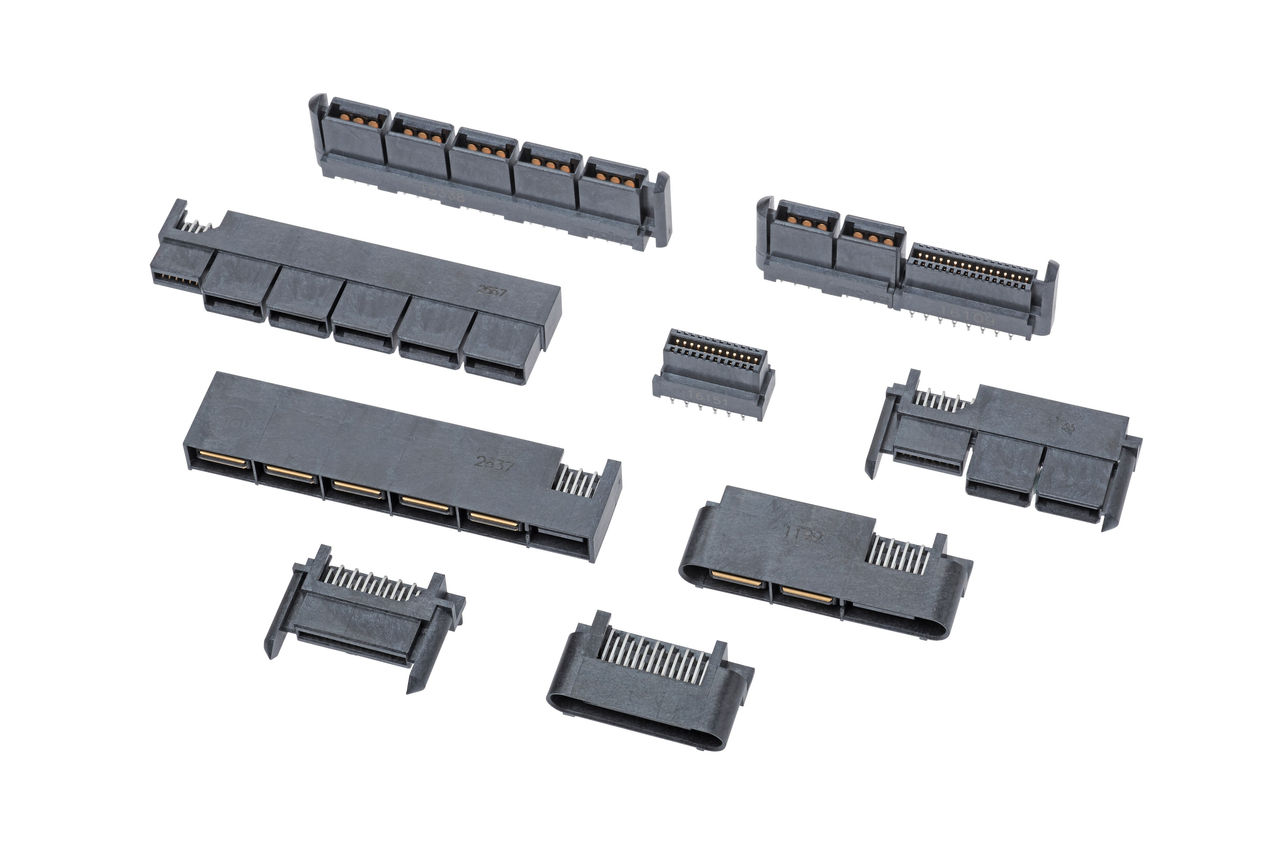

EXTreme LPHPower

Designed with power blades parallel to the PC board, this connector is a mixed, high-current power and signal connector system that picks up where traditional connectors leave off.
Find Parts Learn More
EXTreme LPHPower
PitchCircuitsCurrent (max.)
Voltage
1.27 - 12.00mm2 - 541.0 - 30.0A250V

EXTreme OrthoPower

Delivering 60.0A via split-blade technology, Molex’s innovative EXTreme OrthoPower Orthogonal Direct-Power Connector System solves the networking and telecommunications challenge of routing power to backplane line cards.



Find Parts
EXTreme OrthoPower Orthogonal Direct-Power Connector System
PitchCircuitsCurrent (max.)
Voltage
2.50 - 3.50mm2 Blades30.0A250V

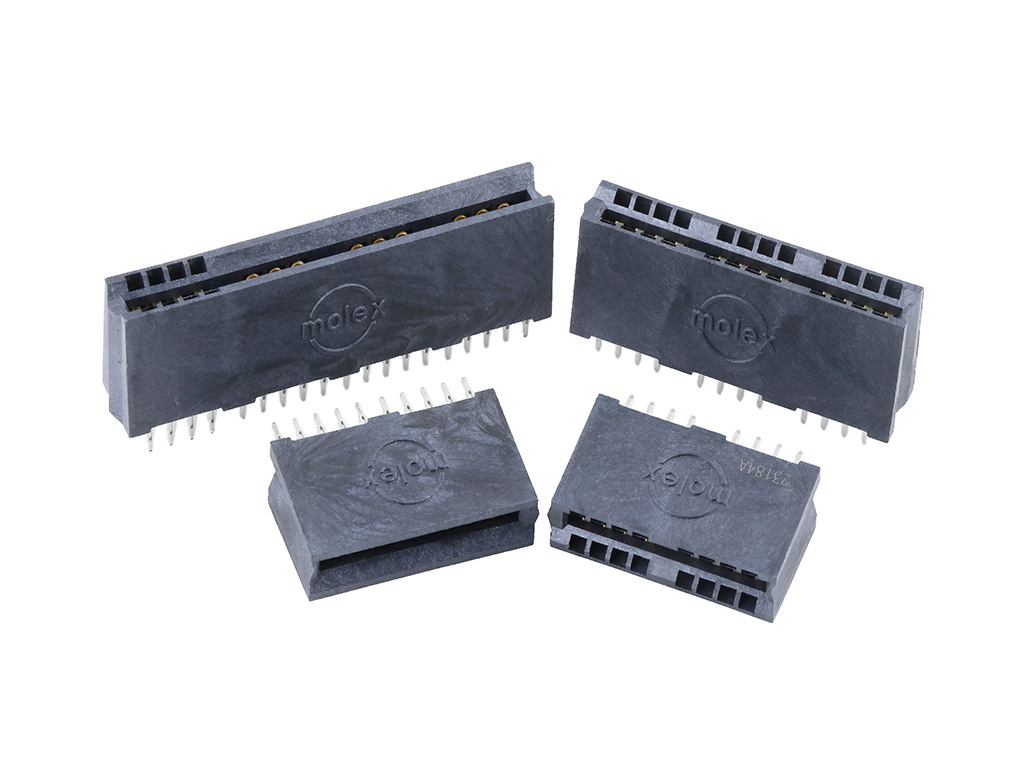

EXTreme PowerEdge

EXTreme PowerEdge connectors with signal contacts for combined high-power and signal card edge or busbar tab applications.

Find Parts
EXTreme Power Products
PitchCircuitsCurrent (max.)
Voltage
2.50 - 12.90mm2 - 323.0 - 40.0A250V

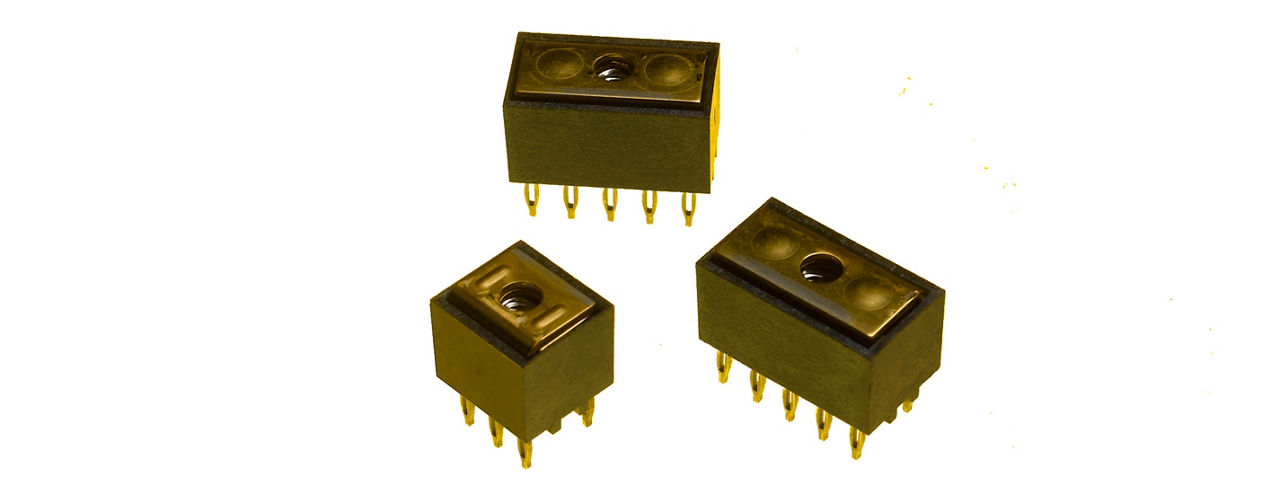

EXTreme ZPower

EXTreme ZPower is a high-current, rigid, board-to-board and wire-to-board mezzanine style interconnect designed to transfer power loads from one PCB to another.

Find Parts
EXTreme ZPower Connectors
PitchCircuitsCurrent (max.)
Voltage
6.00mm130.0 - 50.0A250V
