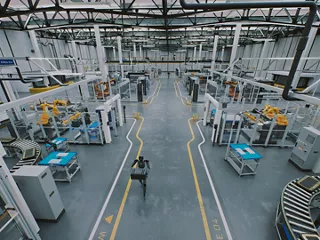

Humanoid robots are rapidly moving from laboratory environments to daily operation on industrial factory floors, a shift projected to expand the market from $2 billion today to $40 billion by 2035. To function in a complex industrial setting, these machines need advanced perception systems equipped to handle dynamic logistics and manufacturing tasks. Operating safely alongside human workers demands heavy sensor payloads that combine high-resolution vision with tactile feedback and environmental mapping capabilities.
The process of integrating humanoid robot sensors introduces considerable physical challenges. Design engineers need to combine computing, perception, power and actuation into a single robotic nervous system. Standard industrial wiring cannot fit within restricted physical envelopes or survive the mechanical fatigue of routing power and data through highly articulated limbs. Scaling humanoid platforms for mass production means replacing traditional wiring harnesses with ruggedized micro-interconnect architectures.
Spatial and EMI Bottlenecks in Humanoid Vision System Wiring
Bringing a robotic nervous system to life starts with overcoming the fundamental lack of internal space. Packing high-resolution cameras and tactile sensors within the restricted physical envelopes of a humanoid robot creates severe routing bottlenecks while introducing thermal and EMI challenges.
Navigating Miniaturization and Thermal Traps
As designers push for more lifelike proportions, internal real estate becomes incredibly scarce. High-current power lines and high-speed data links often pass through actuator channels measuring just 6.00mm across. Packing a high volume of cables into these ultra-tight pathways leaves almost no room for airflow or traditional wiring harnesses. Running continuous power through confined spaces generates tremendous heat and creates thermal traps that degrade sensor precision.
Protecting Signal Integrity from Motor Noise
Beyond thermal issues, the proximity of power and data creates a severe electrical conflict. Routing high-bandwidth data lines directly adjacent to high-torque electric motors exposes sensitive signals to intense EMI. The lack of physical space rules out bulky shielding materials needed to isolate perception data from motor noise. Without proper wiring for the humanoid vision system, unshielded interconnects absorb this interference and corrupt the data stream, causing vision lag and potentially dangerous miscalculations during human-robot interaction.
Preventing Mechanical Fatigue and Signal Loss in High-Motion Robot Joints
Even after an engineering team successfully routes cables through tight thermal and EMI bottlenecks, the wiring must then survive continuous motion. Enduring the continuous multi-axis movement of humanoid joints relies on specialized high-flex cabling and secure interconnects to avoid catastrophic power loss and data disruption.
The Physical Toll of Continuous Articulation
Humanoid robot limbs mimic the complex articulation of the human body, particularly in high-motion areas such as wrists and ankles. Standard industrial wiring degrades under the constant friction of repetitive robotic limb movement, ultimately leading to mechanical fatigue or trace cracking within traditional cable harnesses. These physical micro-fractures introduce intermittent faults that disrupt critical data streams or trigger sudden power failures during operation. These phantom electrical issues complicate field diagnostics and increase maintenance downtime. Losing connection to extremity sensors instantly compromises the robot’s ability to map its environment or interact safely with human workers.
Securing Power and Data with High-Flex Architectures
Overcoming physical wear requires a holistic approach to the joint’s electrical architecture. First, reliable performance relies on a transition to high-flex cabling that can withstand millions of flex cycles without degrading signal quality. However, flexible printed circuits (FPCs) and specialized cable assemblies bend easily within tight joint housings to relieve mechanical stress. High-vibration environments also call for miniaturized connectors equipped with robust locking mechanisms. Together, these integrated locking features prevent terminal back-out, maintaining stable electrical contact during high-impact maneuvers.
Reducing Distal Mass to Lower Motor Torque and Extend Battery Runtime
While ruggedizing these connections is critical for durability, engineers should also consider the wiring’s physical weight. To improve robotic agility, engineers deploy interconnects that pack high power density and signal transmission into the smallest possible form factor.
The Weight Penalty of Traditional Wiring
Humanoid robotics designers often aim to keep limb mass as low as possible, especially farther from the torso. While motors are required at or near points of movement, heavy legacy wiring harnesses can work against this broader design goal by adding unnecessary weight to robotic limbs and extremities. Routing thick cable bundles through the arms and legs significantly increases the robot’s distal mass. The added weight forces proximal motors to work harder just to move the limbs before carrying out the assigned task of lifting an external payload.
Consolidating Power and Data to Extend Runtime
Replacing bulky cables with space-saving board-to-board connectors minimizes the sensor payload's physical footprint without expanding the robot's form factor. Advanced micro-interconnects combine power delivery and data signals into a single compact interface. Lowering the mass of the electrical architecture reduces the torque demanded from the motors. Decreased motor strain ultimately yields extended operational battery runtimes for untethered humanoid platforms.
Overcoming Manual Assembly Bottlenecks for High-Volume Production
Designing the perfect lightweight, high-flex architecture is only half the battle. Manufacturers must be able to build at scale. Producing thousands of units on an assembly line comes with new challenges. Hand-routed custom wire harnesses introduce variability, increasing the likelihood of installation errors during assembly. Relying on custom wiring locks engineers into elaborate design cycles characterized by frequent wire-harness rework. These labor-intensive methods inhibit manufacturers from achieving the strict consistency expected on modern factory floors.
Accelerating Deployment with Standardized Connectors
Standardizing the interconnect architecture establishes predictable, repeatable manufacturing processes ideal for mass production. High-density robotic connectors allow designers to replace hand-soldered joints with machine-applicable components.
Mechanical keying and color-coding built into standardized connectors provide an added layer of physical error-proofing. These integrated features avoid costly mating errors during rapid assembly and enable manufacturing sites to ramp up production with less specialized training. Mitigating the friction of manual assembly ultimately accelerates overall time-to-market for industrial deployments.
Proven Connectivity Solutions for the Micro-Spaces of Humanoid Robotics
Scaling industrial humanoids depends on rugged interconnects that protect sensitive signal pathways from motor noise while surviving continuous multi-axis joint movement.
Space-saving Quad-Row board-to-board connectors resolve packaging bottlenecks by delivering up to 30% space savings over conventional designs. Similarly, SlimStack connectors provide reliable power and signal capabilities in a low-profile design, making them ideal micro-interconnects for LiDAR and confined joint housings. Featuring ultra-fine pitches down to 0.175mm, these micro-scale footprints allow designers to integrate advanced cameras and tactile sensors into confined extremities without expanding the robot’s physical form.
Premo-Flex FFC and FPC cables maintain low-noise, high-speed data paths by isolating sensitive signals from nearby high-torque motor drives. Engineered with high flex-life ratings, the flexible circuits bend easily across dynamic joint envelopes to prohibit trace-cracking and intermittent data disruption. To complement these flexible data paths, Micro-Lock Plus connectors provide mechanical security in high-vibration environments, featuring a robust locking mechanism that prevents terminal back-out during high-impact maneuvers.
Solve the spatial and mechanical constraints of these platforms with Molex humanoid robotics connector solutions built for high-density routing and flex-life durability.
