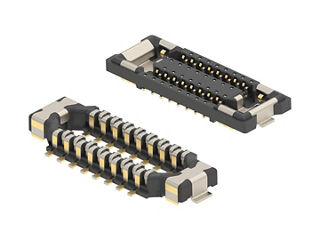

Quad-Row Connectors

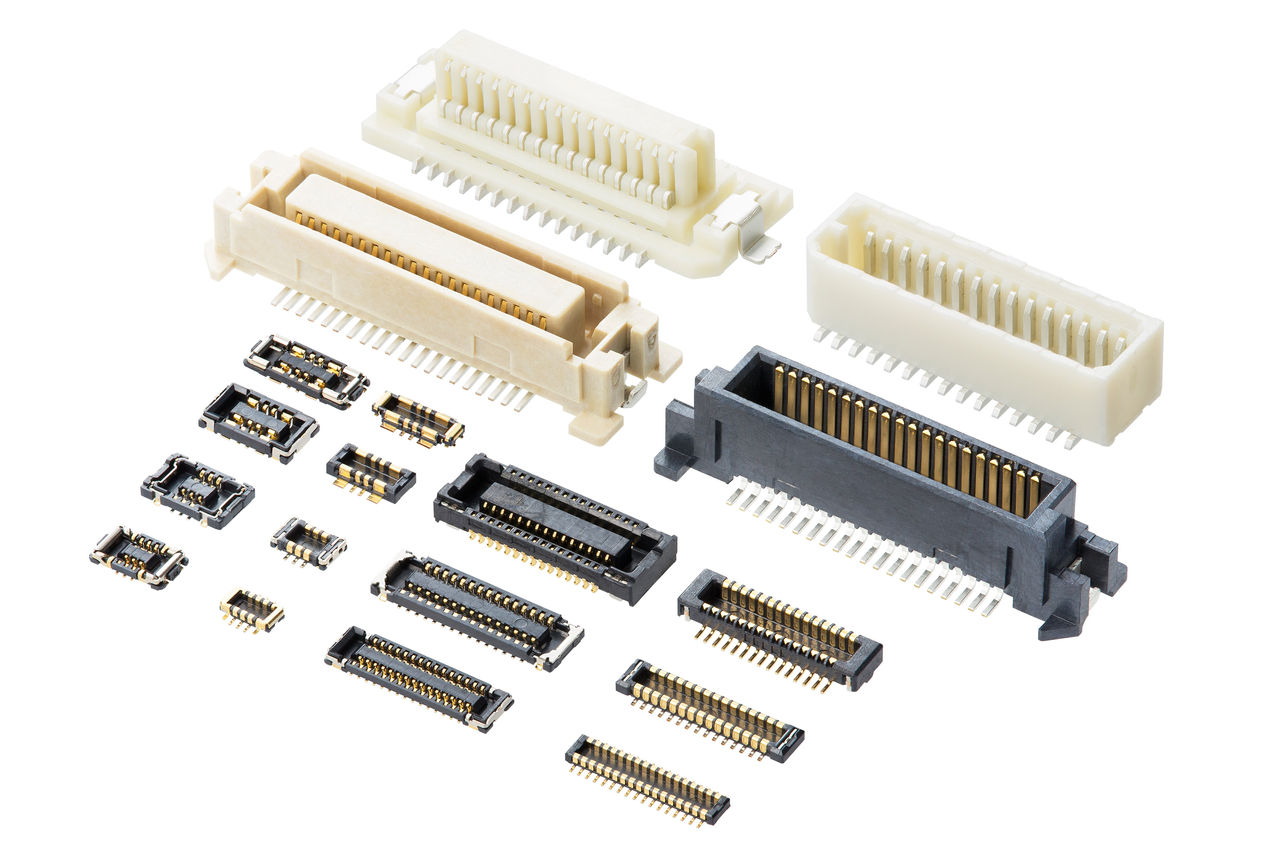

Board-to-Board Connectors

Quad-Row Connectors

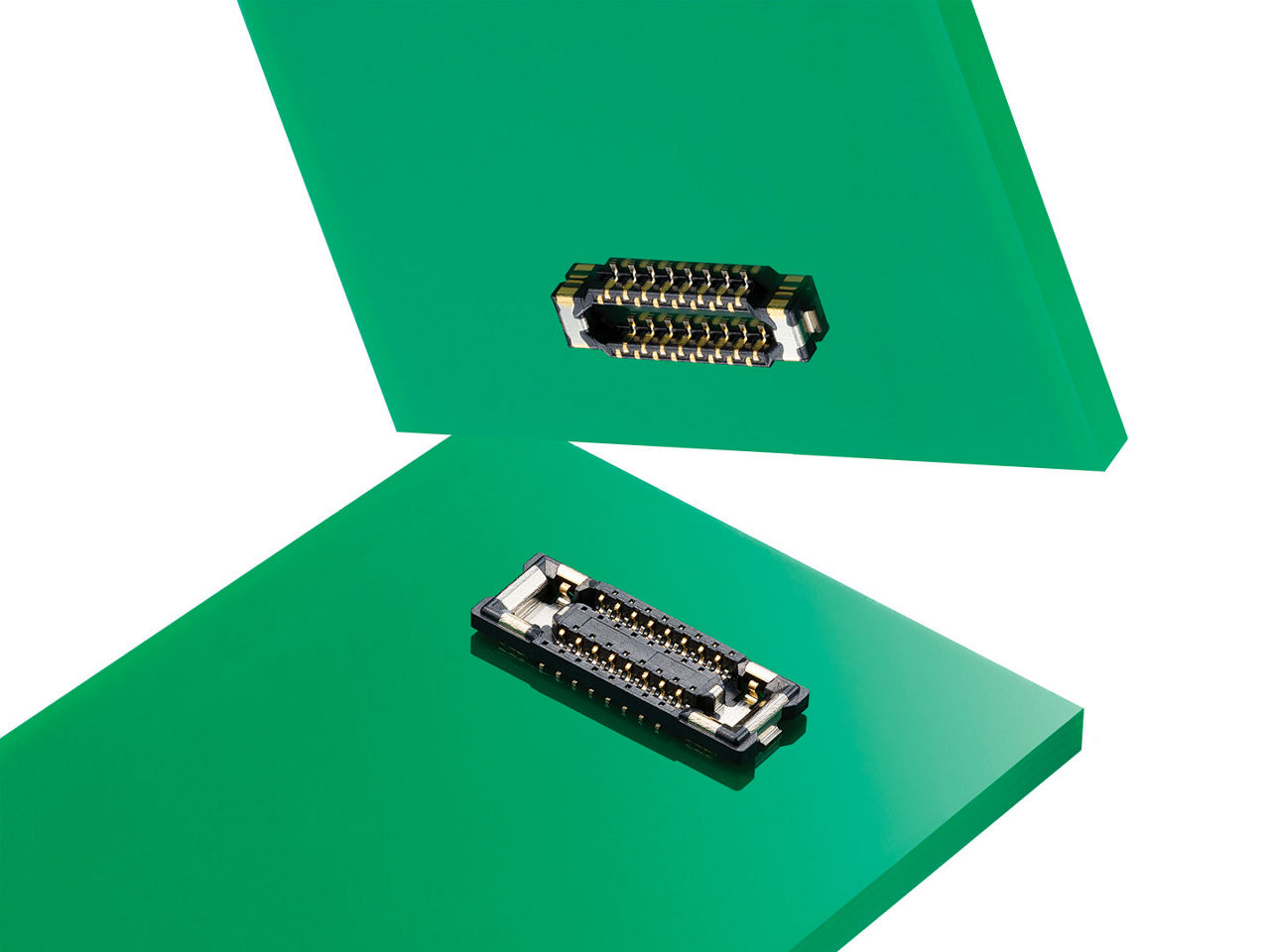

Quad-Row Connectors are board-to-board products that deliver significant space savings for a range of applications where space is at a premium. Meeting the demands of designers who require compact connector solutions, these connectors allow for easy mating, secure contact and superior reliability in challenging environments. Quad-Row Connectors achieve robust, high-power connectivity in an exceptionally miniature package.

Find Parts Contact Us
Circuits  Height  Width  Length
12 to 80 0.50mm, 0.60mm, 0.80mm 2.00mm 3.625mm to 9.925mm

PCB Headers

Find Parts

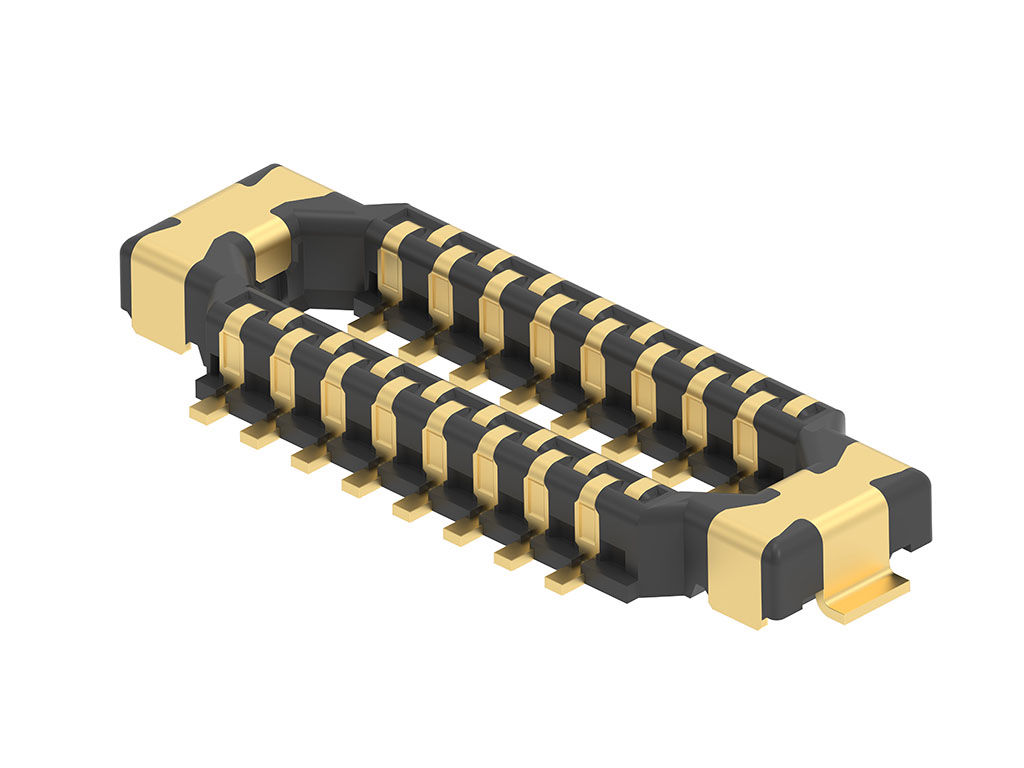

Quad-Row PCB Header

PCB Receptacles

Find Parts

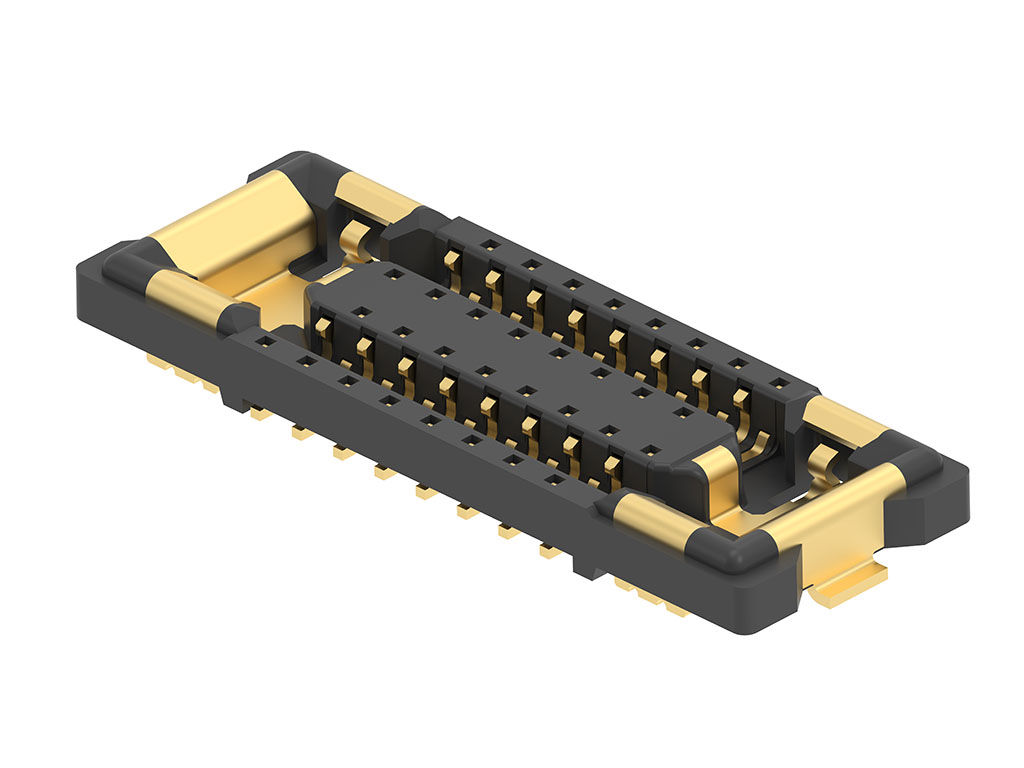

Quad-Row PCB Receptacle

Features and Benefits

As the demand for smaller components rises, engineers are challenged to meet the requirements for high performance in compact designs. Quad-Row Connectors deliver up to 3.0A in a fine pitch, low-profile design. These connectors meet today’s miniaturization demands without sacrificing performance.

Quad-Row Connectors also support standard SMT processes and feature an armored and overmolded nail with interior cover, providing a robust package and preventing damage to the connectors. This allows for easy operability, avoiding the risk of connector damage during the mating process.

For efficient processing, device manufacturers seek high-volume production capabilities. Quad-Row Connectors are packaged in large reel size, facilitating increased manufacturing efficiency and boosting productivity.

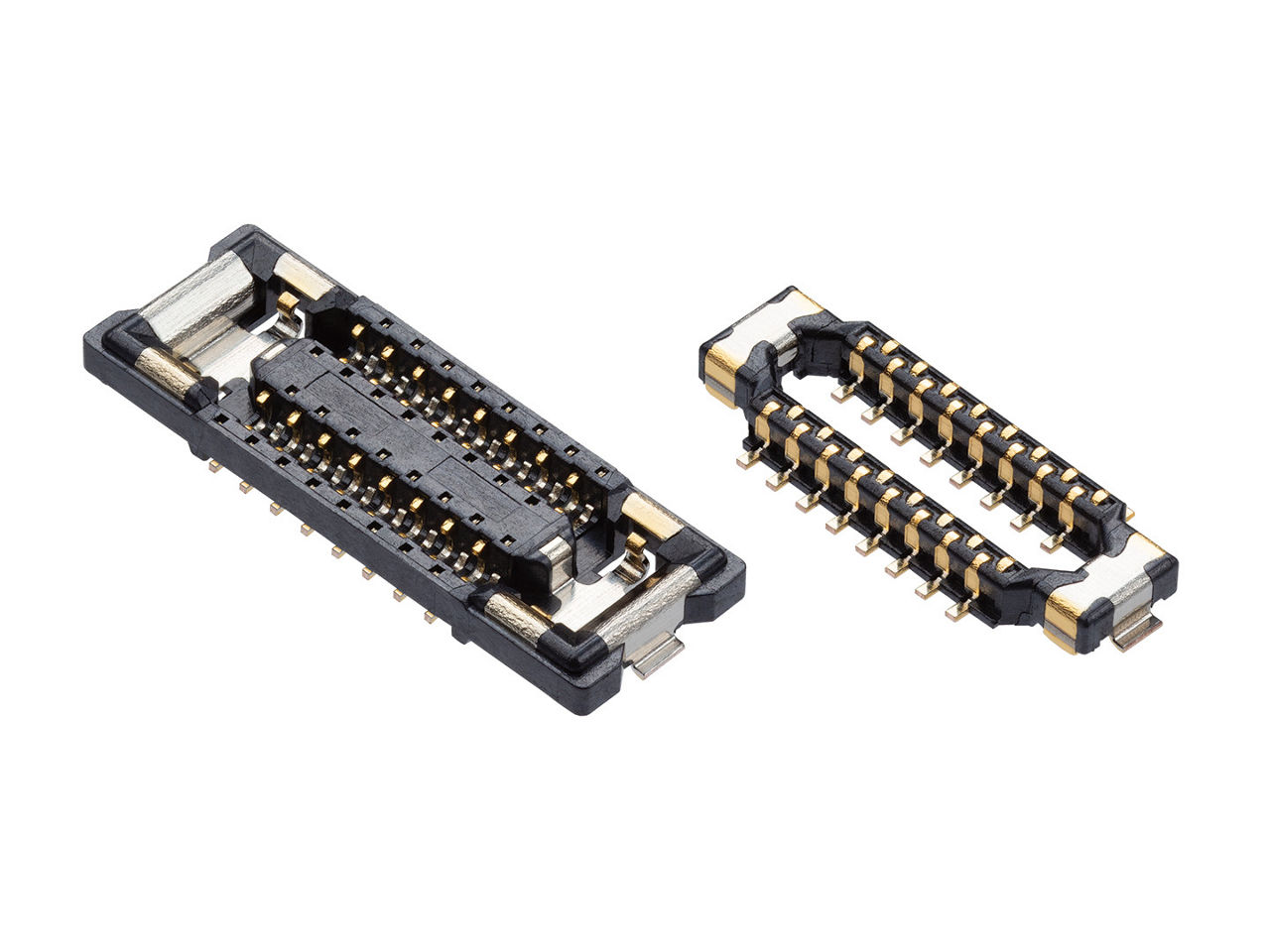

Space-Saving Staggered-Circuit Layout

Molex has set a new standard in space-saving connections with Quad-Row board-to-board connectors. As the first-ever staggered circuit layout connector, this groundbreaking product positions pins across four rows at a signal contact pitch of 0.175mm. The result offers 30% space savings over conventional connector designs, while enabling high-density circuit connectivity. ​

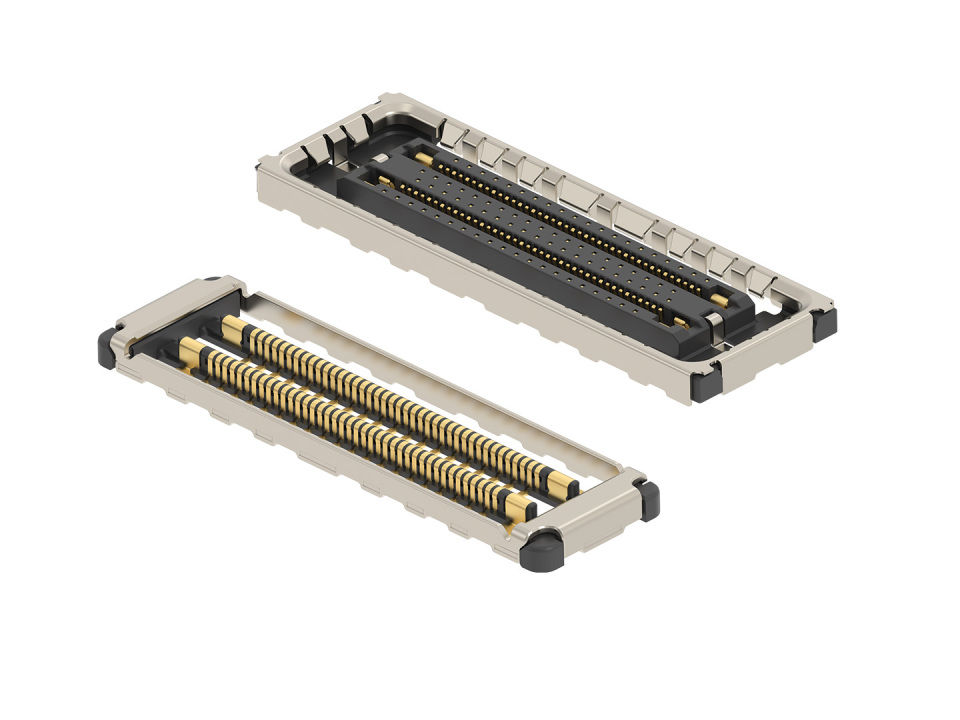

Quad-Row Connectors

Compact Solutions with Enhanced Production Efficiency and Flexibility

Quad-Row Connectors offer a 3.0A current rating to meet customer requirements for high power in a compact design. These products also offer a wide range of circuits for additional functionality and design flexibility. The armored and insert-molded nail with an interior cover provides robustness, and a large reel size (20,000 pcs/reel) facilitates improved production efficiencies, contributing to yield-rate improvement in the customers’ processes.

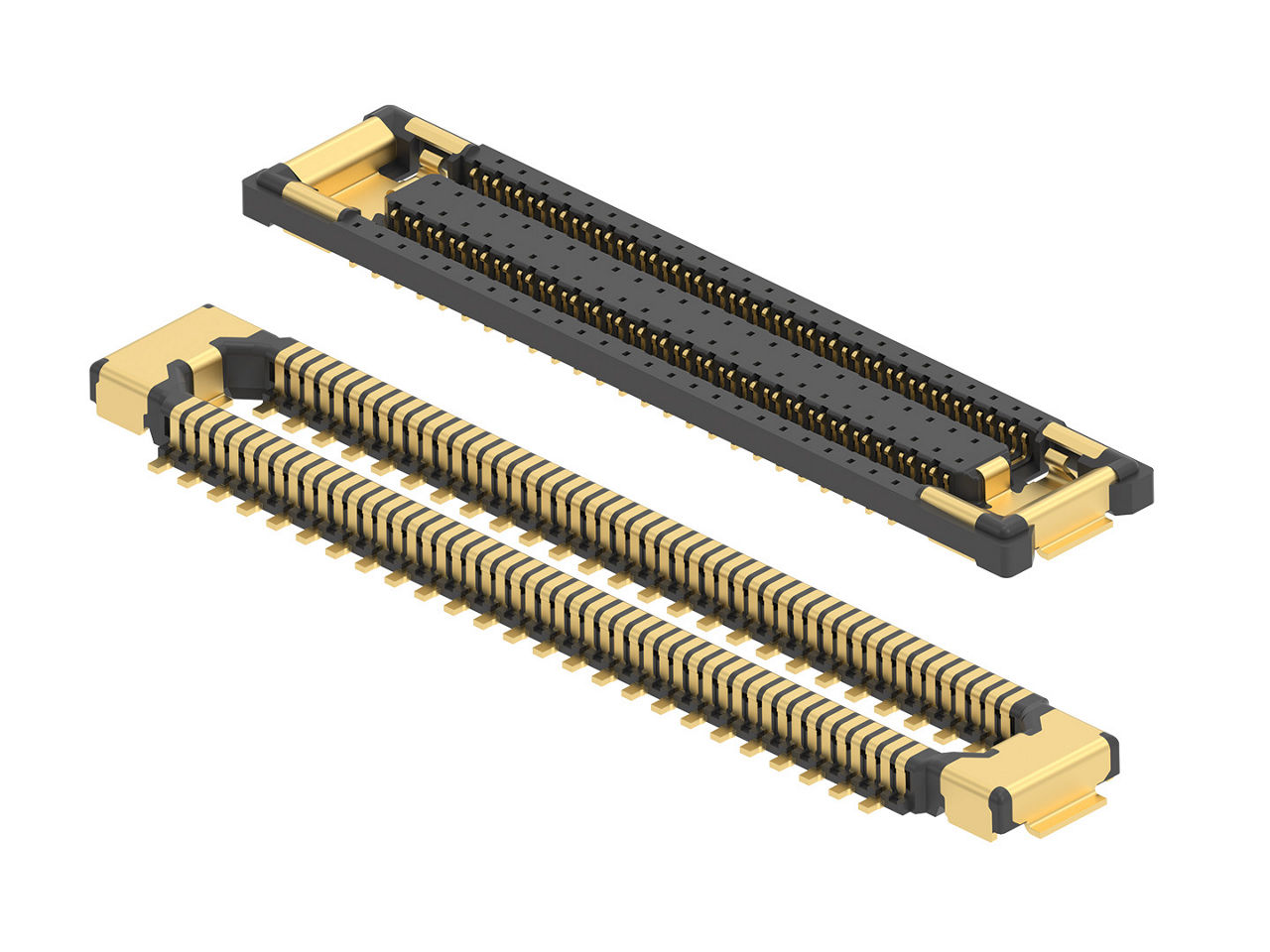

Quad-Row Connectors

Simplifies system design and increases functionality for enhanced performance and capabilities
More circuits are incorporated into a single connector, reducing the number of connectors needed.

Offers tremendous space savings and enables ​high-density circuit connectivity
A staggered-circuit layout positions pins across four ​rows at a signal contact pitch of 0.175mm.

Delivers increased strength for more reliable performance
Customers can avoid the risk of connector damage during mating process with easy operability.​

Reduces wastes and improves productivity​
The bigger reel size facilitates high-volume production​ with the same resources for increased efficiency.​

Datasheets and Guides

Videos

Quad-Row Connectors

As the demand for product miniaturization increases, designers want space savings without compromising product performance parameters. Quad-Row Connectors, rated up to 3.0A, are designed with an innovative staggered circuit layout to deliver optimal space savings and high-density connectivity. These high-performance compact connectors increase functionality in a single connector and are well-suited for space-constrained applications.

Applications by Industry

Smartphones
Tablets

This is not a definitive list of applications for this product. It represents some of the more common uses.
