Standard RF Cable Assembly Solutions

From traditional configurations to custom, multi-port and bundled solutions, Molex expertise ensures you get the right RF cable assembly for your application’s needs.

Find Parts RF Assembly Builder Contact Us
Frequency Impedance Interface
DC to 22 GHz Ohm: 50, 75 Snap-On, Threaded, Push/Pull Coupling

Features and Benefits

Customers typically need to create drawings and assign resources to find a supplier to build cable assemblies for end products. Molex designs standard RF cable assemblies to provide a one-source solution. This eliminates the need to find another vendor to build assemblies.

Designers of consumer and medical wireless devices and smart systems meant for automotive applications face challenging conditions, such as vibration and space constraints. The Molex engineering team has the expertise to develop high-quality, standard cable assembly solutions that ensure reliability and performance. Molex standard RF portfolio includes cable assemblies with BNC, SMA, MCX, MMCX, MCRF and D-Sub connectors.

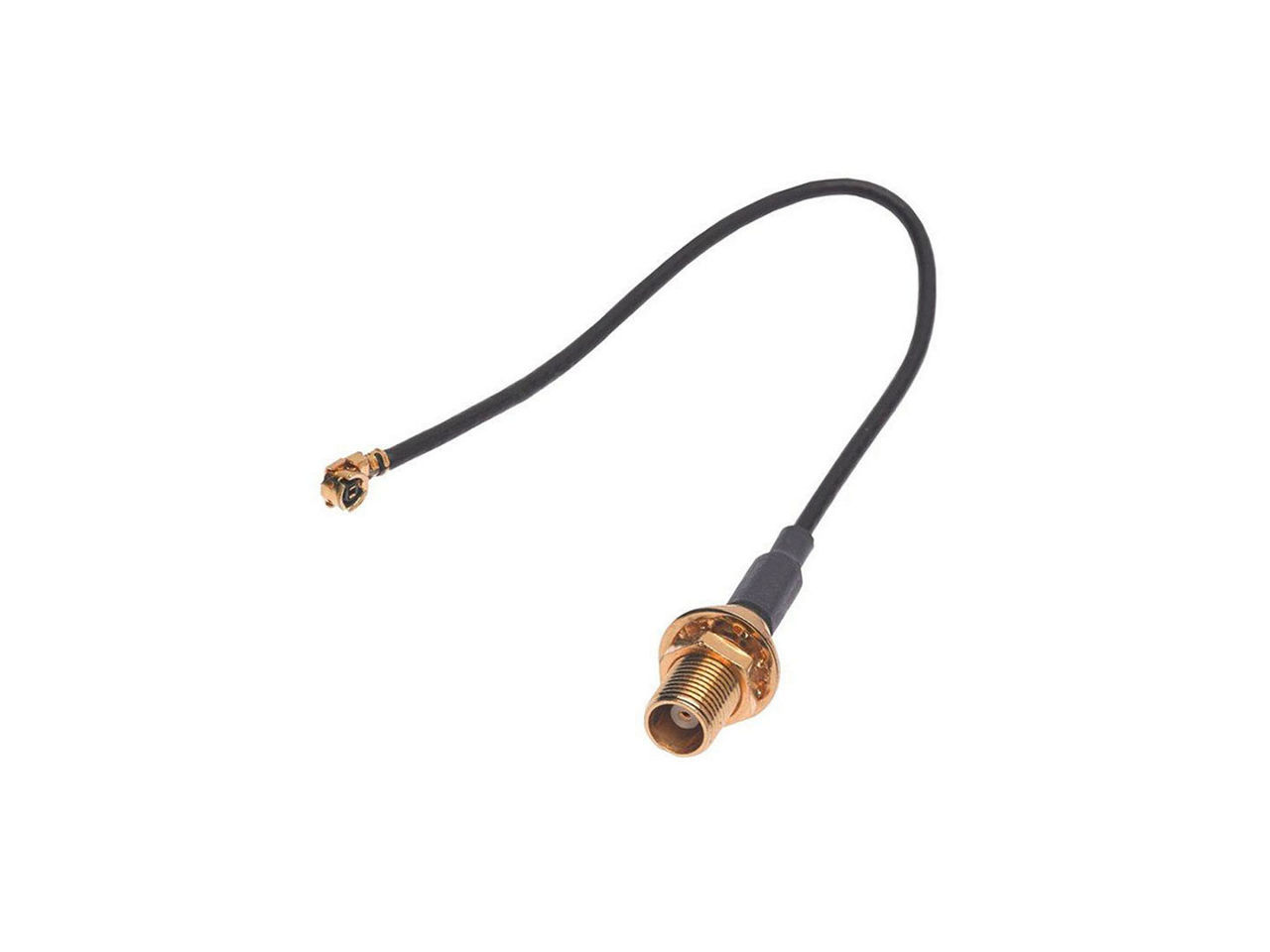

MHF 4L LK and MHF I LK Cable Assemblies

In continuous shock and vibration environments, robust mechanical connections are required for secure and reliable mating. Molex has a range of compact cable assemblies featuring a patented mechanical locking system for MHF® 4L LK and MHF® I LK plugs that are ideal for these applications. Molex offers standard assemblies on 1.13, 1.32 and 1.37mm cable-type options.

MHF 4L LK and MHF I LK Cable Assemblies

SMA Assemblies

Molex offers both standard SMA connector assemblies as well as our SMA bulkhead connector assemblies. Molex provides cable assemblies with numerous cable types, including semi-rigid, hand conformable and standard RG.

SMA Assemblies

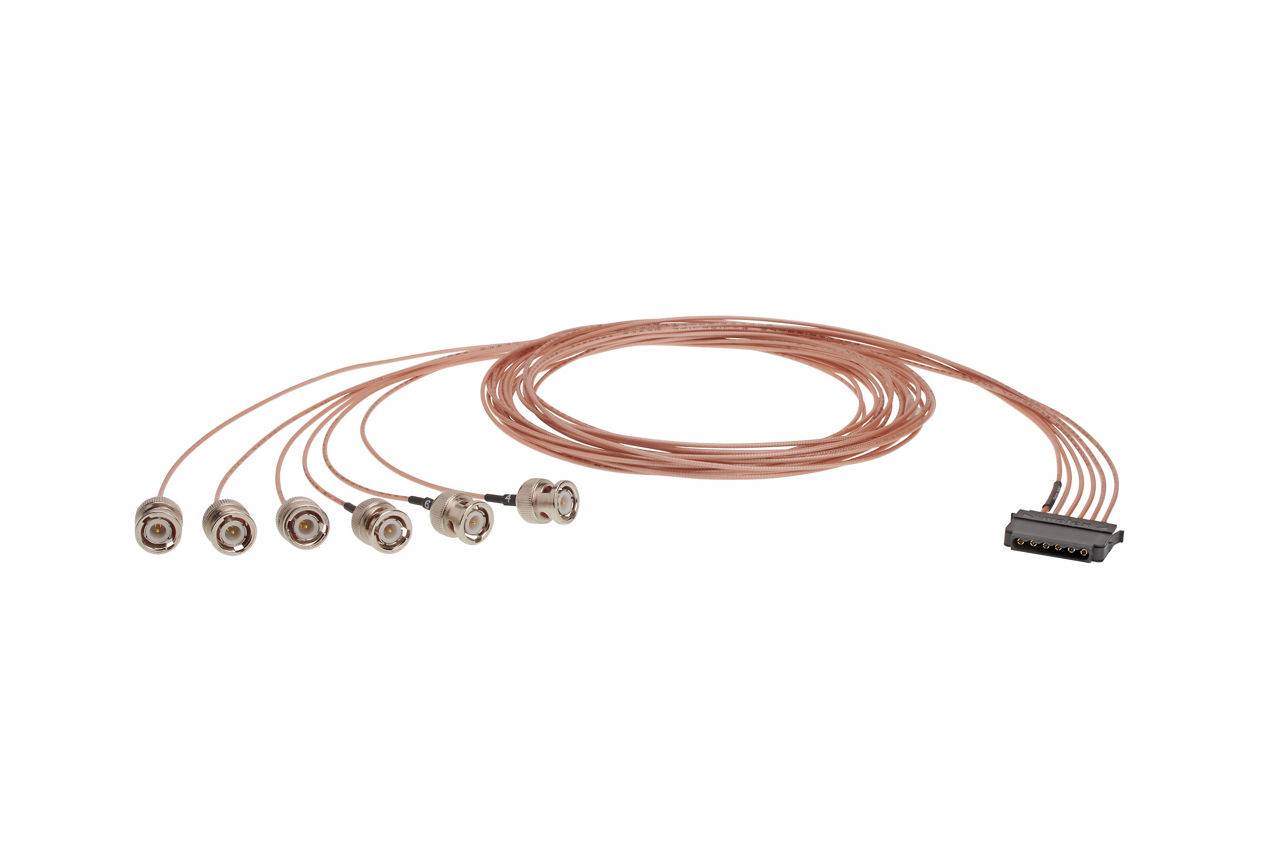

BNC Assemblies

Molex offers a variety of BNC connector configurations on multiple types of cable. Currently we offer standard off-the-shelf assemblies in multiple 50-Ohm cable options including RG316 and RG58 cable. We also offer a variety of 75-Ohm options including configurations on RG179, RG59 and Belden 1694A cable types.

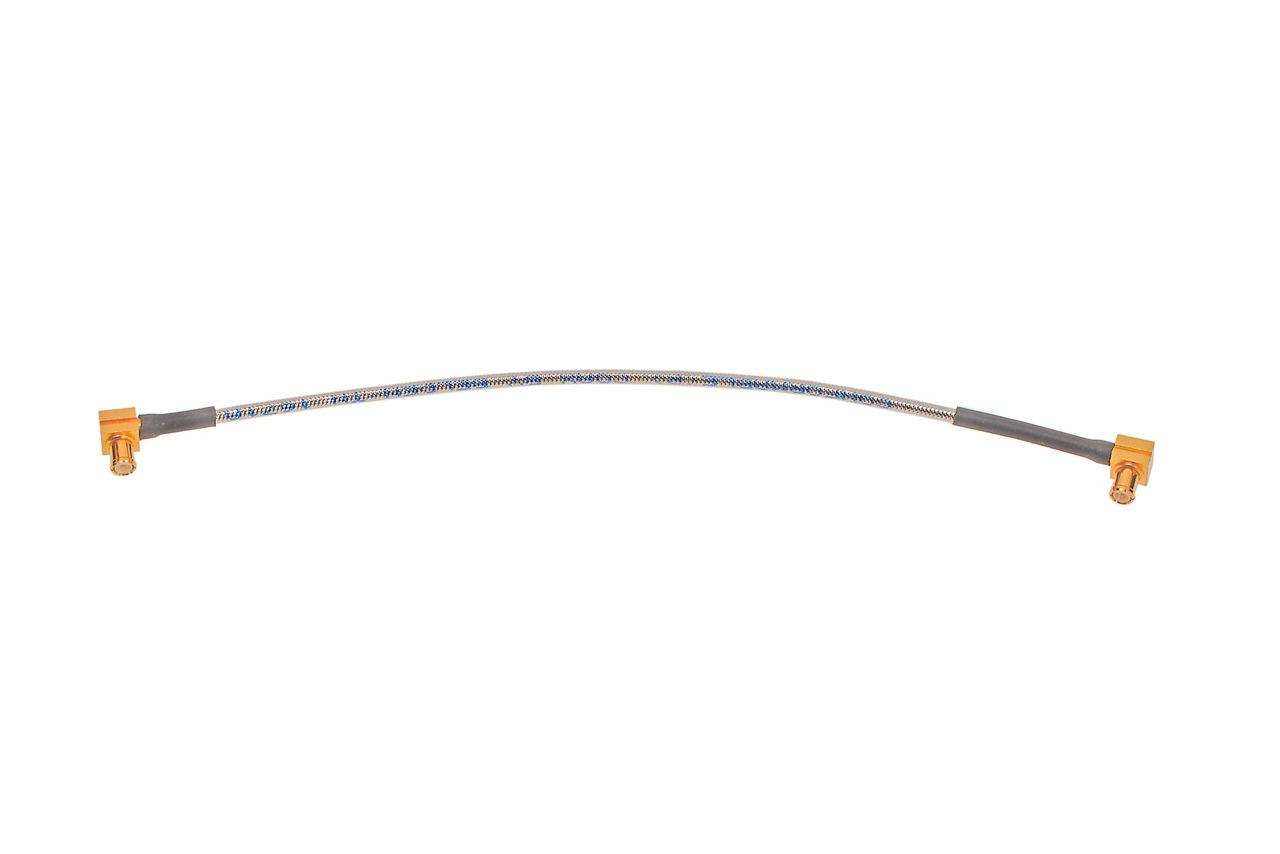

MCX and MMCX Assemblies

Molex provides standard, readily available right-angle and straight MCX cable assemblies. Both standard MCX and MMCX assemblies come in 50-Ohm options with RG316, RG174 and RG178 cable types. Molex also offers 75-Ohm MCX assemblies using a R179 cable type. If an application requires a semi-rigid cable, we offer standard assemblies using .086 semirigid options.


MCRF Assemblies

Molex has a broad range of standard MCRF assemblies, including double-ended versions as well as MCRF-to-SMA and reverse polarity SMA connector options. Molex offers a multitude of lengths for whatever an application may require. Standard assemblies are offered on 1.13mm, 1.32mm and 1.37mm cable-type options.


Temp-Flex Cable Assemblies

Molex offers standard RF assemblies that utilize Temp-Flex Solid Core Cables, configured with RF 2.92mm Connectors. Temp-Flex Cables offer multiple benefits, including excellent performance consistency, smaller bend radius and more phase stability compared to similar cable types. These assemblies are available for direct purchase through many of our authorized distributors.

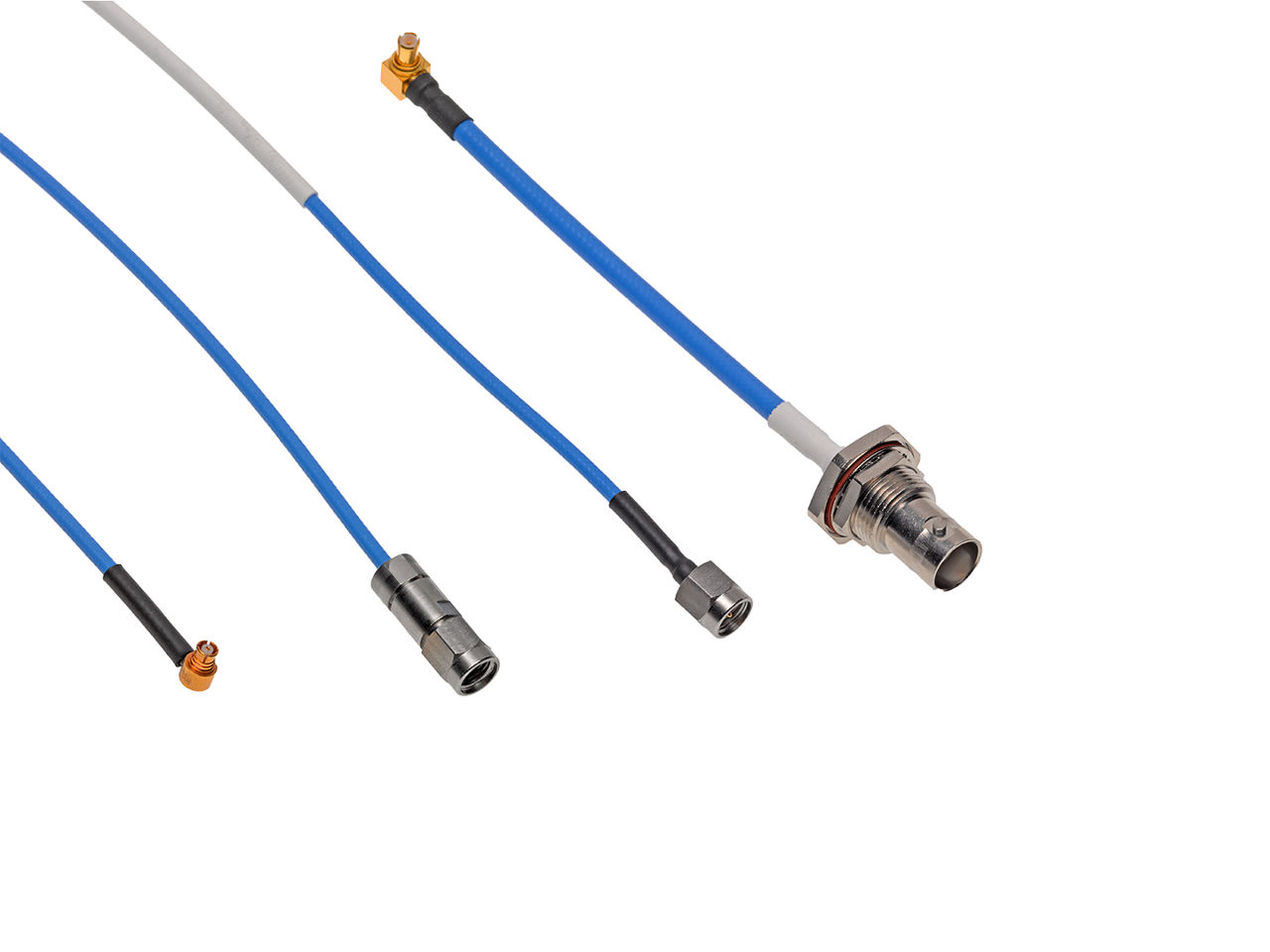

RF High-Performance Connectors

Datasheets and Guides

Applications by Industry

Wireless internet TV and audio

Wireless LAN
Wireless PAN (Bluetooth)
Wireless WAN

Medical Devices

Wireless devices

Broadband equipment
Network interfaces
Telecom boxes
WLANs
Wireless antennas
Wireless base stations

This is not a definitive list of applications for this product. It represents some of the more common uses.
