Connector Mating Attributes Guide: At-a-Glance Summary
Mating Attributes: Essentials of Reliability and Safety
To meet the common challenge of preventing mis-mating, engineers draw from four safeguards: gender, polarization, keying and coding. Depending on the application requirements, appropriate levels of these precautions are incorporated to minimize the risks of unintended connections. The consequences of overlooking these safeguards are significant, ranging from immediate safety hazards, such as reverse polarity and short circuits, to latent field failures. Conversely, prioritizing these considerations from the outset helps engineers eliminate assembly errors and prevent costly downstream rework.
What Are Gender, Polarization, Keying and Coding?
Reliability in connector systems requires more than just consistent electrical performance; it demands physical safeguards that eliminate the risk of human error during assembly processes. The mating attributes that ensure this procedural accuracy include gender, polarization, keying and coding.
- Connector gender: The classification of a connector’s mating interface, typically as male (with pins) or female (with sockets), ensuring only complementary connectors can mate. Contact gender (pins versus sockets) is distinct from housing form (plug versus receptacle). Some connectors use designs that do not follow traditional male/female classifications. These are often referred to as genderless connectors. A common example is a hermaphroditic connector, which features identical mating interfaces on both sides, allowing the same connector type to mate with itself.
- Polarization: The use of physical design features, such as asymmetrical shapes or keyways, to ensure connectors in a specific male-female mating pair can only be inserted in the correct orientation, precluding situations like upside-down or flipped mating.
- Keying: Mechanical features, such as unique slot and groove patterns, that prevent unintended mating between connectors of the same family. For example, keying guarantees that a power connector cannot be mistakenly inserted into a signal connector, even though their basic housings are visually identical.
- Coding: Visual or mechanical identification features, such as color-coded housings, alphanumeric labels and distinct latch positions, that differentiate connectors of the same family by function, guiding assemblers in correctly pairing them during assembly. Coding may be purely visual (does not mechanically prevent mating) or may include electrical identifiers or mechanical variants that prevent mating.
Connector Mating Attributes Summary
| Gender | Classification of a connector’s mating interface based on physical contact configuration |
| Polarization | Ensures correct orientation within a connector pair |
| Keying | Prevents mis-mating between connectors of the same family |
| Coding | Assigns functional meaning to differentiate connector variants within the same family |
Connector Gender
Gender is the most fundamental classification of a connector's mating parts, defining the physical form of the contacts themselves by establishing which half inserts into the other. The concept may seem a straightforward binary of male and female, yet it occasionally invites confusion because contact gender must be distinguished from housing type, which is more accurately described as plug and receptacle. Beneath the choice of gender in a connection lies a set of layered implications that directly affect user safety during operation and component durability during assembly and service.
Gender Fundamentals
As mentioned, connectors are primarily classified by gender into two types: male and female. Male connectors feature exposed pins and are designed to insert into a mating connector, whereas female connectors have socket contacts located within recessed housing cavities and are designed to receive the male counterpart.

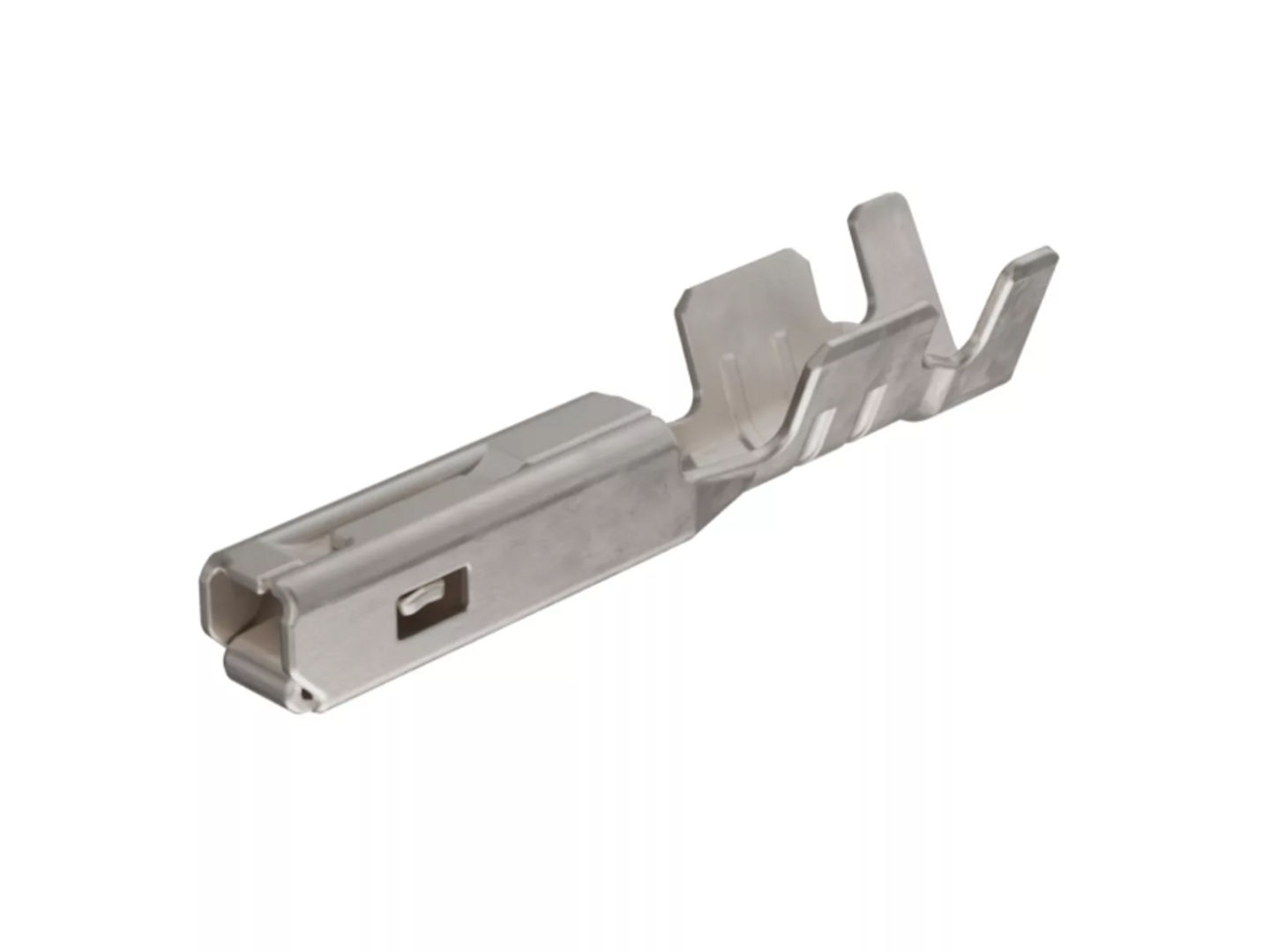

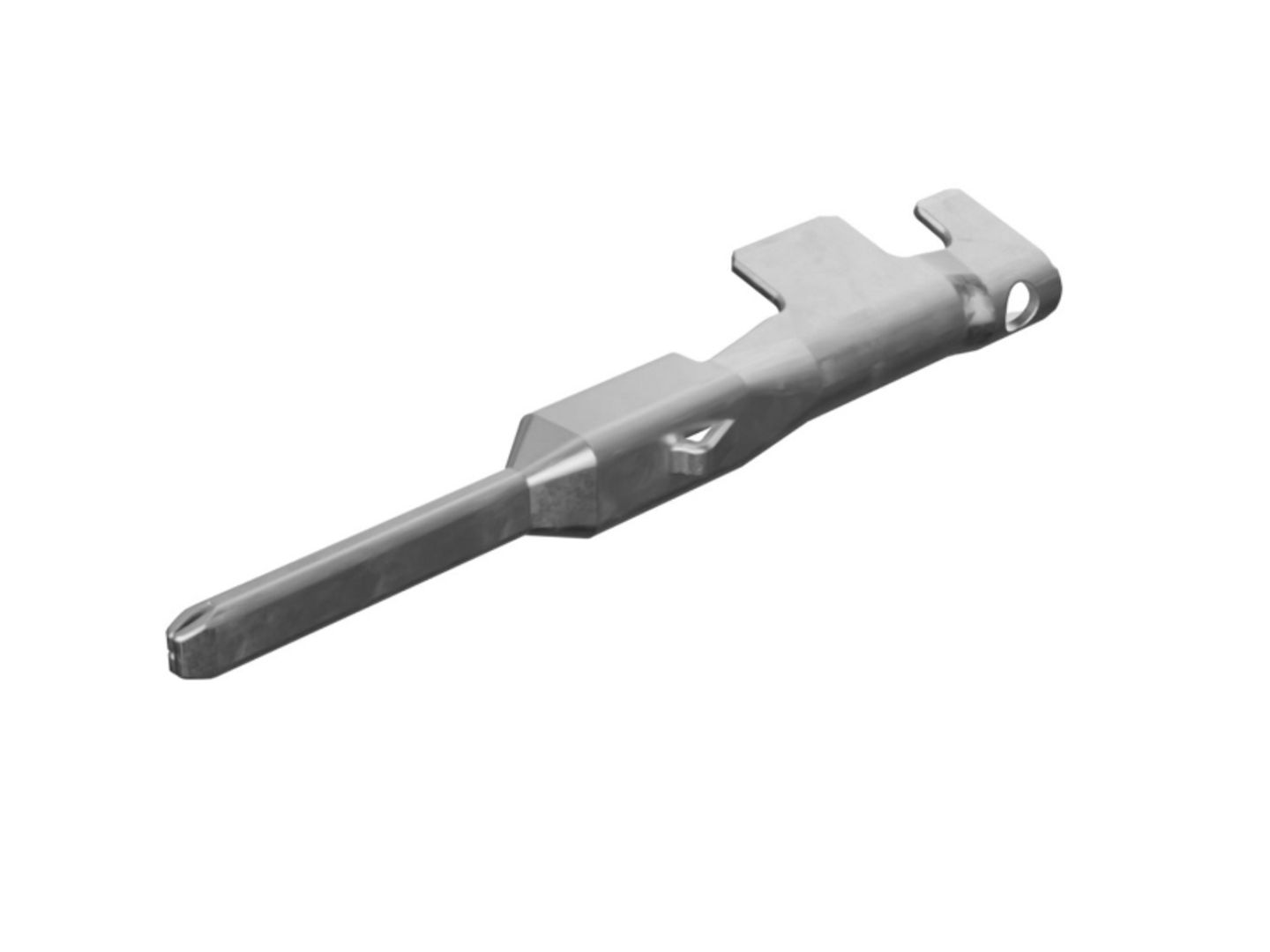

Molex MX150 terminals: male (left) and female (right)
More precisely, “male” and “female” describe the contact interface (pins versus sockets), while connector housings are often described as plug and receptacle. Beyond contact gender, connectors are also described by their form factor and mounting style. Housings are the insulating bodies that contain and position the contacts and are found in both cable-mounted and PCB-mounted connectors. Cable-side housings typically terminate discrete wires or wire harnesses using crimped contacts. PCB-mounted connectors, often referred to as headers, are soldered or compression-mounted directly onto printed circuit boards (PCBs) and provide the mating interface for these cable assemblies.
Headers are typically designed with exposed pins (male), though female (receptacle-style) headers are also used. Housings can be either plug or receptacle types and contain crimp terminals that may be male (pin) or female (socket). Importantly, terminal gender does not have to match the housing type. A plug housing may contain female terminals and a receptacle housing may contain male terminals depending on design requirements.

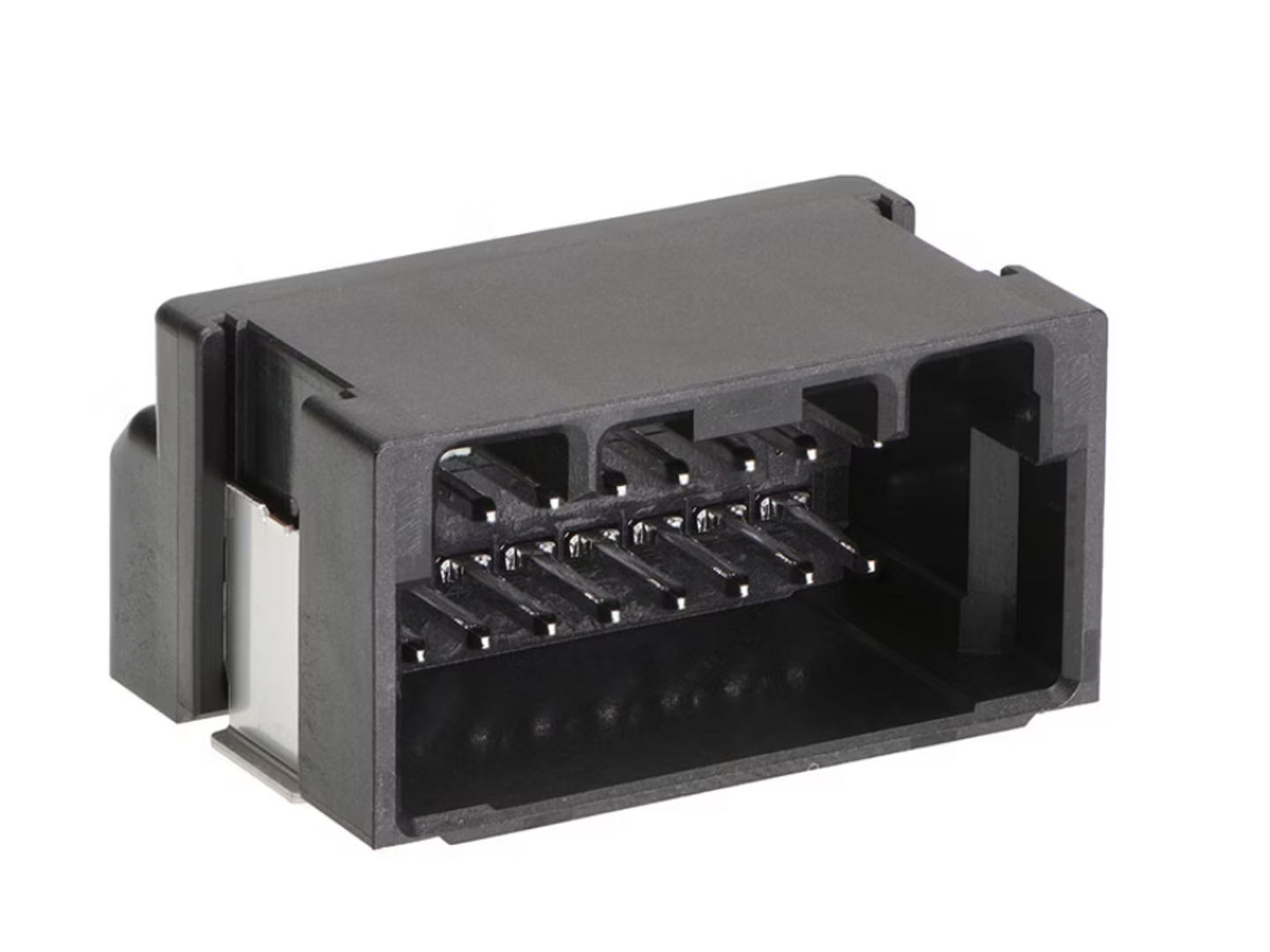

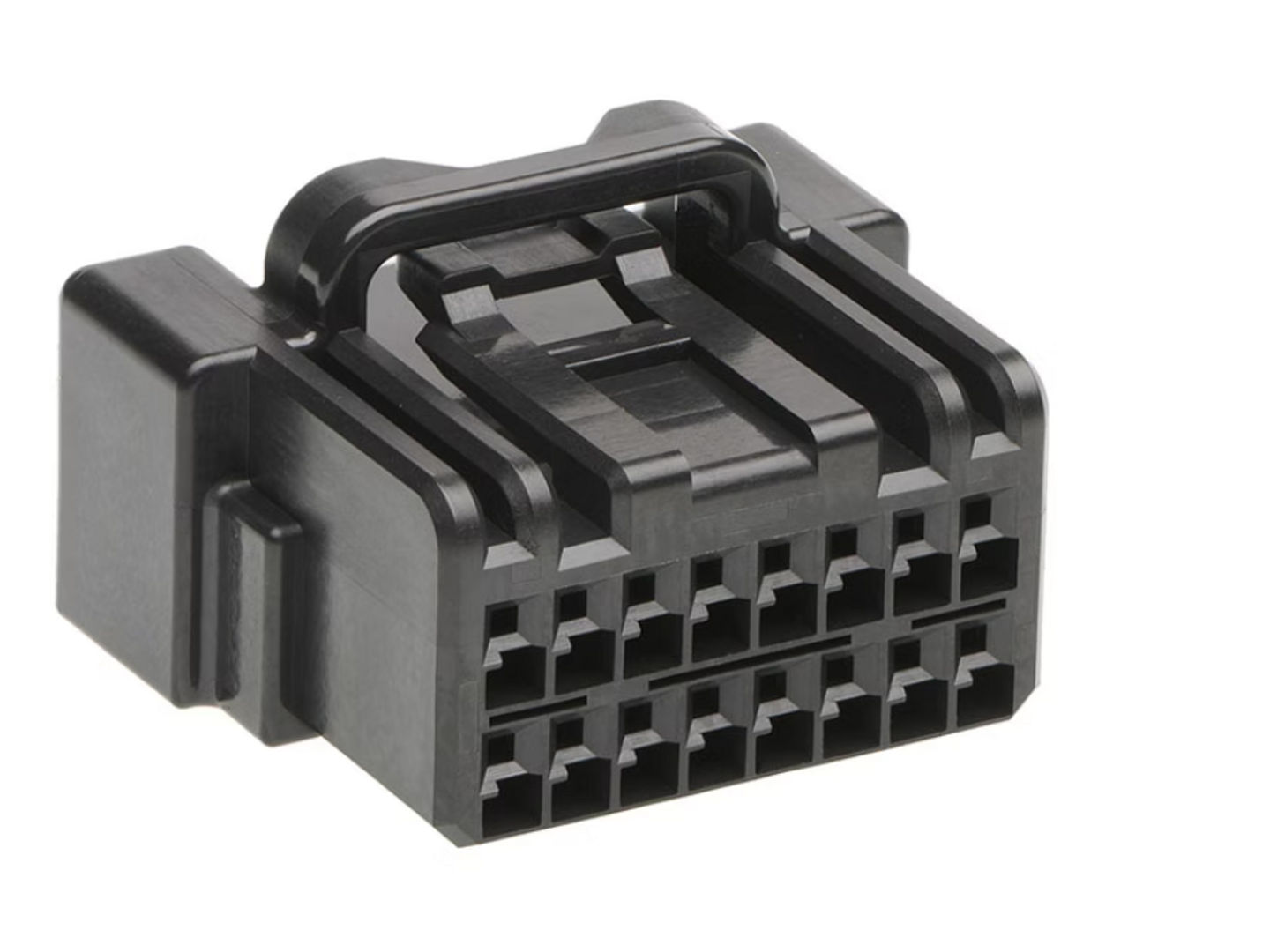

Molex DuraClik male header (left) and female receptacle housing (right)

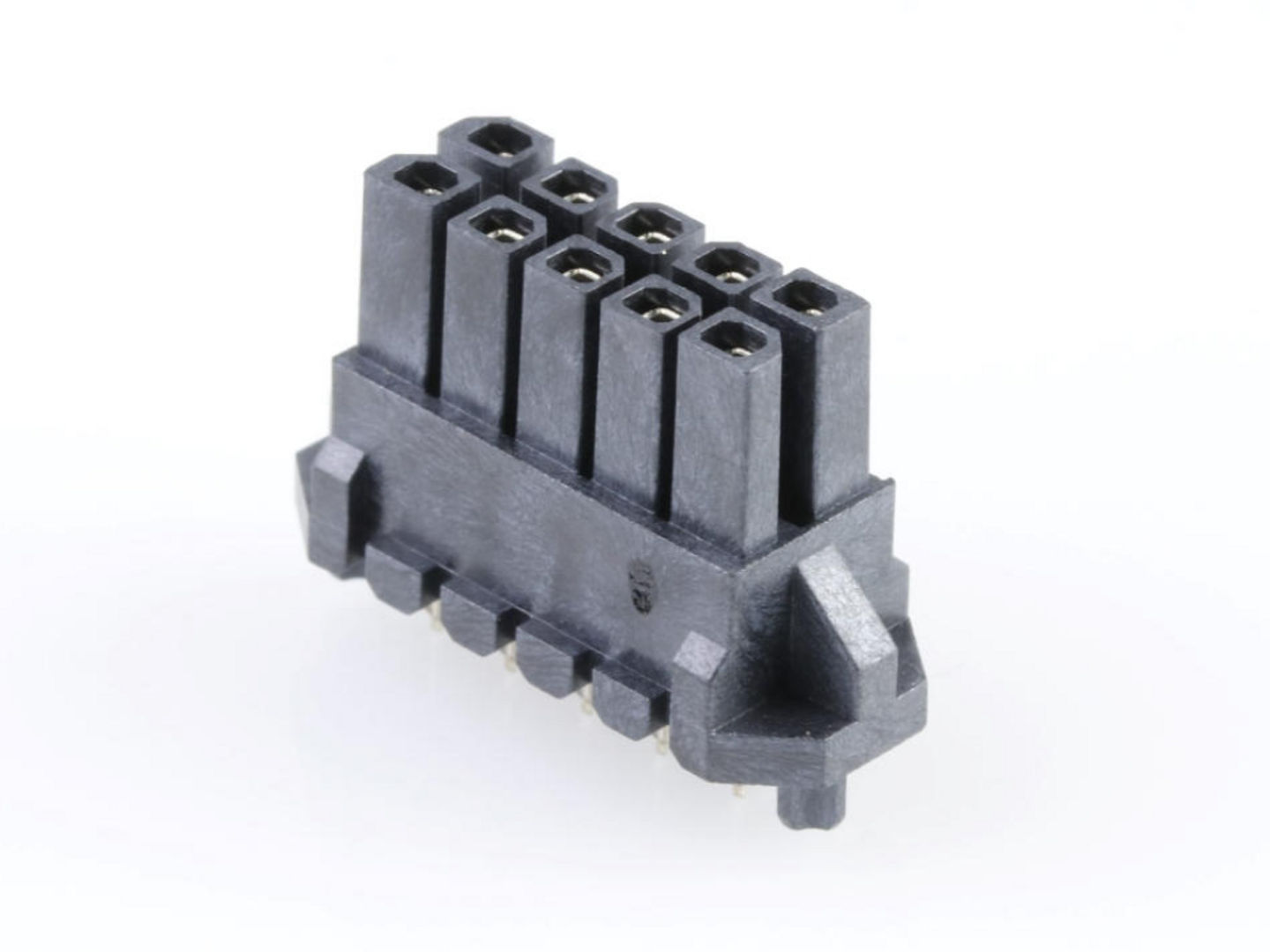

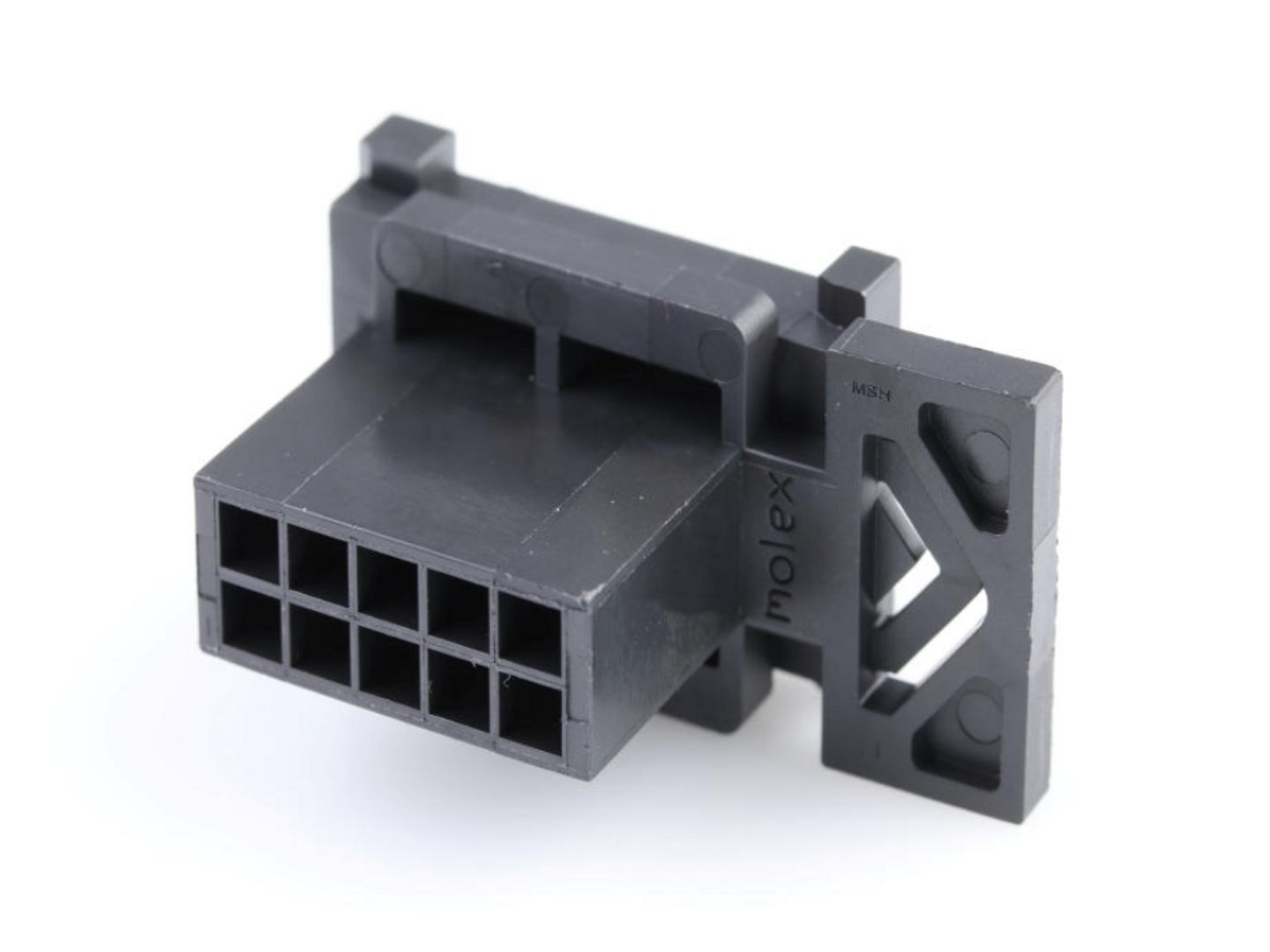

Molex Micro-Fit BMI receptacle header (left) and plug housing (right)

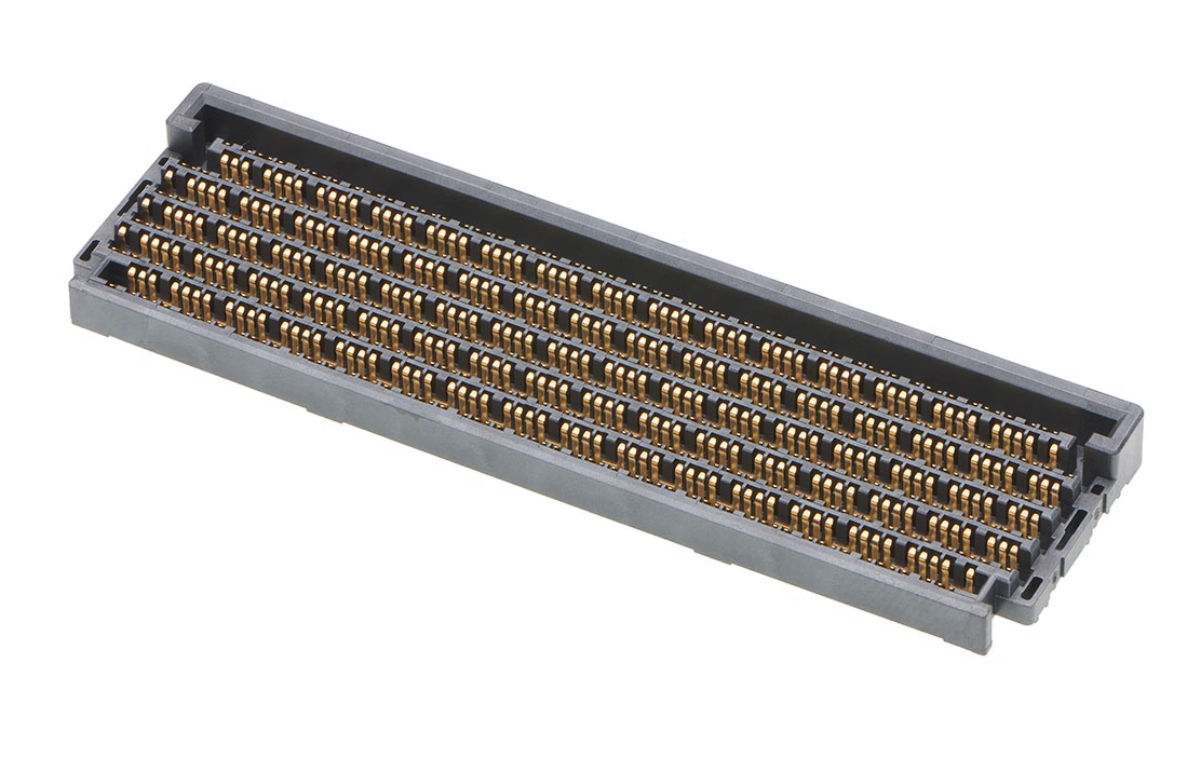

While male and female connectors mate with each other as complementary pairs, some connector designs do not follow the traditional gender classifications. These are often referred to as genderless connectors. A common example is the hermaphroditic connector, which features identical mating faces on both sides, allowing the same connector type to mate with itself. Certain circular connectors and board-edge power connectors are examples of hermaphroditic designs often used in high-current or modular systems.
Safety and Assembly Implications
Though connector gender may seem like a simple design choice, it profoundly affects the safety of electrical systems, the efficiency of their assembly and overall mating reliability.
Protecting users from shock
For safety, live voltage is typically assigned to recessed (female) contacts, which help prevent accidental touch. A familiar example is a wall outlet, where energized conductors are contained within the receptacle. In many designs, exposed (male) contacts are not energized until mated, reducing the risk of accidental contact during handling.
Durability and assembly efficiency
In an assembly line, one side of a connection is typically fixed while the other is free. For instance, a common situation is a bulkhead connector mounted on a machine chassis (the fixed side) that needs to mate with the end of a wiring harness (the free side). Engineers must decide which gender goes on which side, and the guiding principle is durability.
Male pins, being exposed, are more susceptible to bending or damage during assembly line handling, whereas female sockets are generally more protected. For this reason, female contacts are often placed on the free-hanging cable harness, which experiences more handling. Conversely, the more vulnerable male pins are typically located on the fixed component to reduce the risk of damage and avoid costly rework.
Reverse polarity configurations
The concept of gender is sometimes used as a mechanical safeguard to prevent wrong connections. This is achieved by swapping the gender of a connector’s center contact. For instance, SMA connectors have a variant known as reverse polarity (RP), where the center contact gender is reversed but the outer shell and threads are identical to the standard version. Specifically, an RP-SMA male (plug) connector has the same externally threaded body as a standard SMA male, but it features a center socket instead of a pin. Conversely, an RP-SMA female (jack) connector has a center pin instead of a socket.

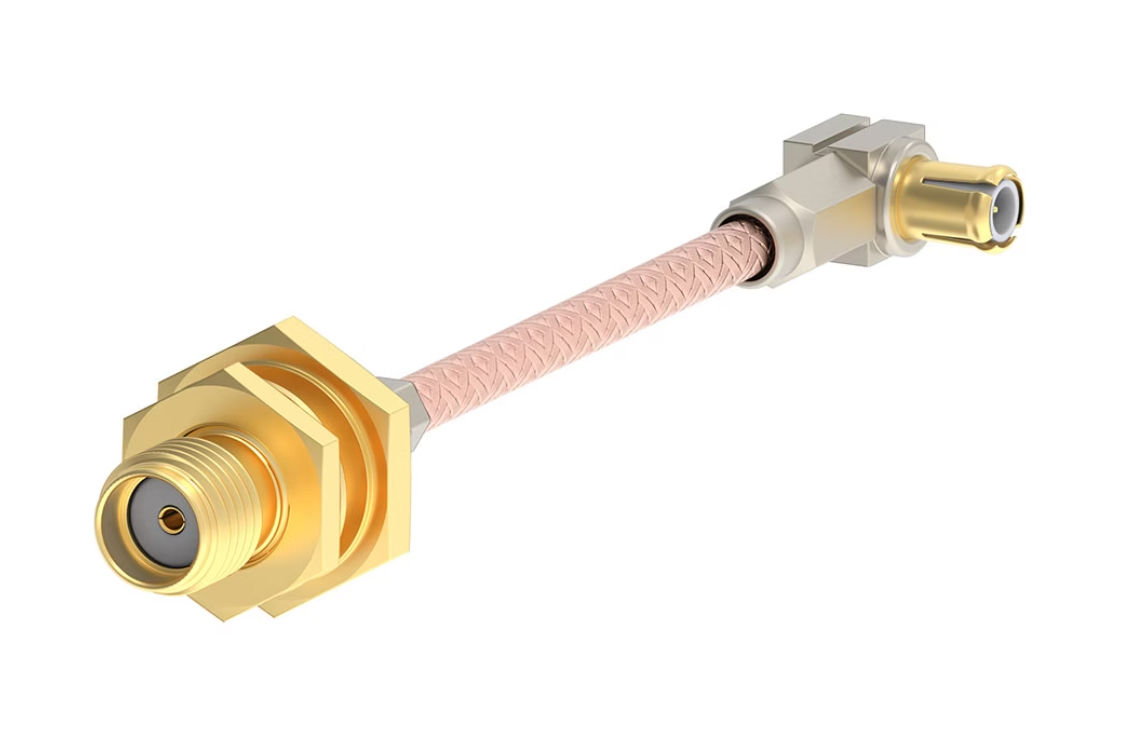

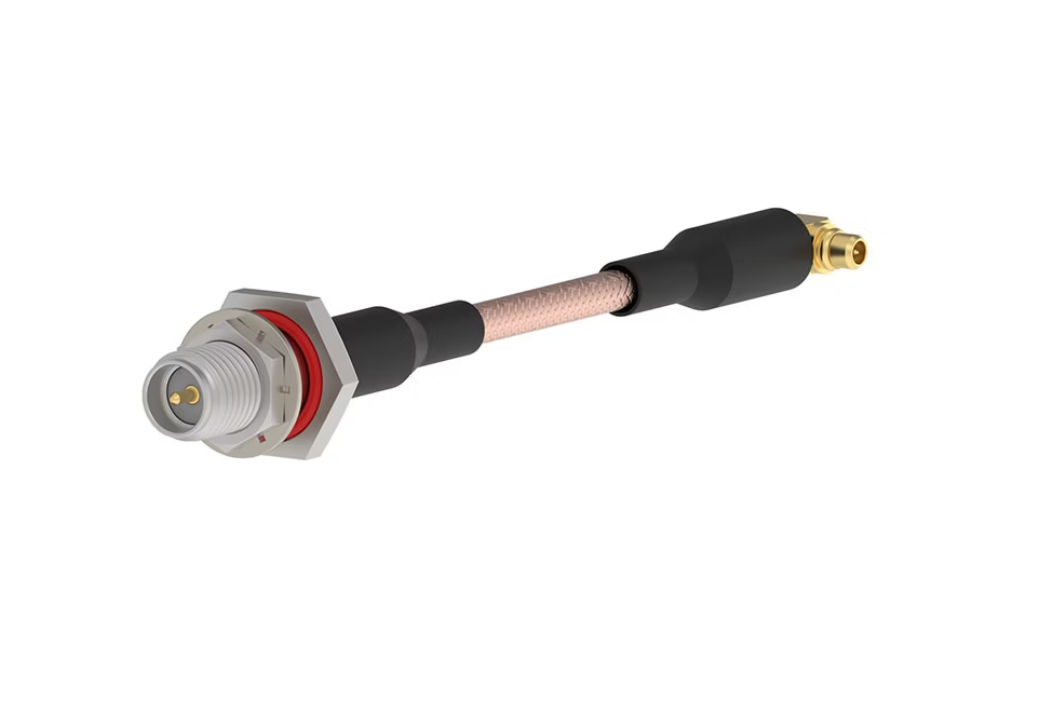

Molex SMA female connectors: reverse polarity (left) and standard (right)
Attempting to connect an RP-SMA male connector to a standard SMA female connector results in a socket-to-socket interface that cannot physically mate or make electrical contact. This design does not affect electrical polarity; rather, it prevents mating between incompatible systems, even though their outer housings appear identical. Please note that this concept should not be confused with polarization, which uses asymmetrical connector housings to prevent reverse polarity or upside-down mating.
Polarization
Polarization is a key design feature that guides correct connector mating by constraining how two halves can be oriented relative to each other. Manufacturers employ a diverse array of geometric asymmetries, from subtle molded offsets to pronounced shell contours, to enforce correct orientation. By mechanically constraining orientation, polarization ensures that the designer's logical signal mapping is not accidentally violated during assembly. While most connectors rely on polarization to prevent misalignment, some designs such as USB-C use symmetrical contact arrangements that allow mating in either orientation without affecting functionality. Despite these variations, polarization remains a primary method for reducing assembly errors and protecting contacts from damage, while insufficient consideration can lead to reliability issues and rework.
Polarization Fundamentals
Polarization uses asymmetric geometries to prevent incorrect orientation between a matching pair of connectors. This creates an intuitive experience that guides assemblers and end users to correctly orient and mate components without needing to consciously consider orientation.
By ensuring correct mating orientation, polarization helps prevent power and ground from being inadvertently swapped, a mistake that can damage or destroy sensitive electronics. It also helps ensure correct pin-to-pin alignment (e.g., transmit to receive), when combined with proper pin assignments. These benefits make polarization essential across a wide range of applications, such as DC power distribution, battery connections, motor control circuits and sensitive signal or sensor interfaces.
How Polarization Is Achieved
In practice, polarization is implemented through a range of physical design features that control how connector halves align during mating. One common approach uses a raised ridge on one side of the connector that fits into a corresponding groove on the other. If the connectors are misaligned, this asymmetric geometry prevents full mating and stops the connectors from being properly seated.

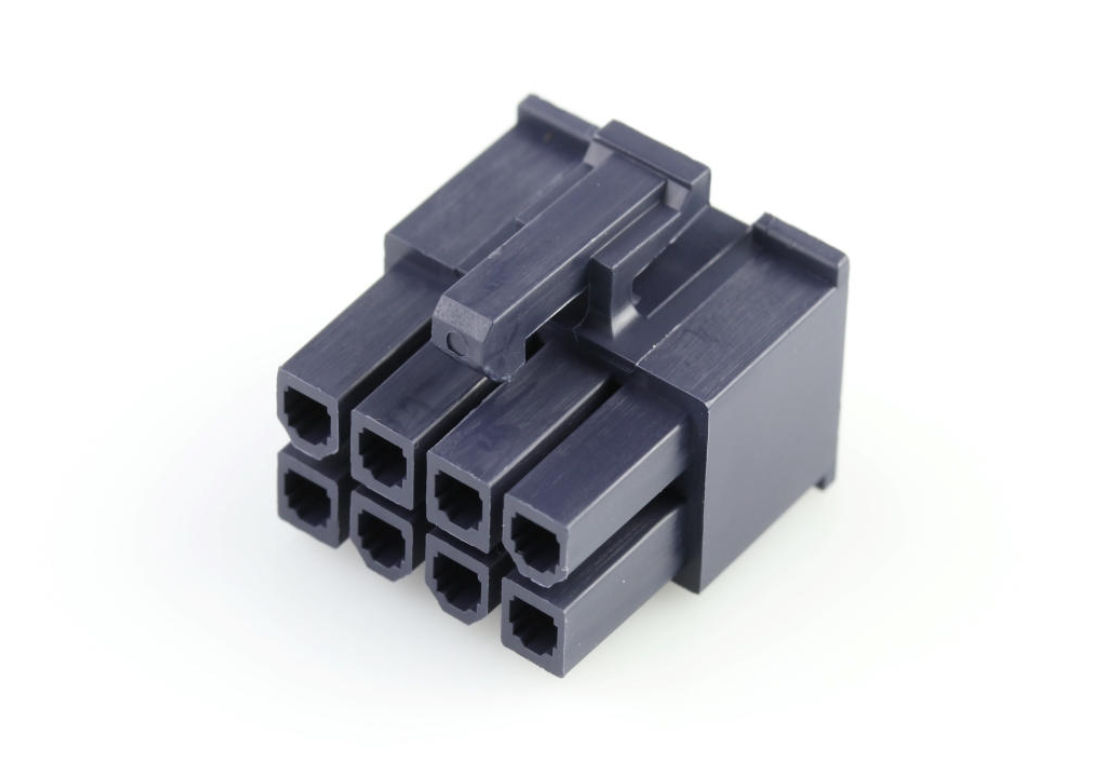

The asymmetric shape of the Molex Mini-Fit Jr. receptacle housing cavities ensures that mating can only occur in one orientation.
Instead of using a housing feature, another polarization technique relies on a guide post that aligns with a corresponding hole on the mating part.

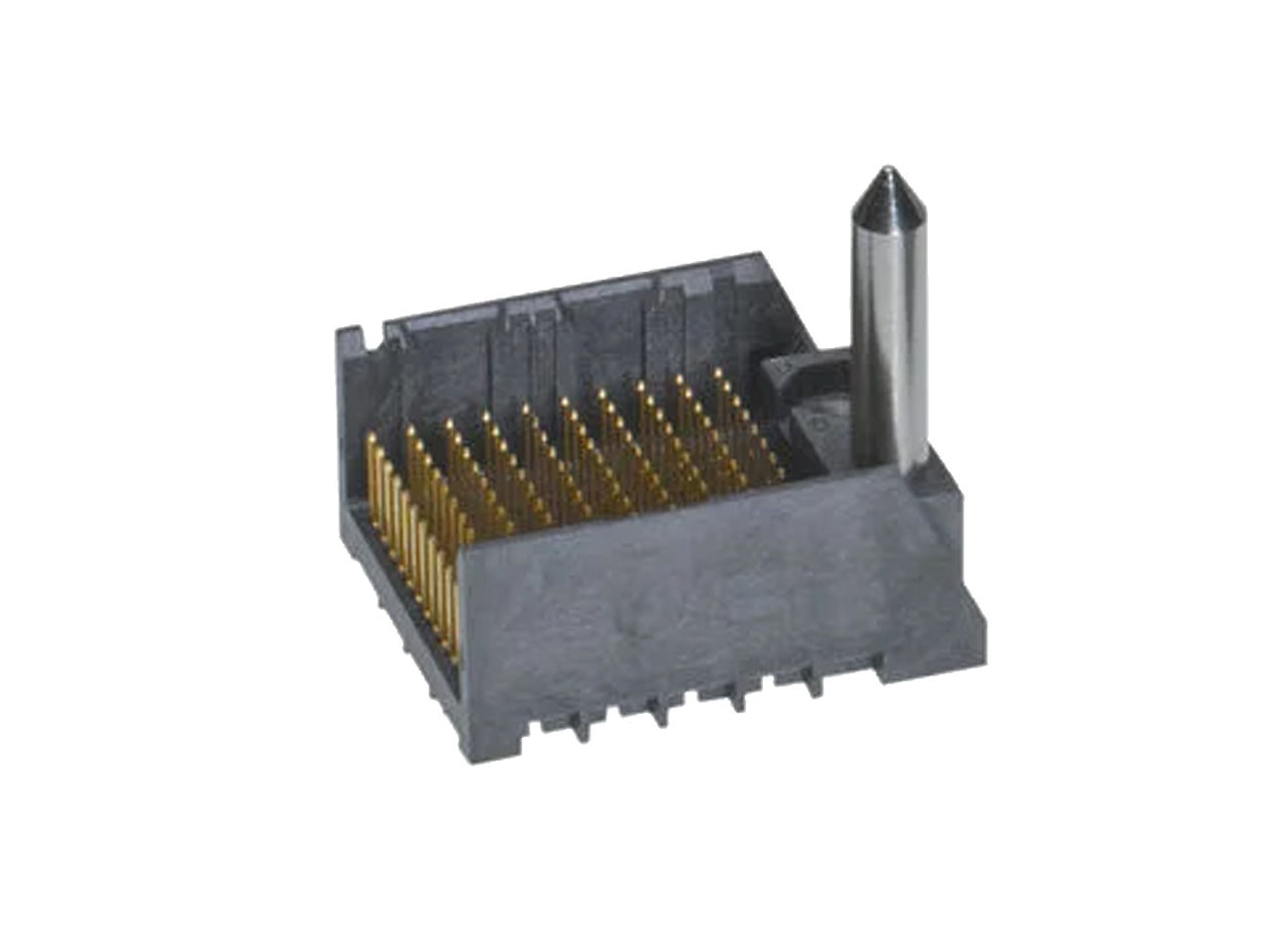

Molex Impact Backplane Connector featuring a guide post that aligns to a mating hole to ensure correct orientation.

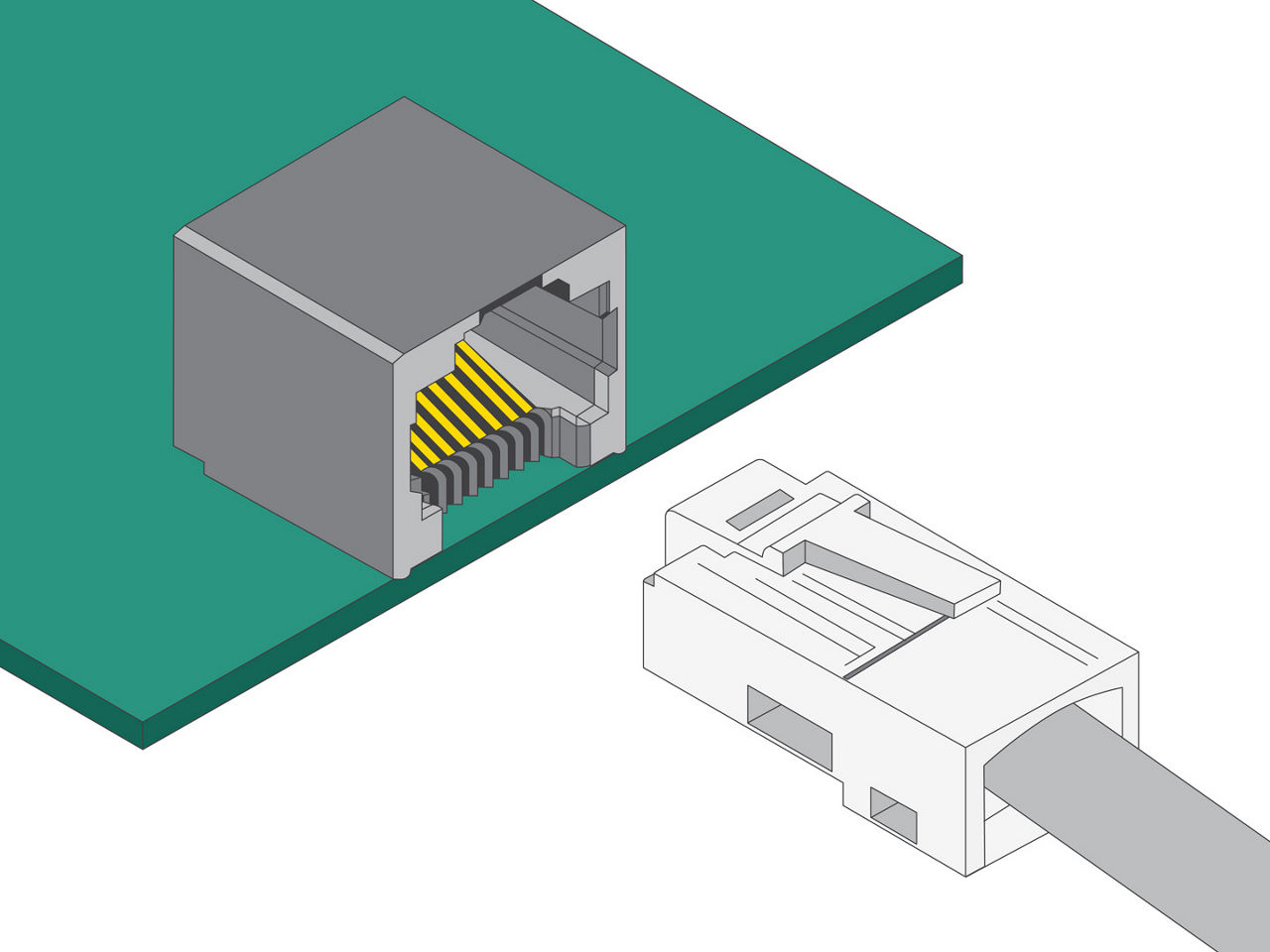

Some connectors use a latch slot or tab feature that provides mechanical retention and helps ensure correct mating orientation.

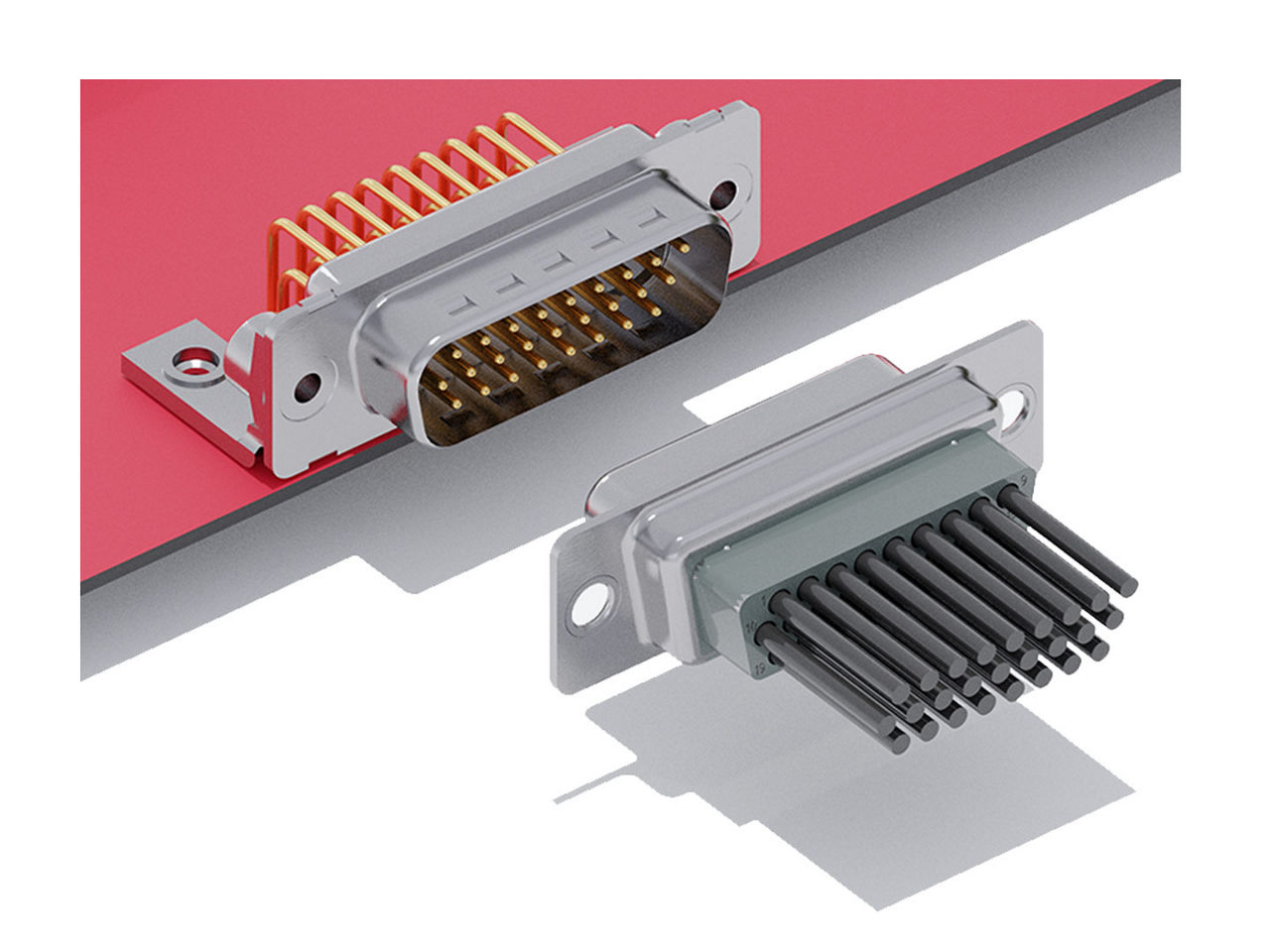

An additional polarization method uses asymmetric connector housings. Many connectors are designed with D-shaped or trapezoidal profiles that enforce a single mating orientation and prevent incorrect rotational alignment. A well-known example is the D-Subminiature connector family, which uses a D-shaped shell to ensure proper orientation during mating.

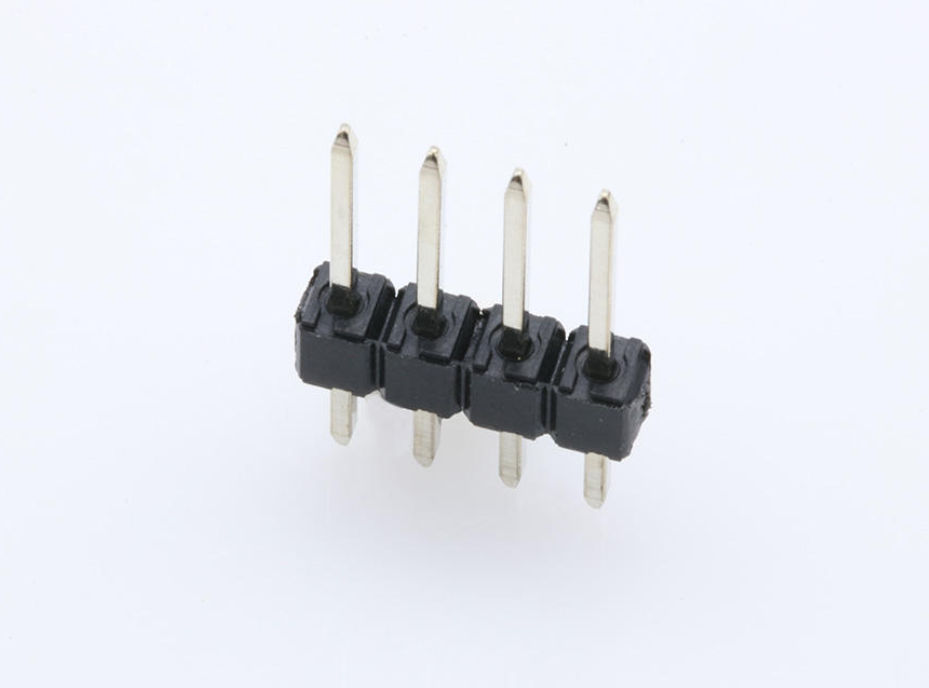

Finally, polarization can be built into the pin arrangement itself. In the Molex KK 254 series, polarization can be implemented by leaving one pin position intentionally unpopulated (missing pin) on the header and matching it with a blocked or keyed cavity in the receptacle housing.
Electrical Pin Assignment Versus Mechanical Polarization
To avoid confusion in connector designs, engineers distinguish between electrical pin assignment and mechanical polarization. Electrical pin assignment refers to how signals are defined across contacts, such as assigning power, ground and data signals to specific pins. It defines the intended electrical mapping of the interface. By contrast, mechanical polarization refers to the physical features, such as D-shaped shells or other asymmetrical housings, that enforce correct mating through mechanical design. A connector may rely solely on electrical pin assignment without mechanical polarization. In such cases, correct connection depends on proper handling and assembly practices rather than physical prevention of misalignment. Mechanical polarization significantly reduces the risk of incorrect mating by constraining orientation through geometry.
Polarization Versus Reversibility
In a departure from traditional connector design, modern interfaces such as USB-C are reversible, meaning they do not rely on mechanical polarization. Instead, they use configuration and switching circuitry to detect connector orientation and route signals accordingly. This allows the connector to function correctly in either orientation without requiring physical polarization features to enforce directionality.
Common Pitfalls and How to Avoid Them
Misunderstanding or overlooking polarization can lead to reliability issues and manufacturing rework. While polarization is intended to enforce correct mating orientation, it is not always sufficient on its own to prevent incorrect connections, particularly when design limitations or application constraints are not fully considered. Several key trouble spots warrant close scrutiny, given their potential to cause costly field failures or assembly-line delays.
- Electrical pin assignments define the intended circuit paths but do not physically prevent incorrect mating. Mechanical polarization features are often used to help enforce correct orientation by design, though their necessity depends on the application and system constraints.
- Not all connector systems include strong polarization features. Some rely on subtle asymmetries that may be insufficient in certain high-speed, low-visibility or high-volume assembly environments. Before finalizing the design, verify that selected connectors have clearly distinguishable, robust polarization features appropriate for the intended use case.
- Reversible connectors like USB-C improve usability by allowing mating in either orientation. Their correct operation depends on internal configuration and switching circuitry that detects orientation and routes signals accordingly.
- Polarization ensures correct orientation within a mating pair, while keying prevents incorrect mating between connectors of the same family. Many complex systems use both mechanisms together to improve assembly robustness.
Keying
Keying is the mechanical safeguard within a connector system that physically prevents mating with an incompatible counterpart. It reduces cross-connections between visually similar ports, protecting circuits from misapplied voltage or signal types and minimizing installation errors across manufacturing and service environments. Keying is implemented through a range of mechanical features, including fixed features molded directly into the housing during production and, in some systems, removable or configurable elements that can be installed or adjusted after manufacture. Because keying features must withstand real-world assembly conditions, insufficiently robust designs may deform or be overcome under excessive insertion force, compromising their intended function.
Keying Fundamentals
Keying uses physical geometry to prevent plugging a connector into the wrong connector of the same family or into a different connector that appears similar. While polarization ensures correct mating orientation between a specific male-female pair, keying goes further by enabling selective mating between connectors that look similar. A useful analogy is a physical key that fits only its specific lock. Keying serves a similar function in connectors.
The Primary Functions of Keying
Keying is designed to prevent connectors from mating with unintended ports by introducing mechanical differentiation between otherwise similar interfaces. This safeguards against cross-connections in systems that are filled with identical-looking connectors, such as select automotive connectors with different keying variants or connectors families with multiple keyed housing options.
Keying is commonly used to reduce the risk of equipment damage by preventing connections to incorrect voltage sources or signal types. For example, when similar connectors are used for both power and signal circuits, keying features can be incorporated to ensure that power cannot be plugged into a signal port, preventing damage. Finally, keying simplifies troubleshooting by reducing configuration errors during installation and maintenance.
By incorporating mechanical differentiation, engineers can significantly reduce mis-mating while supporting high-volume assembly, complex systems and field-serviceable designs across a wide range of applications.
How Keying Is Achieved
Keying is implemented through a range of physical design features that control compatibility between connectors. These features are engineered to prevent unintended mating between similar connector variants while maintaining reliable alignment and engagement. Each approach offers different advantages in controlling compatibility and preventing mis-mating.
Orientation keying
This technique involves the use of asymmetrical housing features, such as ribs, slots or shaped geometry, to control how connectors can physically mate, ensuring they align and connect only in the intended orientation.
While orientation keying can appear similar to polarization in implementation, the distinction lies in function. Polarization ensures correct orientation within a mating interface by preventing incorrect rotational alignment of a connector pair. By contrast, keying is used to prevent mis-mating between different connector variants within the same system, particularly when multiple similar connectors are present.

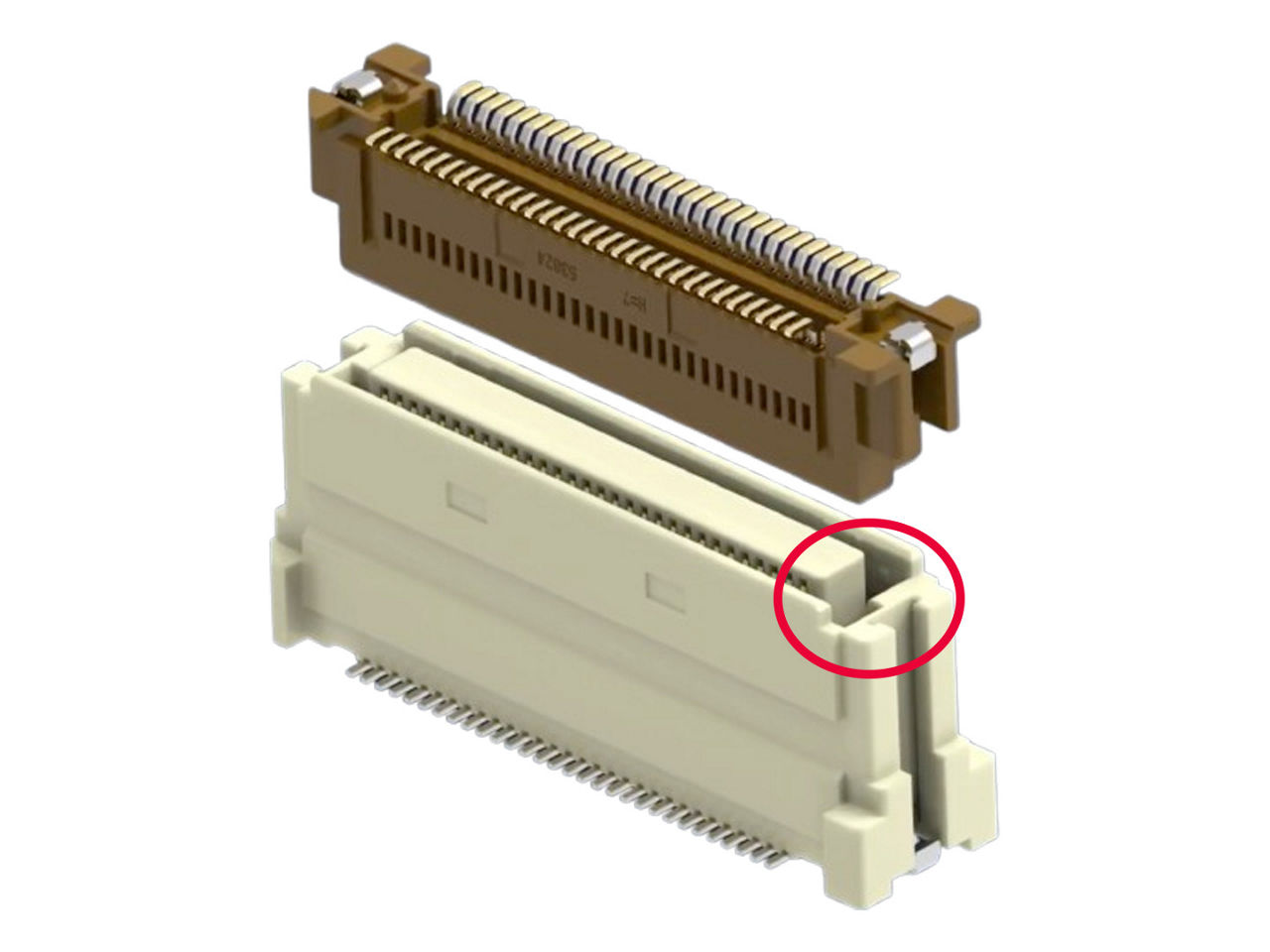

In board-to-board solutions such as Molex SlimStack Connectors, this is achieved through mating guide features including alignment bosses and asymmetric housing geometry. These features ensure that each intended connector pair can only mate in the correct orientation, supporting reliable connections in compact electronics where multiple board-to-board interfaces are used.
Varying key positions
In a connector family with a standardized shell, a key (or keyway) is placed in one of several different fixed locations within the housing, such as position A, B or C. A connector with a key in position A will only mate with a receptacle that has a keyway in position A. Because these keying features are built into the connector housing during manufacturing, they are fixed and cannot be changed from one position to another, such as from A to B, after production.
This approach is widely used in automotive connector systems such as the Molex MX150 Connector System, which provides multiple keying variants (A, B, C and D) to prevent mis-mating between circuits in complex vehicle architectures. These fixed key positions ensure each connector interfaces only with its intended counterpart, reducing the risk of cross-connection while enabling robust, repeatable mating in high-volume assembly environments.

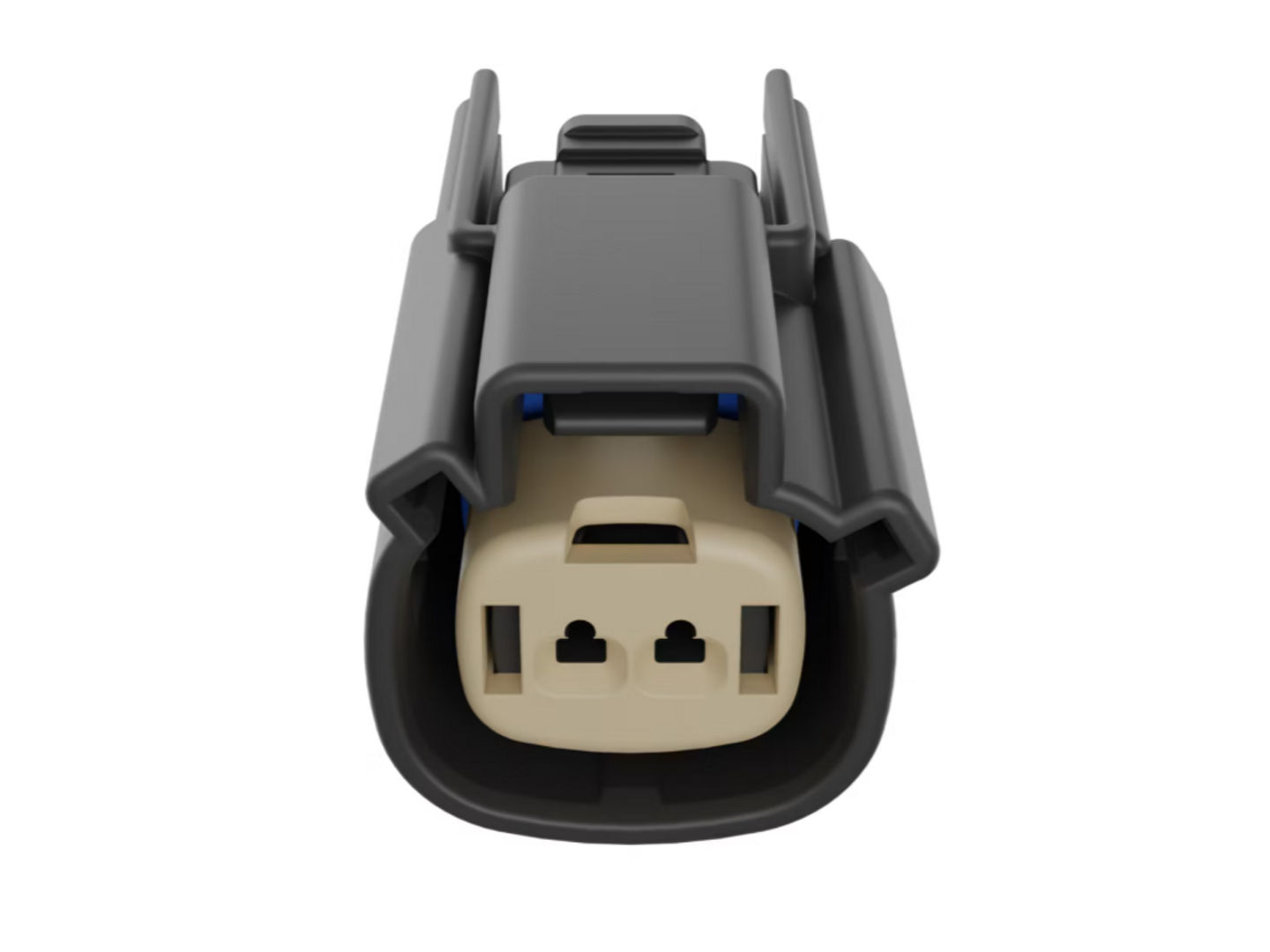

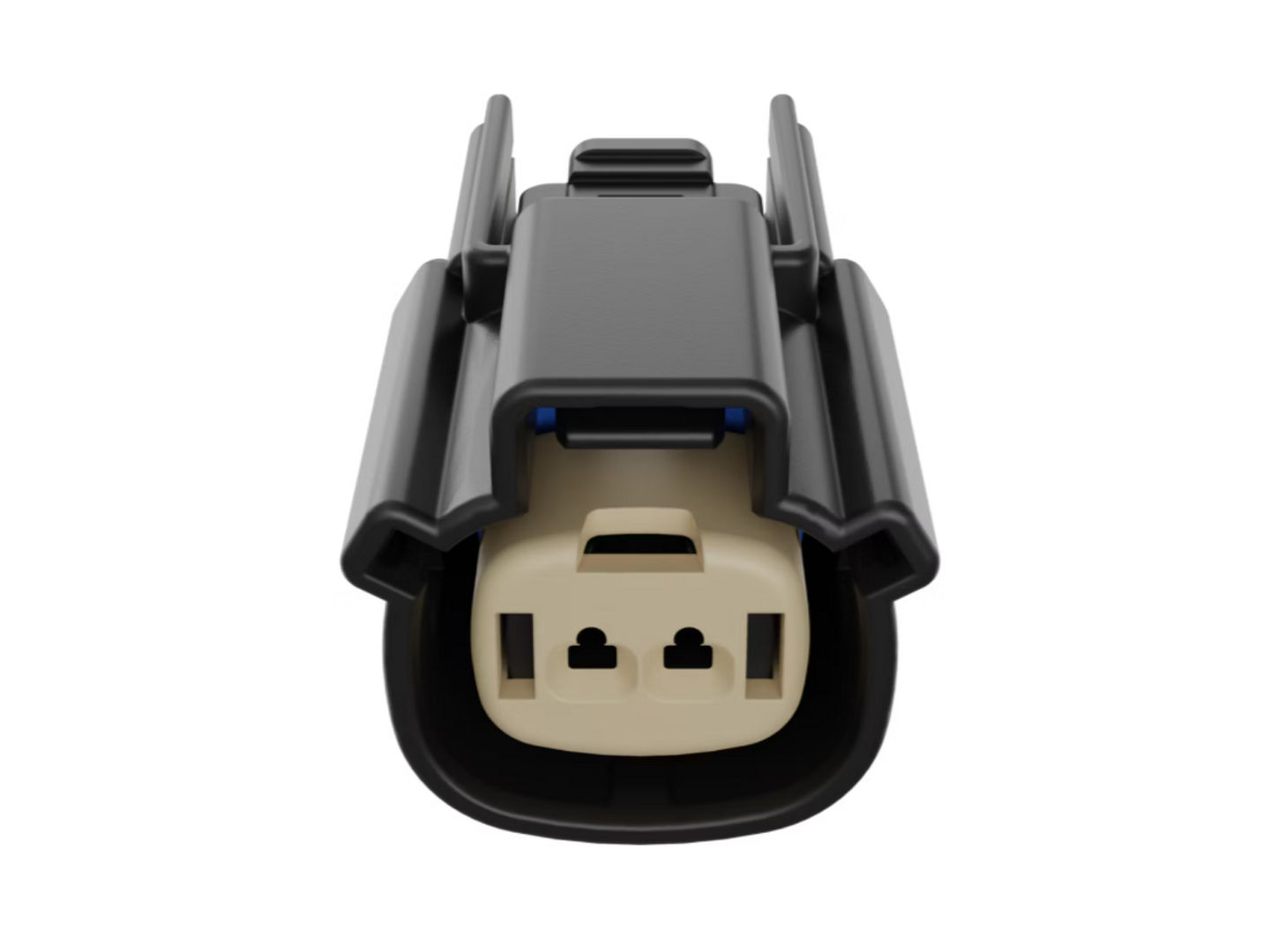

Molex MX150 Connector with keying option A (left) and keying option C (right)
Mechanical key inserts
This approach uses removable plugs or blocks that are inserted into keyways to define compatibility variants. By installing or changing these inserts, manufacturers can configure various keying options using the same base connector housing.
While the method of varying key positions relies on fixed features molded into the connector during manufacturing, the mechanical key inserts are separate, removable pieces that can be added or adjusted to change the keying properties after manufacturing. This distinction impacts flexibility and inventory management. The method of varying key positions requires different part numbers for each variant, while mechanical key inserts allow a single base connector to be configured in multiple ways, reducing inventory and simplifying customization.
Latch-based keying
This approach combines both retention and keying into a single feature. The latch geometry is designed to align exclusively with the matching feature on the correct connector, preventing partial or forced mating. This ensures that incompatible connectors cannot be fully engaged or secured.
Common Pitfalls and How to Avoid Them
Keying is intended to prevent incompatible connections, but its effectiveness depends on how it is designed and applied within the system. Shortcomings in keying strategy and implementation directly translate into assembly errors that cascade into costly rework and delays. Limitations in geometry, excessive variant complexity and misalignment with assembly conditions can all introduce risk if not carefully considered. Several specific failure modes stand out as recurring sources of such issues.
- A common source of failure is using visual cues, such as labels or color, instead of physical keying. Connectors that appear different may still be mechanically compatible, increasing the risk of mis-mating. Always use defined keying features to enforce correct mating rather than relying on visual identification or operator judgment.
- Not all connectors provide sufficient and robust differentiation between keying variants. Small or subtle geometric differences may fail to prevent incorrect mating, especially if considerable force is applied during connection. Choose connectors with distinct and durable keying features to physically block incompatible connections.
- Excessive keying complexity across variants is another pitfall. While distinct keying features are desirable, introducing too many options complicates manufacturing and raises the risk of errors during assembly and maintenance. Standardize keying schemes whenever possible to achieve the right balance between differentiation and usability.
- Assembly conditions should guide keying system selection. Tight spaces, limited visibility and fast-paced assembly all increase the chance of incorrect mating. Choosing intuitive, self-aligning keying features helps ensure proper insertion, even in challenging assembly conditions.
Coding
Coding assigns functional meaning to distinguish connector variants within the same family, thereby ensuring that only electrically and functionally compatible connectors can be mated. Manufacturers implement coding through a range of methods, from simple visual cues like color coding to mechanical features that physically restrict mating. Coding reduces the risk of electrical damage from cross-connection while enabling technicians to quickly identify correct mating pairs during installation. Standardized coding schemes, such as those defined in IEC 61076-2-101 for M12 connectors, ensure that functional differentiation remains consistent and interoperable across suppliers and systems. While the benefits of coding are substantial, they are accompanied by practical constraints in size, cost and durability that shape how and where coded solutions can be effectively deployed.
Coding Fundamentals
Coding is a method of connector differentiation that uses a combination of mechanical keying configurations and visual identifiers to designate connectors for specific functions or system variants. It allows multiple connectors of the same family to be used while distinguishing them based on intended application, such as power, signal or communication variants.
There is a marked distinction between keying and coding. While keying is primarily used to prevent mis-mating between similar connectors, coding is used to differentiate connector variants within a system and help ensure correct application usage. Coding is widely used in applications such as automotive platform variants, industrial modular systems, high-mix manufacturing environments and medical systems where accessories must be correctly identified and matched to the appropriate interface.
How Coding Is Achieved
Connector manufacturers use a variety of physical design elements to implement coding.
Color Coding
Many coded connectors use colored housings or inserts to visually indicate their function (e.g., blue for Ethernet, yellow for 24V power).

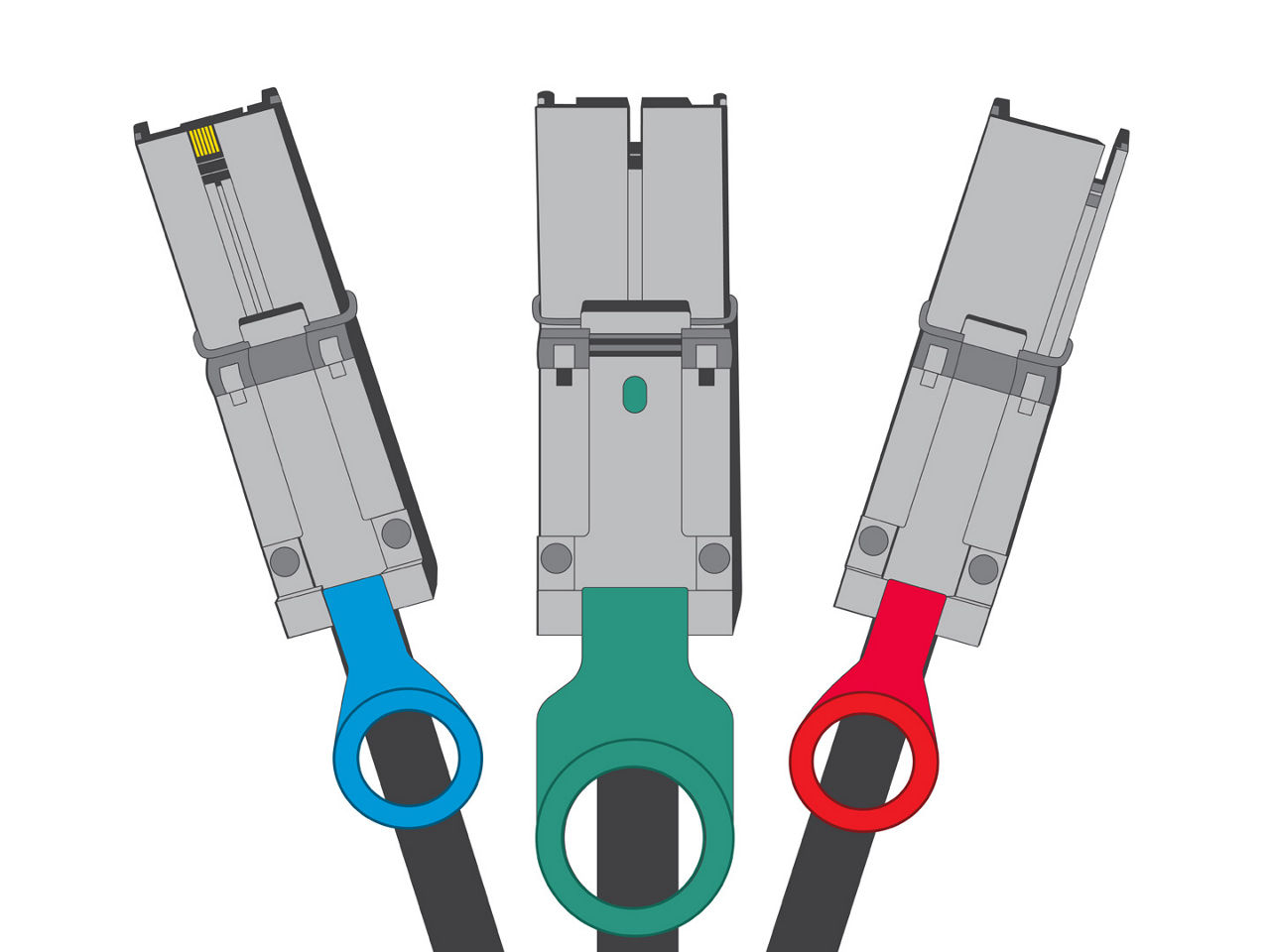

The iPass connector family uses a common physical interface across several data communication standards, including SAS, SATA and Ethernet. To help users distinguish between them, a colored pull tab is added to each assembly, clearly indicating the system’s protocol or function.
Mechanical Coding
This technique incorporates a unique pattern of keys and keyways on the connector interface to define its code. Only connectors with matching coding features can mate, while incompatible variants are physically prevented from mating. These coding features are permanently built into the connector housing during manufacturing. Therefore, they are fixed and cannot be altered, e.g. from one position to another.
Variant coding
This method leverages removable mechanical key inserts rather than permanently molded positions. By placing an insert in position A, B or C, engineers create distinct variants that are mechanically incompatible with one another. This allows the same connector platform to be configured for different functions, simplifying production, reducing part numbers and preventing mis-mating in the field.
For example, M12 connectors use A-coding for sensors and D-coding for Ethernet, with each code defined by a unique arrangement of keying features within the connector interface. A plug configured with a key in position A will only mate with a receptacle that has the corresponding keyway in position A. By assigning specific functions to each configuration, this approach prevents power, data and signal cables from being accidentally swapped, even when using the same base connector housing.

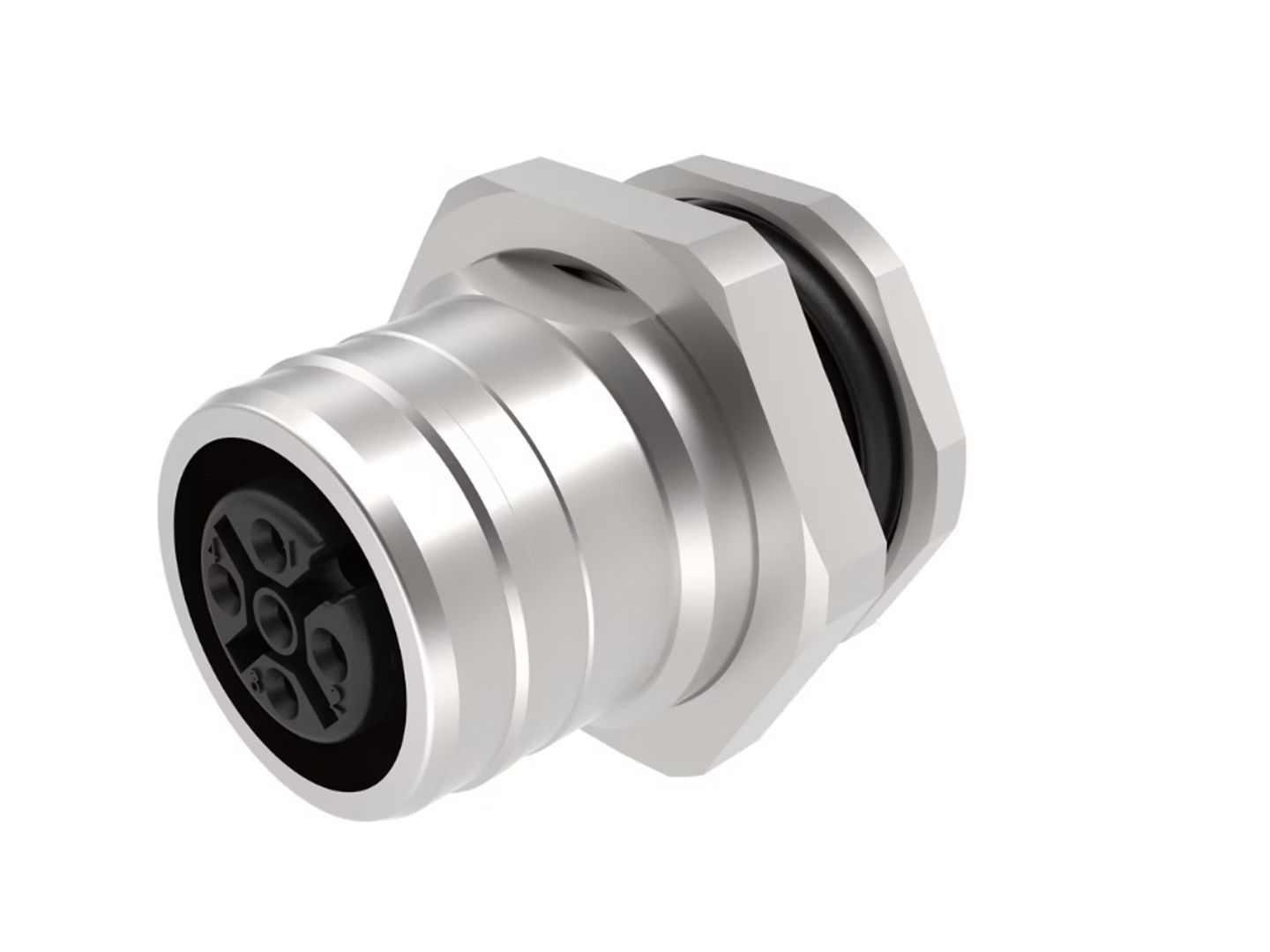

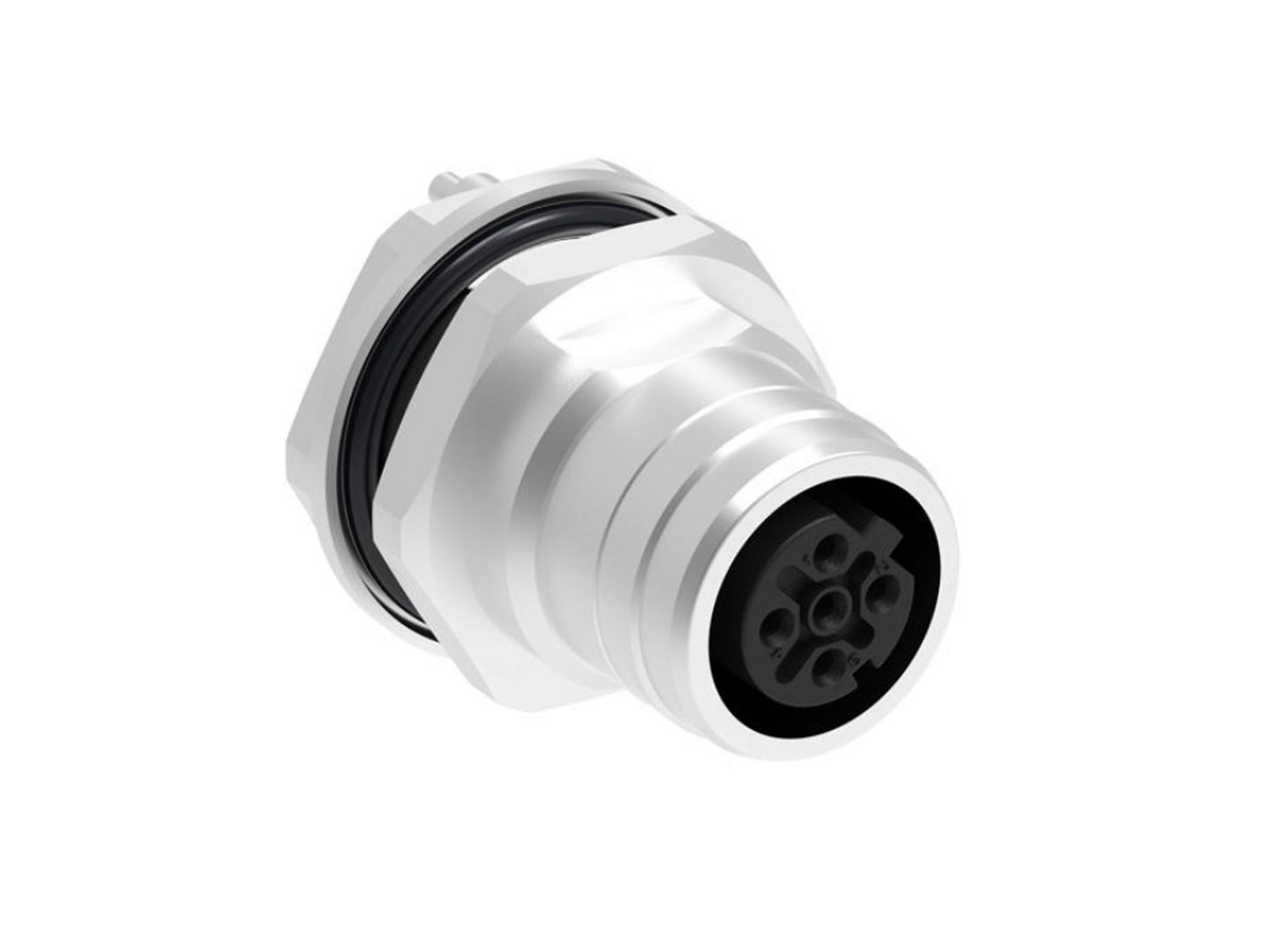

Molex M12 receptacles: A-Coded (left) D-Coded (right)
It should be noted that, from a physical implementation perspective, certain coding techniques are closely related to keying techniques. Variant coding, for example, utilizes the same mechanical key inserts described previously in the keying section. Nevertheless, the two concepts are not exactly the same. Mechanical key inserts prevent mis-mating solely through physical incompatibility. Variant coding, however, is a system-level approach that leverages those same mechanical features to assign functional meaning, such as power, data or signal, to each connector variant.
Pin arrangements
Coding can also be implemented through distinct pinout configurations, where different coding variants use different electrical contact assignments, meaning their pin assignments are electrically different and not interchangeable. This ensures that even if connectors are physically similar, their electrical interfaces are not interchangeable, helping prevent incorrect connections between incompatible system variants.
In systems such as the Molex Mini-Fit Jr. Connector System, coding can also be reinforced through distinct pinout configurations across different connector variants. Although the connectors may appear physically similar, differences in contact assignments ensure that each variant supports a specific power or signal configuration, preventing interchange between incompatible circuits and reducing the risk of incorrect system connections.
Primary Functions of Coding
Coding safeguards against functional cross-connection and protects equipment from electrical damage. By assigning a unique pattern to each system function, such as power, Ethernet or sensor signals, coding prevents connectors intended for specific applications from mating. Since different codes typically represent different voltage levels or signal types, coding reduces the risk of failure caused by mixing incompatible signals.
Coding also streamlines installation and maintenance. With distinct codes for each function, technicians can quickly match cables to their corresponding ports, reducing misconnection errors even in dense, complex systems. Moreover, coding supports mixed-use architectures where the same connector family serves multiple functions within a single piece of equipment, such as a machine that uses the M12 family of connectors for power, sensor and Ethernet connections.
Standards and Interoperability Considerations
Some industry standards define connector interfaces and permitted coding options to ensure consistent performance and compatibility across systems and manufacturers. Two prominent examples are IEC 61076-2-101 and IEC 61076-2-109.
- IEC 61076-2-101 defines M12 connectors and their coding schemes, such as A-, B-, D- and X-coding. This standard enables consistent mating and functional separation across sensors, Ethernet and power delivery using a single connector family.
- IEC 61076-2-109 similarly defines the M8 connector interface and its standardized variants used in compact industrial applications, primarily supporting sensor and low-power signal connections in space-constrained environments.
While some applications treat coding schemes as internal design choices, others must conform to industry-specific interoperability requirements. These applications turn to standards like those from IEC to ensure that connectors from different manufacturers mate correctly while preserving functional separation. For example,
- Industrial automation systems rely on standardized coding like M12 A-, D- and X-coding to separate sensor, data and high-speed Ethernet connections.
- Automotive and transportation systems often use application-specific connector variants to support correct subsystem integration across suppliers.
When selecting connectors, designers must consider these interoperability standards to prevent mis-mating and ensure consistent system performance and compatibility across different suppliers.
Limitations and Considerations
Implementing coding features at the physical level involves several key challenges related to the size, durability and cost of the connectors that designers should not overlook. For instance, adding coding features requires additional physical space within the connector, which can limit miniaturization. Furthermore, coding features must withstand repeated mating cycles without degradation that could affect fit or function. Regarding cost, coded connectors are often more expensive than non-coded variants due to tighter tolerances and the use of additional components. Finally, it should be noted that successful utilization of coded connectors requires user training, as technicians must understand the coding system to select the right connector.
Factors Affecting the Choice of Connector Attributes
Having established a clear understanding of connector mating attributes, this section explores some practical considerations for selecting them. To determine the appropriate attributes, engineers must weigh several key application parameters, including voltage level, current capacity, vibration, environmental exposure and manufacturability.
High-voltage applications
Higher voltage increases the risk of damage from incorrect connections. As a first precaution, designers often use touch-safe connector designs, where live contacts are recessed or shrouded to reduce the risk of accidental contact and electric shock. High-voltage applications often require keying mechanisms that incorporate robust mechanical keying and polarization features to help ensure correct alignment and reduce the risk of mis-mating or forced incorrect assembly. Furthermore, color-coded housings or markings are advised to help technicians quickly identify the correct connector and reduce the likelihood of mis-mating.
Current capacity
Higher current ratings typically require larger or more robust terminals, which increase overall mating force. Keying features must be designed to withstand these forces without deformation or wear, providing long-term mechanical integrity and consistent mating performance.
Vibration and shock
In environments subject to vibration or mechanical shock, connector systems must maintain stable alignment and contact integrity under continuous dynamic loading. Without robust keying, misalignment can occur, leading to intermittent contact, increased contact resistance, signal degradation and potential heat buildup.
Environmental exposure
The precise geometry of keying features must be retained, even under challenging environmental conditions such as high humidity, thermal cycling and chemical exposure. For instance, moisture ingress can cause swelling or material changes that impact tolerances and fit. Repeated expansion and contraction from thermal cycling gradually induces dimensional changes or material fatigue in keying features. Moreover, chemical exposure can lead to corrosion or material degradation that alters key dimensions, undermining mating compatibility and sealing performance.
Manufacturability
Keying and coding decisions are also influenced by production and service requirements. Applications that rely on high-volume assembly should prioritize keying and coding schemes with intuitive, self-aligning designs to accelerate production and reduce operator error. Field-serviceable systems should employ highly visible coding, such as distinct colors or markings, to ensure technicians can quickly identify the correct components. For long-term platform scalability, engineers often use variant coding to seamlessly integrate different configurations and future upgrades into the existing product family.
Testing and Validation Considerations
Connector mating attributes, namely gender, polarization, keying and coding, must be verified through rigorous testing to guarantee reliable performance in the field. Utilizing appropriate test methods validates that connectors maintain proper alignment, electrical integrity and mechanical durability throughout their service life. The following outlines the most widely recommended validation tests for these attributes:
- Mating Cycle Testing: Confirms mechanical integrity of polarization and keying features through repeated mating and un-mating cycles.
- Vibration and Mechanical Shock Testing: Verifies that polarization and keying features retain correct alignment, resist mechanical damage and prevent connector misalignment or unintended separation under high-vibration or shock conditions.
- Thermal Cycling Testing: Ensures dimensional stability of keying features and materials under repeated temperature cycling.
- Salt Spray/Corrosion Testing: Validates that contacts, housings and keying features maintain long-term reliability when exposed to corrosive elements.
- Forced Mating Resistance Testing: Evaluates whether polarization and keying features prevent incorrect or partial mating when force is applied incorrectly, thereby reducing risks of mechanical damage or electrical hazards.
- Dielectric Withstanding Voltage (Hi-Pot) Testing: Verifies that the connector withstands high-voltage stress without breakdown, ensuring dielectric integrity and safe operation under peak electric load conditions.
- Ingress Protection (IP) Testing: Validates that connectors resist ingress of solid particles and liquids, ensuring reliable sealing performance in environments subject to dust, sprays or immersion.
- Contact Resistance Testing: Confirms consistent electrical performance by monitoring resistance fluctuations across mating cycles and under harsh environmental conditions.
- EMI Shielding Verification: Ensures that connectors provide adequate attenuation against external electromagnetic interference, maintaining shielding effectiveness and signal integrity for high-speed or sensitive signals.
Conclusions
The four connector mating attributes, namely gender, polarization, keying and coding, work together to streamline assembly and eliminate the risk of human error in the field. Briefly restated, these attributes are defined as follows:
- Connector gender defines the mating interface type (male, female or hermaphroditic).
- Polarization enforces the correct mating orientation within a connector pair to ensure proper circuit alignment.
- Keying uses mechanical features to prevent mis-mating between connectors of the same family.
- Coding uses mechanical features or visual identifiers to assign functional meaning to connectors within the same family.
Prioritizing mating attributes early in the design process reduces the risk of electrical damage and improves user and system safety. Additionally, manufacturability benefits because operator error and costly downstream rework are minimized. The informed application of these attributes enables engineers to create a layered interconnect system that physically prevents incorrect mating, thereby removing the possibility of misconnection from the list of things that can go wrong.
