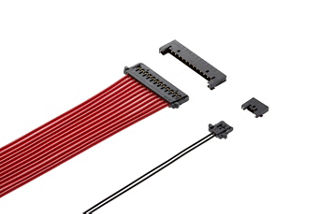

Pico-Lock Connectors

Ideal for for applications requiring space savings and secure mating retention, the Pico-Lock wire-to-board system offers a combination of low profile, high-current carrying capability and durable locking with various pitch versions to accommodate design needs.

Find Parts Contact Us

Pitch	Circuits	Current Max.
1.00mm, 1.50mm, 2.00mm, 3.00mm	2 - 12	10.0A

Features and Benefits
Datasheets and Guides
Videos
Applications by Industry

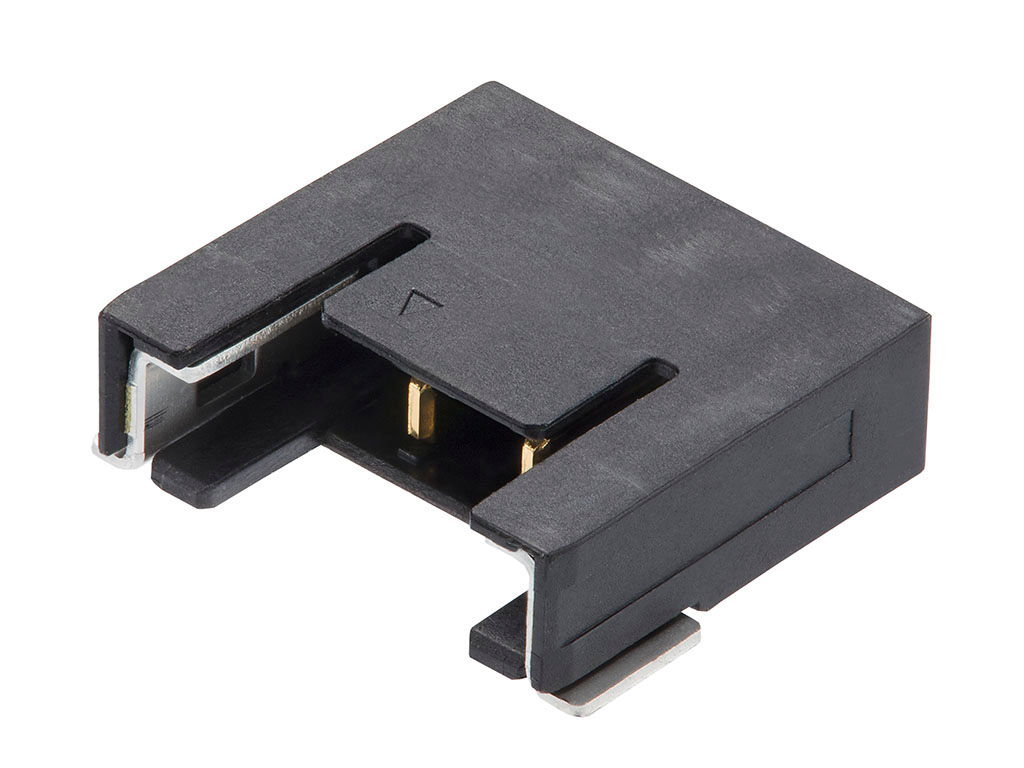

PCB Headers

Find Parts

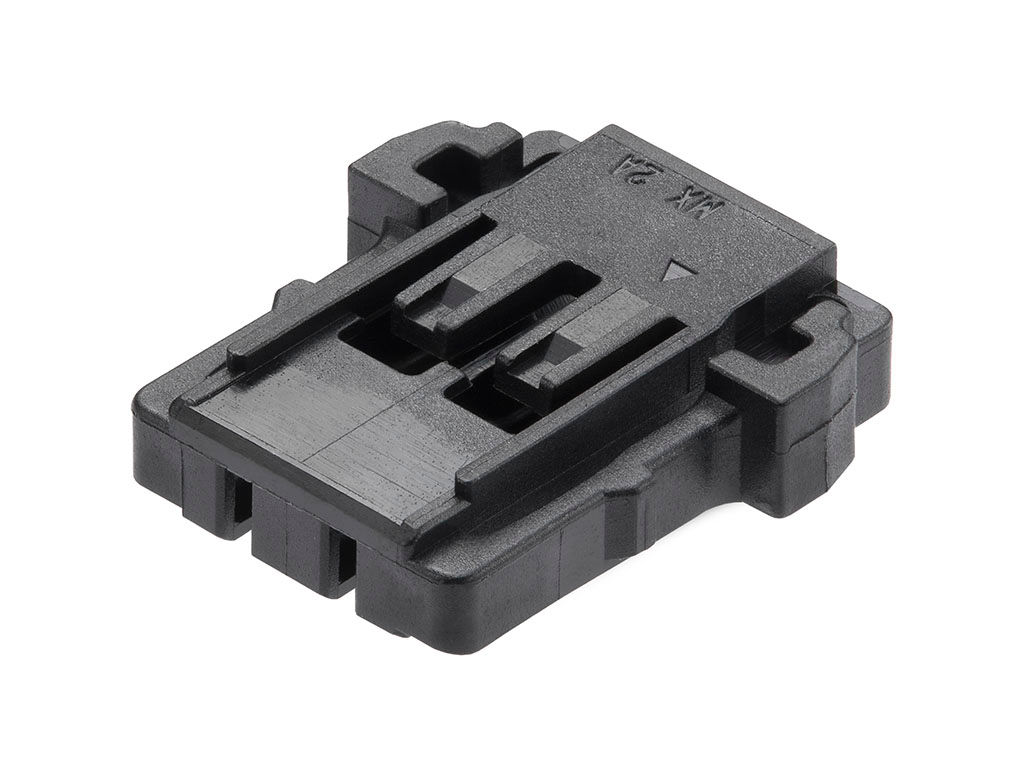

Connector Housings

Find Parts

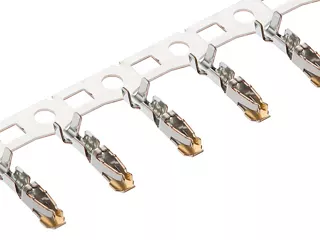

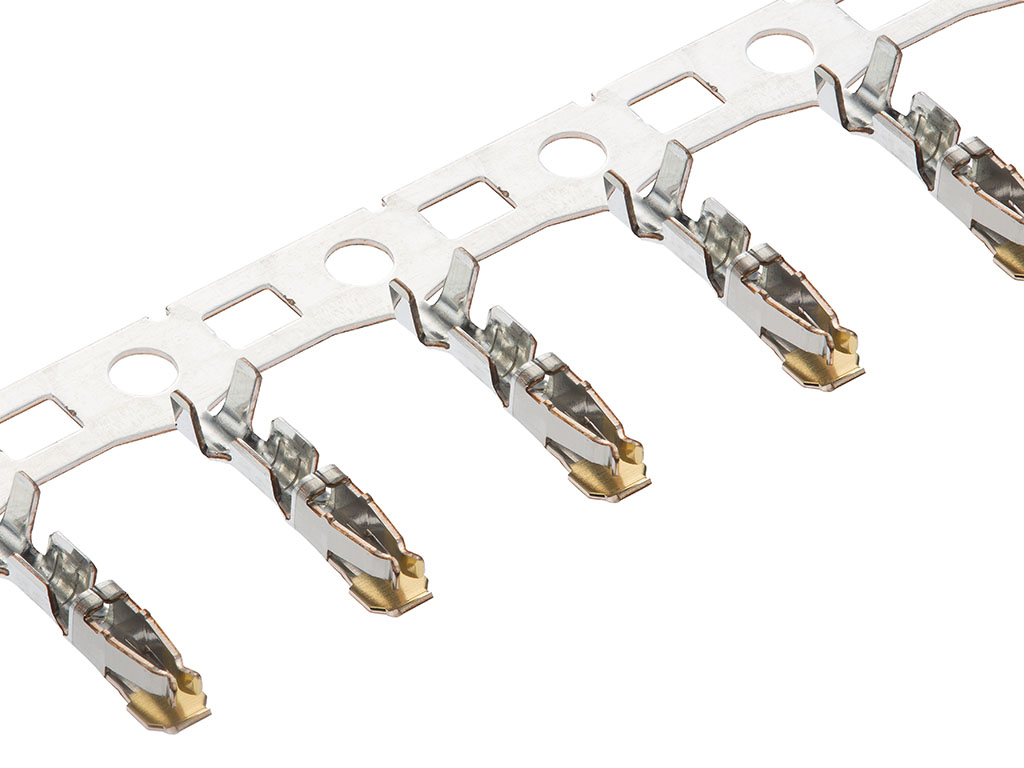

Crimp Terminals

Find Parts

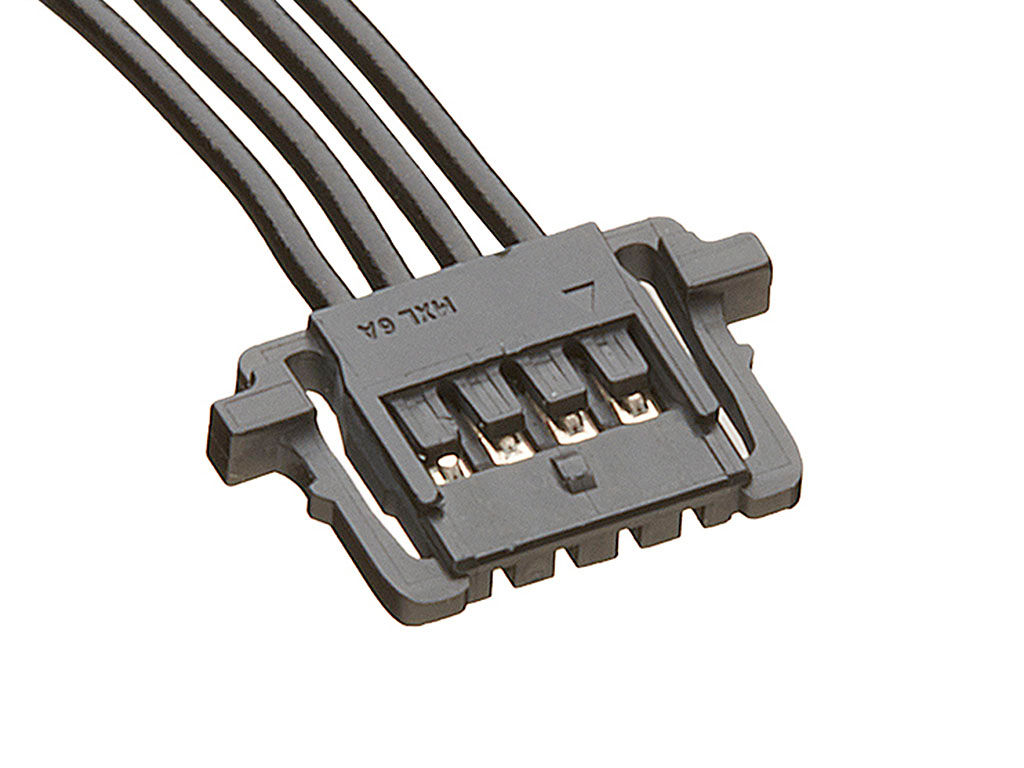

Power and Signal Cable Assemblies

Find Parts

Features and Benefits

Notebook and Tablet PCs with large graphic displays continue to get thinner in design and more powerful in functionality. This combination has created a need for a new style of connector that offers a very low profile, high current-carrying capability and a robust positive lock to maintain connection even when subjected to shock or vibration. The Pico-Lock system, available in 1.00, 1.50, 2.00 and 3.00mm pitch versions, is the first miniature wire-to-board connector system to combine all these features to meet these needs.

Allows for more efficient use of space on circuit boards
The compact design of low-profile PicoLock connectors maximizes the efficient use of space on circuit boards and in tight electronic assemblies, enabling smaller, thinner and more compact electronic devices while maintaining robust electrical connections.

Helps carry larger amounts of electrical current
The high-current Pico-Lock connectors are engineered to provide secure and reliable electrical connections for applications requiring higher power transmission capabilities. Their design allows for efficient handling of up to 10.0A (AWG 16, 2-circuit) of current, making them well-suited for a variety of industrial, automotive and other high-power electronic applications.

Offers secure PCB retention and additional mechanical stability
The wide robust-fitting nails (solder tabs) provide a larger surface area for soldering onto the PCB that ensures a strong and secure mechanical connection between the connector and the PCB.

Provides additional mating retention and visual mating assurance
The top friction locks are designed to enhance the reliability and security of the connection.

Prevents mis-mating while guiding the housing into the header
The mating guide for polarization plays a critical role in preventing mis-mating, guiding the connector housing into the header, and enhancing the ease and reliability of connector assembly.

Provides smooth mating and pin-contact protection
The beveled header pin design enhances the ease of use, protects pins and contacts from damage, and improves the overall durability of the connectors.

Helps ensure secure mating retention with additional space savings compared to top-style locks
The side positive locks consist of small tabs on the sides of the connector housings that creates a secure mechanical connection. The reduced footprint of the connectors with side positive locks enables designers to achieve higher component density and more efficient use of available space.
