Custom Headers

Custom Headers provide design flexibility, production efficiency while decreasing needed equipment assets.

Contact Us Custom Configurator

Product Highlights

Rows:Termination Styles:Orientation:
Single and dualThrough-hole, SMT and press-fitHorizontal, right-angle and vertical

Features and Benefits

Custom headers available:
Delivers solution with custom housing, pins and blades designed for each application’s unique needs

Removes the need for stitching equipment:
Creates a cost savings by decreasing capital investment needed for production

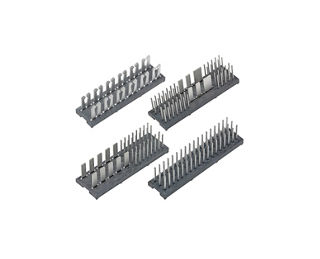

Custom Combo Blade/Pin Header

Pins and blades available in various sizes, counts, amperages and plating:
Offers flexibility to meet specific design needs
Reduces number of components on PCB by enabling more pins and blades on one header

Custom Pin Headers

Specify attributes with online product configurator:
Custom Pin Headers designed and sampled within days

Multiple mounting versions available, including vertical and right-angle, through-hole, vertical and horizontal SMT:
Design to suit low profiles and flexible stacking requirements

Pins and/or blades inserted into header per specification:
Provides time and cost efficiencies by simplifying the production process

Single and dual wafers:
Customize for specific board stacking applications

Through-hole pins and SMT capable:
Provides a more robust interface

Custom circuit sizes, variable pin lengths in 1.0mm increments:
Provides customer flexibility

Overview

Molex custom header family offers complete design flexibility to modify standard headers or develop new customized connectors to meet specific design requirements. Use the Custom Header Configurator or contact Molex to find a custom header solution that caters to a wide variety of programs and volumes.

When OEMs perform pin insertion onto PCBs, they need to invest in stitching machinery to do so, and that increases manufacturing costs. Custom Headers make pin insertion unnecessary and eliminate the need for customers to invest in stitching machinery.

OEMs often look for ways to simplify their manufacturing processes to reduce costs and get products to market more quickly. Custom Headers reduce steps manufacturing process by providing headers with pins already inserted.

While press-fit headers typically meet automotive standards, the interface isn’t the most robust available. Soldered termination not only meets automotive standards, it also provides a stronger interface than press-fit.

Applications by Industry

Body Electronics
Engine train
Infotainment
Safety system

Lighting
Logic controller
Power
Robotic system
Switching system

Desktop PCs
Monitors
Notebook computer
Servers
Storage

Base stations
Control room
Exchange station
Routers
Switches

This is not a definitive list of applications for this product. It represents some of the more common uses.
