OSFP Connector System

The Octal Small Form Factor Pluggable (OSFP) Connector System and Cable Assemblies provide 56 or 112 Gbps PAM-4 per lane, single-port, 8-lane I/O connectivity. These solutions support aggregate data rates of 400 and 800 Gbps, improve thermal management and meet IEEE and OSFP industry standards. Compact DAC, AOC, ACC and optical modules offer flexibility and support high-density switch applications.

Find Parts Contact Us
Data Rate Interface Design Lanes
112 Gbps PAM-4
56 Gbps		 DAC, AOC, ACC, Optical 16 of 112 Gbps PAM- 4; and
4 Rx and 4 Tx pairs on each row

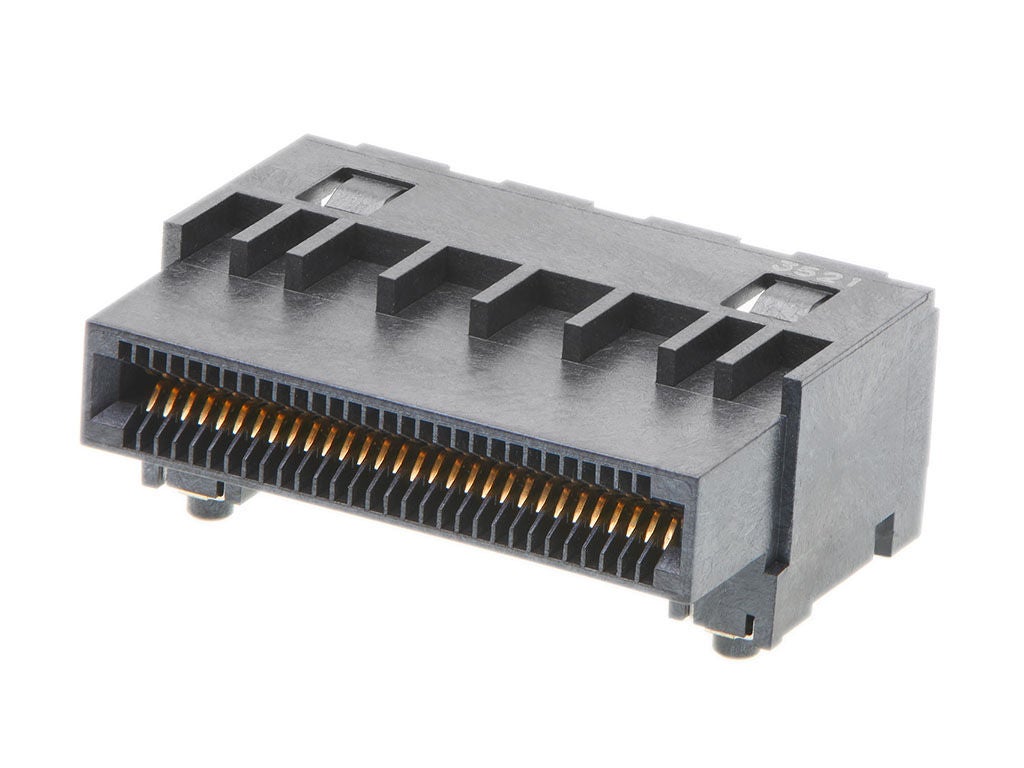

High-Speed I/O Connectors

Find Parts

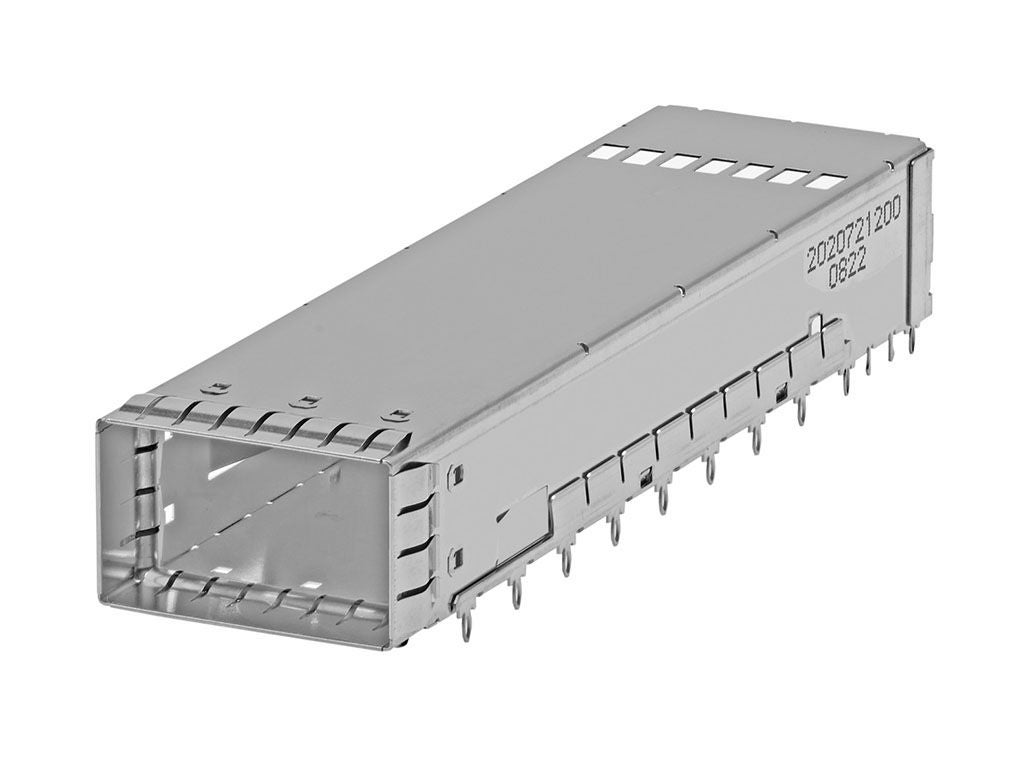

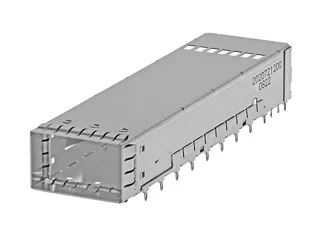

High-Speed EMI Cages

Find Parts

Stacked Products

Find Parts

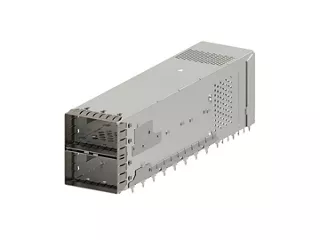

OSFP Stacked Cage

Features and Benefits

Thermal issues can hinder performance, especially as data rates increase. Compact connectors save space but tend to generate more heat, requiring investment in more effective cooling systems. The OSFP Connector System includes a slightly larger connector than its QSFP-DD counterpart. Since bigger connectors support improved airflow and cooling, OSFP connectors generate less heat, helping mitigate thermal issues.

Data center and telecommunication manufacturers often have to delay infrastructure upgrades while waiting for the production of cable assemblies. OSFP cable assemblies are readily available. The OSFP Connector System supports legacy cables as well as upgraded plugs and offers MSA compatibility for 56 and 112 Gbps applications.

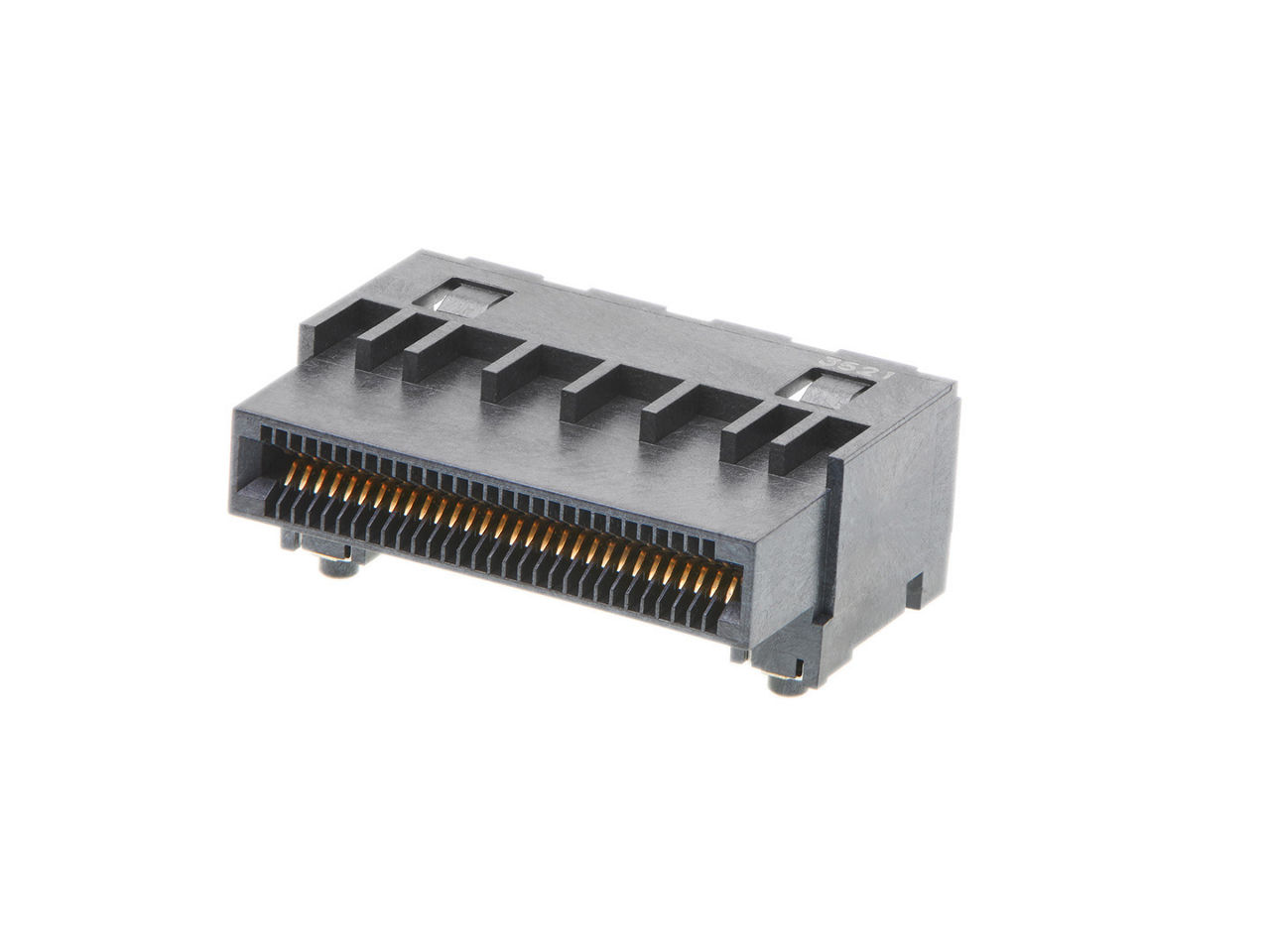

Optimized interface

OSFP connectors support 16 lanes of 112 Gbps PAM-4 and are compatible with previous-generation 56 Gbps mating interfaces. Also, the terminal width and spacing feature tight tolerance control for superior signal integrity performance, and the connector structure and mating interface include grounding.

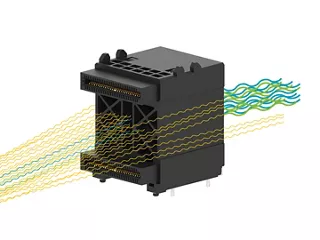

Improved thermal performance

Achieving 112 Gbps PAM-4 data rates while also improving thermal performance, OSFP connectors generate less heat and are ideal when thermal issues are a concern.


Enhanced availability thanks to off-the-shelf cable assemblies with OSFP connectors

Off-the-shelf cable assemblies with OSFP Connectors, MSA compatible for 56 and 112 Gbps applications, are readily available to enable upgrades more quickly and without downtime.

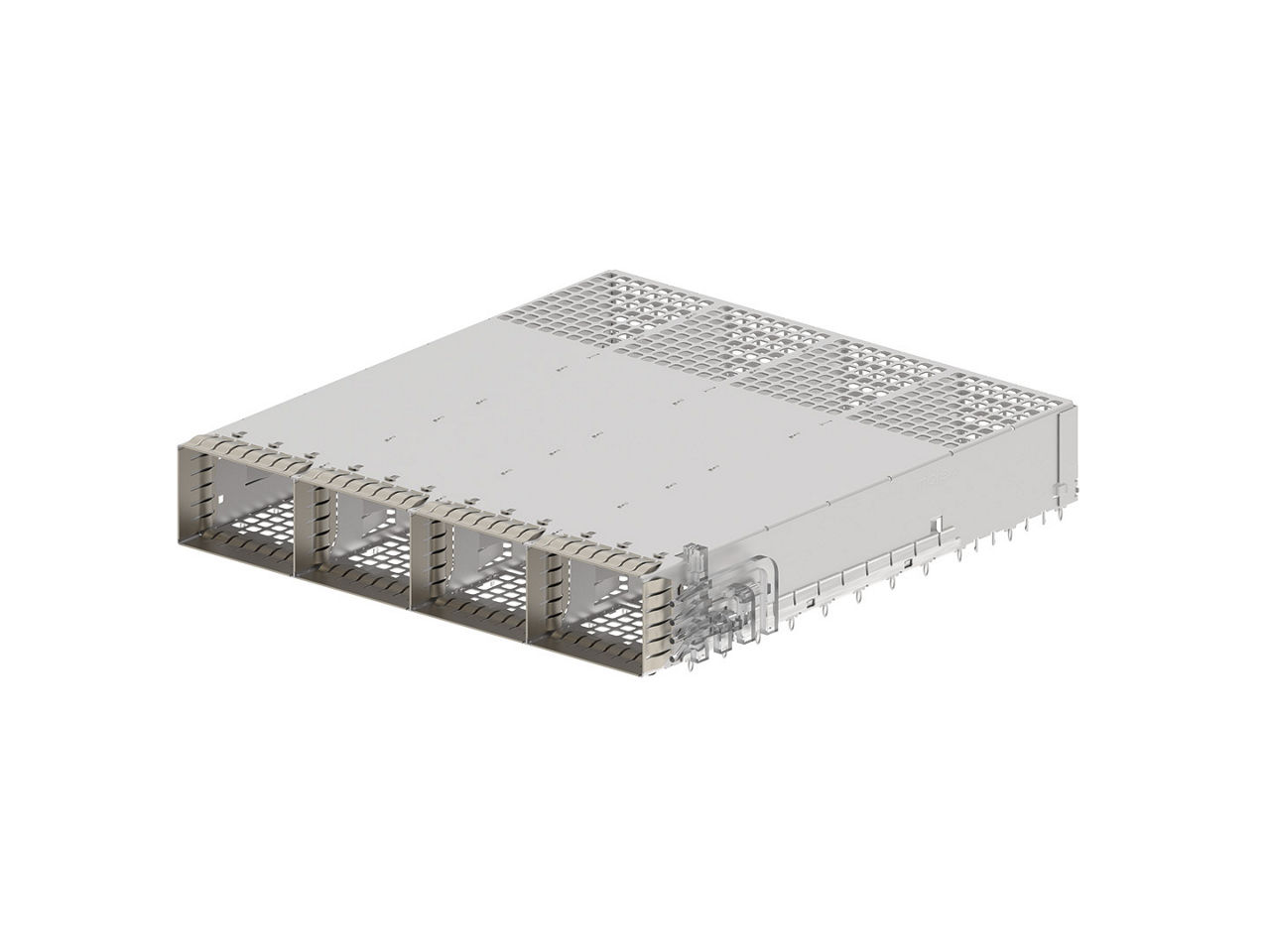

Cages

112 Gbps PAM-4 and 56 Gbps versions are available
Has a single-port, high-speed and high-density design intended to interface with DAC, AOC, ACC and optical modules

Meets IEEE 802.3ck channel compliance and OSFP 112G multi-source agreement (MSA)
Complies with industry standards for easy implementation

Single, dual and quad light pipe options are available, and two different types of ventilation designs are available
Provides design flexibility

Improved EMI shielding and 2D press-fit design
Delivers enhanced EMI performance

• Hexagonal ventilation
• Thermally optimized for >12W applications
• Cooling to support a 25W module in an enterprise environment
Enhances thermal and EMI performance

Spring fingers
Offer additional robustness

Easy to insert cage to board while improving retention force:
Delivers convenient assembly without sacrificing reliability

Connectors

Supports 16 lanes of 112 Gbps PAM-4; 4 Rx and 4 Tx pairs on each row
Provides an optimized interface

Good contact points between ground shield and ground beams; good contact of the flex shield to rigid and ground beams
Prevents crosstalk

Complete connector structure and mating interface
Provides grounding protection

Tight tolerance control of terminal width and spacing
Achieves superior signal integrity performance

Laser welding technology used for terminal insertion
Ensures terminal position accuracy

Compatible with previous-generation 56 Gbps mating interface
Facilitates easy to implement without having to change entire infrastructure

Direct Attach Cable (DAC) Assemblies

Ground structure terminates drain and prevents crosstalk
Improves signal integrity performance

MSA compatible for 56 and 112 Gbps applications
Delivers reliable high-speed performance

Molded cable strain relief inside backshell
Prevents wire and PCB damage

Supports up to 2.0m DAC implementation. 25 to 26 AWG available
Offers design flexibility
