8.0mm UltraWize Standard Height Header

UltraWize High-Current Connectors and Cables Assemblies

UltraWize W-t-B High-Current Connectors and Cables Assemblies

Achieve superior power distribution with UltraWize Power Connectors and Cable Assemblies, specifically engineered for demanding data center applications. These products utilize proven COEUR socket technology which incorporates conical sockets to ensure a large conductive surface area. This reduces contact resistance and voltage drop to minimize heat generation and deliver high-current carrying capacity for UltraWize products. Additionally, the cable-side exit configuration uses minimal space and further enhances efficiency and design flexibility. UltraWize Power Connectors and Cable Assemblies provide reliable, robust and space-saving power distribution in data center environments.

Find Parts Explore COEUR Socket Technology Contact Us

Product Highlights

Pitch:Current:VoltageOperating Temperature:
13.58mm170.0A125V-40 to +125°C

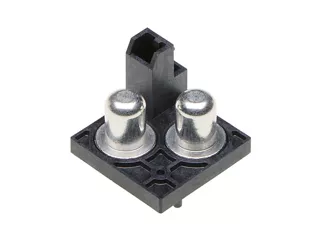

PCB Headers

Find Parts

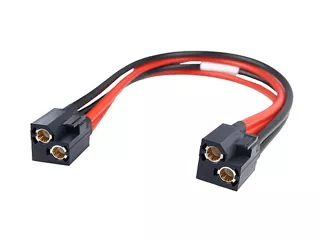

Power and Signal Cable Assemblies

Find Parts

Features and Benefits

Minimizes stack height:
The cable side-exit design eliminates the need to accommodate the cable-bend radius.

Enhances electrical performance:
The Coeur socket technology design contains a large conductive surface area, minimizing voltage drop and contact resistance.

Reduces processing costs and increases speed to market:
SMT reflow-capable headers in pick-and-place packaging allow the header to be run through a reflow oven with no post-processing required.

Secures mating of the connector:
A positive lock helps prevent the connector from accidentally unmating.

Reduces mis-mating in production and allows for fewer defects:
The connectors are mechanically keyed and have locating pegs to ensure correct mating.

Minimizes PCB footprint requirements:
The staggered pin design reduces the space required on the PCB and allows more room for additional components.

Overview

In the ever-evolving landscape of data center design, power density is a critical factor for manufacturers that need to pack more power into products without expanding their physical dimensions. The UltraWize Connectors and Cable Assemblies excel in this aspect by delivering 170.0A of power while featuring a side-exit cable design. This innovation not only removes the need to account for the cable-bend radius but also reduces stack height, providing higher power density. With UltraWize components, design engineers can expect to capitalize on the available space on their PCBs more effectively, ensuring that the power requirements are met without the need for additional space.

Efficiency in production is a key driver for profitability in the manufacturing sector. UltraWize Connectors and Cable Assemblies address this need by offering surface mount technology reflow-capable headers in a user-friendly pick-and-place package. This feature streamlines the manufacturing process, minimizes costs and propels products to the market at an accelerated pace.

Applications by Industry

Servers (GPU)​
Switches

This is not a definitive list of applications for this product. It represents some of the more common uses.
