DIN Rail Terminal Blocks Explained: Rethinking High-Density Industrial Control Panels

DIN rail terminal blocks are modular, insulated components that securely connect two or more wires on a standardized mounting rail. Historically, procurement teams have treated terminal blocks as bulk-purchased commodities ordered at the end of a project.

As engineers pack more programmable logic controllers (PLCs), motor drives and I/O modules into control panels, space becomes incredibly limited. This shrinking footprint is prompting engineers to view these components as high-impact design choices rather than simple afterthoughts.

Selecting the right connection architecture is more than just saving space; it directly addresses pressing engineering challenges related to modularity, worker safety, labor efficiency and machine downtime. Mounted on standard 35mm DIN rails, modern terminal blocks provide a modular, scalable solution that saves space and improves long-term electrical performance.

Understanding these mechanical benefits raises the question: how does using DIN rail terminal blocks address intricate wiring challenges in modern, high-density control panels?

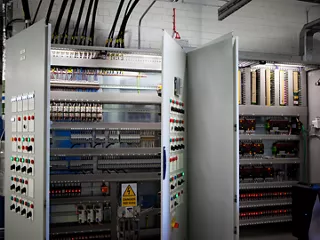

Traditional manual wiring in smaller control panels often leads to labor bottlenecks and increases the risk of mechanical failure and compliance issues. On the factory floor, industrial control enclosures are maintaining their standard footprints, but connection density is increasing to accommodate the addition of advanced sensors and automated drives. Limited space makes it difficult for design engineers to route complex wiring layouts.

Manual wiring drains engineering resources and increases the risk of operator error during installation. Intricate layouts also complicate routine maintenance and make it difficult to isolate circuits during troubleshooting.

Beyond installation and maintenance challenges, operational environments introduce physical risks. Heavy vibration in harsh conditions can cause traditional connections to loosen over time. Physical degradation leads to electrical shorts and overheating, ultimately triggering costly machine downtime.

OEMs must also comply with strict international safety standards for power distribution. Not specifying components with appropriate flame-retardant materials or global certifications (UL, CE and IEC) delays projects and puts workers at risk. Overcoming these challenges requires moving beyond manual wiring and adopting a more strategic connection architecture.

A certified modular connection architecture optimizes panel space and reduces installation errors and mechanical failures. Integrating push-in designs introduces mechanical advantages that solve high-density wiring challenges.

Push-In Wiring
Technicians speed up assembly using touch-safe, push-in designs to securely insert solid and ferruled wires without specialized tools. Bypassing manual screw terminations cuts overall wiring time while preventing common errors such as improper torque and loose wire strands.

Vibration-Resistant Clamping
Rugged clamping mechanisms maintain continuous electrical contact even in harsh environments. This design secures wires against heavy vibrations in mobile and industrial applications. Ultimately, keeping a secure connection helps preserve overall system uptime and avoid unexpected electrical faults.

Modular and Space-Efficient Profiles
Compact terminal blocks maximize connection density in tight enclosures without increasing footprint. To further optimize this space, standardized accessories such as spacers and covers help keep dense layouts organized and accessible.

Integrated Testing and Visual Identification
Large marking and labeling areas simplify circuit identification, while integrated test points give technicians direct diagnostic access without disconnecting active wires. Together, these features streamline maintenance and minimize downtime.

Built-In Safety and Global Compliance
High safety standards protect both workers and equipment from electrical hazards. Because UL94 V-0 flame-retardant insulation and CE/IEC certifications ensure compliance with international regulations, meeting global standards removes certification barriers and keeps projects on schedule. These mechanical advantages give engineers a modular design that scales across diverse operating environments.

Upgrading to a standardized connection architecture gives OEMs the flexibility to address domain-specific challenges across scalable manufacturing, high-voltage power distribution, continuous building operations and data center infrastructure.

Industrial Automation
Automated manufacturing environments need flexibility to adapt to changing production demands. Standardized DIN rail blocks support rapid scaling, enabling engineers to add or remove connections as factory lines change. This modular approach prevents the need for full control panel redesigns during facility upgrades, helping to expand operations without incurring heavy engineering costs.

Electrical and Power Distribution
Power distribution networks demand strict adherence to global safety regulations to safeguard personnel and equipment. By using pre-certified compact DIN rail terminal blocks rated for up to 1,000V DC and 24.0A with high industrial SCCR ratings (UL508A), engineers satisfy international electrical standards while protecting both workers and hardware from electrical faults.

HVAC and Building Automation
Climate control and airflow regulation systems rely on continuous operation to keep facilities within safe operating conditions. Integrating specific terminal block profiles, such as disconnect or fuse types, into HVAC and building automation systems provides technicians with better control panel management. Maintenance teams can isolate individual circuits for routine diagnostics or repairs without disrupting surrounding systems.

Power for Data Centers
Data centers depend on advanced liquid cooling systems and dense power installations to support escalating compute demands. Modular terminal blocks streamline the high-density layouts within these critical control panels while keeping complex power routing organized. Integrated testing points and disconnect profiles simplify maintenance and troubleshooting of liquid-cooling infrastructure without disrupting broader facility operations. Achieving this reliability requires components backed by global safety and performance certifications.

A complete, standardized interconnect portfolio gives engineers what they need to meet application requirements and reduce supply chain complexity. Molex supplies a comprehensive offering of DIN Rail Terminal Blocks that provides safe, scalable power connectivity for diverse applications. Engineers can use traditional screw-type blocks for legacy compatibility and high-current applications. Alternatively, plug-in and push-in types significantly reduce wiring time and increase design flexibility.

The Molex DIN Rail portfolio includes feed-through, fuse, diode, disconnect and grounding profiles, giving engineers the exact functionality needed for unique panel layouts. A wide range of standardized accessories, such as jumpers, end plates and markers, removes the need to manage components from multiple suppliers.
