| Configuration | Circuits | Standards |
|---|---|---|
| Wire-to-wire and panel mount | 20 | USCAR2 Rev. 8 sealing (variant dependent) |
Features and Benefits
As vehicle architectures become more compact, design engineers face increasing pressure to maximize connector density and minimize packaging size. They must also reduce assembly complexity while improving manufacturing efficiency.
To address these concerns, automotive industries require a compact hybrid connector that supports both signal and power connectivity within a space-efficient design. Achieving reliable, sealed electrical connections in harsh automotive environments is another challenge in modern vehicle architectures. Manufacturers need wire-to-wire and panel-mount sealed connector solutions that simplify integration and assembly across a wide range of automotive applications.

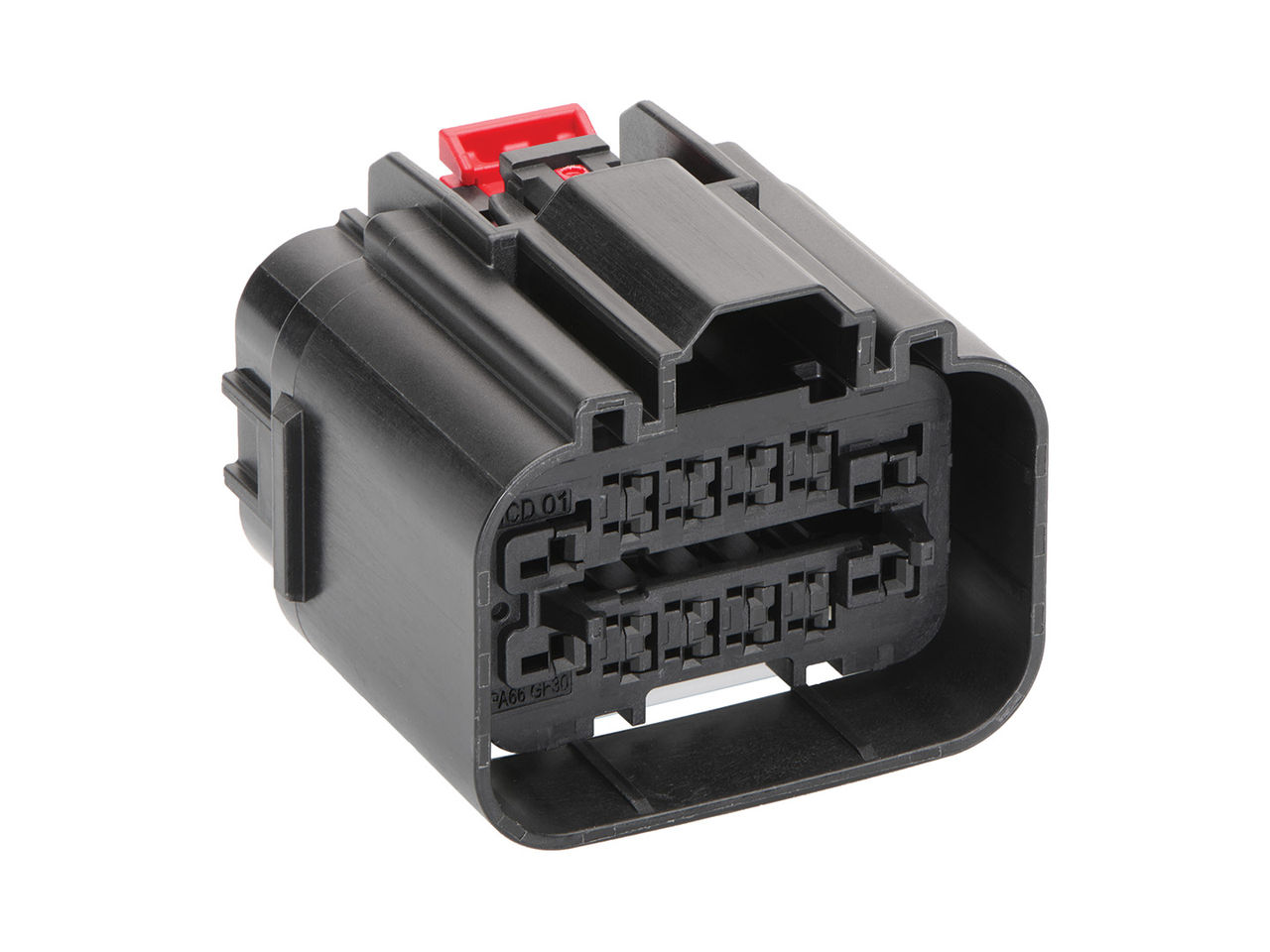

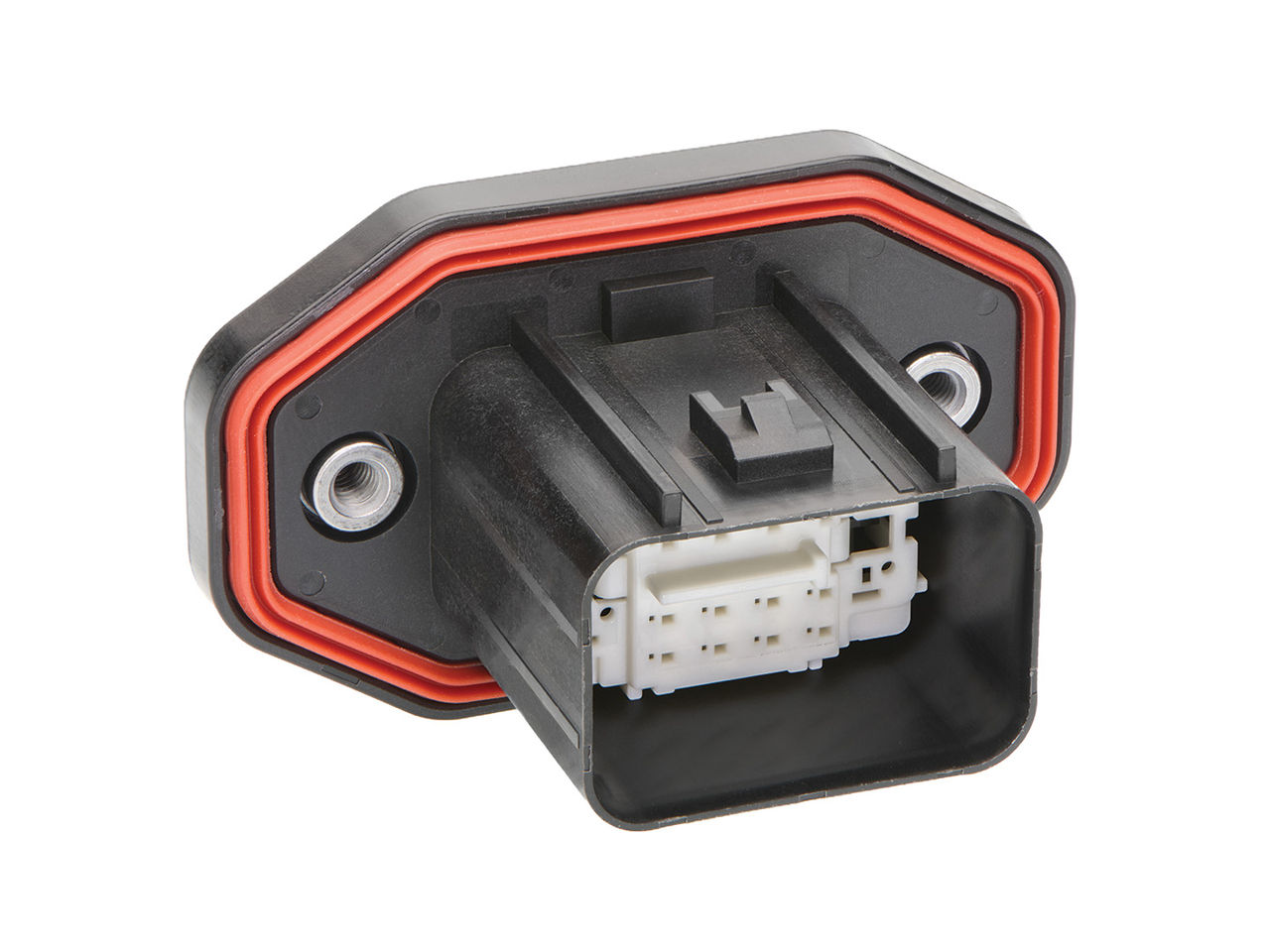

The hybrid terminal architecture of MCS50 Connectors helps reduce packaging space and harness complexity, enabling engineers to optimize available installation space without sacrificing functionality. The advanced sealing technologies of these connectors protect connections from dirt, moisture, contaminants and other environmental factors, supporting reliable performance. Additionally, hand-mate designs and application-specific connector variants improve installation efficiency and manufacturing flexibility.
Applications by Industry
Battery pack I/O
E-Drive systems
Electric vehicles
Front-end modules
Front and rear bumpers
Under-hood applications
This is not a definitive list of applications for this product. It represents some of the more common uses.
Frequently Asked Questions
What are MCS50 Connectors?
MCS50 Connectors are compact sealed automotive connectors that combine signal and power connectivity in a space-efficient hybrid design. Available in wire-to-wire and panel-mount configurations, they provide robust environmental sealing, simplified assembly and reliable performance in demanding vehicle applications.
What configuration options are available for MCS50 Connectors?

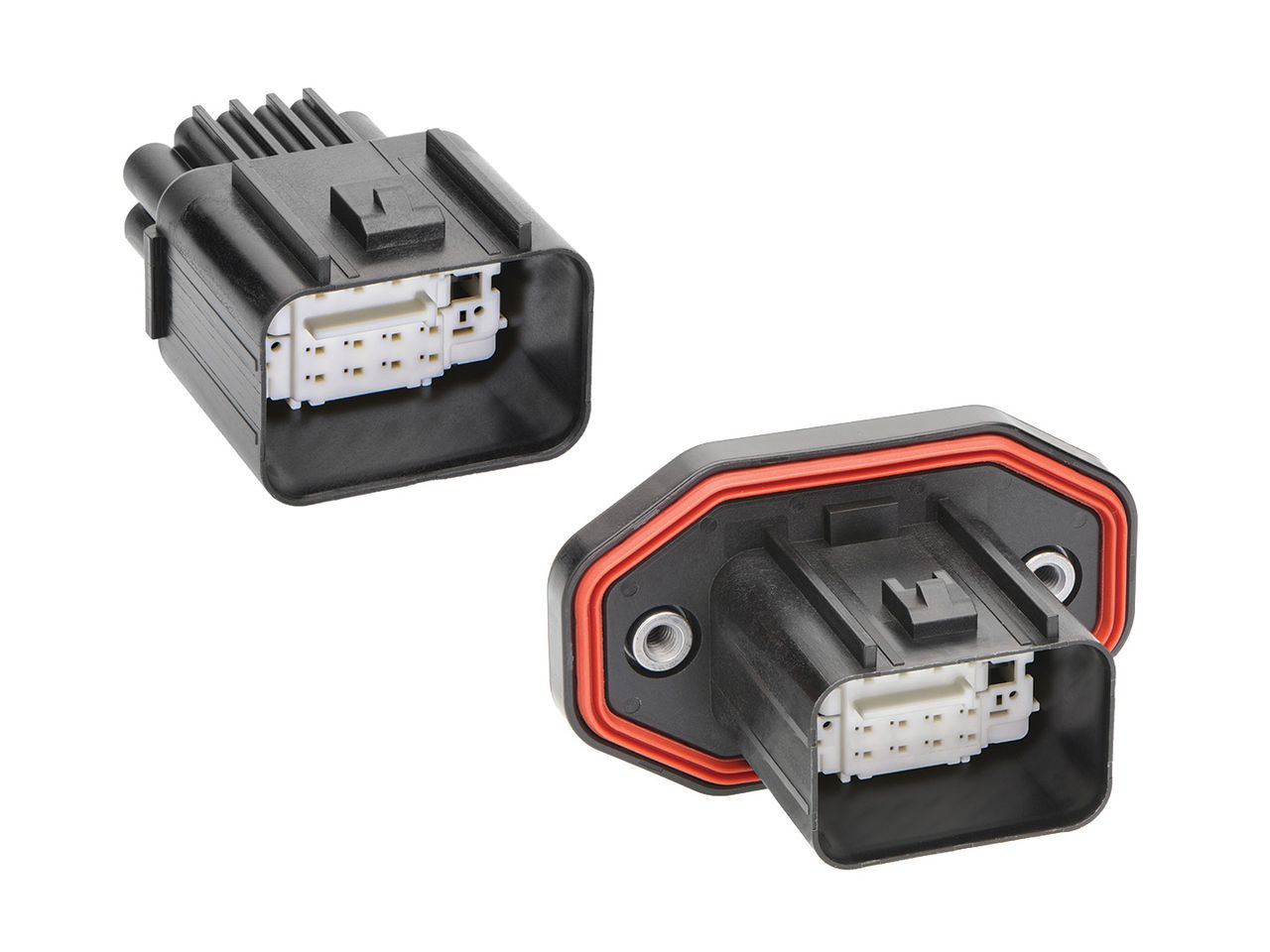

MCS50 Connectors offer both wire-to-wire and panel-mount connector configurations designed to support different packaging and installation requirements.
What makes MCS50 Connectors different?
MCS50 Connectors combine compact packaging, hybrid signal and power capability, robust environmental sealing, and simplified assembly features, enabling engineers to optimize vehicle packaging and improve long-term reliability.
Do the MCS50 Connectors support electrified vehicle applications?
Yes, MCS50 Connectors support a variety of voltage applications used throughout electrified vehicle platforms, including battery pack interfaces and e-drive systems.
