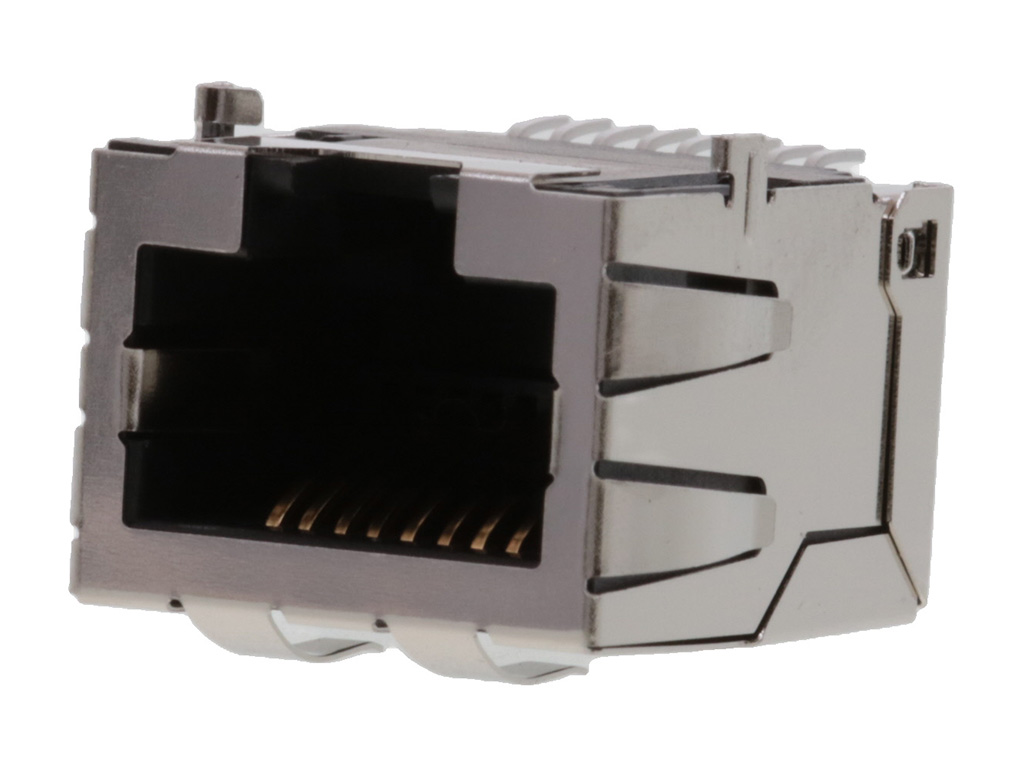

Modular Jack 8/8,RJ45
- 品番
- 442820001
- カテゴリ
- Modular Jacks and Plugs
Modular Jack, Right-Angle, Low Profile, Shielded, Surface Mount, 8/8
Physical Specifications
- colorResin
- Black
- durabilityMatingCyclesMax
- 500
- flammability
- 94V-0
- invertedTopLatch
- No
- jackHeight
- 13.45mm
- lightpipesLeDs
- None
- materialMetal
- Brass,Phosphor Bronze
- materialPlatingMating
- Gold
- materialPlatingTermination
- Tin
- materialResin
- High Temperature Thermoplastic
- netWeight
- 4.005/g
- orientation
- Right Angle (Side Entry)
- packagingType
- Embossed Tape on Reel
- panelMount
- N/A
- pcbLocator
- Yes
- pcbRetention
- No
- pcbThicknessRecommended
- 1.60mm
- pitchMatingInterface
- 1.02mm
- pitchTerminationInterface
- 1.27mm
- platingMinMating
- 1.270µm
- platingMinTermination
- 2.540µm
- portConfiguration
- 1x1
- positionsLoadedContacts
- 8/8
- temperatureRangeOperating
- -40° to +80°C
- terminationInterfaceStyle
- Surface Mount
- wireCableType
- N/A
Electrical Specifications
- currentMaximumPerContact
- 1.5A
- groundingToPanel
- Yes
- shielded
- Yes
- voltageMaximum
- 125V
キーワード: 44282-0001, 0442820001
Compliance & Certifications
- add1DisplayName
- GADSL/IMDS
- add1Status
- Not Relevant
- chinaRoHsDisplayName
- China RoHS
- chinaRoHsStatus
- Green Image per SJ/T 11365-2006
- elvDisplayName
- EU ELV
- elvStatus
- Not Relevant
- hflhDisplayName
- Low-Halogen Status
- hflhStatus
- Not Low-Halogen per IEC 61249-2-21
- prop65DisplayName
- Prop65
- prop65Status
- Compliant per California Proposition 65
- reachDisplayName
- REACH SVHC
- reachStatus
- Not Contained per D(2025)7771-DC (04 Feb 2026)
- roHsDisplayName
- EU RoHS
- roHsStatus
- Compliant per EU 2015/863
