Commercial Micro-D
- Part Number
- 836149012
- Category
- I/O Connectors

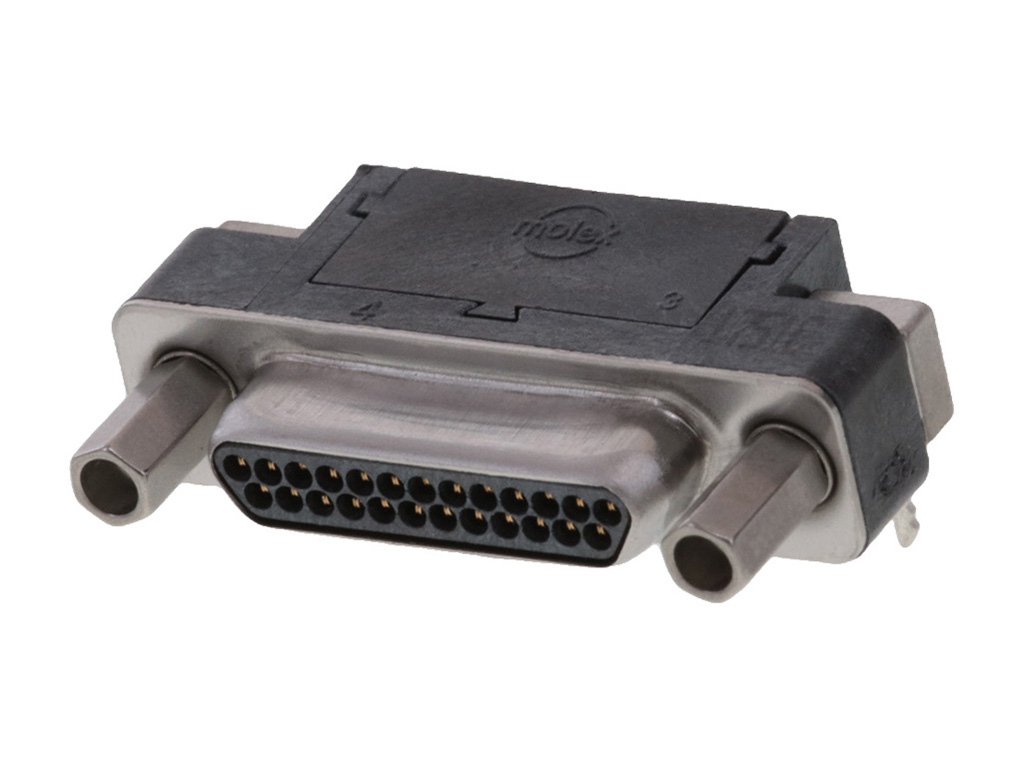

1.27mm Pitch Commercial Micro-D, PCB Mount, Right-Angle Plug, 25 Circuits
Physical Specifications
- bootColor
- N/A
- circuitsLoaded
- 25
- circuitsMaximum
- 25.0
- durabilityMatingCyclesMax
- 500
- gender
- Plug
- lockToMatingPart
- Yes
- materialPlatingMating
- Gold
- netWeight
- 6.349/g
- numberOfRows
- 2.0
- orientation
- Right Angle
- packagingType
- Tube
- panelMount
- Yes
- pcbLocator
- Yes
- pcbRetention
- Yes
- pcbThicknessRecommended
- 1.52mm
- pcTailLength
- 2.79mm
- pitchMatingInterface
- 1.27mm
- pitchTerminationInterface
- 1.27mm
- platingMinMating
- 0.381µm
- polarizedToMatingPart
- Yes
- polarizedToPcb
- Yes
- ports
- 1
- temperatureRangeOperating
- -40° to +125°C
- terminationInterfaceStyle
- Through Hole
- waterproofDustproof
- No
- wireSizeAwg
- N/A
Electrical Specifications
- currentMaximumPerContact
- 1.0A
- shielded
- Yes
- shieldType
- Full Shield
- voltageMaximum
- 350V AC
Keywords: 83614-9012, 0836149012
Compliance & Certifications
- add1DisplayName
- GADSL/IMDS
- add1Status
- Not Relevant
- chinaRoHsDisplayName
- China RoHS
- chinaRoHsStatus
- Green Image per SJ/T 11365-2006
- elvDisplayName
- EU ELV
- elvStatus
- Not Relevant
- hflhDisplayName
- Low-Halogen Status
- hflhStatus
- Low-Halogen per IEC 61249-2-21
- prop65DisplayName
- Prop65
- prop65Status
- Compliant per California Proposition 65
- reachDisplayName
- REACH SVHC
- reachStatus
- Not Contained per D(2025)4165-DC (25 June 2025)
- roHsDisplayName
- EU RoHS
- roHsStatus
- Compliant per EU 2015/863
