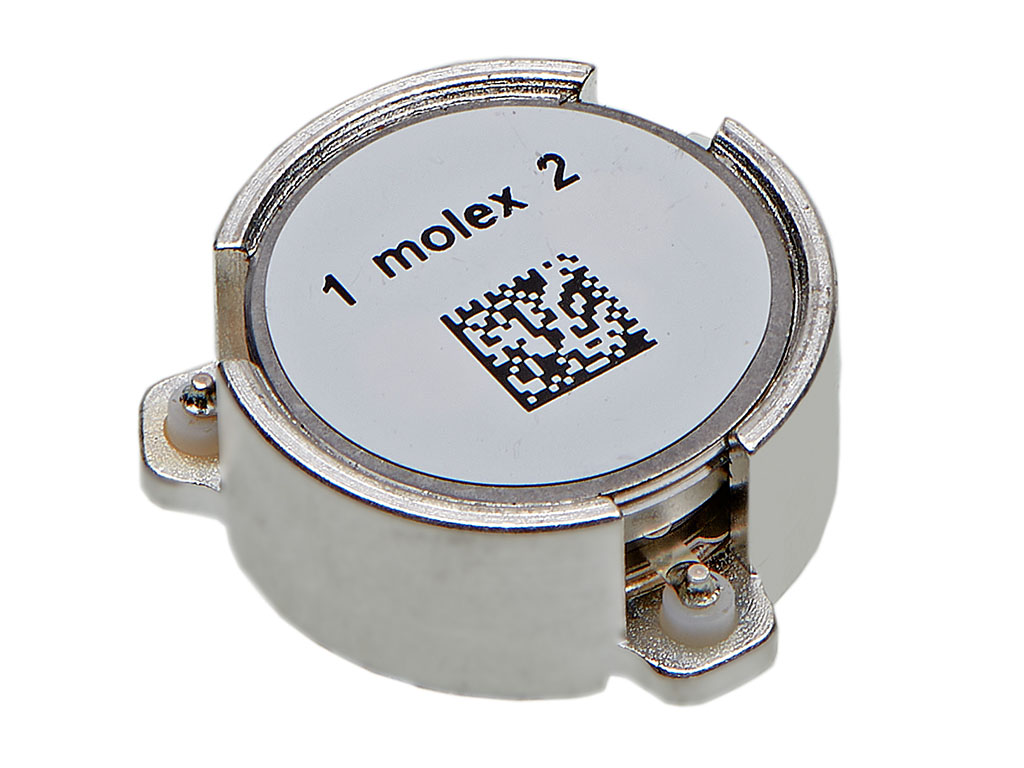

RF Circulator

Part Number: 735912057
Category: Isolators and Circulators

Surface Mount Single Junction Circulator 2300-2400 MHz, Clockwise, 15.0mm Diameter

Physical Specifications

diameter: 15.00mm
direction: Clockwise
netWeight: 7.108/g
temperatureRangeOperating: -40° to +115°C

Electrical Specifications

averagePowerMaxWatts: 100
frequency: 2300-2400 MHz
imd3: -65 dBc Max 50Wx2, 5 MHz Space
impedance: 50Ω
insertionLossIlMaxDB: 0.25
isolationIsMinDB: 20
peakPowerWatts: 1000
returnLossS11DB: 23

Keywords: 73591-2057, 0735912057

Compliance & Certifications

add1DisplayName: GADSL/IMDS
add1Status: Not Relevant
chinaRoHsDisplayName: China RoHS
chinaRoHsStatus: Green Image per SJ/T 11365-2006
elvDisplayName: EU ELV
elvStatus: Not Relevant
hflhDisplayName: Low-Halogen Status
hflhStatus: Low-Halogen per IEC 61249-2-21
prop65DisplayName: Prop65
prop65Status: Compliant per California Proposition 65
reachDisplayName: REACH SVHC
reachStatus: Not Contained per D(2025)7771-DC (04 Feb 2026)
roHsDisplayName: EU RoHS
roHsStatus: Compliant per EU 2015/863

Part Number Found

Limited Information Available

This part is not formally published to our online part catalog. Limited information is available to display on molex.com.
