ISM/DSRC Hinged Antenna
- Part Number
- 2144140011
- Category
- Antennas

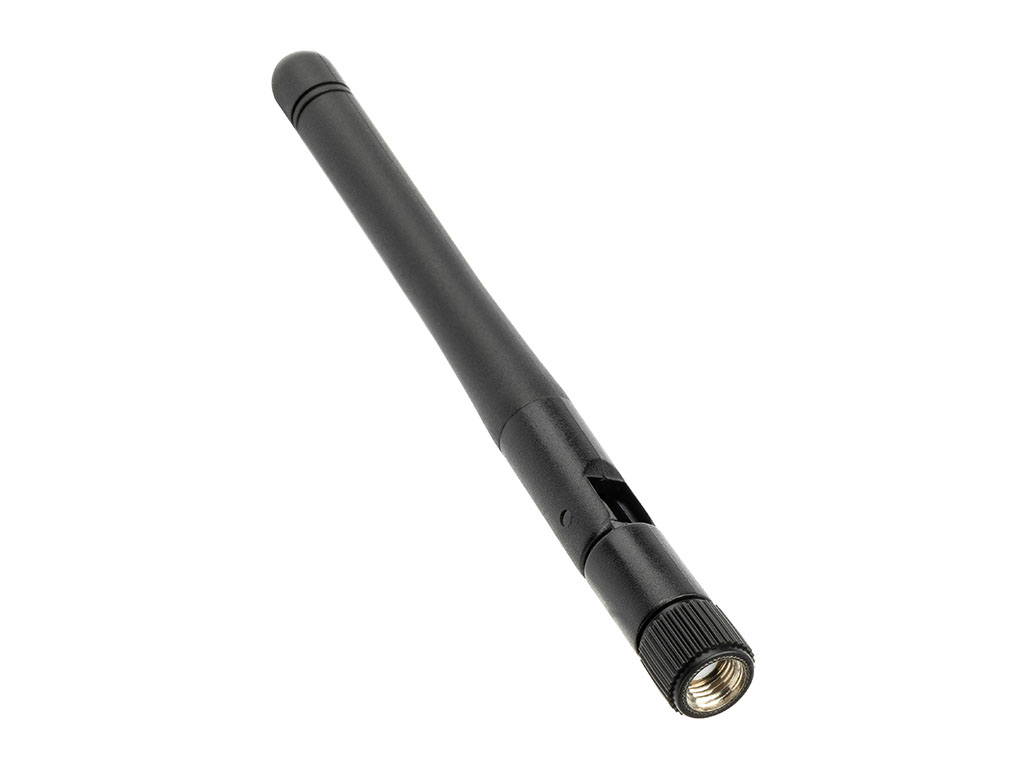

ISM/DSRC Hinged External Antenna, with Reverse Polar SMA Male Connector, Black
Physical Specifications
- length
- 108.40mm
- mountingStyle
- N/A
- netWeight
- 9.250/g
- packagingType
- Bag
- polarization
- Linear
- radiationPattern
- Omnidirectional
- temperatureRangeOperating
- -40° to +85°C
- width
- 9.35mm
Electrical Specifications
- band1FEndMHz
- 6000
- band1FStartMHz
- 5800
- electricalConnectivity
- Cable
- peakGainDBi
- 3.9 @ 5 GHz
- returnLossS11DB
- < -10
- totalEfficiency
- >75% @ 5 GHz
Keywords: 214414-0011, 2144140011
Compliance & Certifications
- add1DisplayName
- GADSL/IMDS
- add1Status
- Not Relevant
- chinaRoHsDisplayName
- China RoHS
- chinaRoHsStatus
- 50 Image per SJ/T 11365-2006
- elvDisplayName
- EU ELV
- elvStatus
- Not Relevant
- hflhDisplayName
- Low-Halogen Status
- hflhStatus
- Low-Halogen per IEC 61249-2-21
- prop65DisplayName
- Prop65
- prop65Status
- Duty-To-Declare per California Proposition 65
- propRiskDisplayName
- PropRisk
- propRiskStatus
- Cancer,Developmental toxicity,Reproductive toxicity
- propSubDisplayName
- PropSub
- propSubStatus
- Lead compounds
- reachDisplayName
- REACH SVHC
- reachStatus
- Contains Lead per D(2025)7771-DC (04 Feb 2026)
- roHsDisplayName
- EU RoHS
- roHsStatus
- Compliant with Exemption 6(c) per EU 2015/863
