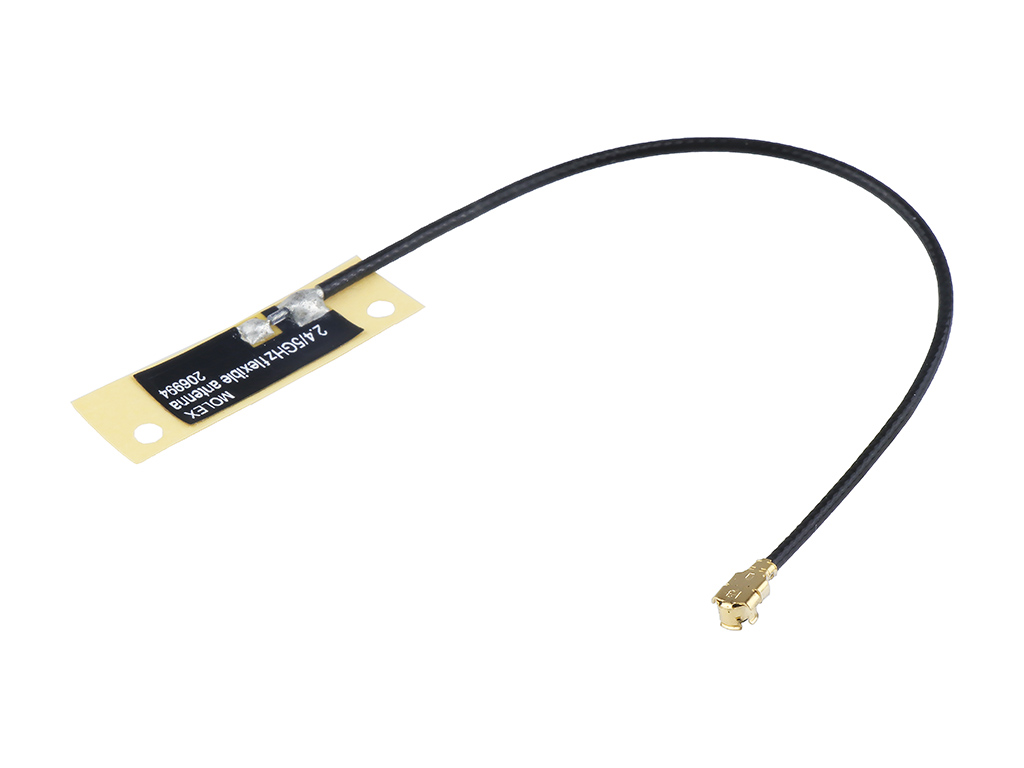

2.4/5GHz Flexible Antenna
- Part Number
- 2069940100
- Category
- Antennas
Wi-Fi 6E Flex Cabled Side-Fed Antenna, 6.40mm Width, 15.40mm Cable Length, 100.00mm Cable Length, Compatible with U.FL / I-PEX MHF Connectors
Physical Specifications
- cableLength
- 100.00mm
- length
- 15.40mm
- mountingStyle
- Adhesive
- netWeight
- 0.571/g
- packagingType
- PET Film
- polarization
- Linear
- radiationPattern
- Omnidirectional
- thickness
- 0.15mm
- width
- 6.40mm
Electrical Specifications
- band1FEndMHz
- 2483.5
- band1FStartMHz
- 2400
- band2FEndMHz
- 5850
- band2FStartMHz
- 5150
- electricalConnectivity
- Cable
- peakGainDBi
- 3.6 @ 5 GHz
- returnLossS11DB
- < -10,< -5
- totalEfficiency
- >55% @2.4 GHz,>70% @ 5 GHz
Keywords: 206994-0100, 2069940100
Compliance & Certifications
- add1DisplayName
- GADSL/IMDS
- add1Status
- Not Relevant
- chinaRoHsDisplayName
- China RoHS
- chinaRoHsStatus
- Green Image per SJ/T 11365-2006
- elvDisplayName
- EU ELV
- elvStatus
- Not Relevant
- hflhDisplayName
- Low-Halogen Status
- hflhStatus
- Low-Halogen per IEC 61249-2-21
- prop65DisplayName
- Prop65
- prop65Status
- Compliant per California Proposition 65
- reachDisplayName
- REACH SVHC
- reachStatus
- Not Contained per D(2025)7771-DC (04 Feb 2026)
- roHsDisplayName
- EU RoHS
- roHsStatus
- Compliant per EU 2015/863
