FCT Products
- Part Number
- 1731120162
- Category
- D-Sub Contacts

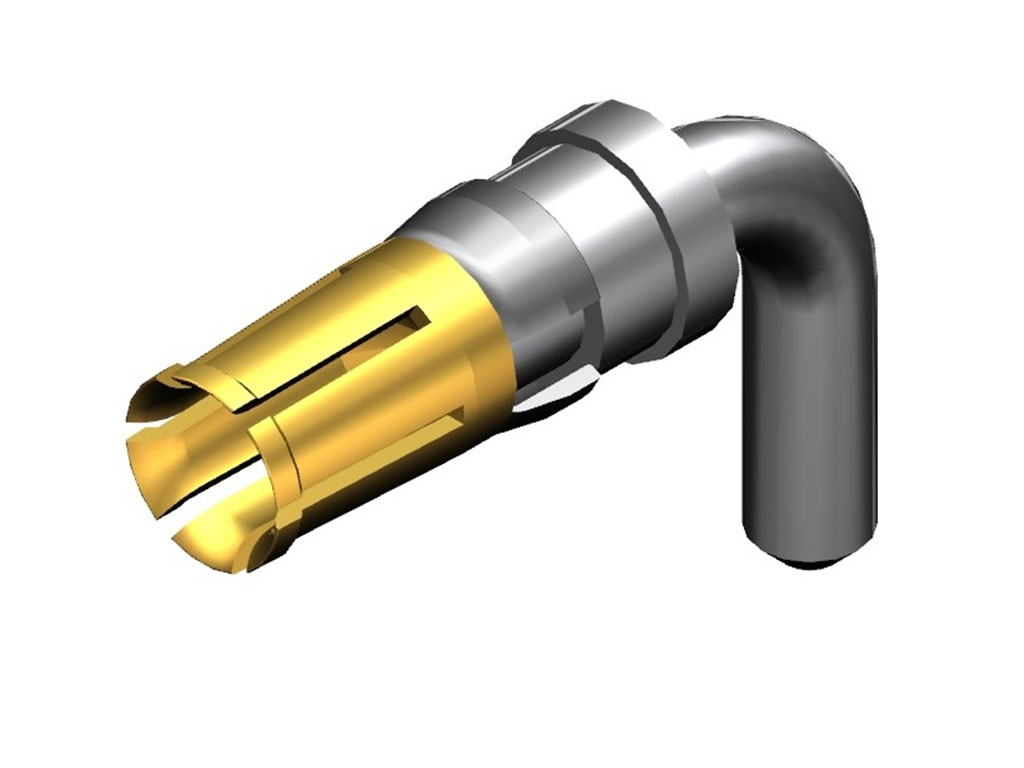

FCT High Power Contact, Female, Right-Angle, PCB Through Hole, 0.10µm Gold over Nickel Phosphorus Mating Plating, 5.00µm Tin Termination Plating, Split Tine, 20.0A, 3.15mm PCB Drilling Diameter
Physical Specifications
- durabilityMatingCyclesMin
- 500
- gender
- Female
- materialContact
- Copper Alloy
- materialPlatingMating
- Gold over Nickel Phosphorus
- materialPlatingTermination
- Tin over Nickel
- materialRetainingClip
- Copper Alloy
- netWeight
- 2.100/g
- orientation
- Right Angle
- packagingType
- Bag
- platingMinMating
- 0.100µm
- platingMinTermination
- 5.000µm
- temperatureRangeOperating
- -55° to +155°C
- terminationStyle
- Through Hole
Electrical Specifications
- currentMaximumPerContact
- 20.0A
Keywords: 173112-0162, 1731120162
Compliance & Certifications
- add1DisplayName
- GADSL/IMDS
- add1Status
- Not Relevant
- chinaRoHsDisplayName
- China RoHS
- chinaRoHsStatus
- 50 Image per SJ/T 11365-2006
- elvDisplayName
- EU ELV
- elvStatus
- Not Relevant
- hflhDisplayName
- Low-Halogen Status
- hflhStatus
- Not Reviewed per IEC 61249-2-21
- prop65DisplayName
- Prop65
- prop65Status
- Duty-To-Declare per California Proposition 65
- propRiskDisplayName
- PropRisk
- propRiskStatus
- Cancer,Developmental toxicity,Reproductive toxicity
- propSubDisplayName
- PropSub
- propSubStatus
- Lead compounds
- reachDisplayName
- REACH SVHC
- reachStatus
- Contains Lead per D(2025)4165-DC (25 June 2025) SCIP:45d9d68f-1d67-47d7-9c54-6f5d7a0b8b88
- roHsDisplayName
- EU RoHS
- roHsStatus
- Compliant with Exemption 6(c) per EU 2015/863
