M12 Signal Push-Pull,Ultra-Lock (M12),MPIS
- Part Number
- 1202510109
- Category
- Passive Distribution Boxes

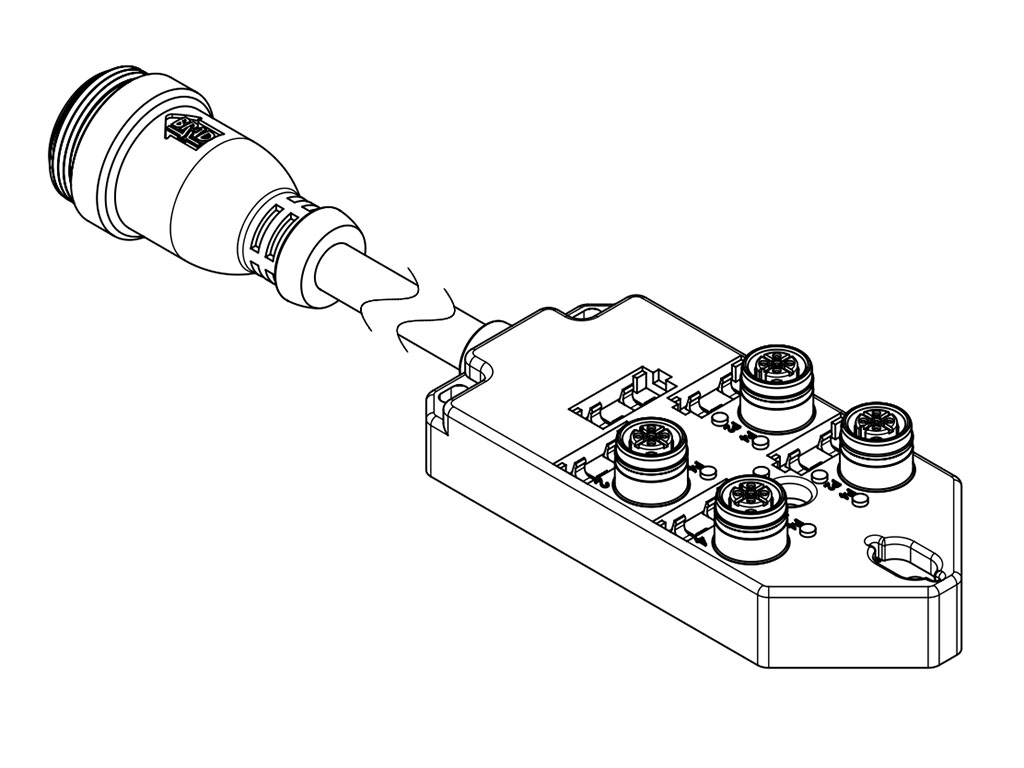

M12 Signal, A-Coded, MPIS Ultra-Lock Passive Distribution Box, Top-Mount, 5 Poles, 4 Ports, No LED Indicators, Home Run Cable with 19 Poles Mini-Change (7/8'') Connector, 0.30m (0.984') Length
Physical Specifications
- busIO
- Ultra-Lock (M12)
- cableConnectorOrientation
- Straight
- cableLength
- 0.30m
- homeRunCableLength
- 0.30m
- homeRunConnector
- Mini-Change - 19 pole
- homeRunInterface
- Cable - Side Entry
- keyway
- A-Coded
- ledIndicator
- None
- materialCableJacket
- TPU
- materialHousing
- PBT
- materialMetal
- Copper Alloy
- materialPlatingMating
- Gold
- netWeight
- 66.000/g
- orientation
- Top-Mount
- poles
- 5
- polesWired
- 5
- ports
- 4
- temperatureRangeOperating
- -25° to +85°C
- wireCableType
- TPU (WSOR)
Electrical Specifications
- currentMaximumPerContact
- 12.0A per module,4.0A per port
- functionalWiring
- Parallel
- voltageMaximum
- 10-30V DC
- wiringConfiguration
- Dual I/O per Port
Keywords: 120251-0109, 1202510109
Compliance & Certifications
- add1DisplayName
- GADSL/IMDS
- add1Status
- Not Relevant
- chinaRoHsDisplayName
- China RoHS
- chinaRoHsStatus
- Not Relevant
- elvDisplayName
- EU ELV
- elvStatus
- Compliant with Exemption 3 per 2000/53/EC
- hflhDisplayName
- Low-Halogen Status
- hflhStatus
- Not Relevant
- prop65DisplayName
- Prop65
- prop65Status
- Duty-To-Declare per California Proposition 65
- propRiskDisplayName
- PropRisk
- propRiskStatus
- Cancer,Developmental toxicity,Reproductive toxicity
- propSubDisplayName
- PropSub
- propSubStatus
- Lead compounds
- reachDisplayName
- REACH SVHC
- reachStatus
- Contains Lead per D(2022)9120-DC (17 Jan 2023)
- roHsDisplayName
- EU RoHS
- roHsStatus
- Compliant with Exemption 6(c) per EU 2015/863
- certMarkDocuments
- {displayName=CE - Declaration of Conformity, fileName=CER_4000406213_00_000.pdf, subType=CE},{displayName=UKCA - Declaration of Conformity, fileName=CER_4000410538_00_000.pdf, subType=UKCA}
