M12 Data Push-Pull,Ultra-Lock (M12),RJ45,Industrial Ethernet
- Part Number
- 1201088793
- Category
- Industrial Cable Assemblies

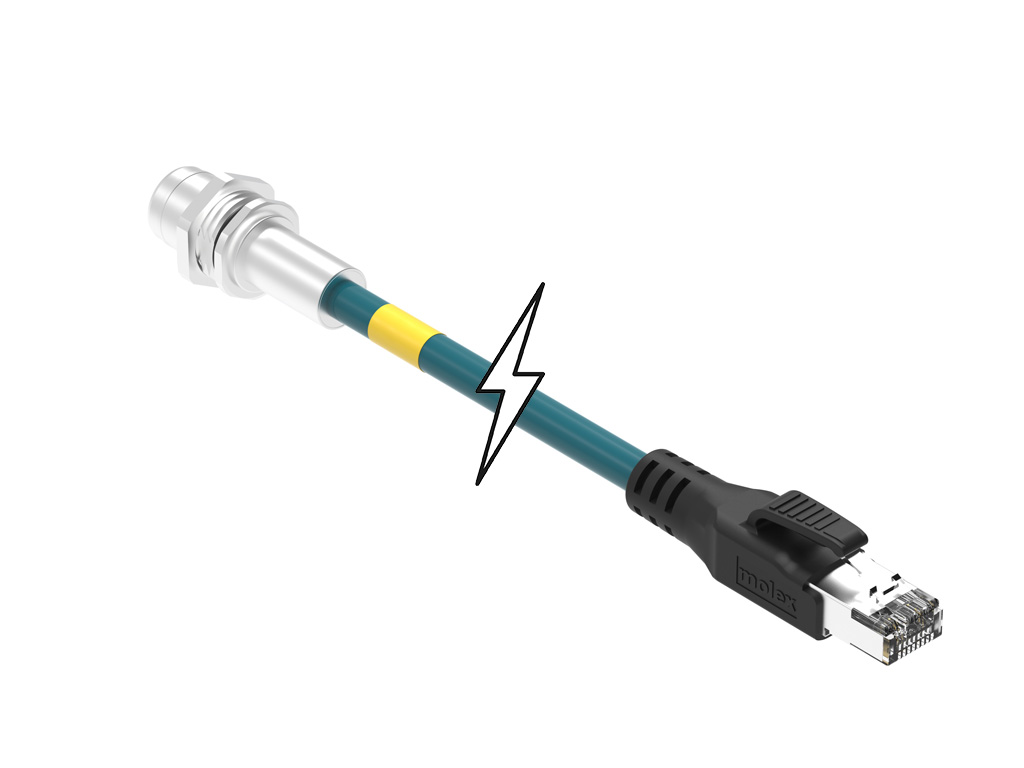

M12 Data, D-Coded, Ultra-Lock (M12) Receptacle to RJ-45 Double-Ended Cordset, 4 Poles, D-Coded, Female (Straight) to RJ-45 Male (Straight), 24 AWG, Teal Shielded TPU Cat5e Cable, 15.0m (49.21') Length
Physical Specifications
- cableDiameter
- 6.50mm (.256")
- cableLength
- 15.0m (49.21')
- colorCableJacket
- Teal
- connectorEndA
- Ultra-Lock (M12)
- connectorEndB
- RJ-45 (standard)
- couplingStyle
- Push-Pull,Threaded
- gender
- Female-Male
- keyway
- D-Coded
- ledIndicator
- None
- materialCableJacket
- TPU
- materialConnectorBody
- PUR,Polycarbonate
- materialContact
- Copper Alloy,Phosphor Bronze
- materialCouplingNut
- Nickel-plated Brass
- materialORing
- FPM | Nitrile Rubber
- materialPlatingMating
- Gold
- netWeight
- 1555.000/g
- orientation
- Straight to Straight
- poles
- 4
- temperatureRangeOperating
- -40° to +80°C
- wireCableType
- Shielded TPU
- wireSizeAwg
- 24
Electrical Specifications
- currentMaximumPerContact
- 1.5A
- voltageMaximum
- 60V
Keywords: 120108-8793, 1201088793
Compliance & Certifications
- add1DisplayName
- GADSL/IMDS
- add1Status
- Not Relevant
- chinaRoHsDisplayName
- China RoHS
- chinaRoHsStatus
- Not Relevant
- elvDisplayName
- EU ELV
- elvStatus
- Compliant with Exemption 3 per 2000/53/EC
- hflhDisplayName
- Low-Halogen Status
- hflhStatus
- Not Relevant
- prop65DisplayName
- Prop65
- prop65Status
- Not Reviewed per California Proposition 65
- reachDisplayName
- REACH SVHC
- reachStatus
- Contains Lead per D(2022)9120-DC (17 Jan 2023)
- roHsDisplayName
- EU RoHS
- roHsStatus
- Compliant with Exemption 6(c) per EU 2015/863
- certMarkDocuments
- {displayName=UKCA - Declaration of Conformity, fileName=CER_4000410538_00_000.pdf, subType=UKCA},{displayName=CE - Declaration of Conformity, fileName=CER_4000406213_00_000.pdf, subType=CE}
