M12 Data Push-Pull,Ultra-Lock (M12)
- Part Number
- 1201085020
- Category
- Circular Industrial Cordsets

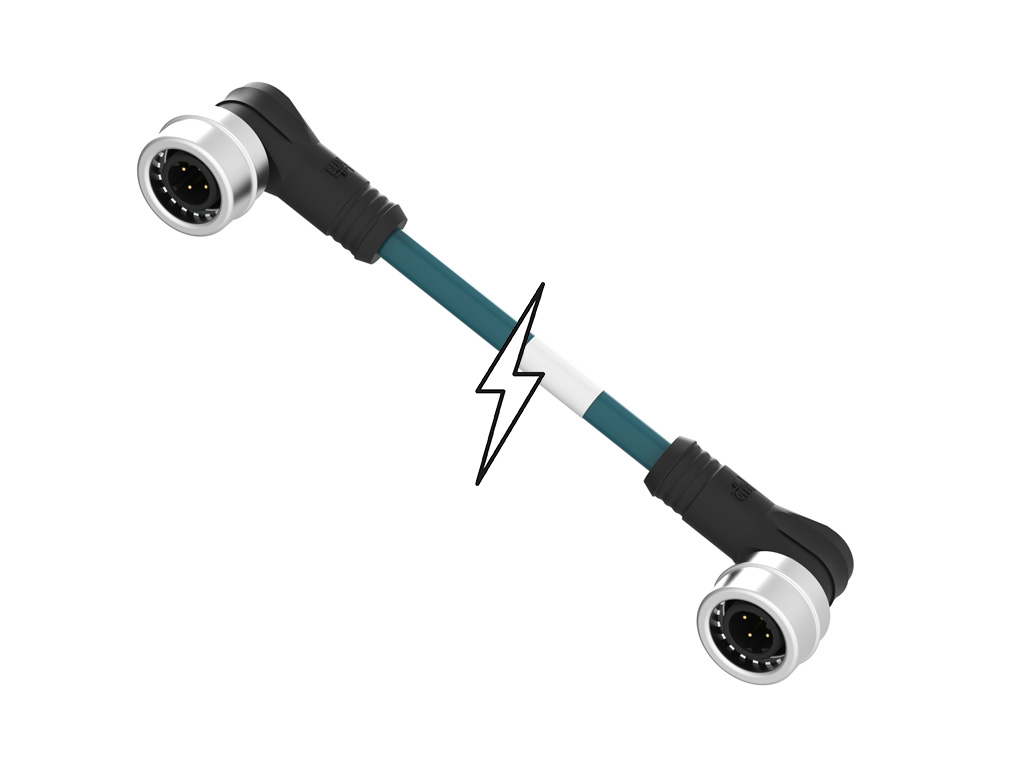

M12 Data, D-Coded, M12 Push-Pull Ultra-Lock Double Ended Cordset, 4 Poles, M12 Ultra-Lock Male (90°) to Male (90°), 2x2x24 AWG, Teal TPE Cable, 1.0m (3.28') Length
Physical Specifications
- cableDiameter
- 6.35mm (.250")
- cableLength
- 1.0m (3.28')
- colorCableJacket
- Teal
- connectorEndA
- M12 Data Push-Pull
- connectorEndB
- M12 Data Push-Pull
- couplingStyle
- Push-Pull
- gender
- Male-Male
- keyway
- D-Coded
- ledIndicator
- None
- materialCableJacket
- TPE
- materialConnectorBody
- PUR
- materialContact
- Copper Alloy
- materialCouplingNut
- Nickel-plated Brass
- materialORing
- Fluoro-elastomer
- materialPlatingMating
- Gold
- orientation
- 90° to 90°
- poles
- 4
- temperatureRangeOperating
- -25° to +75°C
- wireCableType
- Unshielded-Stranded
- wireSizeAwg
- 24
Electrical Specifications
- currentMaximumPerContact
- 1.5A
- voltageMaximum
- 125V
Keywords: 120108-5020, 1201085020
Compliance & Certifications
- chinaRoHsDisplayName
- China RoHS
- chinaRoHsStatus
- Not Reviewed
- elvDisplayName
- EU ELV
- elvStatus
- Not Reviewed
- hflhDisplayName
- Low-Halogen Status
- hflhStatus
- Not Reviewed
- reachDisplayName
- REACH SVHC
- reachStatus
- Not Reviewed
- roHsDisplayName
- EU RoHS
- roHsStatus
- Not Reviewed
