Backplane View
Click on each pin to change the designated pin type.
Click on the letters to the left to change all non-ground pin types in the row.
Click on the numbers above the columns to change all non-ground pin types in that
column.
You can drag the guide pin to move its position.
Warning: You have selected guide pins on both sides, but single module
configurations can only have a single guide pin. We have defaulted to
the left position.If you instead wish to have it in the right position,
select the "Required Specs" arrow above and choose the right guide position.
Total Length: Unknown
* The pin map is based off of our standard mapping, any changes will be reviewed by
Molex.
* To reset the pins to their original configuration, select the "Slot Pitch Options"
arrow above and re-select your slot pitch option.

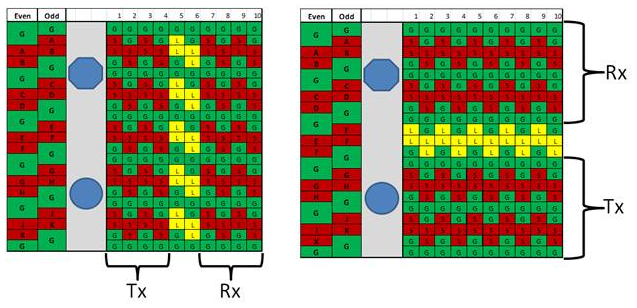

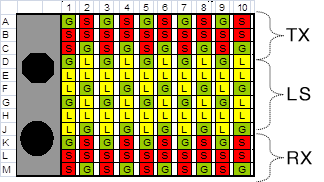

In high-speed designs, Molex does recommend, (where applicable), additional
isolation be considered.In the examples below, Molex illustrates 2-ways of
grouping Tx & Rx; adding additional isolation between the Tx and Rx
with the use of the Low-speed lines.By grouping Tx and Rx, customers can
realize further signal to noise margin enabling optimized connector performance.
